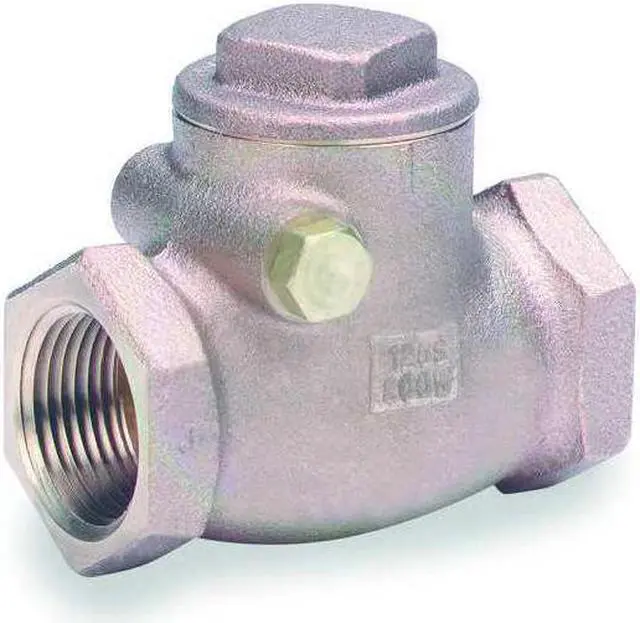

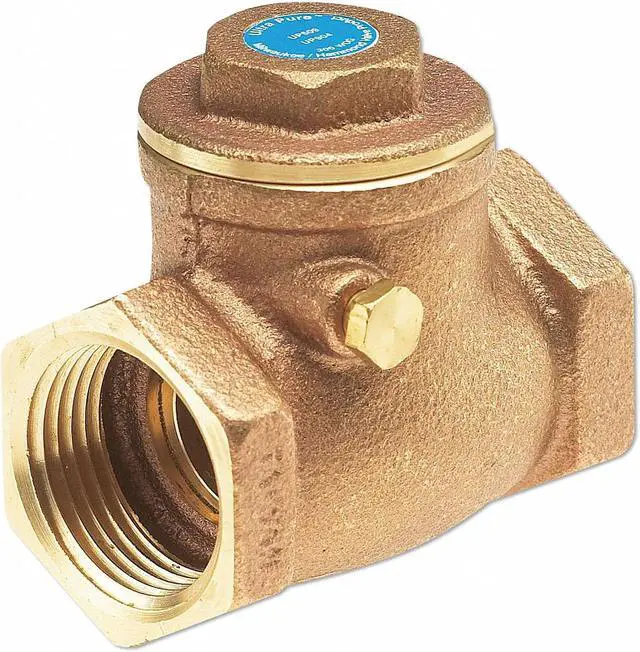

MILWAUKEE VALVE UP509 2 2 in IPT Low Lead Bronze Swing Check Valve

MILWAUKEE VALVE UP509 2 is a 2 in low lead bronze swing check valve with an inline body and FNPT x FNPT threaded connections. It is intended for one-way flow control in compatible gas, oil, and water applications, using a swing check mechanism for reverse-flow control. The valve has a full-flow design, a Cv of 131, and a rated flow of 131 gpm.

Key Features:

• 2 in low lead bronze swing check valve with inline body and horizontal mounting orientation
• Bronze body, check mechanism, seat, and seal
• FNPT x FNPT threaded female connections on both sides
• Maximum pressure rating: 300 psi non-shock CWP; 300 psi at 150 degrees F maximum water pressure
• Cracking pressure: 0.750 to 1.000 psi
• Operating temperature range: -20 degrees F to 200 degrees F
• Single full-flow design
• Cv: 131; rated flow: 131 gpm
• Overall length: 4.75 in; overall height: 2 13/16 in
• Standards: NSF 61, ANSI 372
• Valve series: UP509
