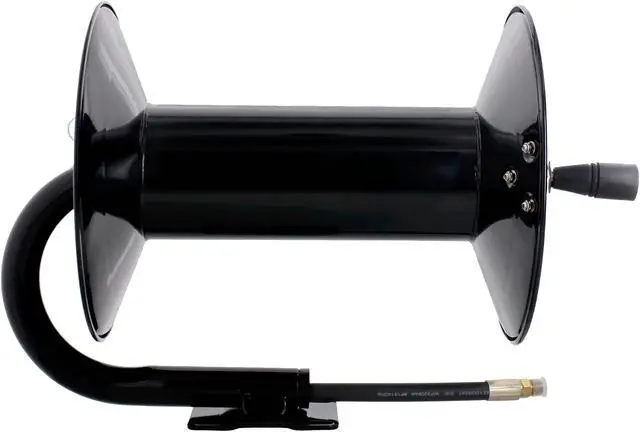

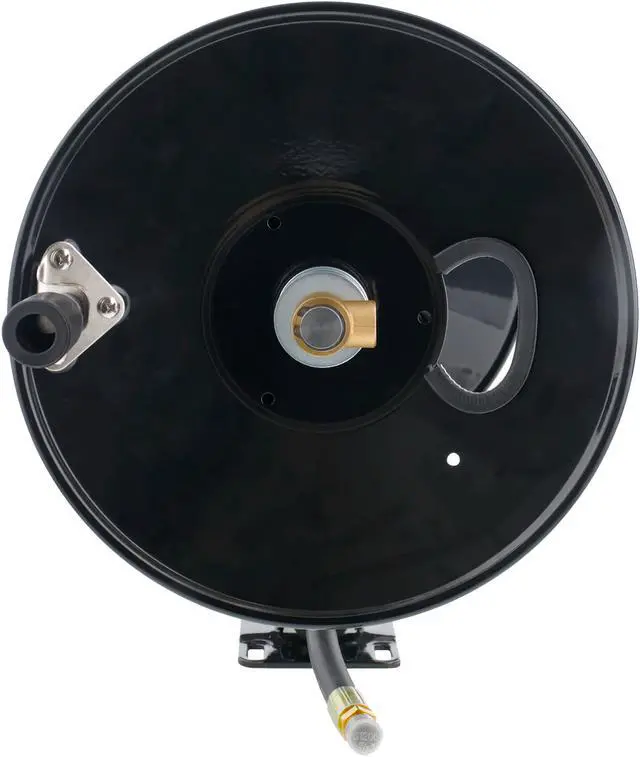

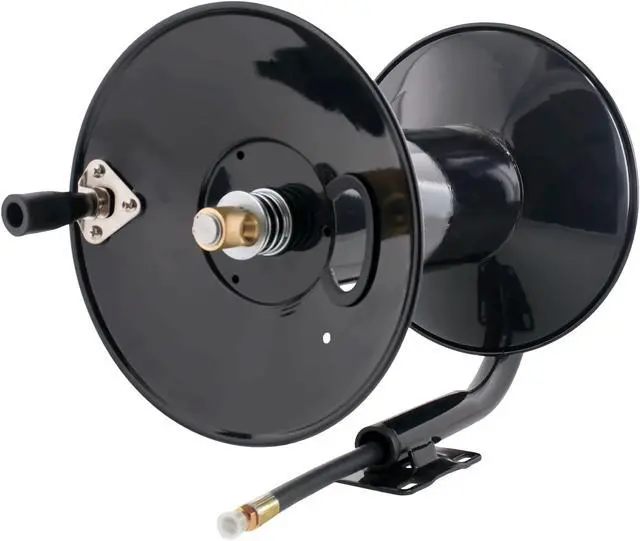

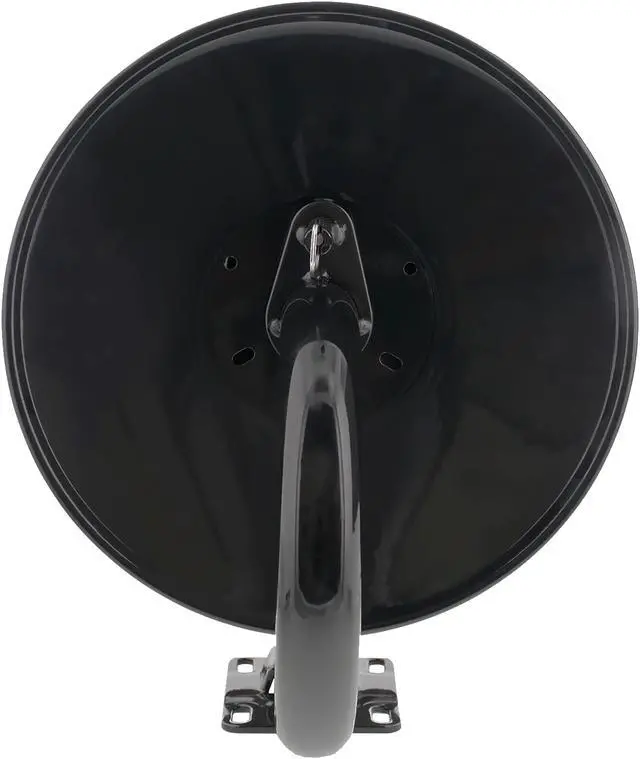

Steel Dragon Tools 4000 PSI 200' Black Powder Coated Pressure Washer Hose Reel

Features:

• Steel drum with a black powder-coat finish for long-lasting performance.


• Pre-drilled mounting bracket for attaching to pressure washer cart.


• Brass swivel with internal stainless-steel stem prevents hose tangling and resists rust and corrosion.


• Key-ring style drum lock pin prevents excess hose unravel.


• Spring tension brake helps control hose release.

Hardware Includes:

• One (1) Adjustable Strap that mounts to outside of hose reel for easy guiding of hose into drum of the reel.


• One (1) Extra nut & one (1) washer for fastening strap in place onto long screw alongside outside of reel for easy hose feed adjustment.

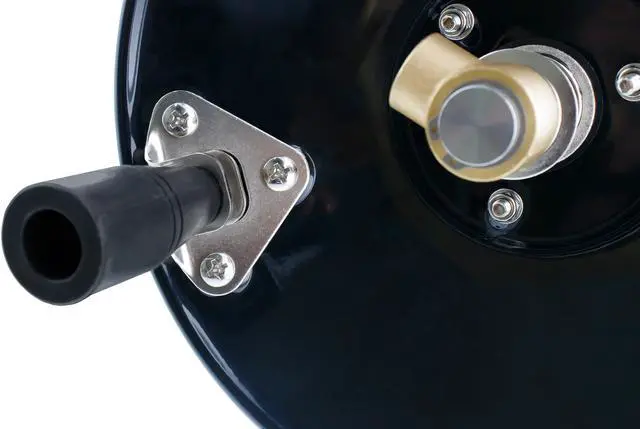

• One (1) hose reel crank handle.


• Three (3) Screws & Six (6) Washers for fastening crank handle to outside of hose reel drum.

Specifications:

• Max PSI: 4000 PSI


• Max Flow: 10.5 GPM


• Max Temperature: 300° F


• Threads:



  • Side Adapter: FNPT 3/8"


  • Bottom Adapter: MNPT: 3/8"






• Stores/Maintains: 200 FT. Hose


• Material: Steel


• Mounting Bracket Base Dimensions: 5-7/8” x 4-1/4” (with 1-1/4” x 7/16” pre-drilled holes)


• Center Drum Dimensions: 12-1/2” x 4-3/4” x 4-3/4”


• Outer Dimensions: 13-1/4” x 13-1/4”


• Overall Dimensions: 21-1/4”x 13-1/4” x 16-3/4”


• 3” long hard plastic reel control handle.


• 3” wide hose entry point into reel drum with rubber guard alongside edge, to protect hose from friction against drum when pulling and reeling in.
