12.6" NV126B5M-N41 12.6inch 1920X515 LCD Screen Work with 2 HD-MI Mini LCD Controller VS-RTD2556HM-V1
- 12.6" NV126B5M-N41 1920X515 LCD Screen: Brightness 250 cd/m² (Typ.) Contrast Ratio 1200:1 (Typ.) (TM)
- 2 Mini HD-MI LCD Board Work for EDP Interface LCD Screen(Help to notice that there is no USB and HD-MI connector in the packing list)
- Require Input Power Adapter:12Vdc More than 2A. (Help to notice there in no power adapter in the packing list) .Come In Standby Model When Not Input Signal Standby Model <1W

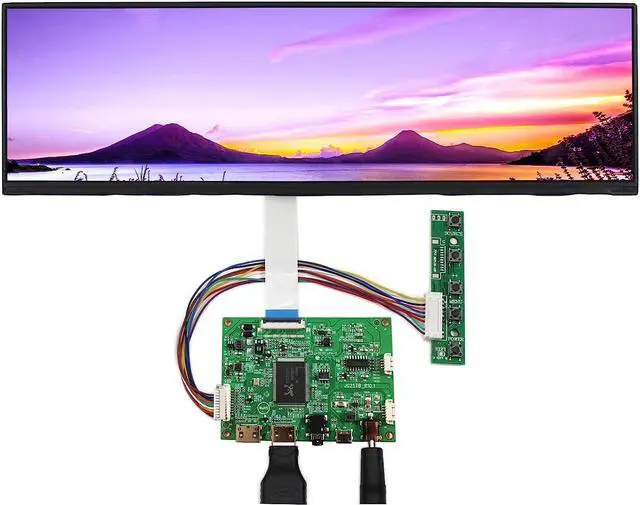

- Industrial 12.6" wide screen Fit for Car Monitor car display or DIY display screen monitor

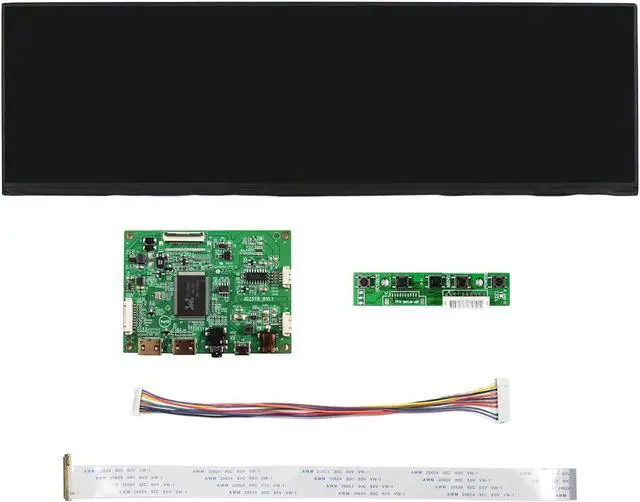

- Packing list:1× 2 HD-MI Mini LCD Controller VS-RTD2556HM-V1 1× 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen 1× Signal Cable 1× Keyboard With Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
12.6" NV126B5M-N41 1920X515 LCD Screen
Display New Mode ADS, Normally Black, Transmissive
Resolution 1920RGB)×515
Outline Size 315.61 × 94.02 × 5.3 (H×V×D)
Display Area 309.31 × 82.97 (H×V)
Brightness 250 cd/m² (Typ. )
Contrast Ratio 1200:1 (Typ. )
Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes), Connector, 40pins
Backlight WLED
Input Voltage 3.3V (Typ. )

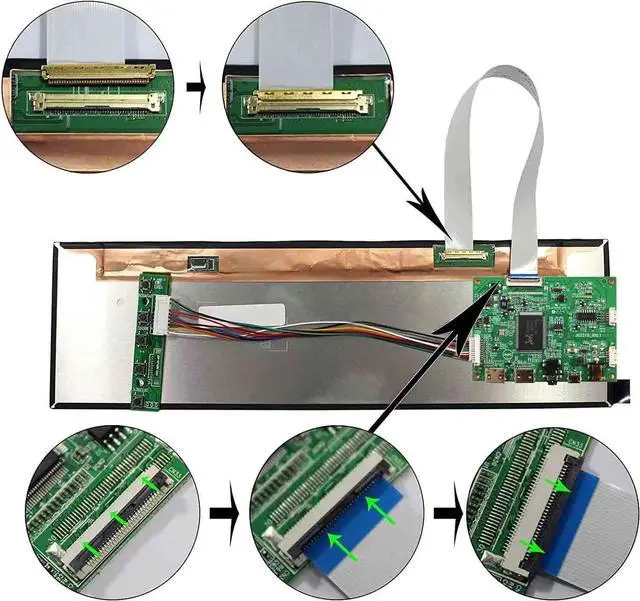

Mini HD-MI Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: 2HD-MI Mini
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL-
Language And So On Language: English French German Spanish Italian And So On

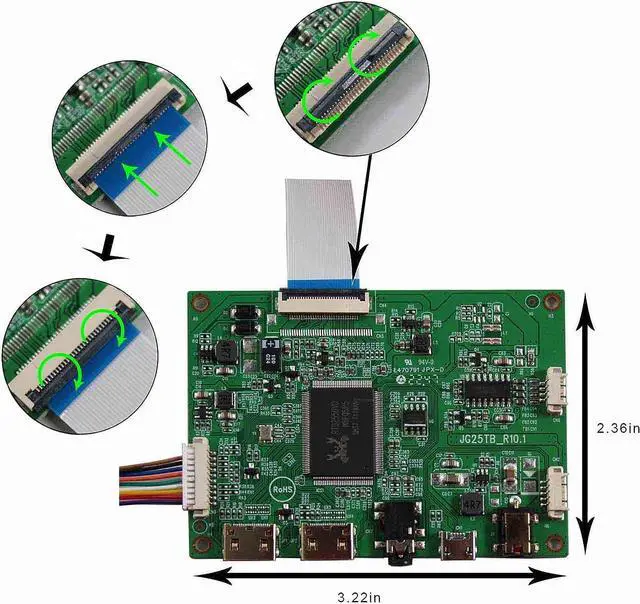

Board Size: 82mm x 60mm x 5mm

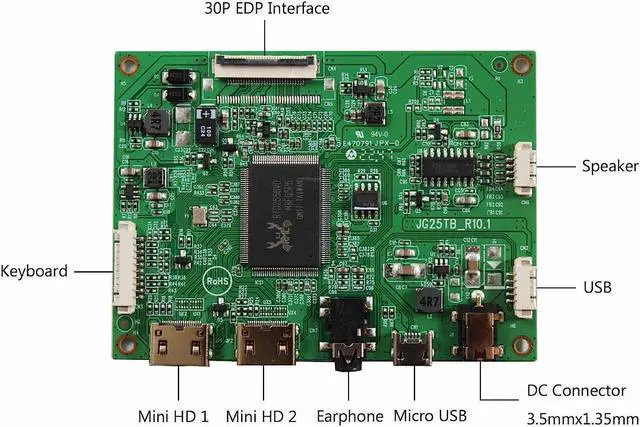

Tips: It can input power by DC connector or Micro USB
When use DC Connector as input. Power Supply Input Voltage 5Vdc- 12Vdc.
Micro USB output 5Vdc 500mA.
When use Micro USB as input. Power Supply Input Voltage 5Vdc.
When use 5Vdc as input. Power Supply Input current more than 2A. When use 12Vdc as input. Power Supply Input current more than 1A.
Display New Mode ADS, Normally Black, Transmissive
Resolution 1920RGB)×515
Outline Size 315.61 × 94.02 × 5.3 (H×V×D)
Display Area 309.31 × 82.97 (H×V)
Brightness 250 cd/m² (Typ. )
Contrast Ratio 1200:1 (Typ. )
Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes), Connector, 40pins
Backlight WLED
Input Voltage 3.3V (Typ. )
Mini HD-MI Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: 2HD-MI Mini
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL-
Language And So On Language: English French German Spanish Italian And So On
Board Size: 82mm x 60mm x 5mm
Details
of 12.6 '' LCD and BoardTips: It can input power by DC connector or Micro USB
When use DC Connector as input. Power Supply Input Voltage 5Vdc- 12Vdc.
Micro USB output 5Vdc 500mA.
When use Micro USB as input. Power Supply Input Voltage 5Vdc.
When use 5Vdc as input. Power Supply Input current more than 2A. When use 12Vdc as input. Power Supply Input current more than 1A.
