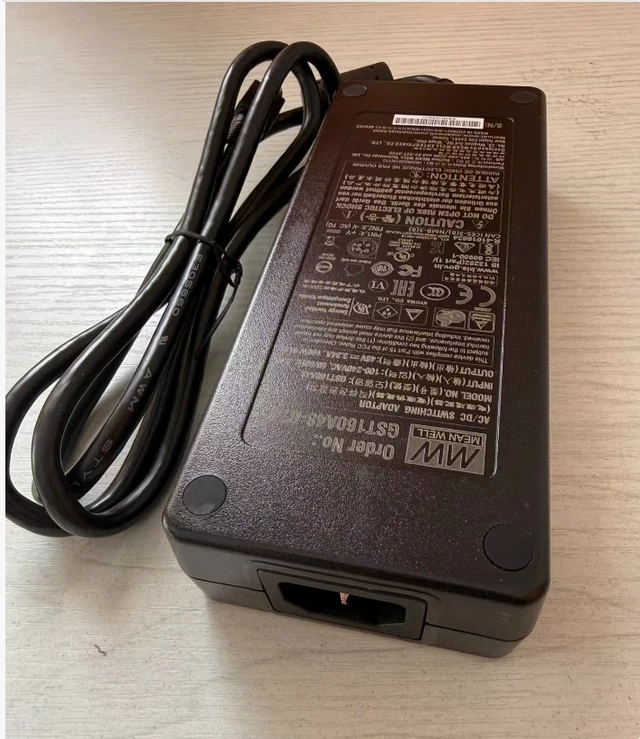

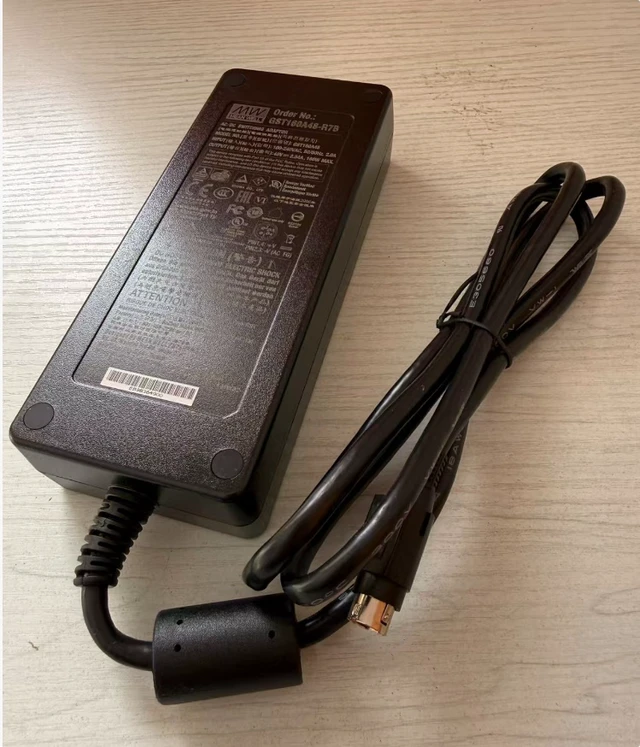

Mean Well GST160A48-R7B 160W 48V 3.34A AC-DC Industrial Power Supply Level VI Efficiency, DIN-4 Connector, -30°C to +70°C, 3-Year Warranty
- Reliable 160W Industrial Power Delivers stable 48V DC at 3.34A with 94% efficiency. Perfect for industrial equipment, telecommunications, LED lighting, and automation systems requiring consistent, high-quality power.
- Universal AC Input & Global Compatibility Wide input range of 85~264VAC / 120~370VDC with active PFC function. Class I power unit with IEC320-C14 inlet (3-pin grounding) works anywhere in the world.
- Level VI Energy Efficiency Meets EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP, and CoC Version 5 standards. No-load power consumption less than 0.15W reduces standby energy waste.
- Rugged & Reliable Design Fanless cooling with -30°C to +70°C wide operating temperature. Fully enclosed plastic case with built-in protections: short circuit, overload, over voltage, and over temperature.
- 3-Year Warranty & Full Safety Certifications Includes BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM approvals. 3KVAC reinforced I/O isolation for enhanced safety. Backed by 30-day return and 3-year manufacturer warranty.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Why You Need This Power Supply
In industrial, telecommunications, and automation environments, reliable power is non-negotiable. A failing or under-specified power supply can cause equipment downtime, data loss, or even hardware damage. Many generic power supplies lack the efficiency, safety certifications, and temperature range required for demanding applications.
The Mean Well GST160A48-R7B solves this problem delivering stable, regulated 48V DC power with 94% efficiency and full industrial-grade protection. Designed and manufactured by Mean Well, a global leader in power supplies with over 40 years of industry experience.
Designed for Industrial & Commercial Applications
This power supply is ideal for:
Industrial automation and control systems
Telecommunications equipment
LED lighting and signage
Test and measurement instruments
Security and surveillance systems
Office and ITE (Information Technology Equipment) applications
Key
Specification Detail
Manufacturer Mean Well
Series GST160A
Part Number GST160A48-R7B
Output Power 160W
Output Voltage 48V DC
Output Current 3.34A
Input Voltage 85~264VAC / 120~370VDC
Input Frequency 47~63Hz
Efficiency Up to 94%
No-Load Power <0.15W
Output Connector 4-Pin DIN (KYCON KPPX-4P compatible)
Cord Length 1.2 m ( 47.2" )
Dimensions 175 × 72 × 35 mm ( 6.89 × 2.83 × 1.38 in)
Weight Approx. 680-711g
Operating Temp. -30°C to +70°C
Cooling Fanless (natural convection)
Warranty 3 Years
What a Cheap or Inadequate Power Supply Costs You
Issue Impact
Unstable voltage Equipment malfunctions, data corruption, or hardware damage
Low efficiency Higher electricity bills and excess heat generation
Poor temperature range Power supply fails in hot industrial environments
Lack of certifications Compliance issues for commercial or export applications
Short lifespan Frequent replacements increase total cost of ownership
What This Power Supply Delivers
Feature Benefit
94% Efficiency Lower operating costs and less heat generation
Wide Input Range Works globally without voltage selection switches
-30°C to +70°C Reliable operation in extreme environments
Full Protections Short circuit, overload, over voltage, over temperature
Class I Design Grounded for enhanced safety
Level VI Efficiency Complies with latest energy standards
Safety & Quality
Every Mean Well GST160A48-R7B power supply is built with premium components and undergoes rigorous quality control.
Key certifications include:
Certification Standard
Safety EN62368-1, BSMI CNS14336, CCC GB 4943.1, PSE J62368-1, BIS IS13252, KC K60950-1, EAC TP TC 004
Efficiency Level VI, EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP, CoC Version 5
Isolation 3KVAC reinforced I/O isolation
Installation Note
This is a desktop-style adapter not wall-mountable.
AC input cord is not included requires a standard IEC320-C14 3-conductor power cord.

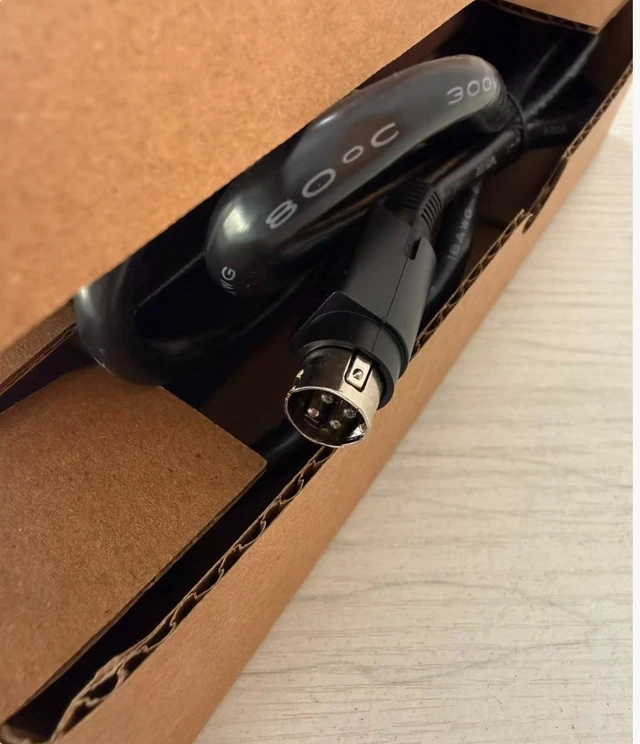

Output connector is a 4-pin DIN male (KYCON KPPX-4P type). Mating connector (customer side) is KYCON KPJX-CM-4S equivalent.
Ensure adequate ventilation fanless design relies on natural convection cooling.
Operating temperature range: -30°C to +70°C. Derating may apply at extreme temperatures.
What's Included
1 x Mean Well GST160A48-R7B Power Supply (160W, 48V, 3.34A )
In industrial, telecommunications, and automation environments, reliable power is non-negotiable. A failing or under-specified power supply can cause equipment downtime, data loss, or even hardware damage. Many generic power supplies lack the efficiency, safety certifications, and temperature range required for demanding applications.
The Mean Well GST160A48-R7B solves this problem delivering stable, regulated 48V DC power with 94% efficiency and full industrial-grade protection. Designed and manufactured by Mean Well, a global leader in power supplies with over 40 years of industry experience.
Designed for Industrial & Commercial Applications
This power supply is ideal for:
Industrial automation and control systems
Telecommunications equipment
LED lighting and signage
Test and measurement instruments
Security and surveillance systems
Office and ITE (Information Technology Equipment) applications
Key
Specifications
Specification Detail
Manufacturer Mean Well
Series GST160A
Part Number GST160A48-R7B
Output Power 160W
Output Voltage 48V DC
Output Current 3.34A
Input Voltage 85~264VAC / 120~370VDC
Input Frequency 47~63Hz
Efficiency Up to 94%
No-Load Power <0.15W
Output Connector 4-Pin DIN (KYCON KPPX-4P compatible)
Cord Length 1.2 m ( 47.2" )
Dimensions 175 × 72 × 35 mm ( 6.89 × 2.83 × 1.38 in)
Weight Approx. 680-711g
Operating Temp. -30°C to +70°C
Cooling Fanless (natural convection)
Warranty 3 Years
What a Cheap or Inadequate Power Supply Costs You
Issue Impact
Unstable voltage Equipment malfunctions, data corruption, or hardware damage
Low efficiency Higher electricity bills and excess heat generation
Poor temperature range Power supply fails in hot industrial environments
Lack of certifications Compliance issues for commercial or export applications
Short lifespan Frequent replacements increase total cost of ownership
What This Power Supply Delivers
Feature Benefit
94% Efficiency Lower operating costs and less heat generation
Wide Input Range Works globally without voltage selection switches
-30°C to +70°C Reliable operation in extreme environments
Full Protections Short circuit, overload, over voltage, over temperature
Class I Design Grounded for enhanced safety
Level VI Efficiency Complies with latest energy standards
Safety & Quality
Every Mean Well GST160A48-R7B power supply is built with premium components and undergoes rigorous quality control.
Key certifications include:
Certification Standard
Safety EN62368-1, BSMI CNS14336, CCC GB 4943.1, PSE J62368-1, BIS IS13252, KC K60950-1, EAC TP TC 004
Efficiency Level VI, EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP, CoC Version 5
Isolation 3KVAC reinforced I/O isolation
Installation Note
This is a desktop-style adapter not wall-mountable.
AC input cord is not included requires a standard IEC320-C14 3-conductor power cord.
Output connector is a 4-pin DIN male (KYCON KPPX-4P type). Mating connector (customer side) is KYCON KPJX-CM-4S equivalent.
Ensure adequate ventilation fanless design relies on natural convection cooling.
Operating temperature range: -30°C to +70°C. Derating may apply at extreme temperatures.
What's Included
1 x Mean Well GST160A48-R7B Power Supply (160W, 48V, 3.34A )
