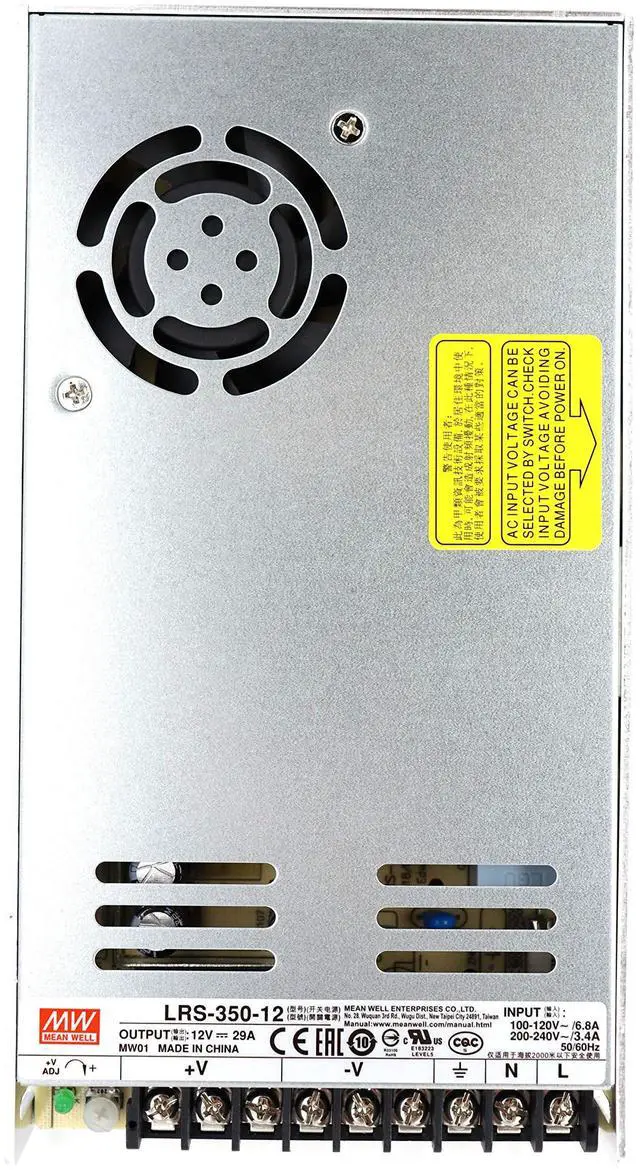

LRS-350-12 AC/DC Switching Power Supply 348W 12V 29Amp Single Output Provided by KAINSC Products

Ensure optimal performance of your electronic device with the use of this LRS-350-12 AC to DC power supply from MEAN WELL.

It has a voltage of 12 V and maximum output power of 348 W.

This part's single output can handle a current up to 29 A.

This part has a temperature range of -30 °C to 70 °C.

EU RoHS: Compliant

ECCN (US):EAR99

Type:Switching

Style:Enclosed

Input/Output Type:AC/DC

Number of Outputs:1

Output Type:Fixed

Output Voltage (V):12

Output Current (A):29

Output Power (W):348

Minimum AC Input Voltage (V):90

Maximum AC Input Voltage (V):264

Minimum DC Input Voltage (V):240

Maximum DC Input Voltage (V):370

Minimum Isolation Voltage:3000VAC

Line Regulation:0.5%

Load Regulation:1%

Maximum Input Current (A):6.8(Typ)

Input Frequency (Hz):47 to 63

Tolerance (%):±1.5

Efficiency (%):85(Typ)

Configurable:No

Input Connector Type:Screw Terminal Block

Output Connector Type:Screw Terminal Block

Power Indicator:Yes

Ripple & Noise:150mV(Max)

Medical:No

Minimum Operating Temperature (°C):-30

Maximum Operating Temperature (°C):70

Product Weight (g):760

Pin Count:9

Mounting:Chassis

Package Height:30

Package Length:215

Package Width:115
