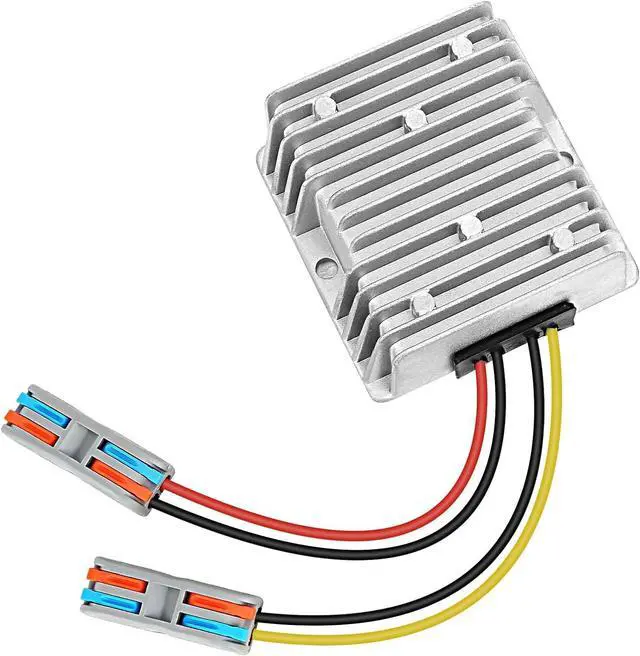

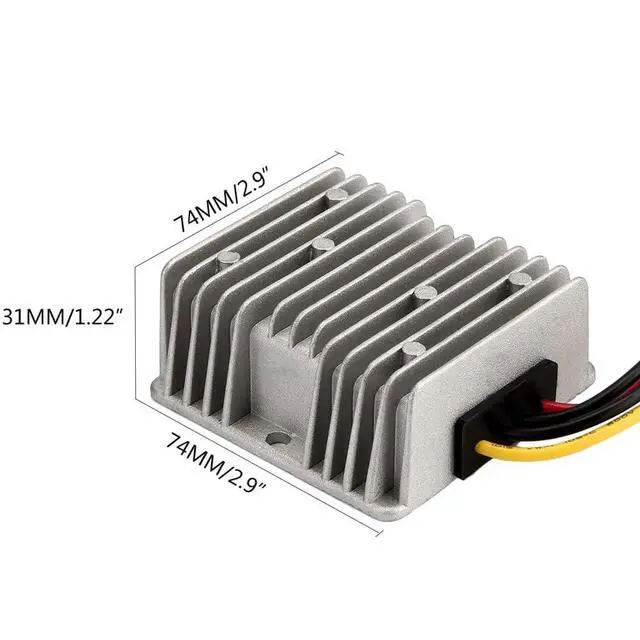

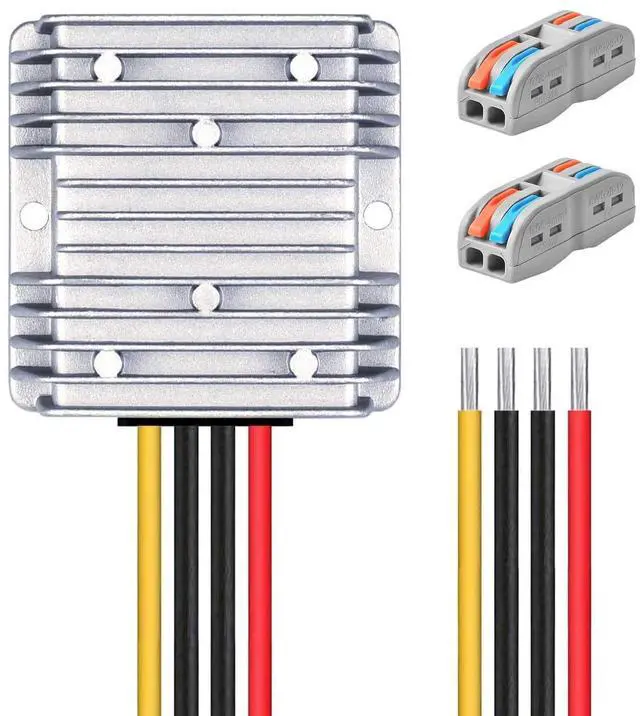

DC 12V Step Up to 48V 6A Boost Converter 288W DC Voltage Regulator Power Converter Transformer for Golf Cart Club Car Solar System
- 12V to 48V DC Step UP ConverterInput: DC 12V(9V - 16V) ,Output voltage: 48V DC ,Line output current: 6A 288W
- Upgrade Synchronous Rectification TechnologyEfficient Conversion, The conversion efficiency is as high as 96%.this upgrade make our Power Supply Converter Regulator widely used on Bus, CMB, large trucks, motor, GPS navigation, solar power, photovoltaic energy, bus display, taxi advertising screen, car audio, LCD TV, LED, intercom and monitoring system.NOTE: NOT for Starlink series

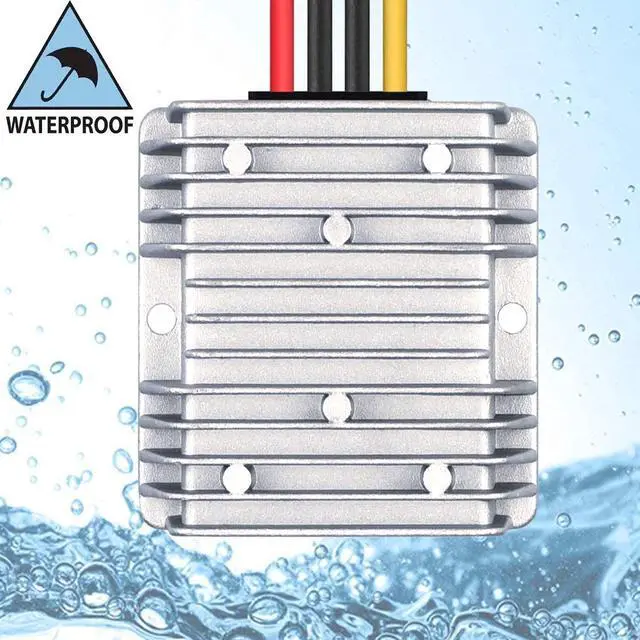

- IP68 Waterproof GradeDesigned with aluminum shell and silicone sealed, Excellent waterproof, dustproof, explosion-proof, shock-resistant properties and adapt to a variety of harsh environment.
- SMT ProcessFR-4 Multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability.
- Secure Your DevicesDC Step UP Converter Built-in smart chips, offering over/under voltage input, overload, overhead, and short circuit full protection your 12V electronics from the voltage unstability or peak surge.
+
+
Overview
Specs
Reviews
Application:
12V DC as input power to 48V DC appliances as output load.
Specifications:
Input Rated Voltage: 12V DC
Input Voltage Range: 9-16V DC
Output voltage: 48V 6A
Output Rated Power: 288W
Efficiency: 97% (half load); 95% (full load)
Ripple: 100mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C
Weight: 260g
Features:
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC12V to DC 48V step-down converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
