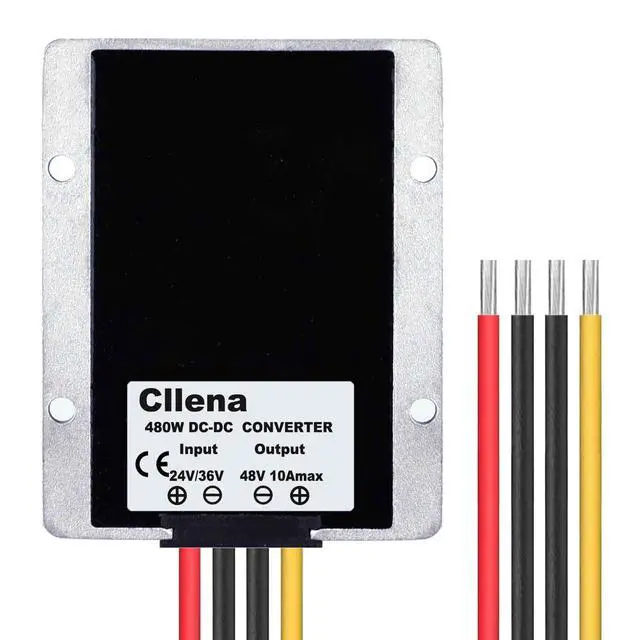

DC/DC 24V 36V to 48V Boost Converter 10A 480W Step Up Voltage Regulator Module Car Power Supply Voltage Transformer (Input 20V-42V)

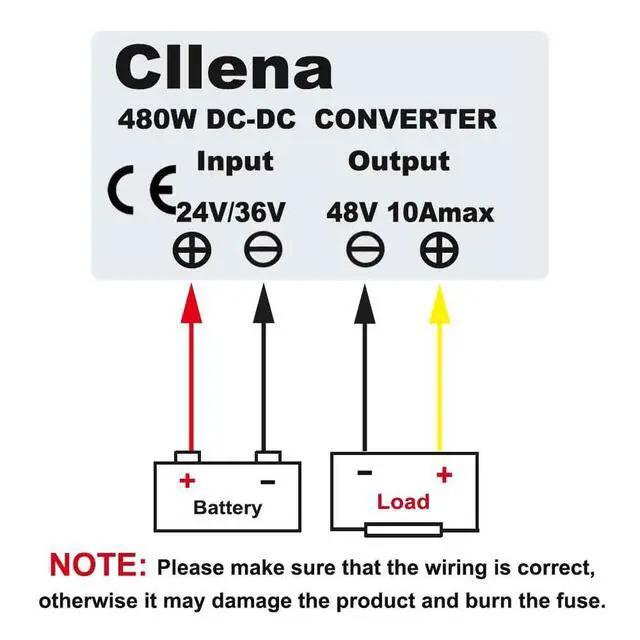

Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to BAT-

Note:

* Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine.

* Never charge the battery. Keep good air convection.

* Never reverse the polarity.

* Use the enough big cable to avoid the voltage drop.

Application:

24V/36V DC battery as input power to 48V DC appliances as output load.

Specifications:

Input Rated Voltage: 24V/36V DC

Input Voltage Range: 20V-42V DC

Output voltage: 48V DC

Output Current: 10 Amp

Output Rated Power: 480W

Efficiency: 97% (half load); 95% (full load)

Ripple: 200mVp

Line Regulation: ±0.2%

Load Regulation: ±0.2%

Voltage Accuracy: ±1.5%

Enclosures: IP68

Case Operating Temperature: -40~85°C

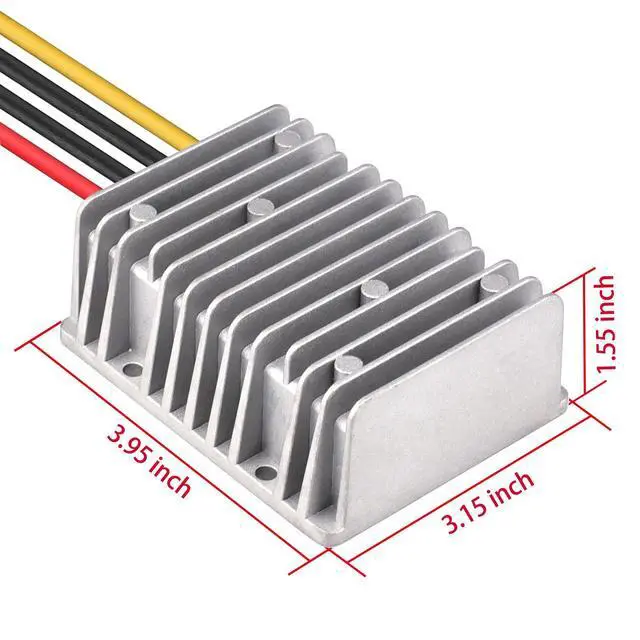

Weight: 550g

Features:

1. 100% full power and stable current output, non-isolated module.

2. Industry grade DC 24V 36V to DC 48V step up converter, efficiency up to 95%.

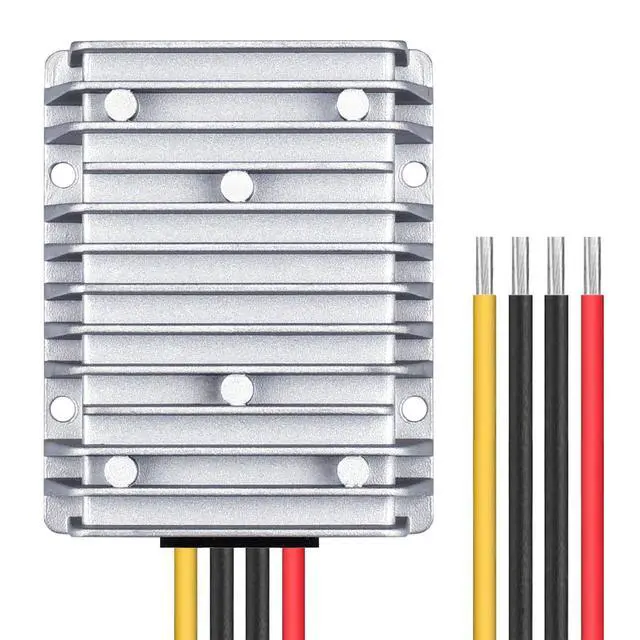

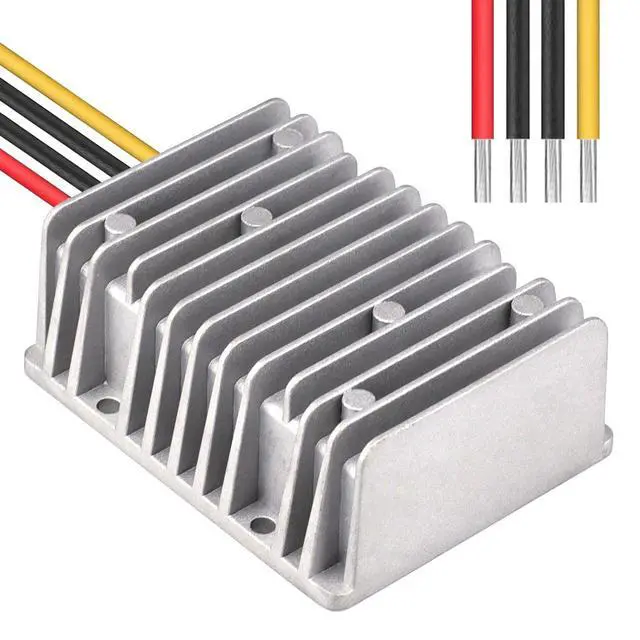

3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.

4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.

5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.

Package included:

1 x DC 24V/36V - 48V 10A Step up Converter

Questions:

How to choose the correct current for loads?

For example, if the max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads according to international standard.

If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
