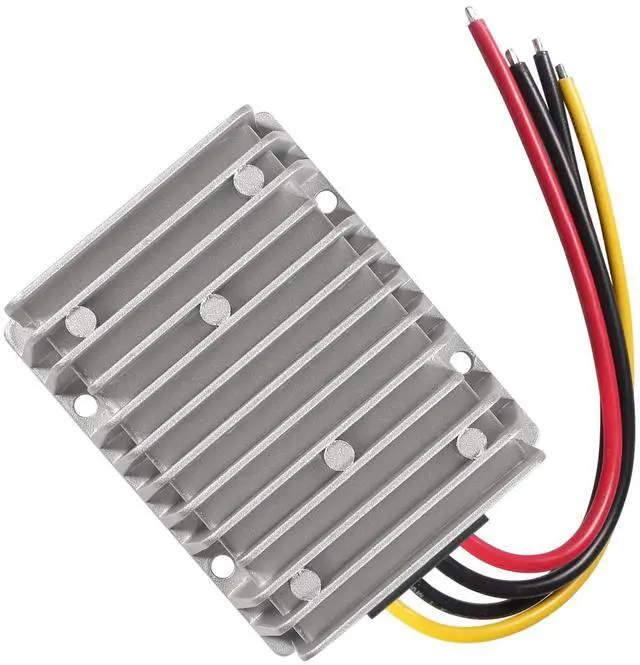

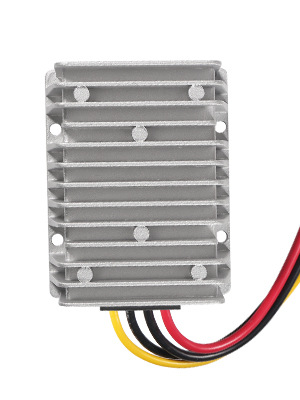

DC 8V-40V to 13.8V 25A Automatic Buck Boost Converter Step Down/Up Regulator Voltage Reducer Converter Waterproof Regulated DC Power Supply for Golf Cart Club Car LED Light
High Conversion Efficiency: Synchronization Rectification Technology, Multiple Intelligent Protection Function with High Conversion Efficiency and Stability. The Conversion Efficiency May Reach 95%
High Quality:DC Voltage Reducer Converter Come With Aluminum Shell and Silicone Sealed Design, Which Help Waterproof, Anti-Shock, Anti-Humidity ,Dust-Proof and More Durable
Wide Application: DC Voltage Converter Widely Used for Large Trucks, Golf Cart, Club Car, Taxi Radio,LCD TV, Advertising Screen, LED Strip Lights, Monitoring System, Emu, Car Audio, Electronic Systems and DIY etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DC Voltage Reducer Converter:
Waterproof
Full Power
Stable Output Voltage
High Conversion Efficiency
Good Heat Dissipation
Application:
Vehicles/Motor/Fan
LED Display
Photovoltaic Panel
Security Systems
Telecommunications
Medical Equipments
High Quality
Longer Service Life
Strong Anti-Interference
DC 8V-40V to 13.8V 25A Converter
Specifications:
Input Voltage Range: DC 8V-40V
Output Voltage: DC 13.8V (non-adjustable)
Output Current: 25A
Output Power 345W
Efficiency: 97% (Half Load); 95% (Full Load)
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
DC Power Converter
Assembled with Smart Chip, Features Over-Current /Over-Load /Low-Load /Short-Circuit /Over-Heat Intelligent Protection

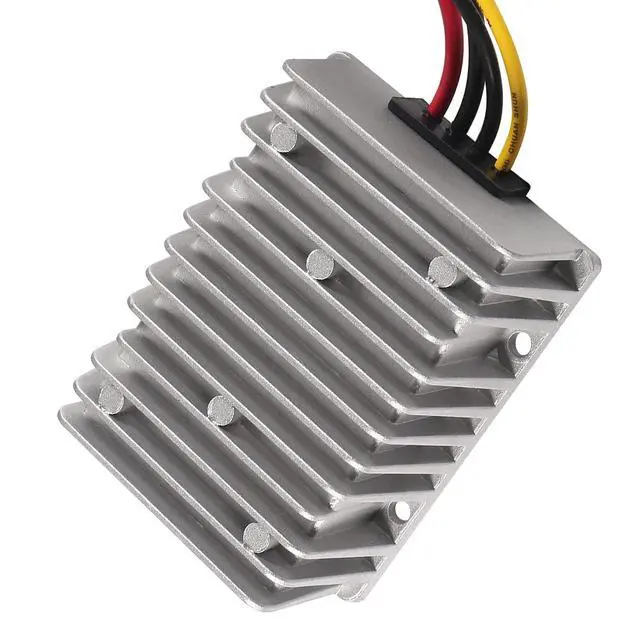

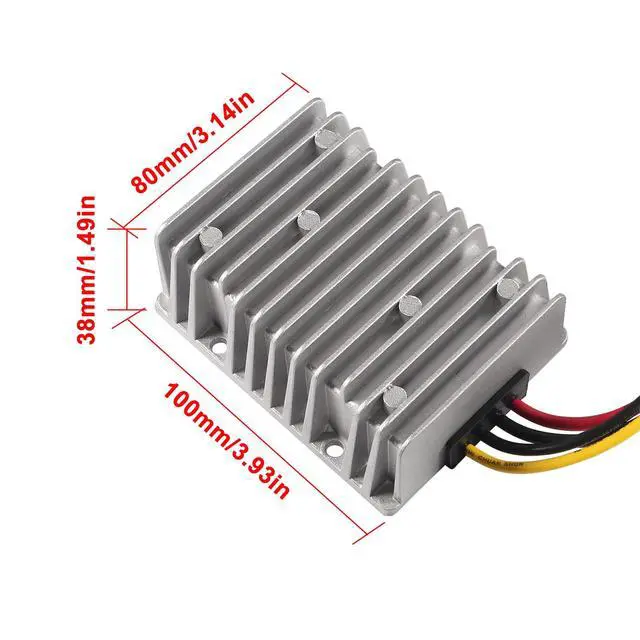

Compact Aluminium Shell with Epoxy Potting, 100% Waterproof, Anti-Dust, Anti-Shock Protection and Better Heat Dissipation
Protections
Over-Current Protection: if the output load current is too large, the power module will not be damaged
Short-Circuit Protection: Under normal use, the converter output is short-circuited to the ground instantaneously, without causing damage to the power converter
Over-Voltage Protection: The output voltage of the power supply is higher than the set value, the protection works, and the load electrical appliances are not damaged
Over-Temperature Protection: The working environment temperature of the converter can be -40?~85?, when the case temperature is higher than 85?, the converter will automatically protect
Precautions:

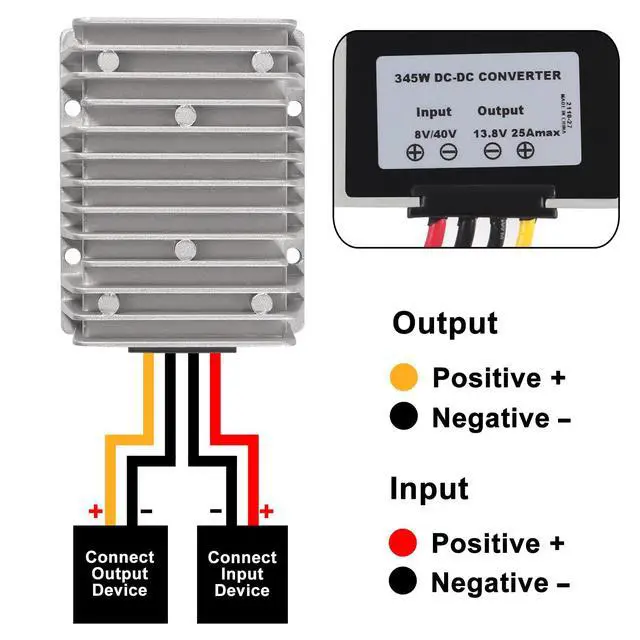

1. Please connect and install correctly, and confirm that the positive and negative polarities of the input and output are correct before powering on and working.
2. The battery power at the input end is within the input voltage range and the power is sufficient to ensure the normal operation of the power converter
3. Please install in an environment with good ventilation and heat dissipation, and avoid heat accumulation leading to over-temperature protection of the power converter
DC Voltage Reducer Converter:
Waterproof
Full Power
Stable Output Voltage
High Conversion Efficiency
Good Heat Dissipation
DC 8V-40V to 13.8V 25A Converter
Application:
Vehicles/Motor/Fan
LED Display
Photovoltaic Panel
Security Systems
Telecommunications
Medical Equipments
High Quality
Longer Service Life
Strong Anti-Interference
Specifications:
Input Voltage Range: DC 8V-40V
Output Voltage: DC 13.8V (non-adjustable)
Output Current: 25A
Output Power 345W
Efficiency: 97% (Half Load); 95% (Full Load)
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
DC Power Converter
Assembled with Smart Chip, Features Over-Current /Over-Load /Low-Load /Short-Circuit /Over-Heat Intelligent Protection
Compact Aluminium Shell with Epoxy Potting, 100% Waterproof, Anti-Dust, Anti-Shock Protection and Better Heat Dissipation
Protections
Over-Current Protection: if the output load current is too large, the power module will not be damaged
Short-Circuit Protection: Under normal use, the converter output is short-circuited to the ground instantaneously, without causing damage to the power converter
Over-Voltage Protection: The output voltage of the power supply is higher than the set value, the protection works, and the load electrical appliances are not damaged
Over-Temperature Protection: The working environment temperature of the converter can be -40?~85?, when the case temperature is higher than 85?, the converter will automatically protect
Precautions:
1. Please connect and install correctly, and confirm that the positive and negative polarities of the input and output are correct before powering on and working.
2. The battery power at the input end is within the input voltage range and the power is sufficient to ensure the normal operation of the power converter
3. Please install in an environment with good ventilation and heat dissipation, and avoid heat accumulation leading to over-temperature protection of the power converter
DC 8V-40V to 13.8V 25A Automatic Buck Boost Converter Step Down/Up Regulator Voltage Reducer Converter Waterproof Regulated DC Power Supply for Golf Cart Club Car LED Light
