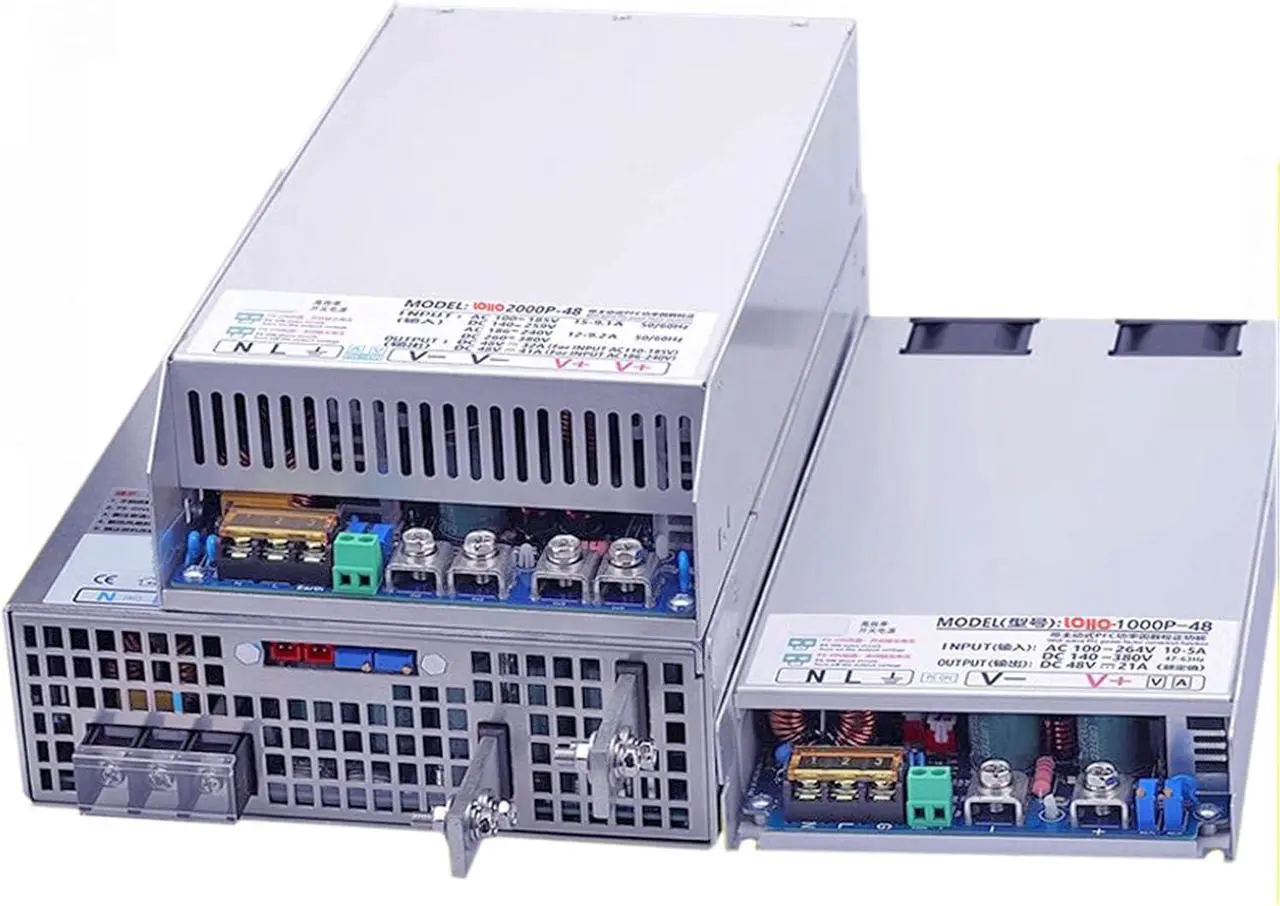

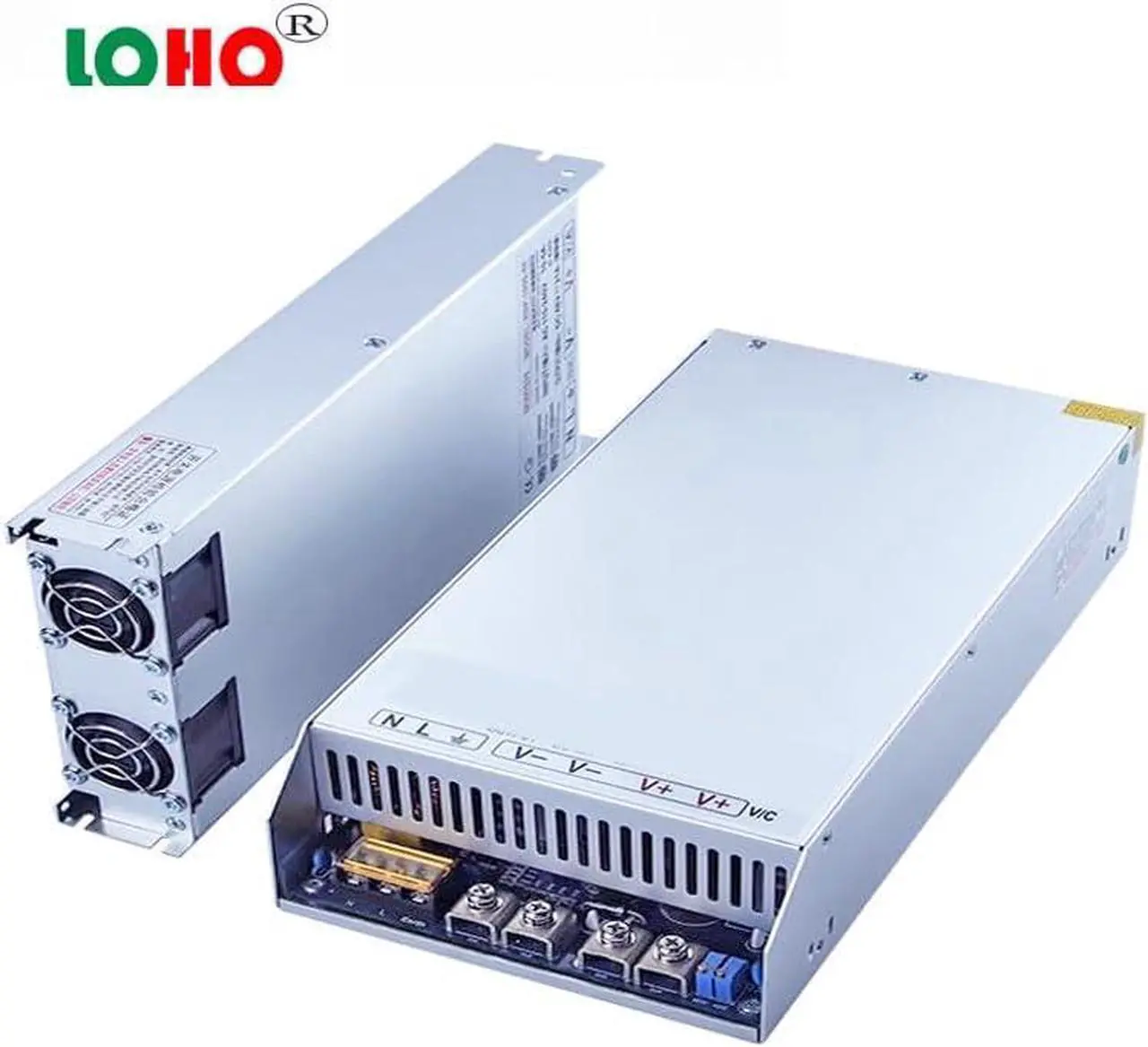

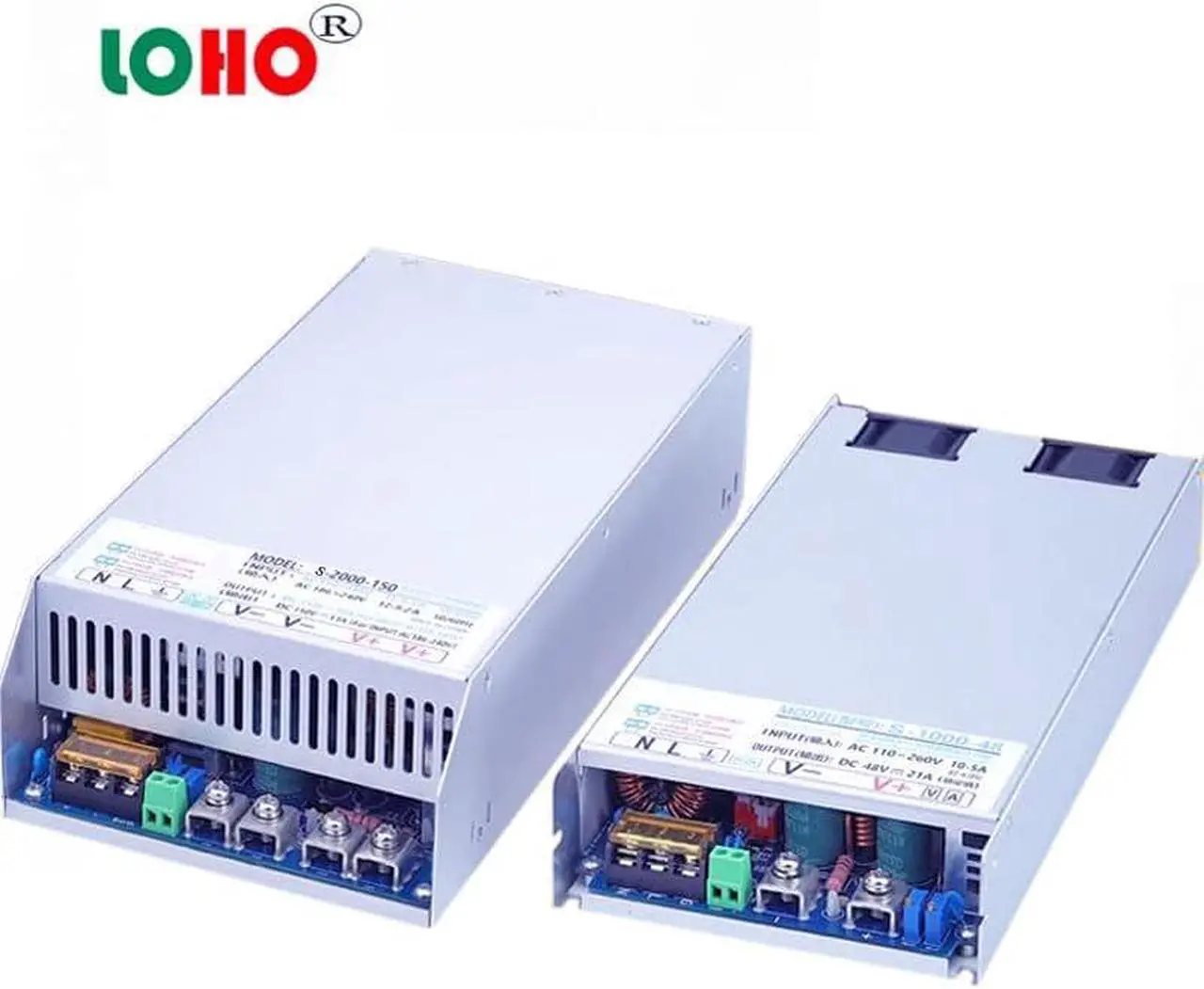

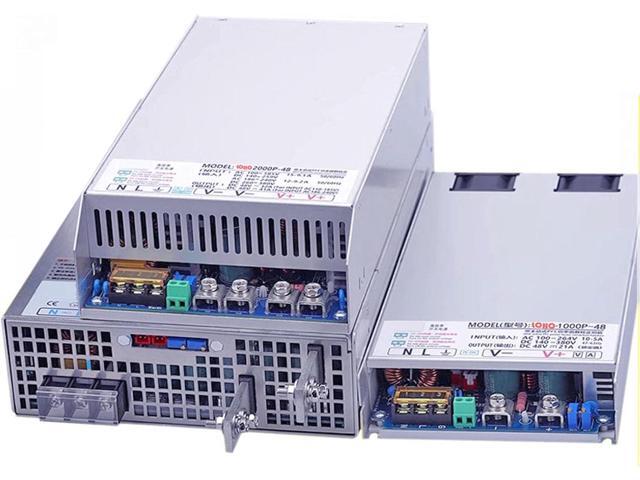

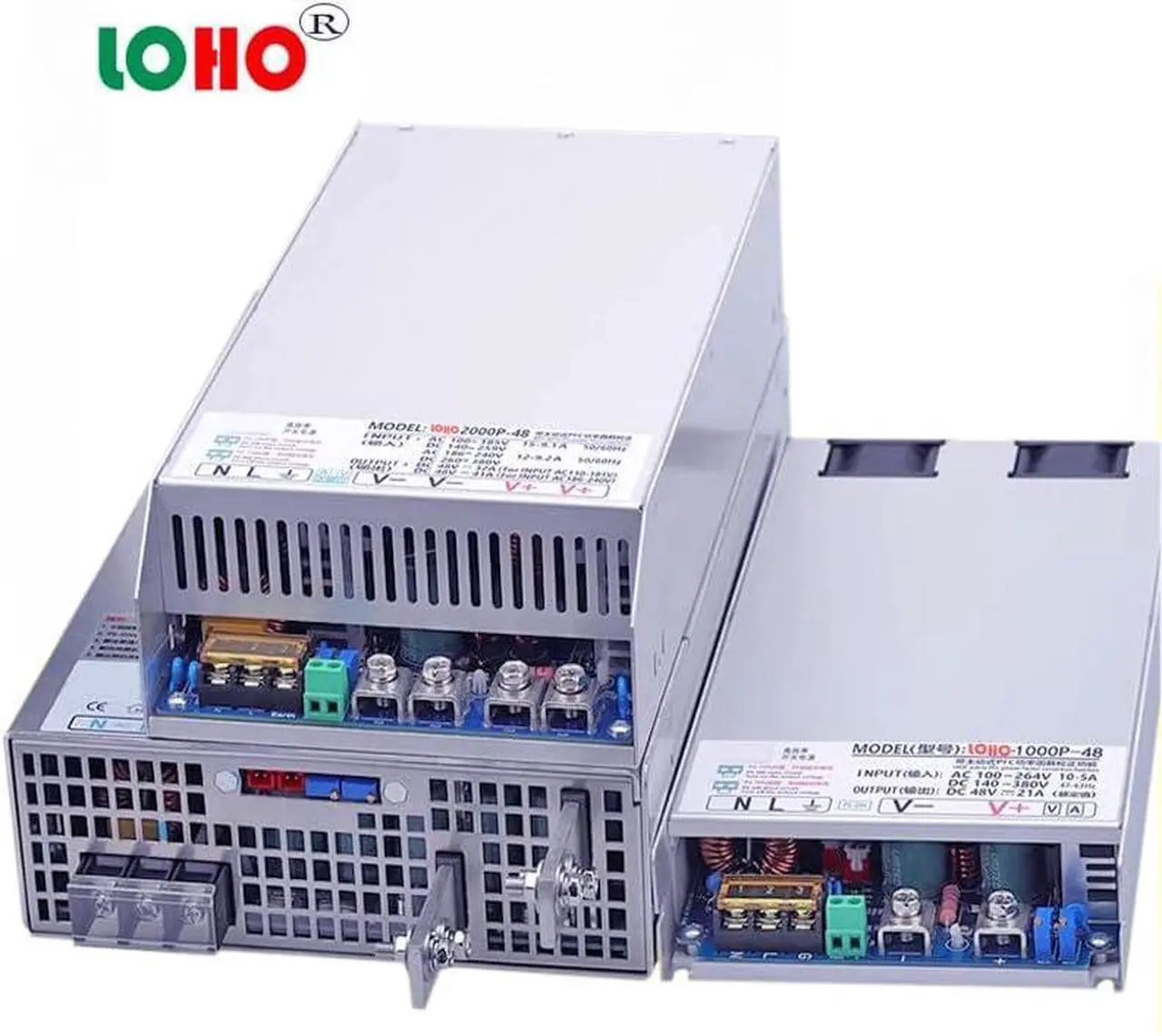

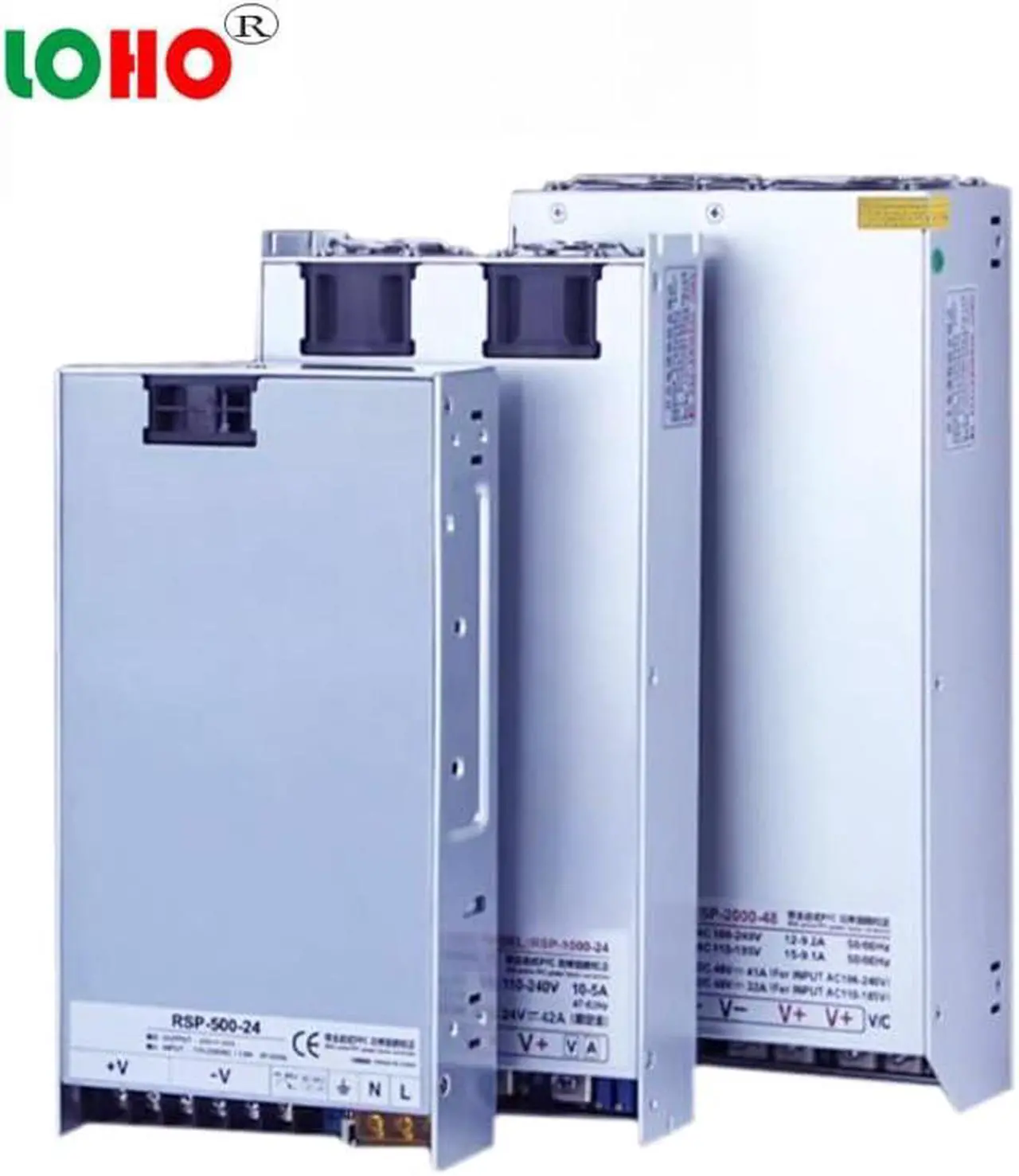

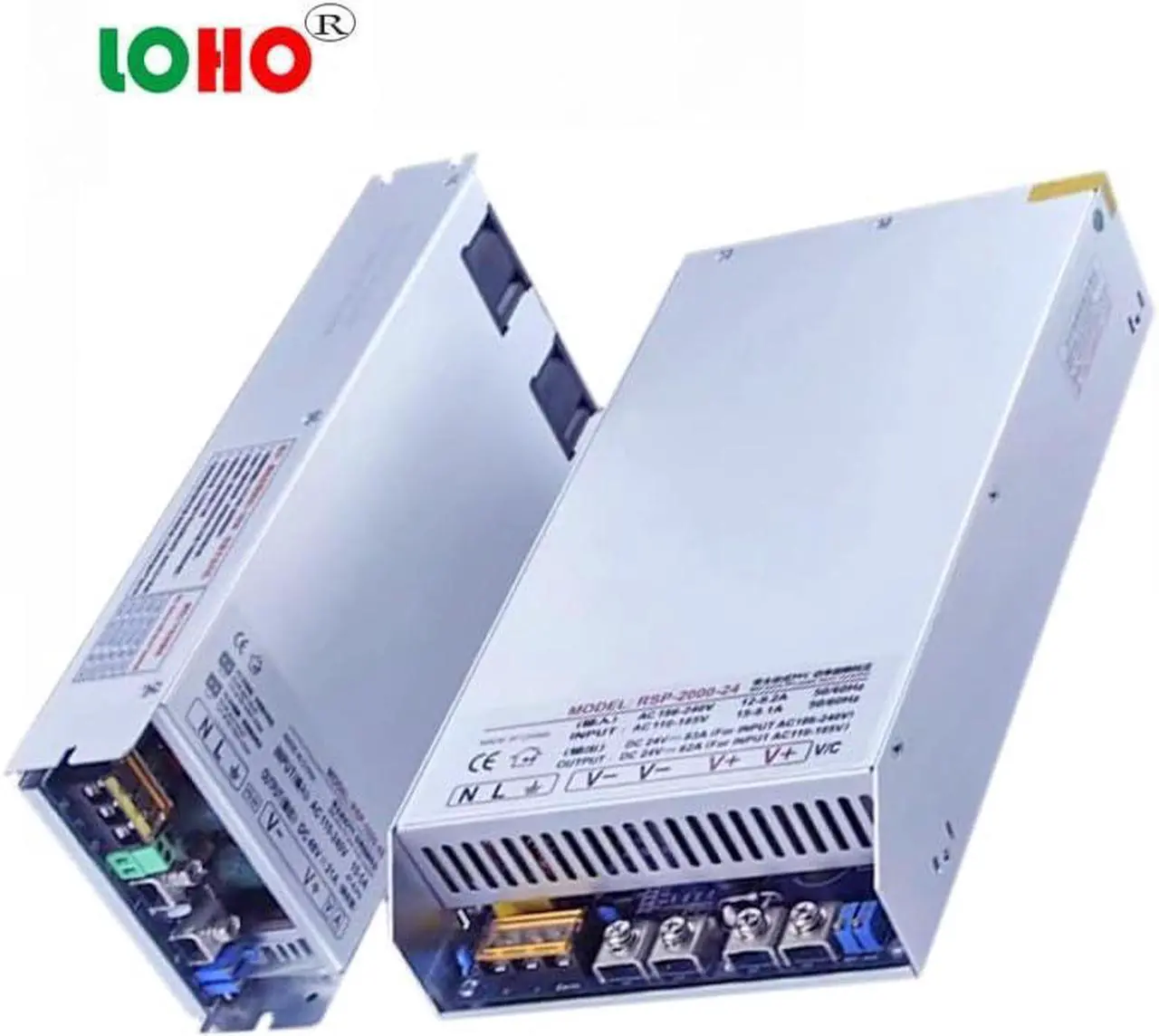

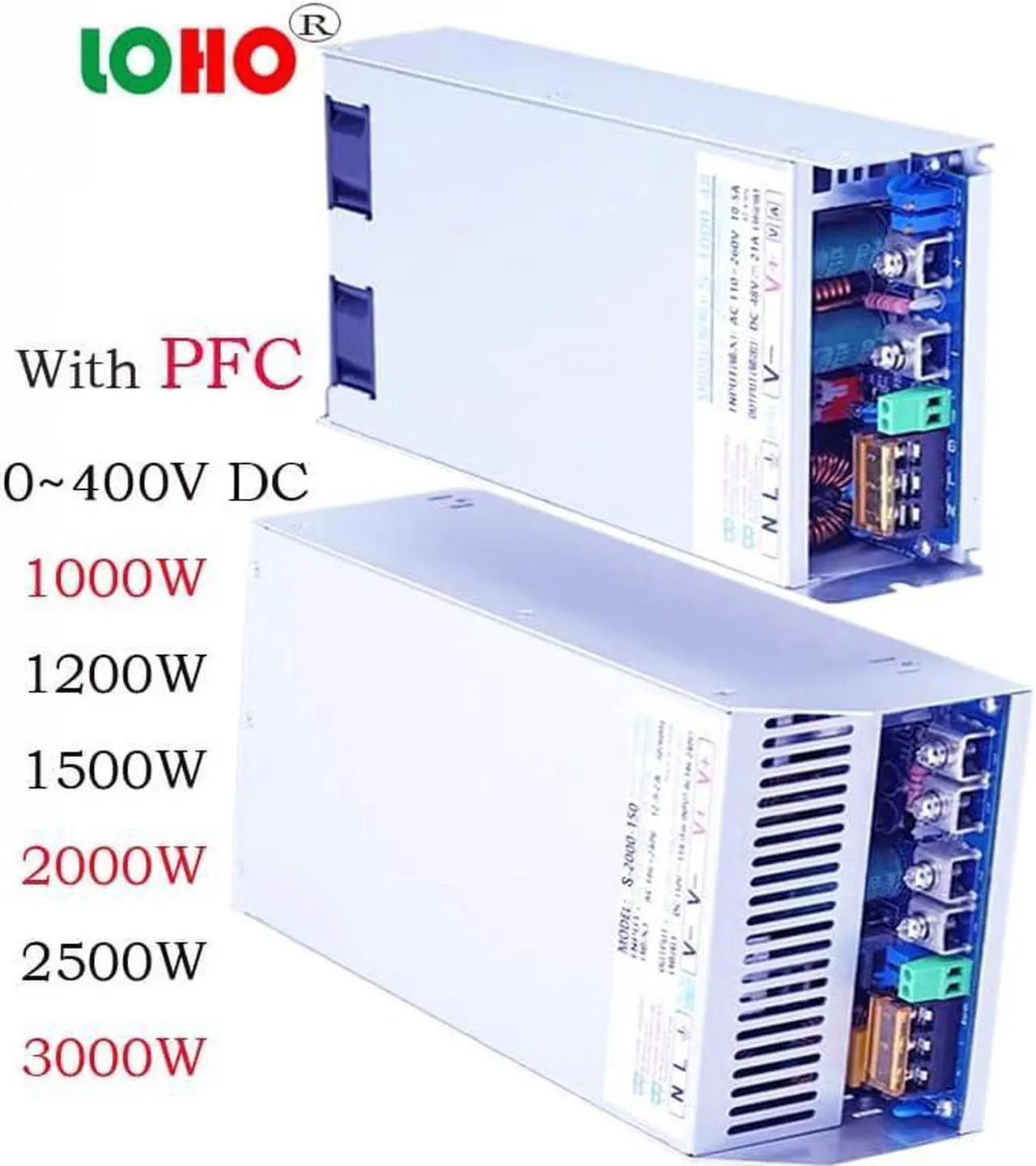

0~300V Regulable Switching Power Supply 2000W 48V 24V 1000W 110V 150V 2500W with PFC Function AC110-240V to DC Power Supply RSP-2500W for Industrial quipment (0~150Votls, 2000 Watts, PFC 800W~3000W)
- Model and brand & size: LOHODIZI ,Output: 24V~300V 800W~3000W or other models, 2.2kg ,280x140x65mm(L*W*H). Enclosed Power Supply Single Output with PFC Function 0~150V adjustable Voltage optional...
- Input Voltage Range: Input: AC 100 ~145V or AC200 ~245V,Choose the proper voltage before usebefore using, to avoid damaging.
- Protection: Shortage Protection,Overload Protection,Over-voltage Protection ,Over heat protection,Over/under voltage.
- Make sure your device match the 48V 24V 36V 60V 72V 110V 150V 220V 250V 300V or other voltage ,Please don't run it overload .The max use should be no more than 85% of the full loads,otherwise, It's cause the power supply to overheat,the service life of the power supply will be greatly shortened.
- LOHODIZI store: OEM factory competency, Most efficient technical support with superb processing technology,please feel free to contact us.
+
+
Overview
Specs
Reviews
DC Output : DC Voltage: 48V 24V 28V 36V 60V 72V 80V 110V 130V 150V 220V 250V 300V... ( 800W~3000W )... DC Current : 24V83A/ 28V71A / 36V56A / 48V42A / 60V33A / 72V27.5A / 110V18A / 150V13.3A / 220V9.1A / 250V8A / 300V6.7A ...800W / 1200W / 1500W / 2000W / 2500W / 3000W There are many series models, please consult our customer service. Thank you . Ripple & Noise: 280MV~500MV Size : (1000W) 268X130X40mm / (2000W) 280X140X65mm / (3000W) 280X175X65mm . DC Adjustable Range: 0~300V or other Rated Voltage . Voltage Tolerance: ±2.0% . Line Regulation: ±0.5% . Load Regulation: ±1% . Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC . AC Input AC Voltage Range: 85-264VAC . Frequency Range: 47-63Hz . Efficiency:90% Leakage Current<0.5mA /240VAC . Protection Over-load: 105%-150% hiccup mode,Auto-recovery . Over-voltage: 115%-135% Cut Off the Output,Auto-recovery . Over-temp. : Shut down O/P voltage, Auto-recovery . Environment Working temp.: -10~ +60C° (Refer to output load derating curve) . Working Humidity:20 ~ 90% RH, non-condensing . Storage Temp.: -10~ +60C° . Storage Humidity: 10 ~ 95% RH . Safety Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH . Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC . Safety standards: CE,RoHS and others / Customized according to customer requirements, please consult us for details ...
