500W Universal DC Switching Power Supply 0-12V 15V 24V 36V 48V 60V 85V 200V LED Digital Display Power Supply for Computer Lab, LED Strip Light and So on(110V)
- 1. Versatile Power Supply: Our 500W Universal DC Switching Power Supply provides a wide output voltage range from 0-12V to 15V, 24V, 36V, 48V, 60V, 85V, and 200V.
- 2. Advanced Features for Reliable Performance: With its LED digital display, our power supply offers accurate voltage readings, making it easy to monitor and control. It also features ripple voltage not exceeding 100mV, ensuring stable and reliable performance.
- 3. High Current Capability: Despite its compact size of 215*115*50mm, our power supply can handle high current loads. For example, even when the voltage is set at 24V, the maximum current remains at an impressive 6A.
- 4. User-Friendly Design: The power supply is designed with convenience in mind. It features clearly labeled terminals, including L, N AC input terminal, FG ground mark, V+ DC output positive terminal, V- DC output negative terminal, and ADJ adjustable potentiometer for fine-tuning output voltage.
- 5. Comprehensive Protection Functions: Our power supply
+
+
Overview
Specs
Reviews
Specifictation:

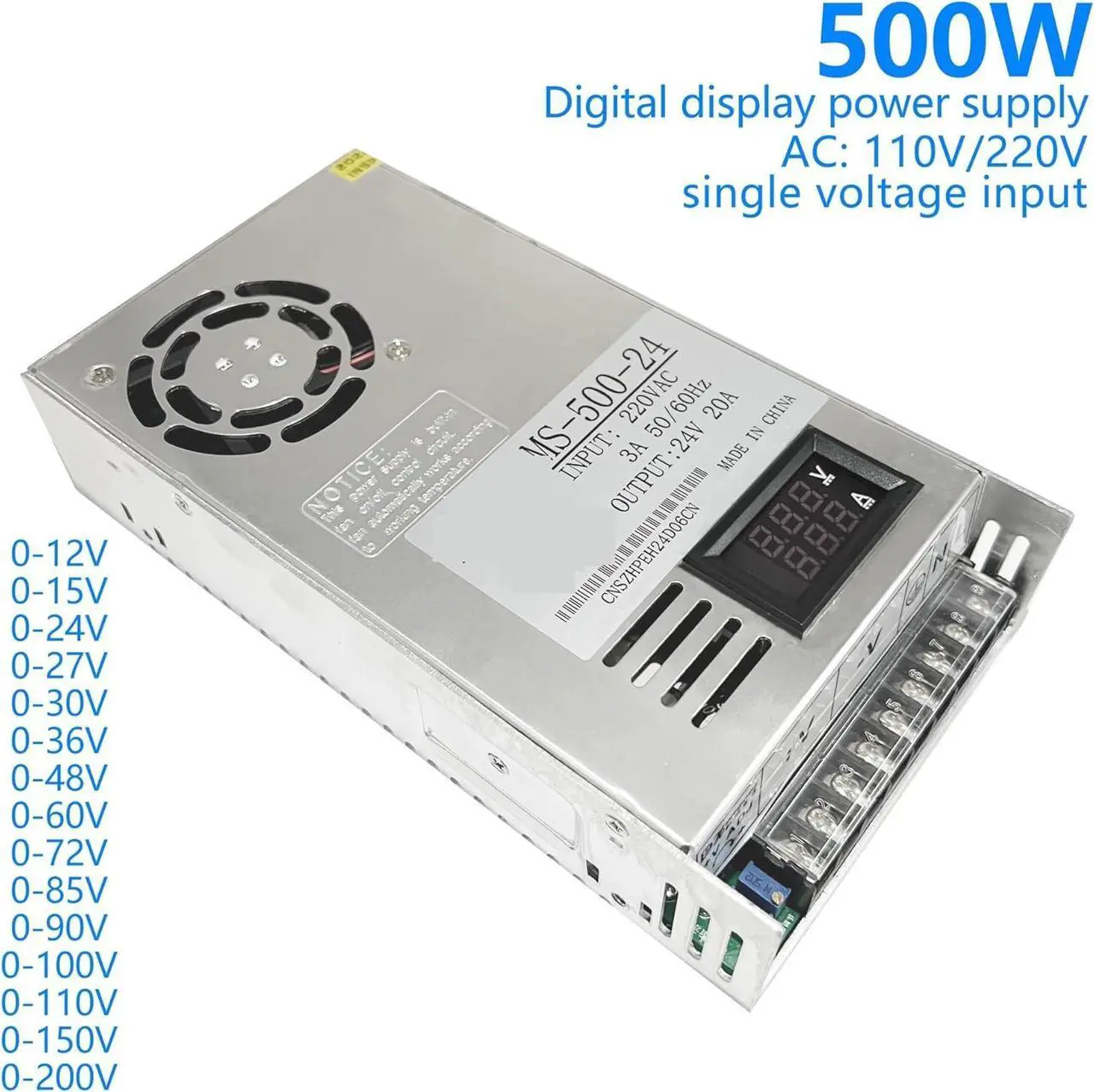

0-12V 15V 24V 36V 48V 55V 60V 72V 85V 90V 150V
Adjustable 1000W Switching Power Supply For Led 500W

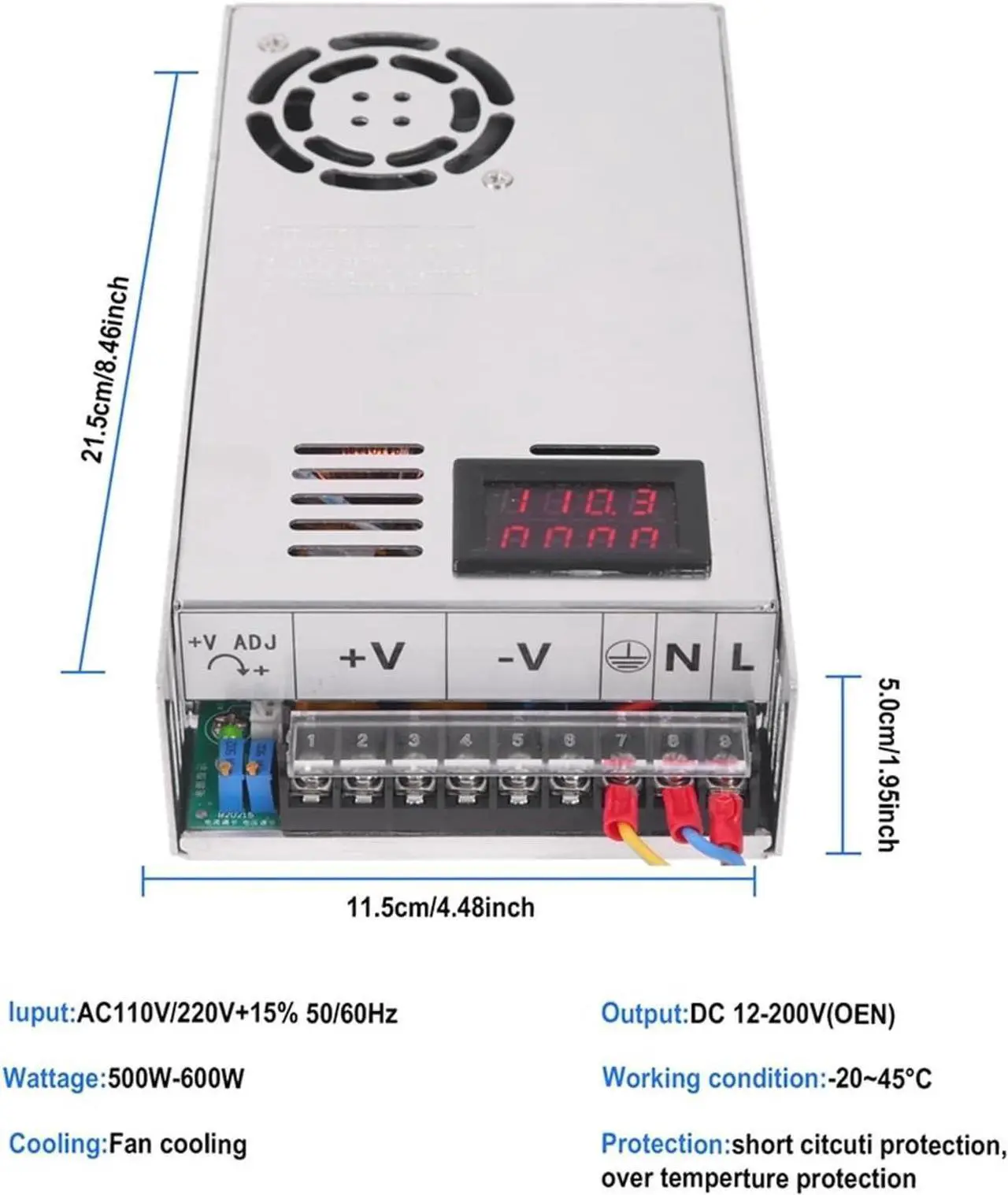

Size: 215*115*50mm/
Packaged weight about: 0.9KG
Ripple voltage; not more than 100 mV
Voltage-stabilized equivalent internal resistance: not more than 0.O5
Short circuit, overload protection and automatic recovery
For max current, if you choose 0-80v, when set the voltage at 24v, the max current still is 6A.

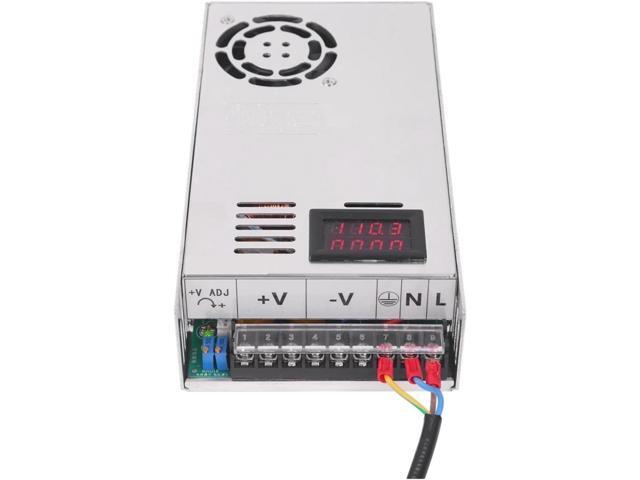

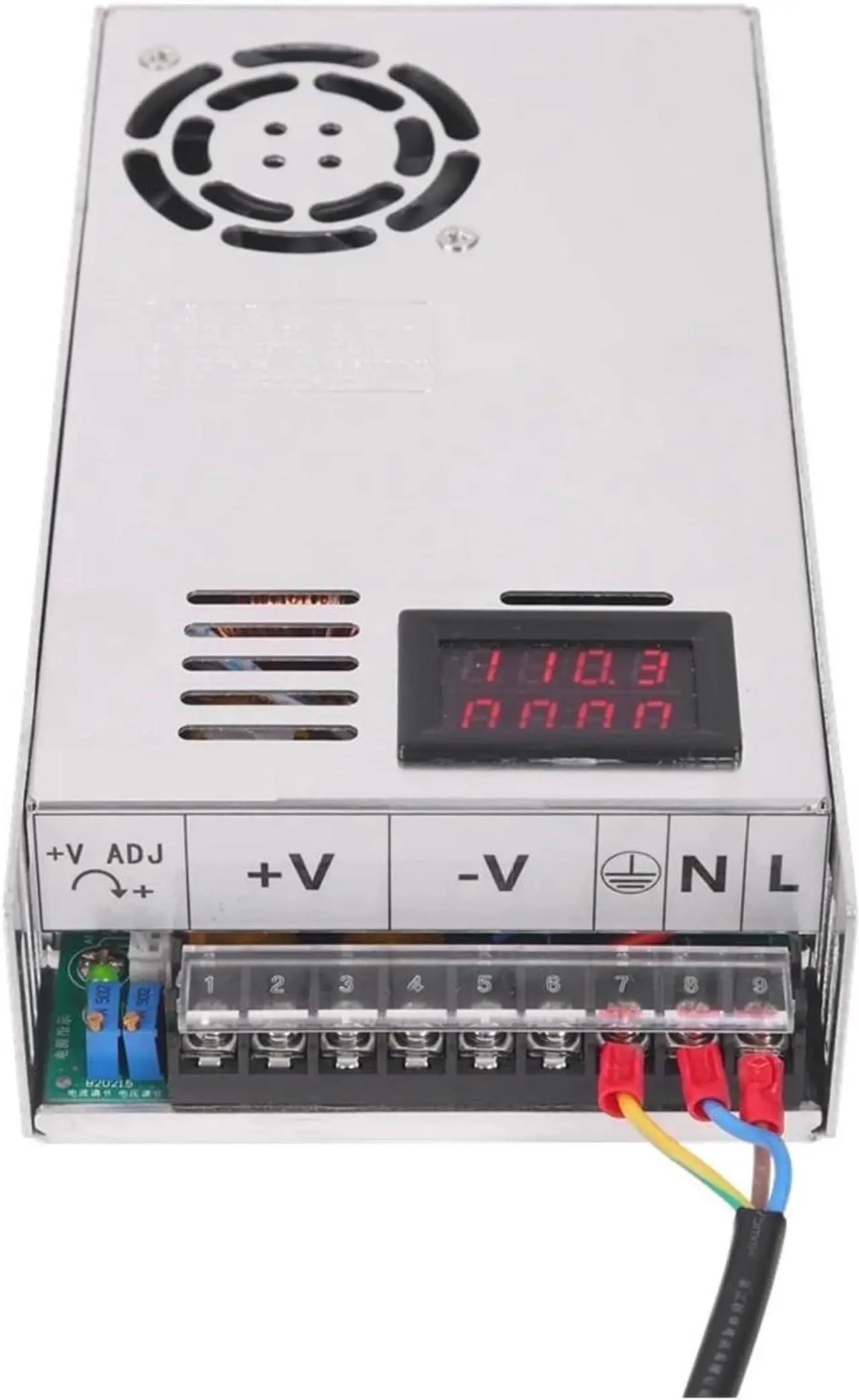

L, N AC input terminal FG ground mark V+ DC output positive terminal
V-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC voltage
full voltage input
Miniaturization
Protection function Short circuit / overload / over voltage
Start surge current ---------------20A@120VAC (cold start)
Output adjustment range --------------- ±100% (rated output voltage)
Overload protection -------------------105%~200% (rated load), self-recovery
Overvoltage protection -------------------115%~135% (rated output voltage)
Short circuit protection ------------------- self-recovery
Output start time ---------------2S@120VAC 1.0S@230VAC
Output hold time ---------------10mS@120VAC, 20mS@230VAC
Insulation strength ------------------- Input-Output: AC1500V, 1min; Input - housing: AC1500V, 1min; Output - Case: DC500V, 1min
Working environment ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)
0-12V 15V 24V 36V 48V 55V 60V 72V 85V 90V 150V
Adjustable 1000W Switching Power Supply For Led 500W
Size: 215*115*50mm/
Packaged weight about: 0.9KG
Ripple voltage; not more than 100 mV
Voltage-stabilized equivalent internal resistance: not more than 0.O5
Short circuit, overload protection and automatic recovery
For max current, if you choose 0-80v, when set the voltage at 24v, the max current still is 6A.
L, N AC input terminal FG ground mark V+ DC output positive terminal
V-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC voltage
full voltage input
Miniaturization
Protection function Short circuit / overload / over voltage
Start surge current ---------------20A@120VAC (cold start)
Output adjustment range --------------- ±100% (rated output voltage)
Overload protection -------------------105%~200% (rated load), self-recovery
Overvoltage protection -------------------115%~135% (rated output voltage)
Short circuit protection ------------------- self-recovery
Output start time ---------------2S@120VAC 1.0S@230VAC
Output hold time ---------------10mS@120VAC, 20mS@230VAC
Insulation strength ------------------- Input-Output: AC1500V, 1min; Input - housing: AC1500V, 1min; Output - Case: DC500V, 1min
Working environment ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)
