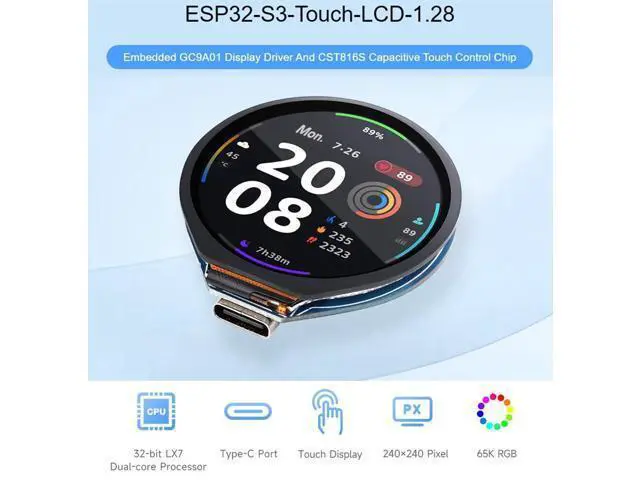

ESP32-S3 MCU Board with Onboard 1.28inch Round Touch LCD and 6-Axis Sensor etc, 32-bit LX7 Dual-Core Processor, Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), Type-C Port

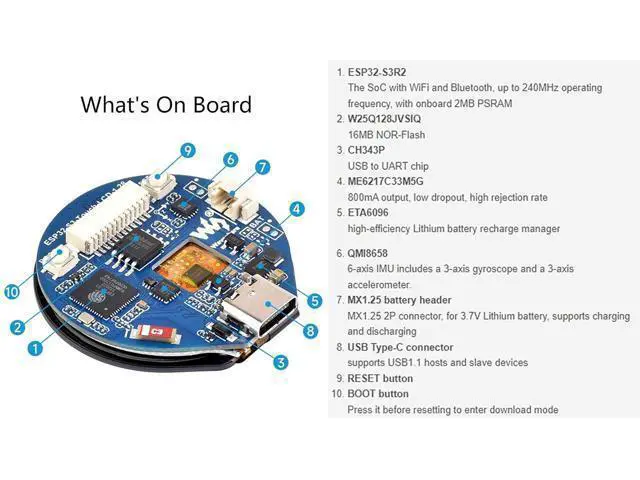

- ESP32-S3-Touch-LCD-1.28 is ESP32-S3 Development MCU Board with onboard 1.28inch round capacitive touch display, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope),etc. Embedded GC9A01 Display Driver And CST816S Capacitive Touch Control Chip.; Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory.; Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color.; Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture.; Onboard 3.7V batt recharge/discharge header and 6 × GPIO pins via SH1.0 connector.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

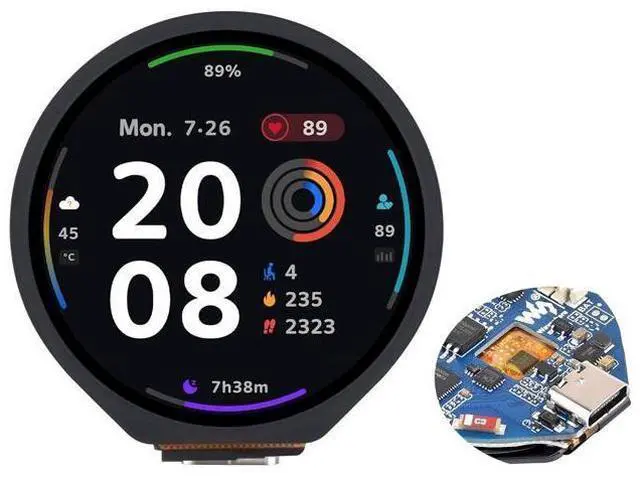

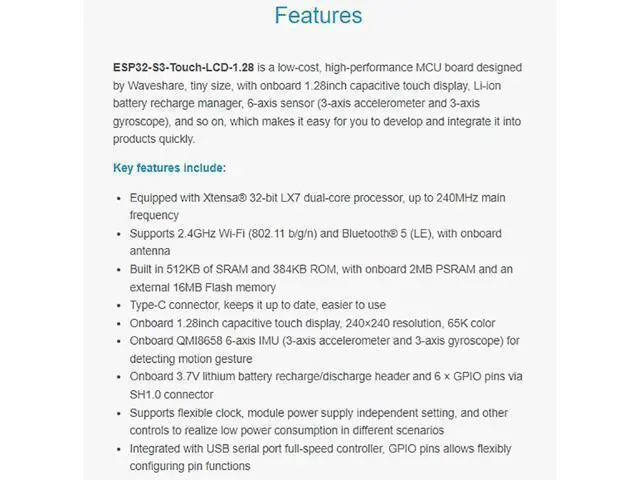

ESP32-S3-Touch-LCD- 1.28 is ESP32-S3 Development MCU Board with onboard 1.28 inch round capacitive touch display, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), etc. Embedded GC9A01 Display Driver And CST816S Capacitive Touch Control Chip.; Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory.; Onboard 1.28 inch capacitive touch display, 240×240 resolution, 65K color.

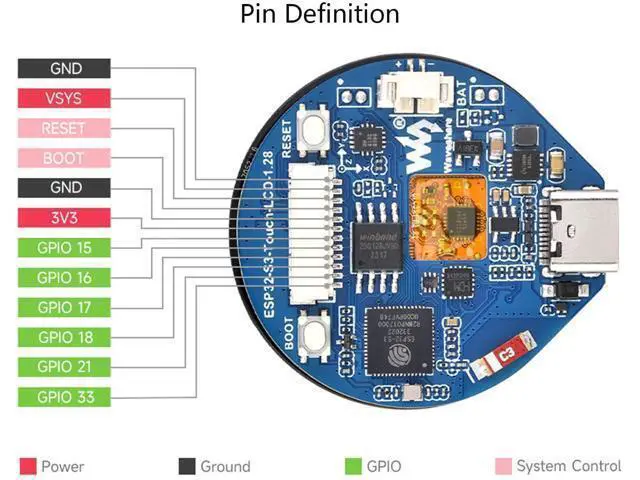

; Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture.; Onboard 3.7V batt recharge/discharge header and 6 × GPIO pins via SH 1.0 connector.
; Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture.; Onboard 3.7V batt recharge/discharge header and 6 × GPIO pins via SH 1.0 connector.
