2Pcs NRF24L01+PA+LNA RF Wireless Transceiver Module with SMA Antenna 2.4G 1100m & Wireless Module with Breakout Adapter On-Board 3.3V Regulator

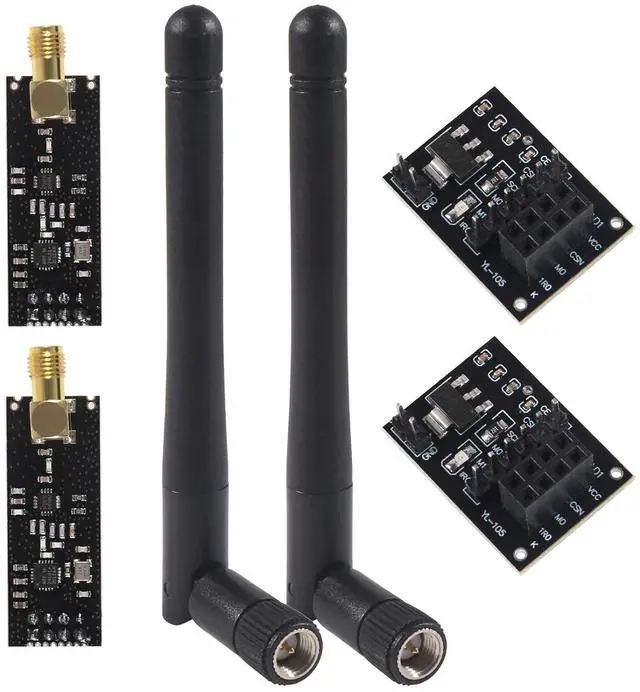

- NRF24L01+PA+LNA Wireless Transceiver Module is a 2.4GHz ISM band transceiver, compatible with Raspberry Pi. Auto-acknowledge and auto-retransmit abilities; Support up to six channels of data reception; the transceiver come with power amplifier and SMA antenna, which make the effective communication distance has been greatly expanded.; A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible through the SPI connection. Configurable parameters include frequency channel (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps).; RF24L01+ Breakout Adapter: Small power on SMD LED indicator, On-board 3.3V voltage regulator, which accepts +5V power supply input and provides 3.3V for the attached "nRF24L01+" module.; Applications:It can be wildly used in wireless remote control such as RC planes/vehicles, wireless audio, wireless voice transmission such as VoIP, wireless networks, smart home,somatosensory devices, RFID, NFC etc.; Package Included:2 x NRF24L01+PA+LNA Wireless Transceiver Module+2 x SMA Antenna+2 x NRF24L01+ Breakout Adapter
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description

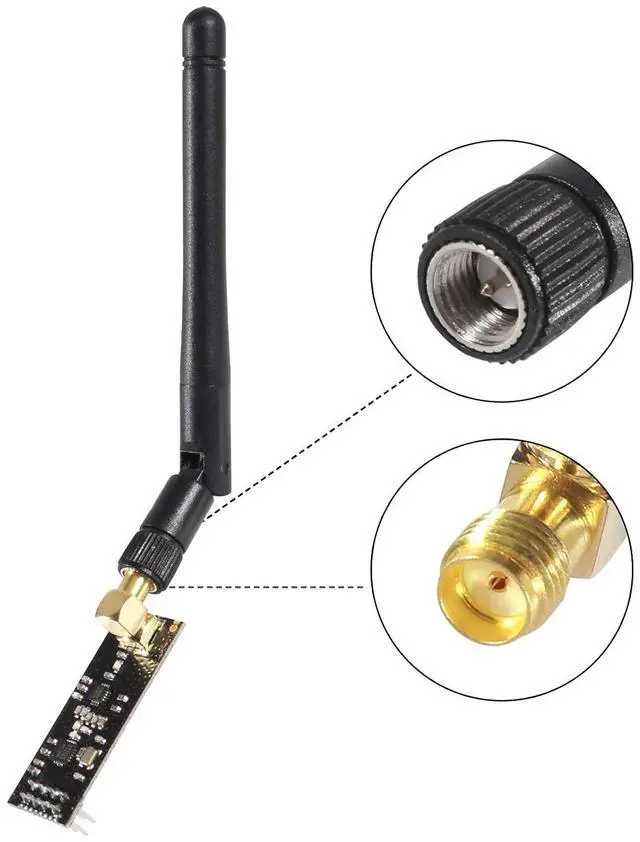

Description: The wireless transceiver module can set up your wireless communication system. You can add it with your own MCU/ARM/PIC/AVR/STM32 system, this module also come with power amplifier and SMA antenna, which make the wireless communication up to 800+ meters with No Barrier.
Note: 1. The module has 5V tolerant inputs, the power supply must be 3.3V, but the data and control inputs can be 5V(I/O can be 5V). When the module used with RC planes/cars, please
note:
1. If only a single reception and a single transmission are used, then a code value is required.
2. Please pay attention to environmental interference during use.

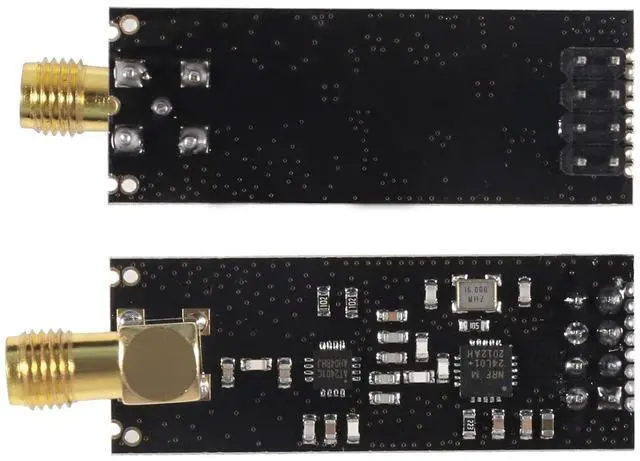

NRF24L01+PA+LNA Wireless Transceiver Module Specification: PA
Gain: 20dB
LNA Gain: 10dB
Range: 800+ meters line of sight
Frequence: 2.4GH z~ 2.5GH z
Multi-frequency: 125 frequency
Operating voltage: 3 ~ 3.6V MaxRecommended 3.3V Max Transmit Operating Current 115mA Max Receiving Operating Curent 45mA Pin Quantity 8Pin On-board AMS1117- 3.3 chip

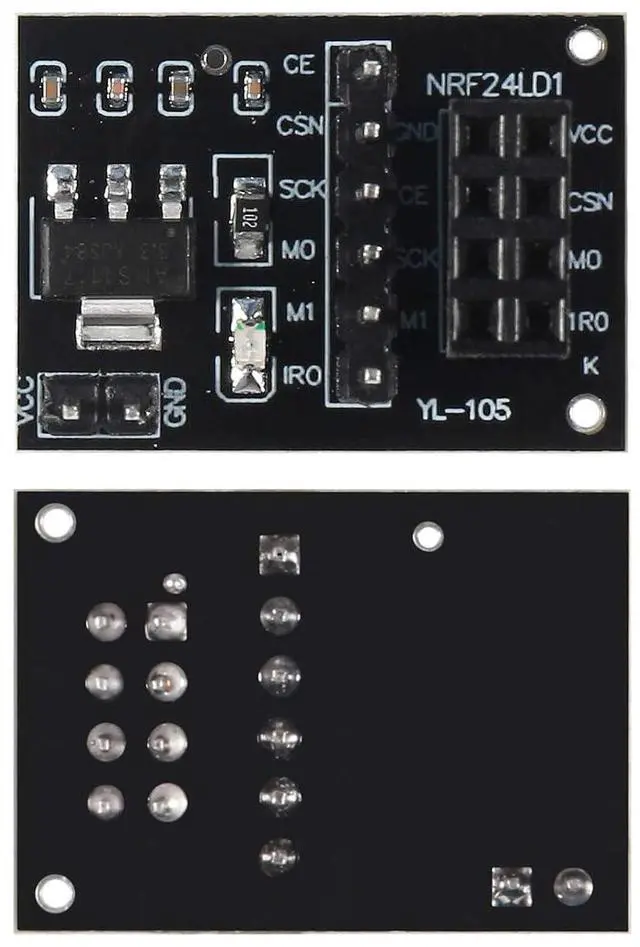

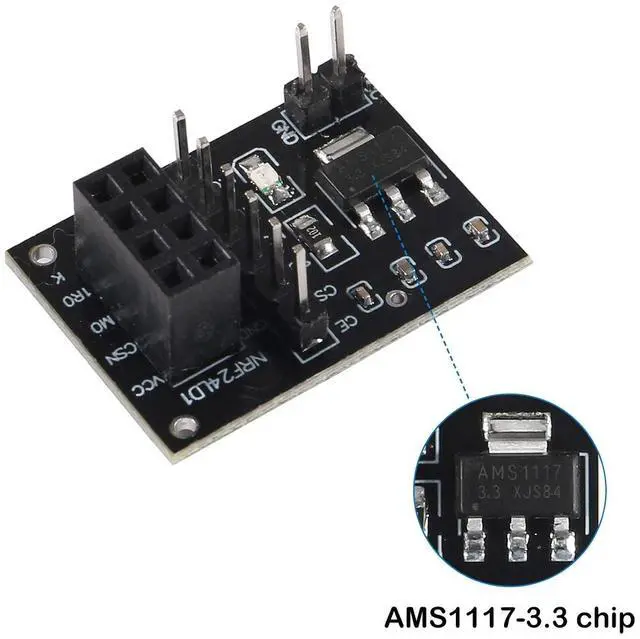

NRF24L01+ Breakout Adapter: Compatible with Arduino and for Raspberry Pi Pin Quantity8Pin On-board AMS1117- 3.3 chip. Voltage Regulator Input Voltage (connected to
VCC): 4.8V ~ 12V Small power on SMD LED indicator
Description: The wireless transceiver module can set up your wireless communication system. You can add it with your own MCU/ARM/PIC/AVR/STM32 system, this module also come with power amplifier and SMA antenna, which make the wireless communication up to 800+ meters with No Barrier.
Note: 1. The module has 5V tolerant inputs, the power supply must be 3.3V, but the data and control inputs can be 5V(I/O can be 5V). When the module used with RC planes/cars, please
note:
1. If only a single reception and a single transmission are used, then a code value is required.
2. Please pay attention to environmental interference during use.
NRF24L01+PA+LNA Wireless Transceiver Module Specification: PA
Gain: 20dB
LNA Gain: 10dB
Range: 800+ meters line of sight
Frequence: 2.4GH z~ 2.5GH z
Multi-frequency: 125 frequency
Operating voltage: 3 ~ 3.6V MaxRecommended 3.3V Max Transmit Operating Current 115mA Max Receiving Operating Curent 45mA Pin Quantity 8Pin On-board AMS1117- 3.3 chip
NRF24L01+ Breakout Adapter: Compatible with Arduino and for Raspberry Pi Pin Quantity8Pin On-board AMS1117- 3.3 chip. Voltage Regulator Input Voltage (connected to
VCC): 4.8V ~ 12V Small power on SMD LED indicator
