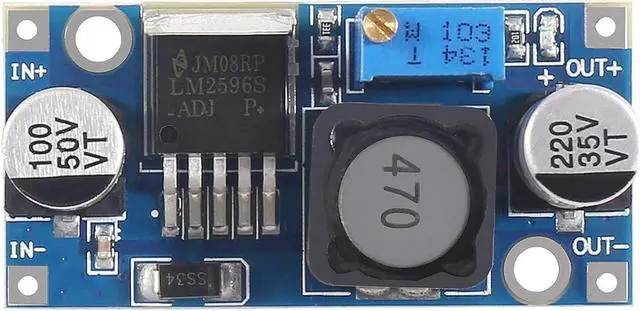

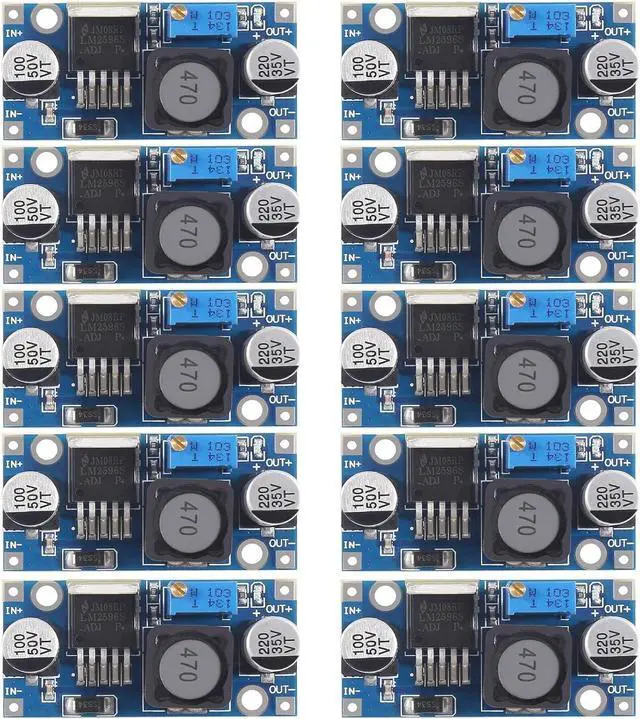

10Pack LM2596 DC-DC Buck Converter,Adjustable Step Down Voltage Regulator 3-40V to 1.5-35V High Efficiency Power Supply Volt Reducer Transformer Module (10PCS)

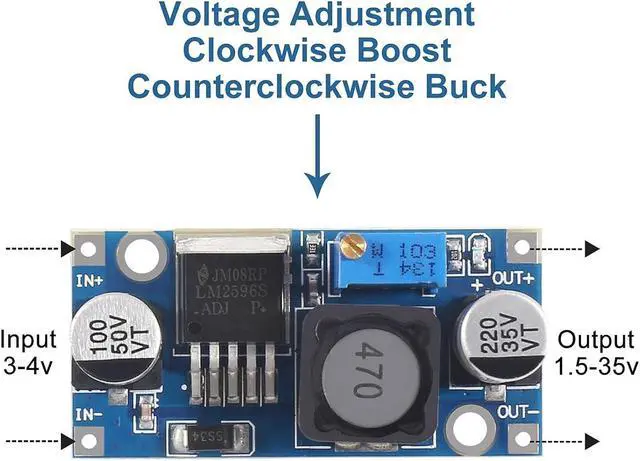

- The input voltage: DC 3 -40 V (Input voltage must be 1.5 V higher than the output voltage, no boost.); The output voltage: DC 1.5 - 35 V adjustable.; The output current: It is recommended to use under 2A, maximum 3A(Additional heatsink is required).; Steps: 1. Plugged into a power supply (3-40v), the power indicator light is lit, the module to work properly. 2. Adjust the blue potentiometer knob (generally booster clockwise, counterclockwise step-down) with a multimeter monitoring the output voltage to the voltage.; Package includes:10XLM2596 DC-DC buck converter moduleNoteThe factory have tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts ramping down)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description

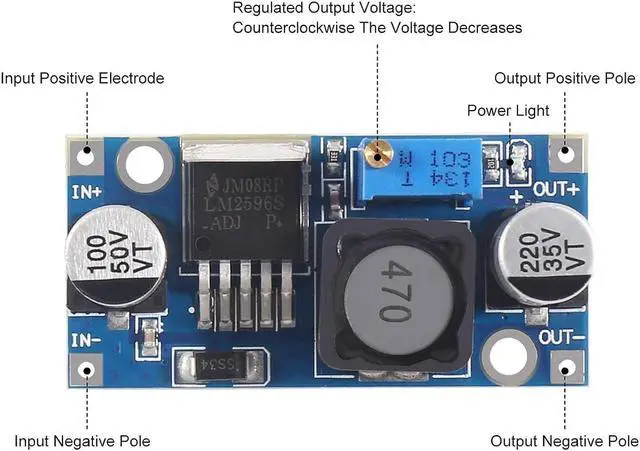

Steps: Plugged into a power supply (3-40v), the power indicator light is lit, the module to work properly. A Adjust the blue potentiometer knob (generally booster clockwise, counterclockwise step-down) with a multimeter monitoring the output voltage to the voltage. Features The input voltage 3-40 V The output voltage 1.5 -35 V The output current It is recommended to use under 2A, maximum 3A (Additional heatsink is required) Conversion efficiency 92% Max (the higher output voltage, the higher efficiency) Load adjust ratio +/- 0.5 % Voltage adjust ratio +/- 2.5 % Switching frequency 1.5MKH z Work temperature -Minus 40 degrees-85 degrees Module property Non-isolation buck Rectification mode Non-synchronous rectifier Wiring Wiring Soldering, directly solder the power cord to the input (output) port2 Welding pins can be used by inserting pins through lead wires or inserting into holes on the board; or soldering the PCB directly after adding pins.
Steps: Plugged into a power supply (3-40v), the power indicator light is lit, the module to work properly. A Adjust the blue potentiometer knob (generally booster clockwise, counterclockwise step-down) with a multimeter monitoring the output voltage to the voltage. Features The input voltage 3-40 V The output voltage 1.5 -35 V The output current It is recommended to use under 2A, maximum 3A (Additional heatsink is required) Conversion efficiency 92% Max (the higher output voltage, the higher efficiency) Load adjust ratio +/- 0.5 % Voltage adjust ratio +/- 2.5 % Switching frequency 1.5MKH z Work temperature -Minus 40 degrees-85 degrees Module property Non-isolation buck Rectification mode Non-synchronous rectifier Wiring Wiring Soldering, directly solder the power cord to the input (output) port2 Welding pins can be used by inserting pins through lead wires or inserting into holes on the board; or soldering the PCB directly after adding pins.
