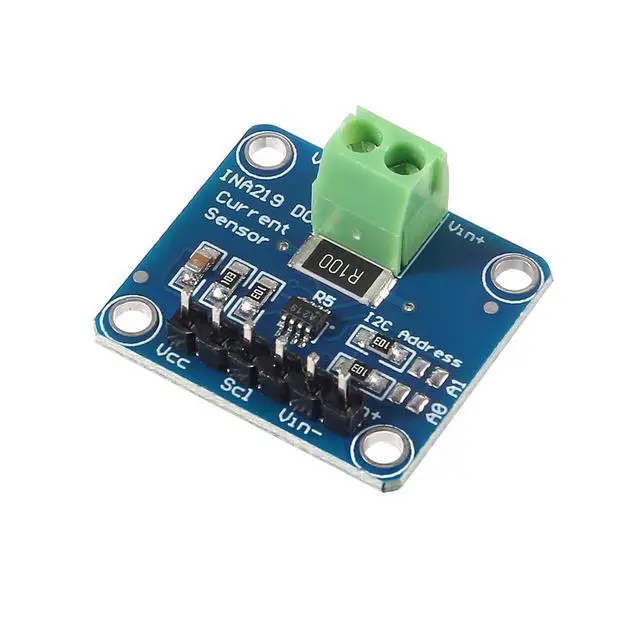

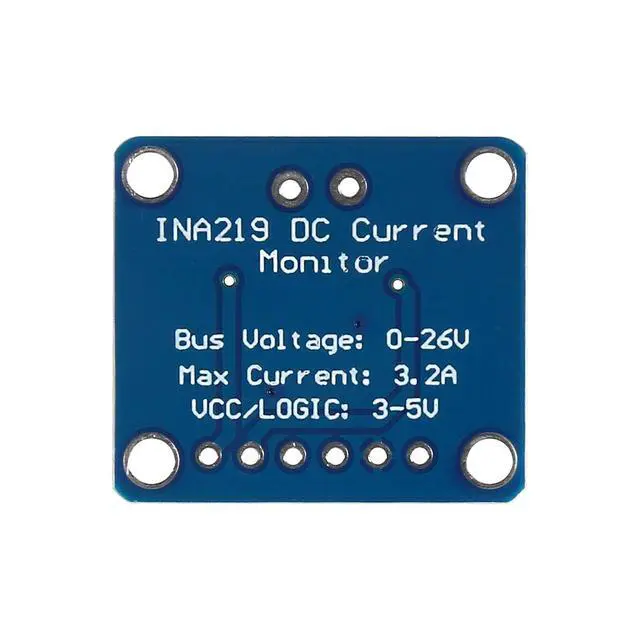

4Pcs INA219 I2C Bi-Directional DC Current Power Supply Sensor Breakout Board Module I2C IIC Interface
- INA219 module is an I2C interface with a drift,bi-directional current / power monitor integrated circuit (IC),and further expand the energy-saving electronic products TI camp.; INA219 I2C Bi-directional DC Current Power Supply Sensor,Working Voltage 3~5V; Footprint: SOT23; INA219 module small size,low cost,high accuracy. It not only can monitor the voltage drop across a shunt resistor on the sensing shunt supply voltage,but also computing power.; INA219 can be achieved within the maximum error accuracy of +1% from -40° C to 85° C temperature range,the maximum offset is 100 uV. The high- products combine the advantages of 12-bit resolution. This module can be sensed bus voltage range is 0 V to +26 V.; Appliaction:The module is used for I2C port zero drift / bidirectional current / power monitoring sensor module. The device is available in a SOT23 package,providing a small digital current sensing servers,laptops,power supplies,battery management and automotive and telecommunications equipment,low-cost solutions.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description
Features: The high- products combine the advantages of 12-bit resolution, as much as possible to help customers reduce the pressure drop on the shunt resistor, thereby minimizing power loss and power consumption and save board space. The device can be sensed bus voltage range of 0 V to +26 V. INA219 can be achieved within the maximum error accuracy of +1% from -40° C to 85° C temperature range, the maximum offset is 100 uV. Programmable calibration register can be read in units of ampere direct current, and read the power in watts. I2C interface has a timeout setting, not only to prevent bus lock, but also provides high-speed mode, to meet the communication requirements of up to 3.4 MHz. All properties INA219 are software programmable to support. A single power supply, the operating voltage of between + 3.0 to + 5.5V. Up to 128 samples can be averaged to achieve filtering in noisy environments. Used for I2C port zero drift / bidirectional current / power monitoring sensor module

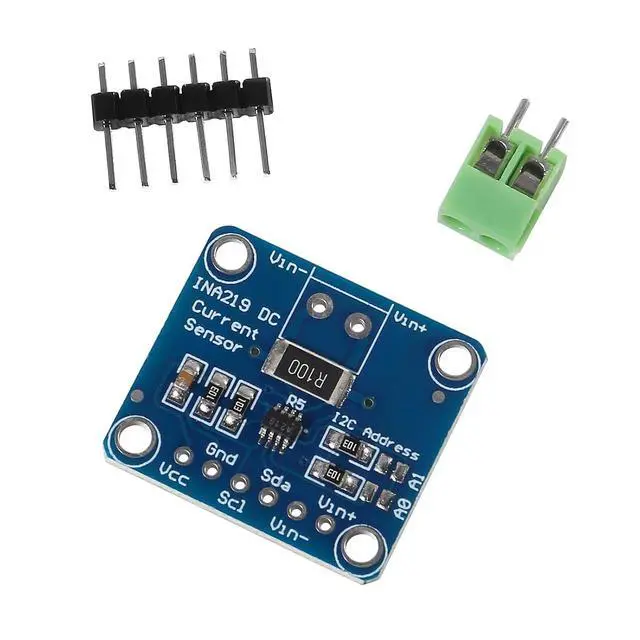

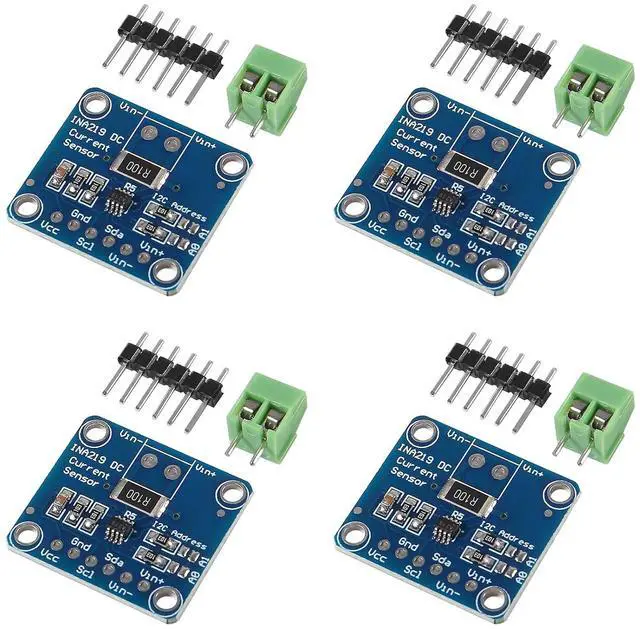

Package Included: 4pcs INA219 Bi-directional DC Current Power Supply
Sensor Module Parameters:
Footprint: SOT23 Working

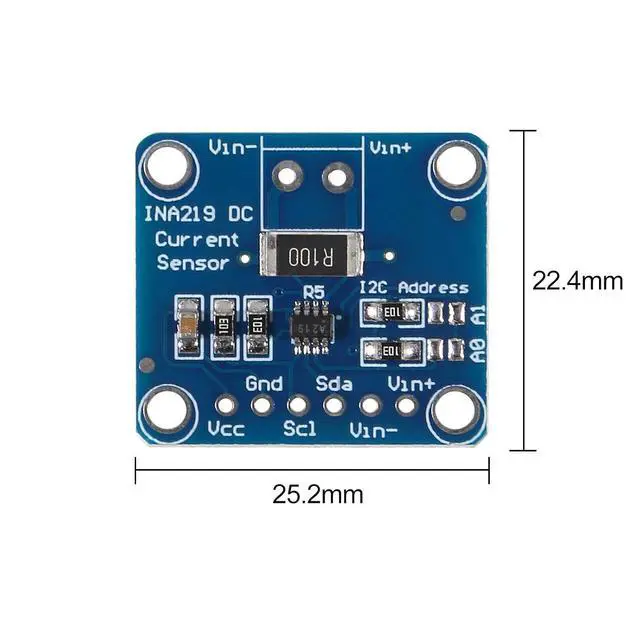

Voltage 3~5V Size: 25.5 * 22.3 mm See More
Features: The high- products combine the advantages of 12-bit resolution, as much as possible to help customers reduce the pressure drop on the shunt resistor, thereby minimizing power loss and power consumption and save board space. The device can be sensed bus voltage range of 0 V to +26 V. INA219 can be achieved within the maximum error accuracy of +1% from -40° C to 85° C temperature range, the maximum offset is 100 uV. Programmable calibration register can be read in units of ampere direct current, and read the power in watts. I2C interface has a timeout setting, not only to prevent bus lock, but also provides high-speed mode, to meet the communication requirements of up to 3.4 MHz. All properties INA219 are software programmable to support. A single power supply, the operating voltage of between + 3.0 to + 5.5V. Up to 128 samples can be averaged to achieve filtering in noisy environments. Used for I2C port zero drift / bidirectional current / power monitoring sensor module
Package Included: 4pcs INA219 Bi-directional DC Current Power Supply
Sensor Module Parameters:
Footprint: SOT23 Working
Voltage 3~5V Size: 25.5 * 22.3 mm See More
