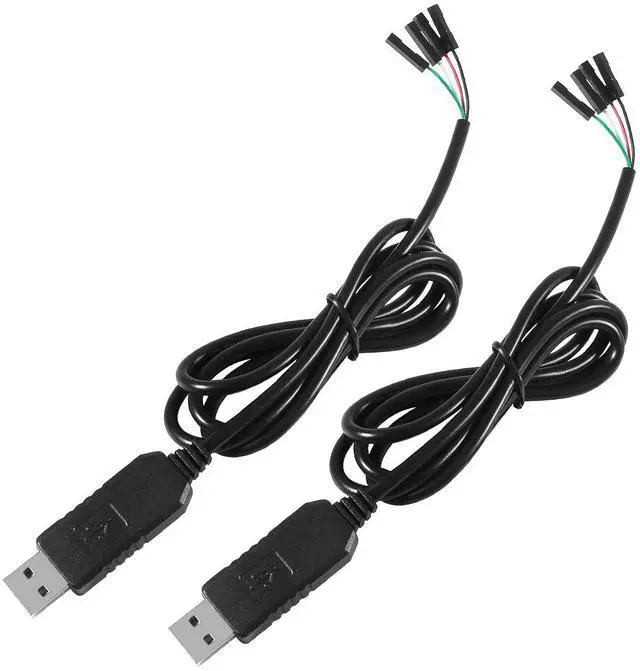

2Pack PL2303 PL2303HX USB to TTL Serial Adapter,3.3V Debug Cable with 4 Pin Female Socket,USB to RS232 TTL Converter
- Cable Length:3ft/1m; Specific Interface A: USB 2.0 type A Male Port; Interface B: 4 pin Female Socket flying leads. Prolific chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM.; USB to TTL serial cable 3.3V (4 way output flying leads ) provides access to UART (transmit) Tx,(receive) Rx,VCC (5V) and GND(ground),RX and TX at 3V3 logic level; The wires can be distinguished by different colors,Red: +5V,Black: GND,Green: TXD,White: RXD.; TTL to USB Converter Support Windows XP/Vista/7/8; Ideal USB 2.0 debug cord for Vendor ID re-write,router,GPS,set top box,transmitter,flash firmware on hard drive,etc.; Application:PL2303 USB to TTL serial adapter is designed to be used for USB to TTL electronic projects,easy to connects devices with 3.3 V logic level UART signals interface to a laptop via USB port; Upgrading Legacy Peripherals to USB;Interface Microcontroller UART or I/O,FPGA / PLD to USB;USB Software / Hardware Encryption Dongles; Industrial Control.; Note: 3.3V and 5.0V output is set (this is the power supply to the microcontroller,upgrade machines do not need the small plate) unplugged from the computer,set the jumpers to take,do not live to avoid damage to the equipment.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description PL2303HX USB to TTL Serial Adapter 3.3V Debug Cable PL2303TA chip USB to TTL serial adapter cable for 3.3 V logic level serial communication (RX, TX, VCC and GND); The USB to TLL serial converter is built with PL2303 chip, which allow for communication as a standard COM port; a great conversion data cord to meet with your needs of debugging, boot-loading, programming, etc.
Applications: Industrial Control; Upgrading Legacy Peripherals to USB Interface Microcontroller UART or I/O, FPGA / PLD to USB; USB Software / Hardware Encryption Dongles
Package included: 2x USB to Serial TTL Level Converter
Cable
Type: USB to COM; USB to TTL
Cable Length: 3ft/1m
Interface A: USB 2.0 type A Male Port

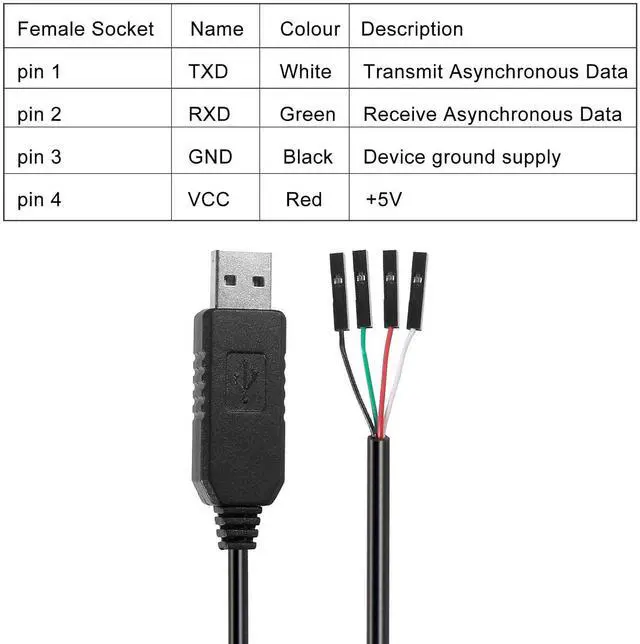

Interface B: 4 pin Female Socket flying leads Supports Windows 2008, XP and XP 64-bit, Vista and XP 64-bit, CE 4.2, 5.0 and 6.0; Windows 7, 8, 8.1, 10 (32 and 64-bit); Data transfer rates from 300 to 3M baud rate at TTL levels; UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity; Internal EEPROM with users writable area; - Supply voltage comes from USB bus, no external supply required; Wire Definition & Connection Method & Note Wire Definition:
Red: +5V;
Black: GND;
Green: TXD;
White: RXD
Connection Method: Repeat Brush only need three lines, generally used in the RX TX GND three signal lines, the VCC without access. The above 4, 5 needle friend, not connected to VCC and BT needle. Use RXD connected with the target board TX phase, TXD and target board RX, GND connected to GND if not, swap RX and TX.

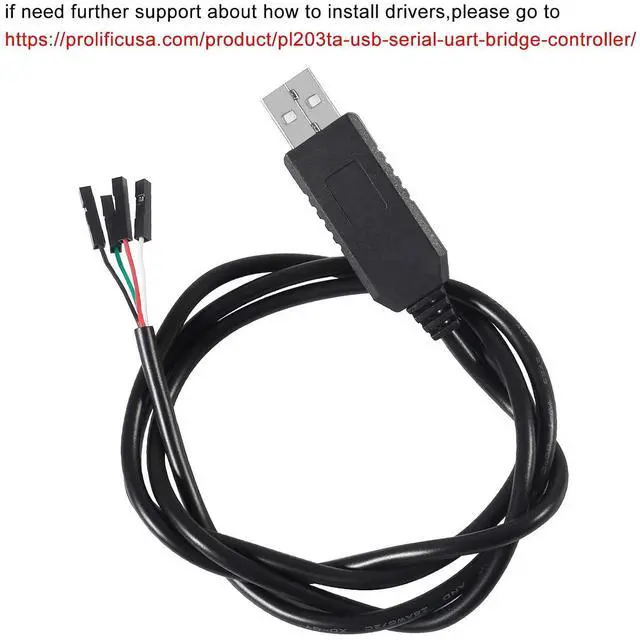

Note: We do not have any user manual, If any installation or usage issues, you may download a driver and usage guide on Prolific official website. See More
Applications: Industrial Control; Upgrading Legacy Peripherals to USB Interface Microcontroller UART or I/O, FPGA / PLD to USB; USB Software / Hardware Encryption Dongles
Package included: 2x USB to Serial TTL Level Converter
Cable
Specifications
:Type: USB to COM; USB to TTL
Cable Length: 3ft/1m
Interface A: USB 2.0 type A Male Port
Interface B: 4 pin Female Socket flying leads Supports Windows 2008, XP and XP 64-bit, Vista and XP 64-bit, CE 4.2, 5.0 and 6.0; Windows 7, 8, 8.1, 10 (32 and 64-bit); Data transfer rates from 300 to 3M baud rate at TTL levels; UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity; Internal EEPROM with users writable area; - Supply voltage comes from USB bus, no external supply required; Wire Definition & Connection Method & Note Wire Definition:
Red: +5V;
Black: GND;
Green: TXD;
White: RXD
Connection Method: Repeat Brush only need three lines, generally used in the RX TX GND three signal lines, the VCC without access. The above 4, 5 needle friend, not connected to VCC and BT needle. Use RXD connected with the target board TX phase, TXD and target board RX, GND connected to GND if not, swap RX and TX.
Note: We do not have any user manual, If any installation or usage issues, you may download a driver and usage guide on Prolific official website. See More
