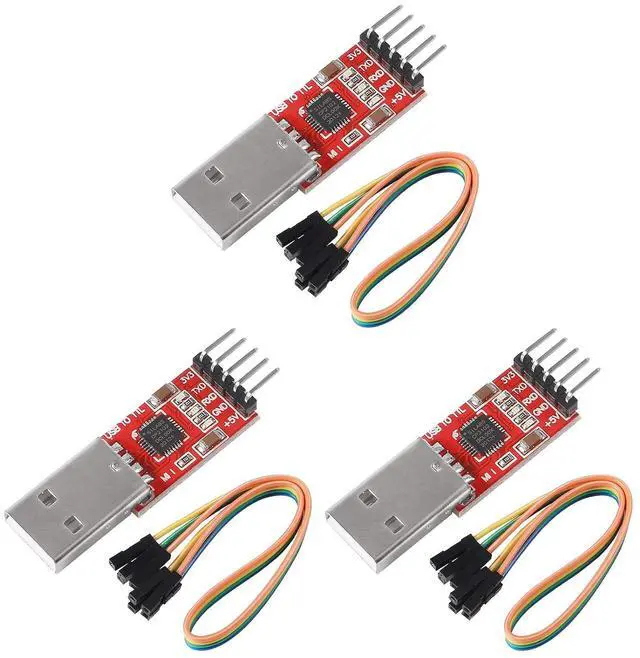

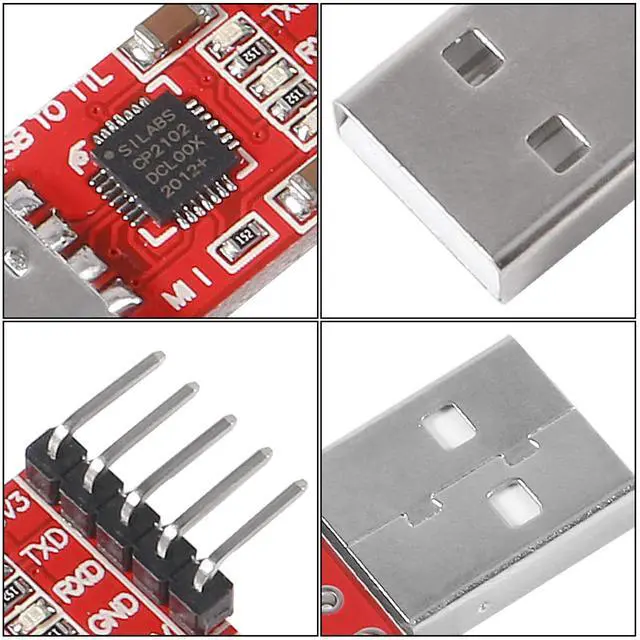

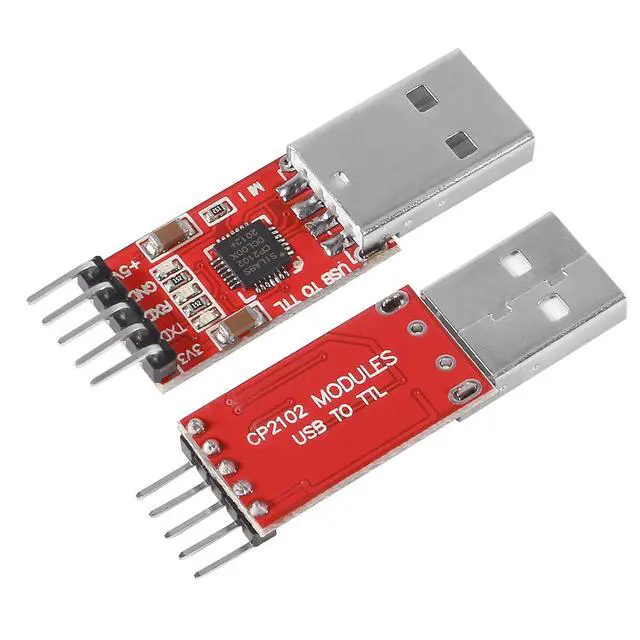

3Pcs CP2102 USB 2.0 to TTL 5Pin Serial Adapter USB to TTL Serial Converter Module for UART STC 3.3V and 5V with Dupont Wire (USB 2.0 to TTL CP2102)
- Stable and reliable chipset CP2102; Supports full range of STC single-chip microcomputer with output voltage 3.3V and 5V; Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.; Baud rates: 300 bps to 1.5 Mbps, support for the highest baud rate up to 115200 bps.; Standard USB type A male and TTL 5pin connector. 5pins for 3.3V, RST, TXD, RXD, GND & 5V; Connect MCU easily to your computer!; With indicator LEDs: power indicator, the indicator data reception, data transmission indicator. After the driver is correctly installed, the status indicator will be on, the sending and receiving indicators will flash when communicating, and the higher baud rate, the lower brightness.; Application: It is designed to be used for USB to TTL electronic projects. Package included:3* USB To TTL 5 pin UART STC Downloader Module + 3*Jumper Wires
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
USB 2.0 to TTL UART 5PIN CP2102 Module Serial Converter. Connect MCU easily to your computer!
Specification:
Material: PCB
Color: Red
Size: 4 x 1 cm ( L x W). The cable length is 20cm
Chip: CP2102
Interface: USB to TTL, 3.3V (<40mA), 5V, GND, TXD, RXD
Power output: Dual 3.3V and 5V
Baud rates: 300 bps to 1Mbps Standard USB type A male and TTL 5pin connector. 5pins for 3.3V, RST, TXD, RXD, GND & 5V. With resettable fuse. In the event of accidental short-circuit can effectively protect your device and computer USB port to download.
Support operating system: Windows 8/7/Vista/xp/server 2003/200, Mac OS-X/OS-9, Linux 2.40 or later.
Communication format support: 1) 5, 6, 7, 8 data bits; 2) support 1, 1.5, 2 stop bits; 3) odd, even, mark, space, none check
Package included: 3 x USB To TTL 5 pin UART STC Downloader Module 3 x Jumper Wires (20cm)
Specification:
Material: PCB
Color: Red
Size: 4 x 1 cm ( L x W). The cable length is 20cm
Chip: CP2102
Interface: USB to TTL, 3.3V (<40mA), 5V, GND, TXD, RXD
Power output: Dual 3.3V and 5V
Baud rates: 300 bps to 1Mbps Standard USB type A male and TTL 5pin connector. 5pins for 3.3V, RST, TXD, RXD, GND & 5V. With resettable fuse. In the event of accidental short-circuit can effectively protect your device and computer USB port to download.
Support operating system: Windows 8/7/Vista/xp/server 2003/200, Mac OS-X/OS-9, Linux 2.40 or later.
Communication format support: 1) 5, 6, 7, 8 data bits; 2) support 1, 1.5, 2 stop bits; 3) odd, even, mark, space, none check
Package included: 3 x USB To TTL 5 pin UART STC Downloader Module 3 x Jumper Wires (20cm)
