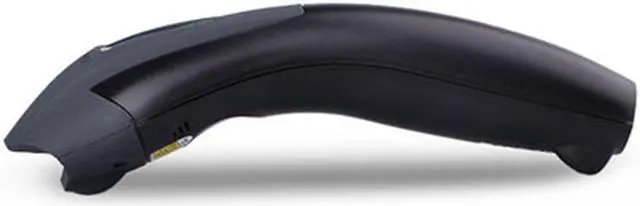

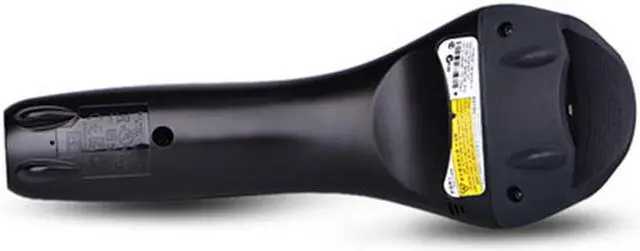

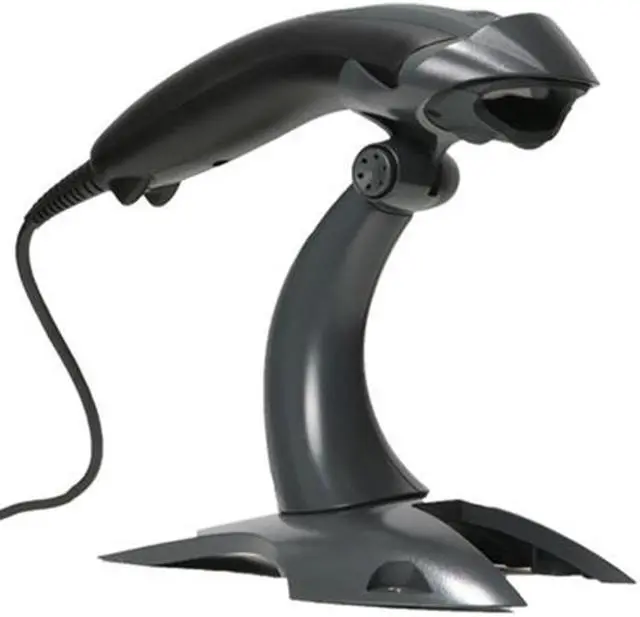

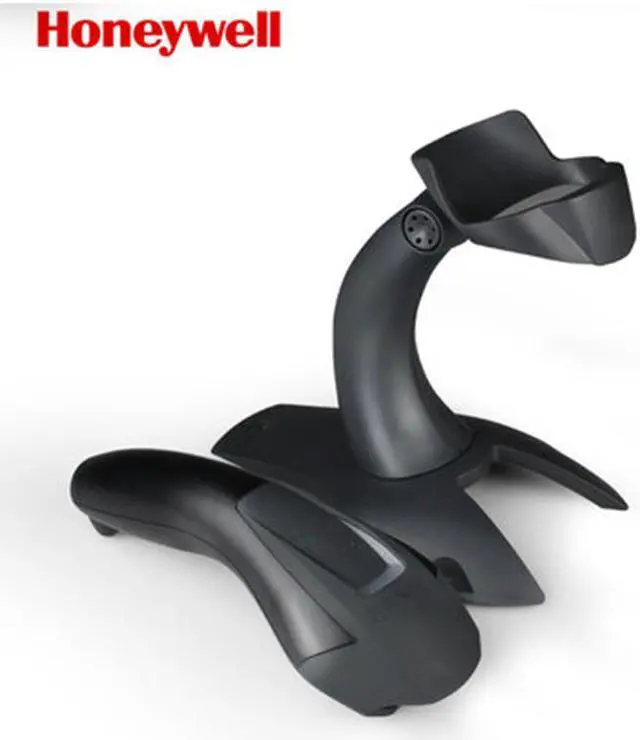

Honeywell 1200g-1usb-1 Voyager 1200g USB Kit w/ Stand Cable Black
- Handheld
- Multi-Interface

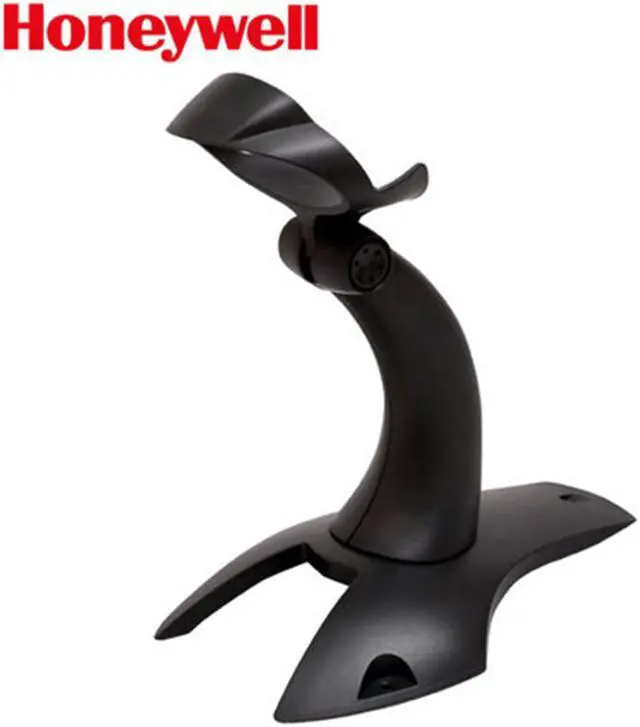

- USB Cable w/ Stand
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Electrical
Input Voltage 5 V ± 5%
Operating Power 700mW; 140mA (typical) @ 5V
Standby Power 350mw; 70mA (typical) @ 5V
Host System Interfaces Multi-Interface / Includes RS232 (TTL +5V, 4 Signals) / KBW / USB (HID Keyboard, Serial, IBM OEM);
RS-232C (±12V) and IBM RS485 supported via adapter cable
Environmental
Operating Temperature 32 - 122°F (0 - 50°C)
Storage Temperature -4 - 140°F (-20 - 60°C)
Humidity 0% to 95% non-condensing
Drop Designed to withstand 30 drops to concrete from 5 feet (1.5m)
Environmental Sealing IP42
Light Levels 0 - 70,000 lux
Scan Performance
Scan Pattern Single scan line
Scan Speed 100 scan lines per second
Scan Angle Horizontal: 30°
Print Contrast 10% minimum reflectance difference
Pitch, Skew 60 degrees, 60 degrees
Decode Capabilities Reads standard 1D and GS1 DataBar symbologies
Mechanical
Dimensions (L x W x H) 3.0 x 7.1 x 3.8 inches (66 x 180 x 97mm)
Weight 4.4oz (125g)
Input Voltage 5 V ± 5%
Operating Power 700mW; 140mA (typical) @ 5V
Standby Power 350mw; 70mA (typical) @ 5V
Host System Interfaces Multi-Interface / Includes RS232 (TTL +5V, 4 Signals) / KBW / USB (HID Keyboard, Serial, IBM OEM);
RS-232C (±12V) and IBM RS485 supported via adapter cable
Environmental
Operating Temperature 32 - 122°F (0 - 50°C)
Storage Temperature -4 - 140°F (-20 - 60°C)
Humidity 0% to 95% non-condensing
Drop Designed to withstand 30 drops to concrete from 5 feet (1.5m)
Environmental Sealing IP42
Light Levels 0 - 70,000 lux
Scan Performance
Scan Pattern Single scan line
Scan Speed 100 scan lines per second
Scan Angle Horizontal: 30°
Print Contrast 10% minimum reflectance difference
Pitch, Skew 60 degrees, 60 degrees
Decode Capabilities Reads standard 1D and GS1 DataBar symbologies
Mechanical
Dimensions (L x W x H) 3.0 x 7.1 x 3.8 inches (66 x 180 x 97mm)
Weight 4.4oz (125g)
