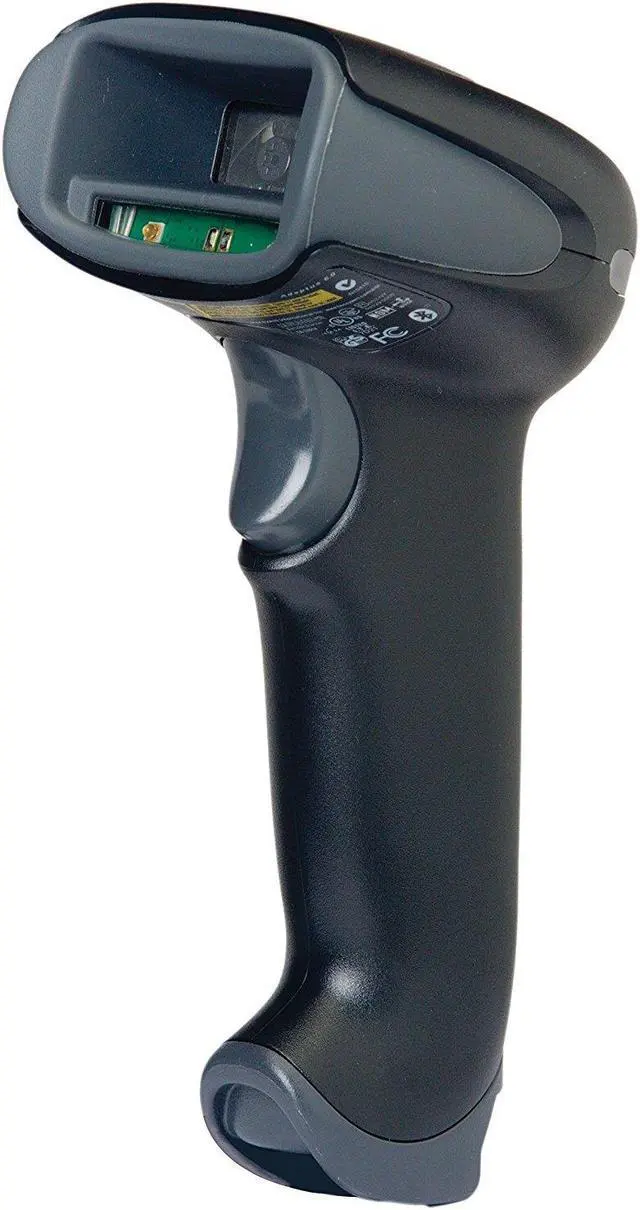

Honeywell 1900gSR-2USB-2 Xenon 1900g Handheld 1D and 2D Barcode Reader with Integrated Ratchet Stand, Standard-Range Focus, Black

This Honeywell 1900gSR-2USB-2 Xenon 1900g black handheld barcode reader has a standard-range area-image scanner instead of a laser to read 1D, PDF, 2D, Postal, and OCR symbologies, and includes a USB cable to transmit data for decoding. The reader has an integrated stand that ratchets to accommodate various scanning angles and different workstation setups for hands-free use. Two LEDs and an audible alert indicate whether a scan has succeeded or failed. A CodeGate setting automatically activates the laser to display a scan line when a barcode is placed within range of the device's sensor but prevents barcode data from being transmitted until a button is pushed to help reduce accidental scans.

Honeywell Remote MasterMind software (sold separately) can be used by an administrator to manage the device remotely. For a complete set of product specifications, please see the manufacturer's brochure. SpecificationsInput voltage4V to 5.5VH ost system interfacesUSB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)Scan patternArea image (838 x 640 pixel array) Decode capabilityReads standard 1D, PDF, 2D, Postal, and OCR symbologiesMotion toleranceUp to 240 in/s (610 cm/s) for 13 mil UPC at optimal focusScan angle 41.1 degrees horizontal; 32.3 degrees verticalPitch; skew45 degrees; 65 degreesPrint contrast20% minimum reflectance differenceDrop specsReader is designed to withstand fifty 6 ft.

( 1.8 m) drops to concrete. Ratchet stand is designed to withstand fifty 5 ft. ( 1.2 m) drops to concrete on each of the faces. Environmental sealingIP41Reader dimensions* 4.1 x 2.8 x 6.3 inches/104 x 71 x 160 mm (L x W x H) Reader weight 5.2 oz. (147 g) with batteryColorBlack* L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back; H is height, the vertical distance from bottom to top. Barcode scanners, also known as barcode readers, can be used to scan and decode barcodes and to transmit barcode data to a computer or another host system.

Barcode readers with a single-line laser can be used to scan linear, one-dimensional (1D) barcodes. Some lasers can produce light in an omnidirectional pattern to allow scanning of barcodes from different angles. Other barcode readers contain CCD (charge-coupled device) light sensors instead of a laser for accuracy and wear resistance. Barcode scanners with raster scanning, area imaging, and other scanning technologies can allow scanning of two-dimensional (2D) or Portable Document Format 417 (PDF417) barcodes, among other types. Some barcode readers provide onboard flash memory to allow the storage of barcode data before transmitting it to a computer or host system through a USB cable or wireless WLAN or Bluetooth connection.

Many barcode readers have a handle for handheld use and come with a stand or a charging cradle for fixed position applications, while others are designed for stationary use on a counter or another flat surface. Some portable readers are small enough to be carried in a pocket or attached to a lanyard. Barcode readers are used at retail checkout counters and other points of sale (POS) locations and in warehouses and shipping facili
