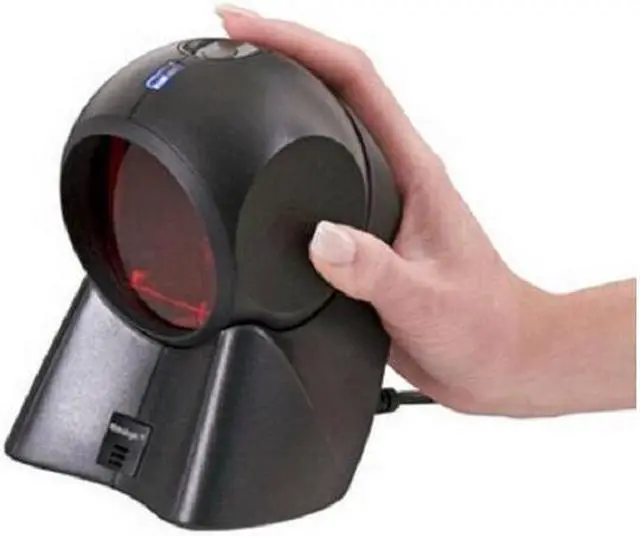

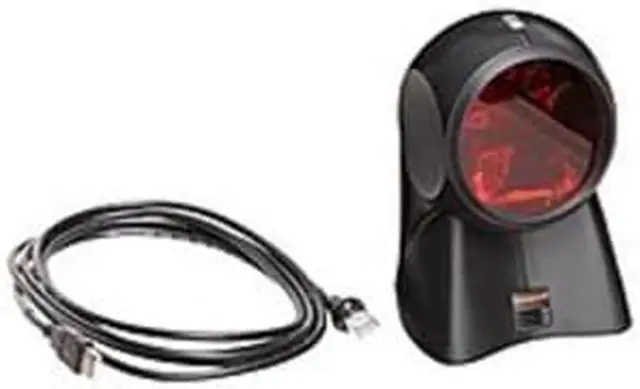

Honeywell MK7120-31A38/MK7120-31B41 Barcode Scanner
Meet ORBIT 7120! ORBIT 7120 is small in size, but BIG in performance. ORBIT 7120 is Honeywell's first Point-of Sale barcode scanner to utilize holographic technology to precisely focus the scanner's laser and therefore increase performance and efficiency. ORBIT 7120 is perfect for retail applications where counter space is at a premium and its unique contoured design allows it to be picked up to scan large, bulky items.
Technical Specifications
Electrical
- Input Voltage: 5 VDC ± 0.25 V
- Operating Power: 900 mW (180 mA @ 5 V)
- Standby Power: 850 mW (170mA @ 5 V)
- Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation
Environmental
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Humidity: 5% to 95% relative humidity, non-condensing
- Drop: Designed to withstand 1.2 m (4´) drops
- Environmental Sealing: Sealed to resist airborne particulate contaminants
- Light Levels: 4842 Lux
Scan Performance
- Scan Pattern: Omnidirectional: 5 fields of 4 parallel lines; button activated single line (7180)
- Scan Speed: Omnidirectional: 1120 scan lines per second; single line: 56 scan lines per second (7180)
- Print Contrast: 35% minimum reflectance difference
- Pitch, Skew: 60°, 60°
- Decode Capability: Reads standard 1D and GS1 DataBar symbologies
