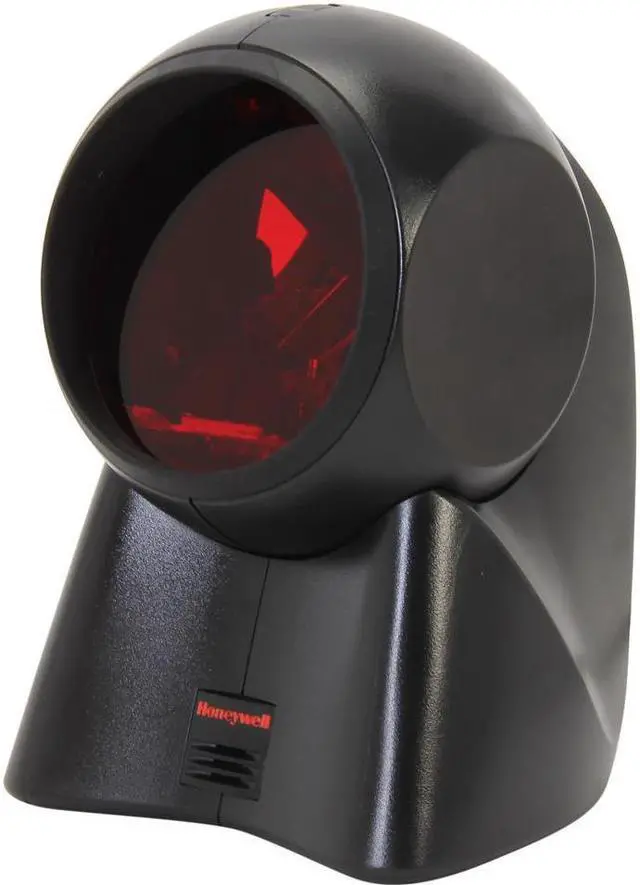

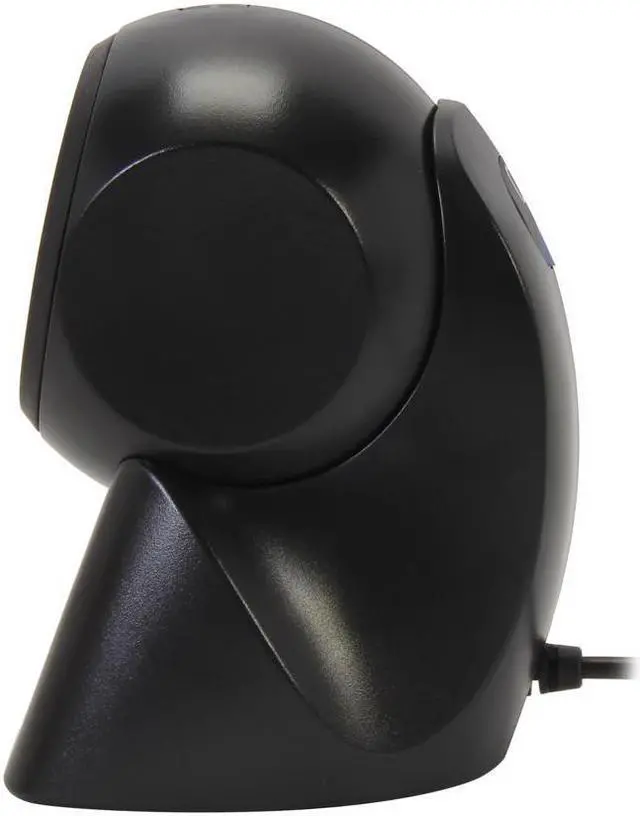

Honeywell MK7120-31A38/MK7120-31B41 Barcode Scanner
Meet ORBIT 7120! ORBIT 7120 is small in size, but BIG in performance. ORBIT 7120 is Honeywell's first Point-of Sale barcode scanner to utilize holographic technology to precisely focus the scanner's laser and therefore increase performance and efficiency. ORBIT 7120 is perfect for retail applications where counter space is at a premium and its unique contoured design allows it to be picked up to scan large, bulky items.
Technical Specifications
Electrical
- Input Voltage: 5 VDC ± 0.25 V
- Operating Power: 900 mW (180 mA @ 5 V)
- Standby Power: 850 mW (170mA @ 5 V)
- Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation
Environmental
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Humidity: 5% to 95% relative humidity, non-condensing
- Drop: Designed to withstand 1.2 m (4´) drops
- Environmental Sealing: Sealed to resist airborne particulate contaminants
- Light Levels: 4842 Lux
Scan Performance
- Scan Pattern: Omnidirectional: 5 fields of 4 parallel lines; button activated single line (7180)
- Scan Speed: Omnidirectional: 1120 scan lines per second; single line: 56 scan lines per second (7180)
- Print Contrast: 35% minimum reflectance difference
- Pitch, Skew: 60°, 60°
- Decode Capability: Reads standard 1D and GS1 DataBar symbologies
Honeywell's Orbit® series of scanners provide aggressive omnidirectional scanning in an award-winning design for retailers seeking an affordable, aesthetically-pleasing scanning solution. Orbit, the all-time, best-selling hands-free omnidirectional scanner, presents an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. Compact, lightweight and rugged, Orbit maximizes customer satisfaction and employee efficiency with a patented 20-line scan pattern, an easy-to-find sweet spot and a scan speed of 1, 120 scans per second. Recipient of multiple design honors, Orbit's award-winning shape enables hand-held scanning of large, bulky items.
For added flexibility, the scanning head can be tilted within a 30-degree range to accommodate objects of various sizes and shapes. For applications that require menu scanning, OrbitCG 7180 combines the power of patented CodeGate® technology with many of the outstanding features already found in the Orbit® 7120. CodeGate technology allows the user to easily target the desired bar code and complete data transmission with the push of a single button. The scanner's expanded ability to update its firmware via Honeywell's free patented MetroSet®2 configuration software safeguards longterm infrastructure commitments in the event of a change in the POS system or software.
Standard features include an integrated EAS antenna for tag deactivation (OrbitCG 7180 only), power save mode, user-replaceable cables, Honeywell's patented MetroSelect and MetroSet®2 for easy configuration, data editing and OPOS/JPOS compatibility for easy installation.
