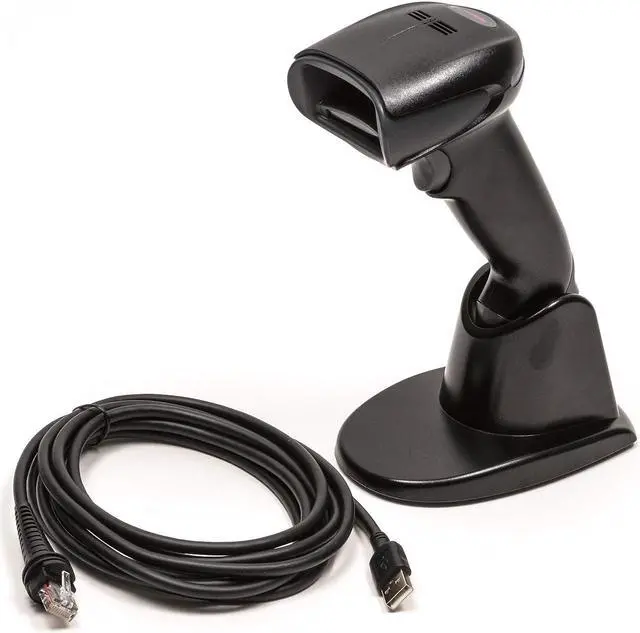

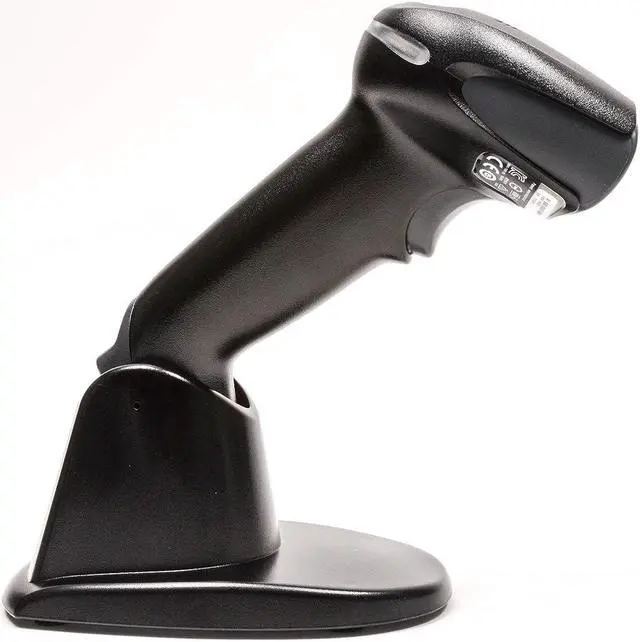

Honeywell 1900gSR-2USB-2 Xenon 1900g Handheld 1D and 2D Barcode Reader with Integrated Ratchet Stand, Standard-Range Focus, Black

This Honeywell 1900gSR-2USB-2 Xenon 1900g black handheld barcode reader has a standard-range area-image scanner instead of a laser to read 1D, PDF, 2D, Postal, and OCR symbologies, and includes a USB cable to transmit data for decoding. The reader has an integrated stand that ratchets to accommodate various scanning angles and different workstation setups for hands-free use. Two LEDs and an audible alert indicate whether a scan has succeeded or failed. A CodeGate setting automatically activates the laser to display a scan line when a barcode is placed within range of the device's sensor but prevents barcode data from being transmitted until a button is pushed to help reduce accidental scans.

Honeywell Remote MasterMind software (sold separately) can be used by an administrator to manage the device remotely. For a complete set of product specifications, please see the manufacturer's brochure.

Specifications

Input voltage4V to 5.5VH ost system interfacesUSB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)Scan patternArea image (838 x 640 pixel array) Decode capabilityReads standard 1D, PDF, 2D, Postal, and OCR symbologiesMotion toleranceUp to 240 in/s (610 cm/s) for 13 mil UPC at optimal focusScan angle 41.1 degrees horizontal; 32.3 degrees verticalPitch; skew45 degrees; 65 degreesPrint contrast20% minimum reflectance differenceDrop specsReader is designed to withstand fifty 6 ft. ( 1.8 m) drops to concrete. Ratchet stand is designed to withstand fifty 5 ft. ( 1.2 m) drops to concrete on each of the faces.

Environmental sealingIP41Reader dimensions* 4.1 x 2.8 x 6.3 inches/104 x 71 x 160 mm (L x W x H) Reader weight 5.2 oz. (147 g) with batteryColorBlack
* L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back; H is height, the vertical distance from bottom to top. Barcode scanners, also known as barcode readers, can be used to scan and decode barcodes and to transmit barcode data to a computer or another host system. Barcode readers with a single-line laser can be used to scan linear, one-dimensional (1D) barcodes. Some lasers can produce light in an omnidirectional pattern to allow scanning of barcodes from different angles.

Other barcode readers contain CCD (charge-coupled device) light sensors instead of a laser for accuracy and wear resistance. Barcode scanners with raster scanning, area imaging, and other scanning technologies can allow scanning of two-dimensional (2D) or Portable Document Format 417 (PDF417) barcodes, among other types. Some barcode readers provide onboard flash memory to allow the storage of barcode data before transmitting it to a computer or host system through a USB cable or wireless WLAN or Bluetooth connection. Many barcode readers have a handle for handheld use and come with a stand or a charging cradle for fixed position applications, while others are designed for stationary use on a counter or another flat surface.

Some portable readers are small enough to be carried in a pocket or attached to a lanyard. Barcode readers are used at retail checkout counters and other points of sale (POS) locations and in warehouses and shipping facilities.
Honeywell manufactures products, materials, and technologies used in aerospace, transportation, and automation and control systems. The company, founded in 1885, is headquartered in Morristown, NJ.
What's in the Box?
Honeywell Xenon 1902g barcode reader with integrated ratchet stand
USB cable
Instructions
