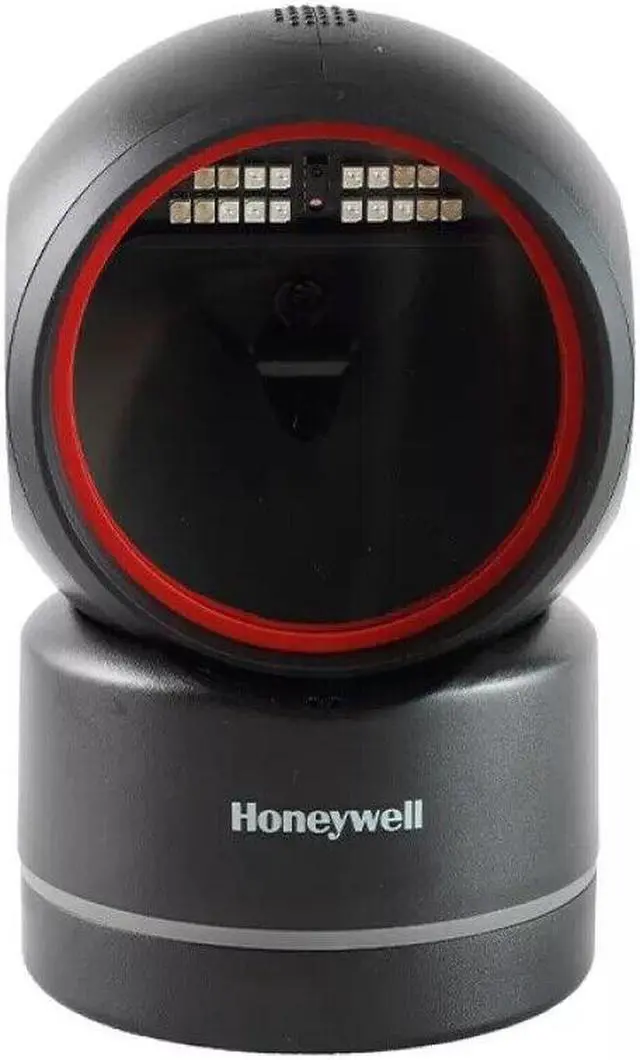

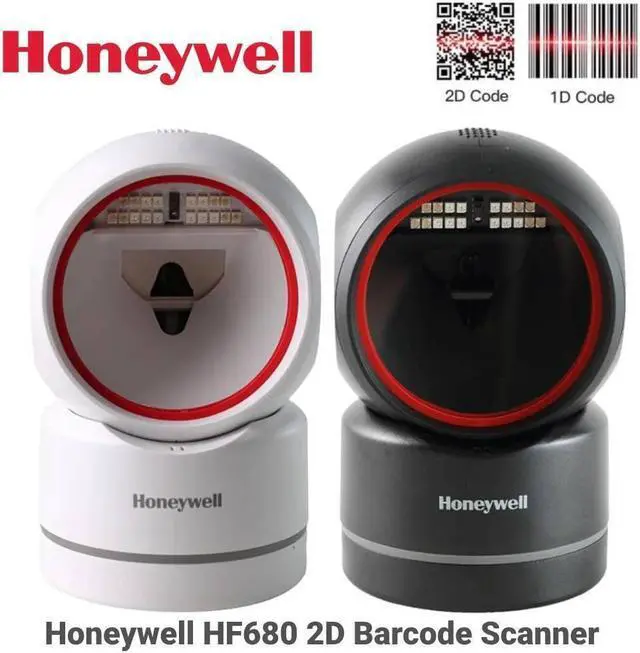

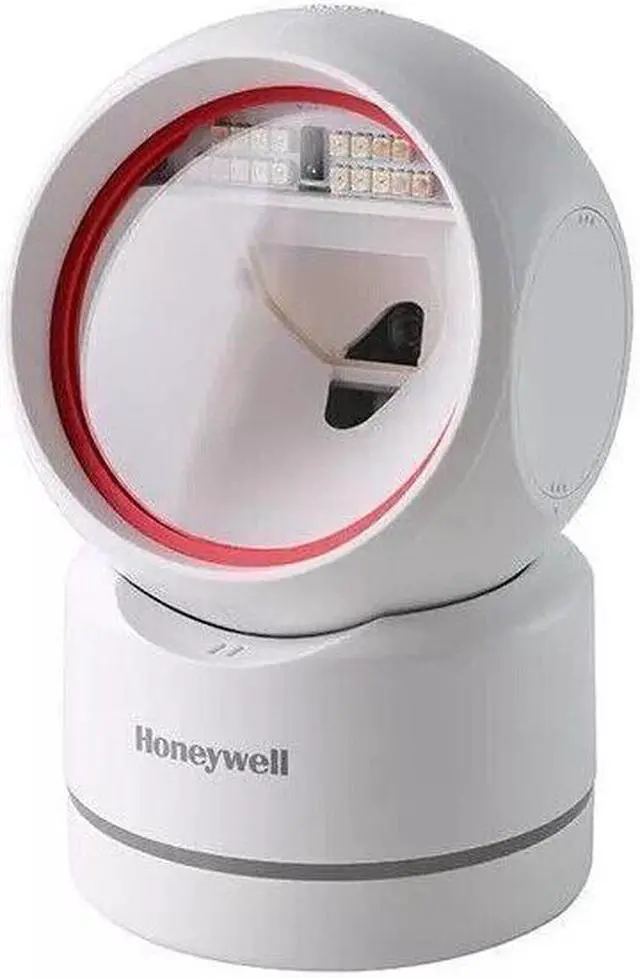

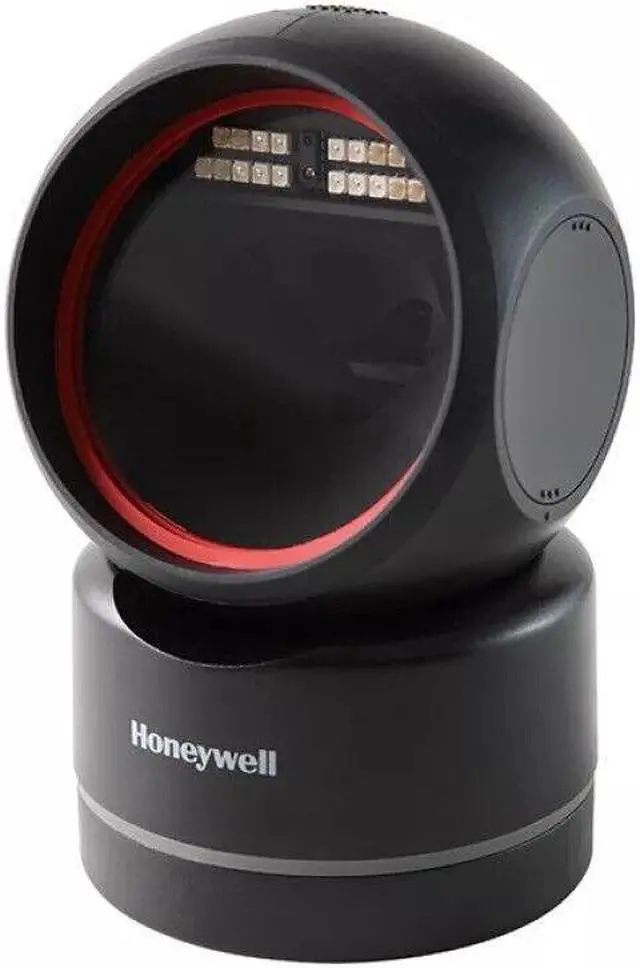

Honeywell HF680 Area Imaging USB Scanner bar code QR code 2D Barcode Scanner White

Honeywell Orbit HF680 2D Hands-Free Area-Imaging Scanner



Introduction:

Honeywells Orbit HF680 point-of-sale hands free/presentation scanner is the perfect blend of affordability, performance and style.



With the Orbit HF680, retailers no longer have to compromise their budgets to get performance and a modern design. Get it all with Honeywells Orbit HF680.



Customers will zip through the checkout line with the lightning-fast scanning capability of both 1D and 2D barcodes with Orbit HF680. And the Orbit HF680 minimizes checkout delays by quickly scanning traditionally difficult to read digital barcodes and even damaged barcodes



The Orbit HF680 scanning is not only fast, its also unobtrusive. The low profile, recessed LED lights in the scan window light up barcodes without irritating your customers. And when the scanner is not in use, its lighting will automatically turn off.



Features:

FASTER SCANNING

With its Megapixel sensor and 1Ghz processor, the Orbit HF680s fast scanning will speed customers through the checkout line even when presented with digital or damaged barcodes.



SIMPLIFIED SCANNER INTEGRATION

Save time by rapidly configuring the Orbit HF680 with Honeywells EZConfig configuration utility. Simplify installations with OPOS/JPOS drivers that ensure scanner compatibility with various POSs.



MODERN STYLING

The Orbit HF680 provides retailers a scanner that can be displayed proudly at the checkout counter.



GREAT PRICE

Exceptional performance and design at an exceptional price.

Specifications

:

PHYSICAL

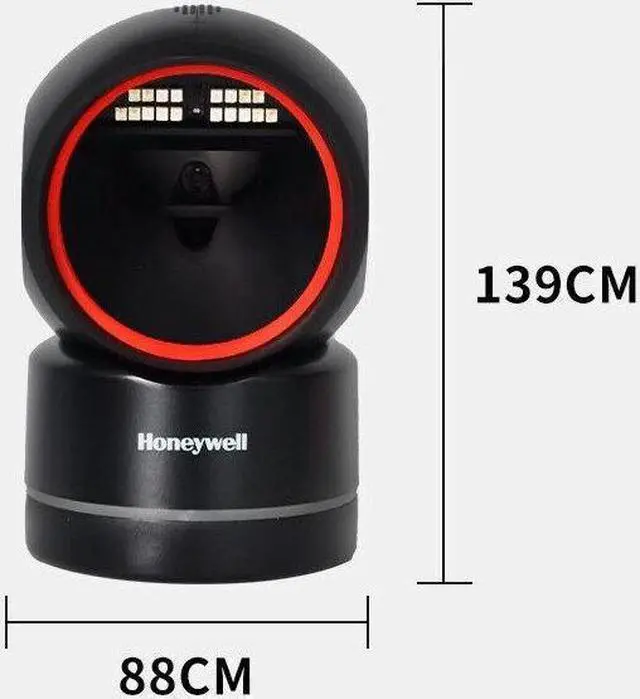

Dimensions: (L × W ×
H): 85 mm × 88 mm × 139 mm

Weight: 278 +/-10g



ELECTRICAL

Input voltage: 5 VDC ± 0.5V

Working: 2.0 W (400 mA @ 5V)

Standby: 0.85 W (170 mA @ 5V)

Host interface: USB, RS-232



ENVIRONMENTAL

Operating temperature: -10°C to 40°C (14°F to 104°F)

Storage temperature: -40°C to 60°C (-40°F to 140°F)

Humidity: 0% to 95%RH, no condensation

Drop: Designed to withstand 1 m drops

Illuminance: 0-100, 000 Lux



SCANNING PERFORMANCE

DPI: 1280 × 800 pixel

Motion tolerance: Up to 2.5 m/s for 13 mil UPC at optimal focus

Scan angle: Horizontal: 47°; Vertical: 30°

Print Contrast: 20% minimum reflectance difference

Pitch,
Skew: +/-60°, +/-70°

Decode Capability: Reads standard 1D, PDF, 2D Symbologies

Note: Decode capabilities dependent on kit configuration.

Warranty: 1-year factory warranty
