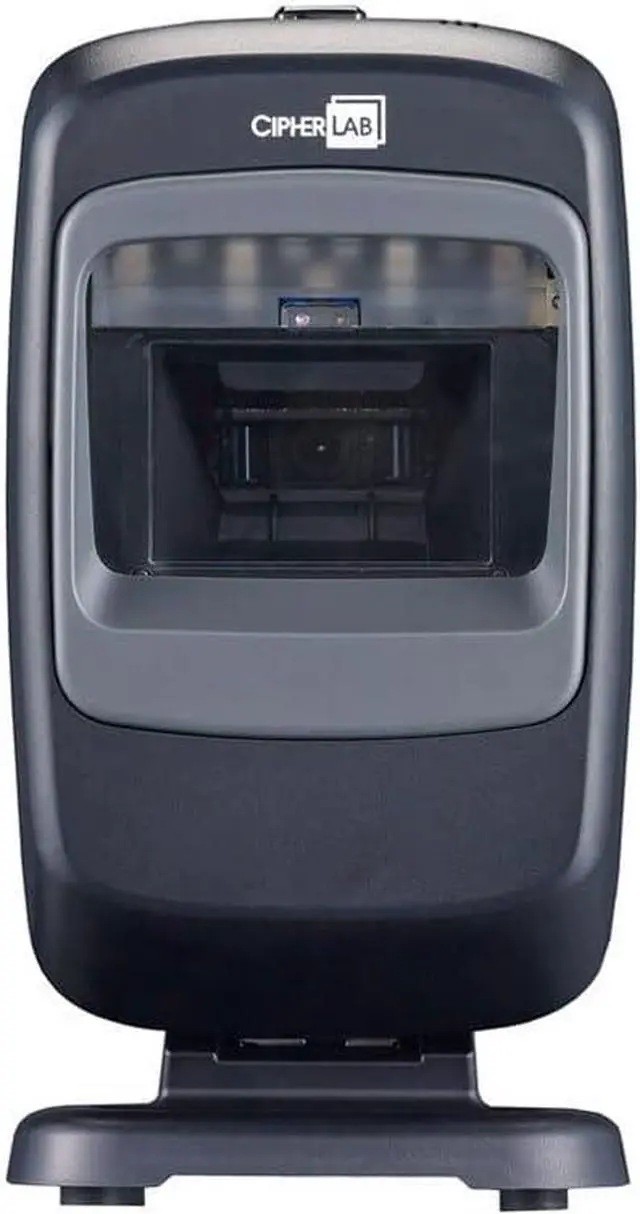

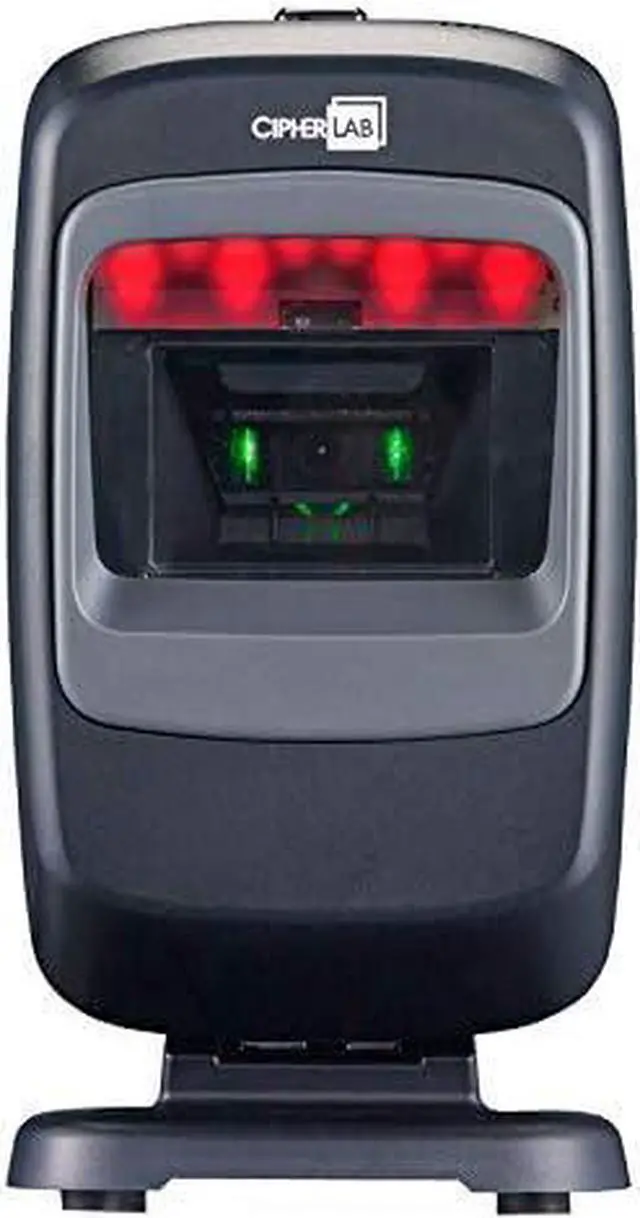

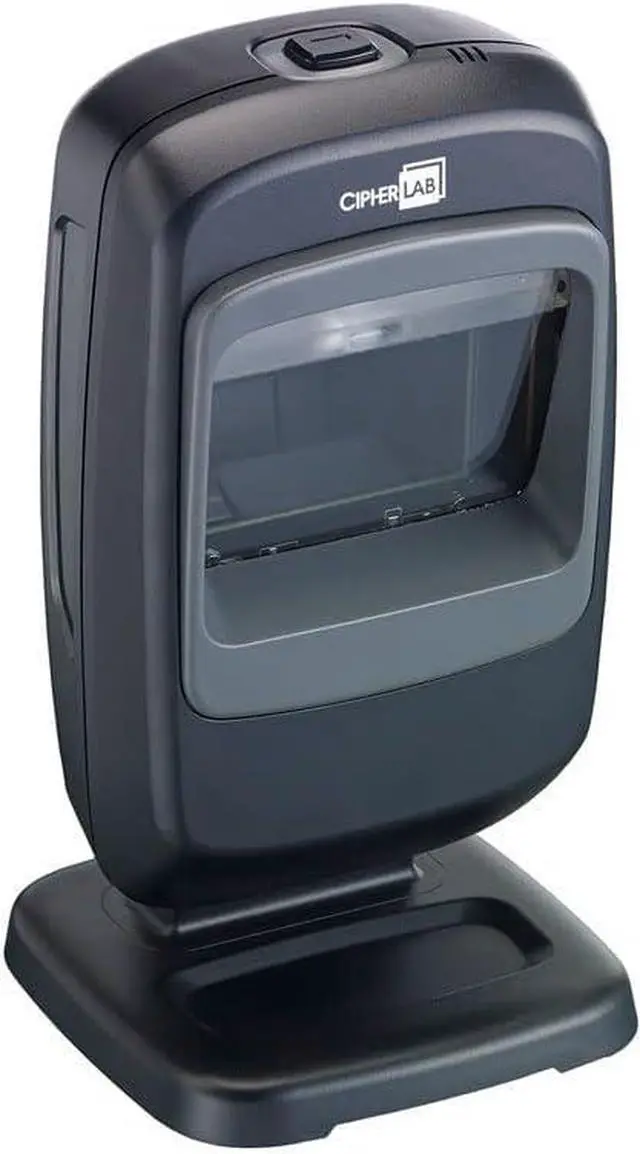

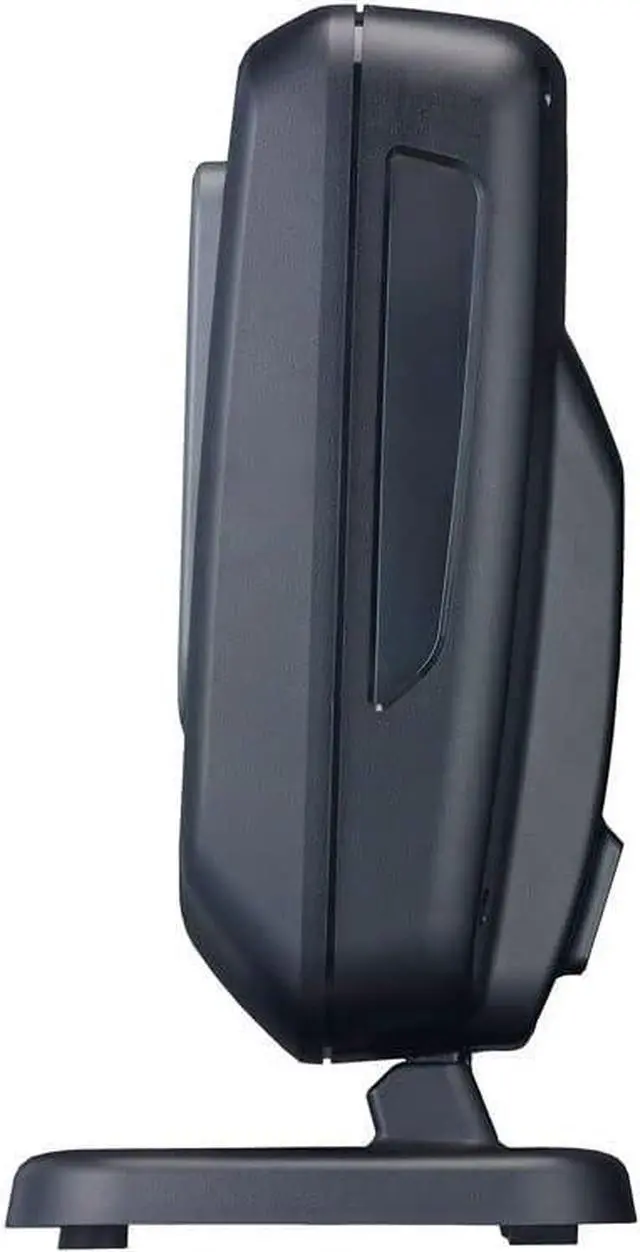

CipherLab 2200 Series 2D Imager Omnidirectional Presentation Scanner w/USB Cable & Locking Mount
- The CipherLab 2200 series is designed for retailing, hospitality, and transportation industries, with fast and reliable omnidirectional scanning capabilities. It can seamlessly operate in convenience stores, supermarkets, and department stores due to its high-speed scanning abilities. With multiple configurations available, users can customize the 2200 series to meet their specific needs, making it easy to enjoy a fast and reliable workflow.
- The 2220 model is an omnidirectional presentation scanner that combines features of 1D/2D barcode scanning and UHF RFID reading. It is capable of instantly reading RFID tags, up to 20 cm reading range, and identify products clearly for quick and easy checkout.
- 2D: PDF417, MicroPDF417, Data Matrix, QR code, Micro QR Code, Aztec, MaxiCode, Composite Codes
- Support Tag Type: ISO 18000-6C, EPCglobal Class1 Gen2 (Standard), EPCglobal Class1 Gen2V2 (Standard)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CipherLab 2200 Omnidirectional Presentation Scanner (UHF RFID)
Overview
The 2220 model is an omnidirectional presentation scanner that combines features of 1D/2D barcode scanning and UHF RFID reading. It is capable of instantly reading RFID tags, up to 20 cm reading range, and identify products clearly for quick and easy checkout.
Industry Use
Retail
Hospitality
Transportation
Data capture: 2D Imager and UHF RFID
Optical sensor: CMOS Image Sensor 1280 x 800 pixels
Light source: LED RED 620 nm
Resolution: 1D - 3mil / PDF417 - 5mil / 2D - 7mil
DEPTH OF FIELD
Code 39 3 mil: 0 to 5 cm / 0 to 2.0 in.
QR Code 7 mil: 0.5 to 2.5 cm / 0.2 to 1.0 in.
EAN13 13mil: 0 to 20 cm / 0 to 7.9 in.
PDF417 5mil: 1 to 6 cm / 0.4 to 2.4 in.
Pitch, skew: Pitch ± 70°, Skew ± 75°
Print contrast: 25%
Hands-free scanning: Presentation mode
Barcodes supported
Ambient illumination: 100,000 Lux
1D: Codabar, Code 39, Code 93, Code 128, GS1 DataBar (RSS), Industrial 2 of 5, Interleave 2 of 5, ISBT-128, Italian and French Pharmacodes, Matrix 2 of 5, MSI, Plessey, Telepen, UPC/EAN/GS1-128, Code 11
2D: PDF417, MicroPDF417, Data Matrix, QR code, Micro QR Code, Aztec, MaxiCode, Composite Codes
RFID read/writeFrequency:
North America: 902 - 928 MHz,
Europe: 865 - 868 MHz,
Taiwan: 922 - 928 MHz,
China: 920 - 925 MHz,
Korea: 917.3 - 920.3 MHz,
Support Tag Type: ISO 18000-6C, EPCglobal Class1 Gen2 (Standard), EPCglobal Class1 Gen2V2 (Standard)
Color: Black
Size: 83 x 80 x 150 mm / 3.3 x 3.2 x 5.9 in
Weight: 380g / 13 oz.
Impact resistance: 1.5 m (4.9 ft) multiple drops onto concrete, IP52
Overview
The 2220 model is an omnidirectional presentation scanner that combines features of 1D/2D barcode scanning and UHF RFID reading. It is capable of instantly reading RFID tags, up to 20 cm reading range, and identify products clearly for quick and easy checkout.
Industry Use
Retail
Hospitality
Transportation
Data capture: 2D Imager and UHF RFID
Optical sensor: CMOS Image Sensor 1280 x 800 pixels
Light source: LED RED 620 nm
Resolution: 1D - 3mil / PDF417 - 5mil / 2D - 7mil
DEPTH OF FIELD
Code 39 3 mil: 0 to 5 cm / 0 to 2.0 in.
QR Code 7 mil: 0.5 to 2.5 cm / 0.2 to 1.0 in.
EAN13 13mil: 0 to 20 cm / 0 to 7.9 in.
PDF417 5mil: 1 to 6 cm / 0.4 to 2.4 in.
Pitch, skew: Pitch ± 70°, Skew ± 75°
Print contrast: 25%
Hands-free scanning: Presentation mode
Barcodes supported
Ambient illumination: 100,000 Lux
1D: Codabar, Code 39, Code 93, Code 128, GS1 DataBar (RSS), Industrial 2 of 5, Interleave 2 of 5, ISBT-128, Italian and French Pharmacodes, Matrix 2 of 5, MSI, Plessey, Telepen, UPC/EAN/GS1-128, Code 11
2D: PDF417, MicroPDF417, Data Matrix, QR code, Micro QR Code, Aztec, MaxiCode, Composite Codes
RFID read/writeFrequency:
North America: 902 - 928 MHz,
Europe: 865 - 868 MHz,
Taiwan: 922 - 928 MHz,
China: 920 - 925 MHz,
Korea: 917.3 - 920.3 MHz,
Support Tag Type: ISO 18000-6C, EPCglobal Class1 Gen2 (Standard), EPCglobal Class1 Gen2V2 (Standard)
Color: Black
Size: 83 x 80 x 150 mm / 3.3 x 3.2 x 5.9 in
Weight: 380g / 13 oz.
Impact resistance: 1.5 m (4.9 ft) multiple drops onto concrete, IP52
