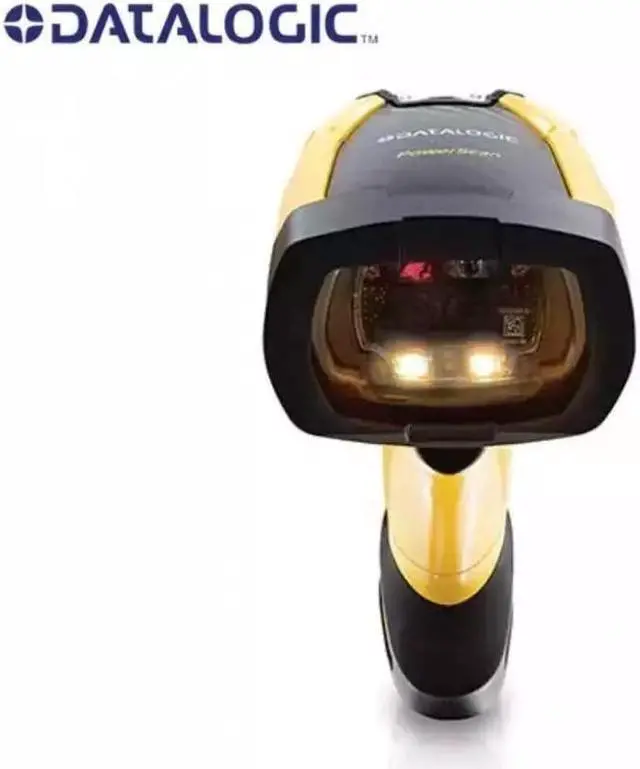

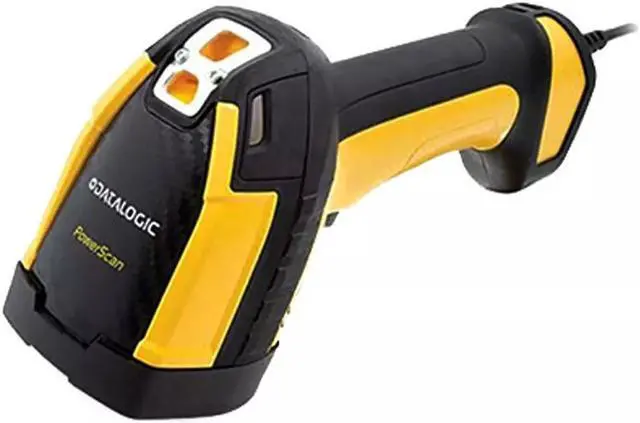

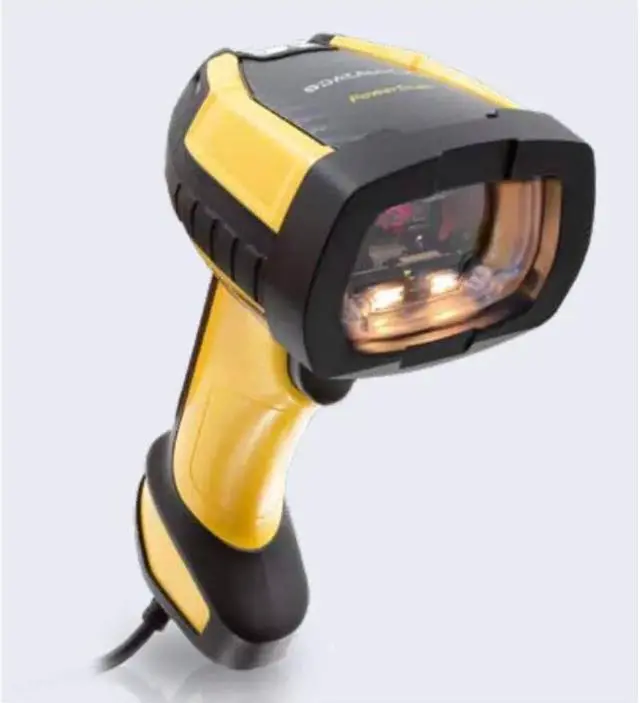

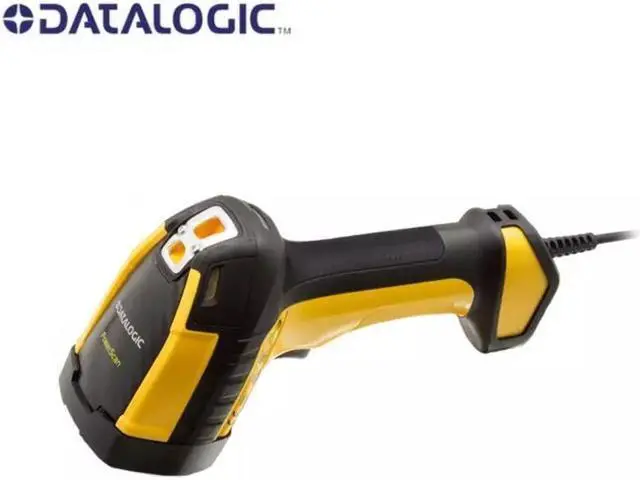

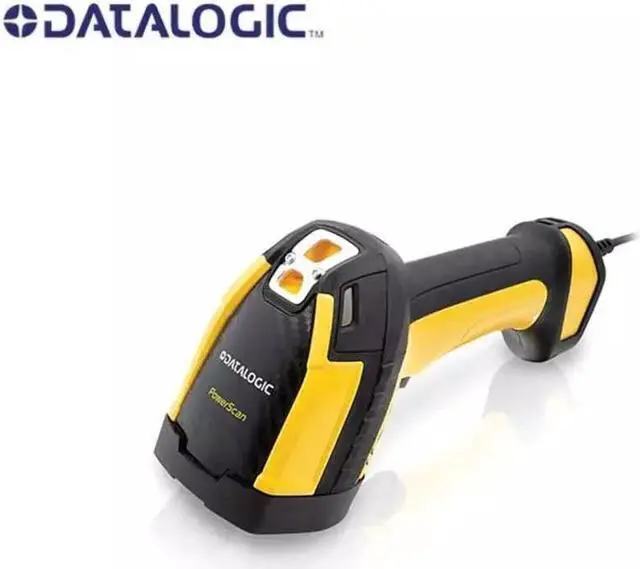

New Datalogic PD9630-HP Wireless Portable 1D/2D Barcode Scanner Bar Code Reader RS232 Kit

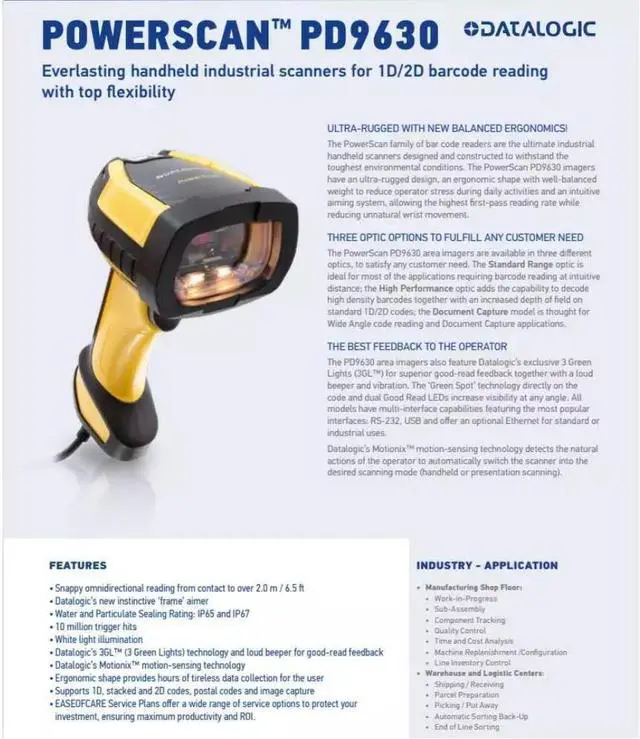

Feature:

Fast omnidirectional reading of contact up to 2.0 m to 6.5 ft

Datalogic's new instinctive frame target

Water and particle seal rating: IP65 and IP67

10 million trigger hits

White light lighting

Datalogics 3GL (3 Green Lights) Technology and loud beeper for easy-to-read feedback

Motionix from Datalogic Motion detection technology

Ergonomic shape provides the user with hours of tireless data collection

Supports 1D, stacked and 2D codes, postcodes and image capture

EASEOFCARE service plans offer a wide range of service options to protect your investment and ensure maximum productivity and ROI

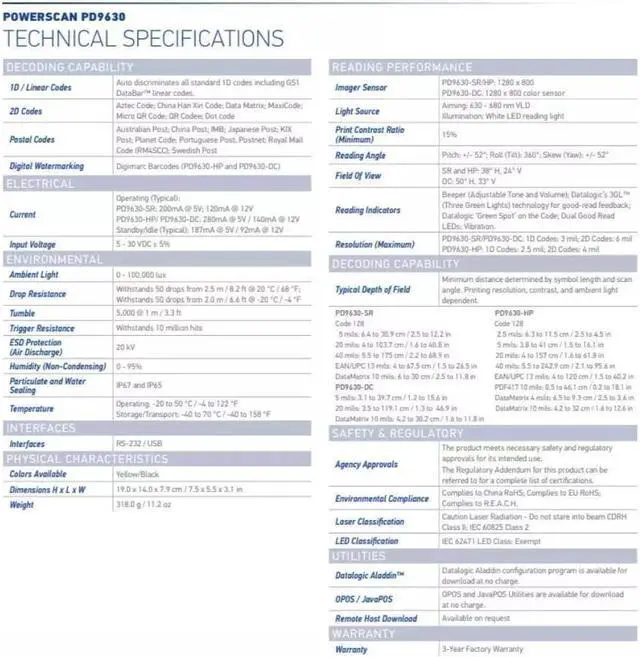

Specifications

:

DECODING CAPABILITY

1D / Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D Codes Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Codee; Dot code

Postal Codes:

Australian Post; China Post; IMB; Japanese Post; KIX

Post; Planet Code; Portuguese Post; Postnet; Royal Mail

Code (RM4SCC); Swedish Post

Digital Watermarking Digimarc Barcodes (PD9630-HP)



ELECTRICAL

Current

Operating (Typical):

PD9630-SR: 200mA @ 5V; 120mA @ 12V

PD9630-HP/ PD9630-DC: 280mA @ 5V / 140mA @ 12V

Standby/Idle (Typical): 187mA @ 5V / 92mA @ 12V

Input Voltage 5 - 30 VDC ± 5%



ENVIRONMENTAL

Ambient Light 0 - 100, 000 lux

Drop Resistance Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F;

Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F

Tumble 5, 000 @ 1 m / 3.3 ft

Trigger Resistance Withstands 10 million hits

ESD Protection

(Air Discharge) 20 kV

Humidity (Non-Condensing) 0 - 95%

Particulate and Water

Sealing IP67 and IP65

Temperature Operating: -20 to 50 °C / -4 to 122 °F

Storage/Transport: -40 to 70 °C / -40 to 158 °F




READING PERFORMANCE

Imager Sensor PD9630-HP: 1280 x 800

Light Source Aiming: 630 - 680 nm VLD

Illumination: White LED reading light

Print Contrast Ratio: (Minimum) 15%

Reading Angle Pitch: +/- 52°;
Roll (Tilt): 360°; Skew (Yaw): +/- 52°

Field Of View HP: 38° H, 24° V

Reading Indicators

Beeper (Adjustable Tone and Volume); Datalogics 3GL

(Three Green Lights) technology for good-read feedback;

Datalogic Green Spot on the Code; Dual Good Read LEDs; Vibration.

Resolution (Maximum):
PD9630-HP: 1D
Codes: 2.5 mil; 2D Codes: 4 mil




DECODING CAPABILITY

Typical Depth of Field

Minimum distance determined by symbol length and scan

angle. Printing resolution, contrast, and ambient light

dependent.



INTERFACES

Interfaces RS-232 / USB



PHYSICAL CHARACTERISTICS

Colors Available Yellow/Black

Dimensions H x L x W 19.0 x 14.0 x 7.9 cm / 7.5 x 5.5 x 3.1 in

Weight 318.0 g / 11.2 oz
