Manhattan Products 178495 Manhattan Wireless Linear CCD Barcode Scanner - Wireless Connectivity - 500 scan/s - 20" Scan Distance - 1D - CCD - Bluetooth - Black

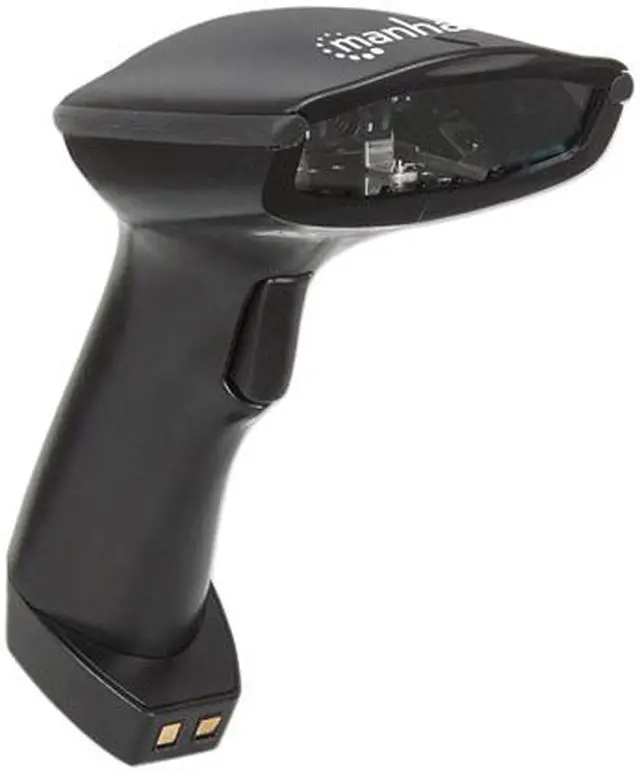

Wireless Linear CCD Barcode Scanner
Wireless Bluetooth Linear CCD Barcode Scanner with 50 cm Scan Depth

Improve speed, accuracy and productivity with wireless freedom.

Manhattan Wireless Bluetooth CCD Long-Range Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. When out of range of the paired Bluetooth device, the handset is able to store up to 3,000 scans. The CCD (charge-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes, including UPC, EAN, ASCII and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. Its Bluetooth technology provides a convenient operation range of up to 80 m (264 ft.) from the recharging base. With a scan rate of 500 scans per second and an accurate read range of up to 500 mm (20 in.), this model offers a high-performance, all-purpose daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.



Features

• Helps speed data entry, reduce errors and improve efficiency; ideal for retail transactions and automated processes
• Wireless Bluetooth technology offers effective range up to 80 m (264 ft.) in line of sight
• Keyboard Wedge Decoder displays data as if directly entered from keyboard
• Wide scan field provides quick, accurate reads with up to 500 scans per second up to 500 mm (20 in.) away
• Detects many popular symbologies including UPC, EAN, 1D barcodes, ASCII, GS1 DataBar Family and more
• Switchable interface integrates with most PCs
• Easy to install and use without software or special training
• Three-Year Warranty



Specifications

Standards and Certifications

• FCC
• CE
• RoHS

General

• Light source: 632 nm visible red LED
• Scanner range: 500 mm
• Resolution: 0.1 mm (4 mil) @ PCS 0.9
• Reading indicator: tone and LED
• Ambient light: 100,000 lux maximum (sunlight)
• Scan rate: Smart Detection, up to 500 scans/second
• Interface: wireless to base; base to PC, KBW / RS232 / USB (HID or Virtual Comport)
• Switch: trigger

Wireless

• Bluetooth: V2.1, Class I
• HID and SPP profiles
• Range: 80 m (264 ft.) in line of sight

Code Support

• UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code 32/ Italian Pharmacy, Code 128, Codabar/MW7, Interleave 25, Industrial 25, Matrix25, MSI/PLESSEY, Telepan, Code 93, Code 11, China Postage, Code26, LCD25, GS1 DataBar (RSS code)

Physical

• Dimensions, scanner: 18.3 x 9 x 7 cm (7 x 3.5 x 2.76 in.); base, 19 x 9.5 x 4 cm (7.5 x 3.7 x 1.6 in.)
• Weight: scanner 0.20 kg (0.44 lbs.); cradle 0.10 kg (0.22 lbs.)
• Operating temperature: 0 – 50°C
• Storage temperature: -20 – 60°C
• Relative humidity: 20 – 95% (non-condensing)
• Housing: ABS and rubber

Electrical (Scanner)

• Supply voltage: battery Li-ion 3.7 V
• Battery type: Li-ion battery 1100 mAh
• Reads per charge: 8,000 continuous reads
• Recharge time: 3.5 hours
• Current draw: 150 mA

Electrical (Receiver)

• Supply voltage: DC +5 V +/- 5%
• Current draw: 70 mA

Package Contents

• Linear CCD Wireless Bluetooth Barcode Scanner

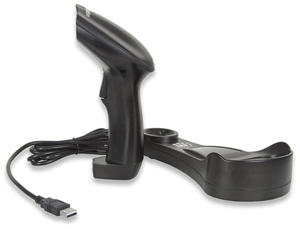

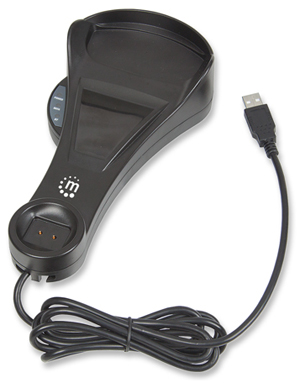

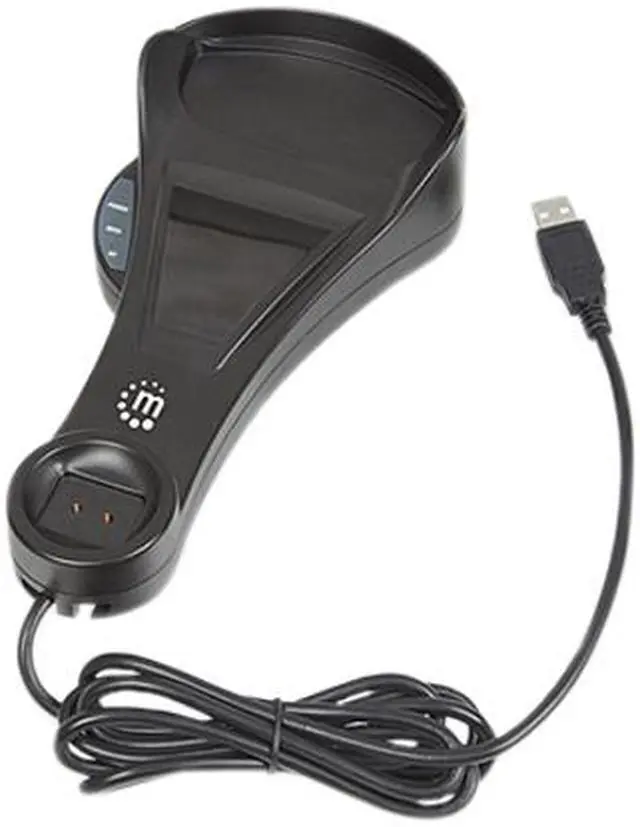

• Receiver/recharge base
• Power and RJ50 to USB cables
• User manual
