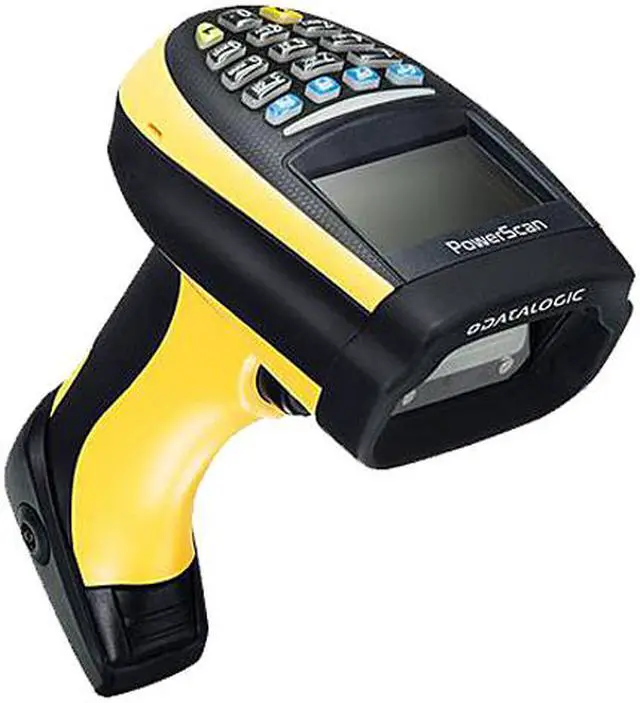

Datalogic PM9500-DKHP910RB PowerScan PM9500-DK Barcode Scanner

Be the first to review this product...

Scanner Only
Cordless 2D Imager
High Performance Liquid Lens
Display with 16 key Keypad
Removable Battery
Cradles and cables sold separately

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

DATALOGIC ADC, POWERSCAN PM9500/DK HP 910MHZ, HIGH PERFORMANCE/LIQUID LENS, REMOVABLE BATTERY, PC-9000 PROTECTIVE CASE BELT HOLSTER, HLD-P080 DESK/WALL HOLDER

General
Brand	Datalogic
Series	PowerScan
Part Number	PM9500-DKHP910RB
Form Factor	Handheld
Connectivity	Cordless
Scan Engine	2D

Connectivity
Included Cables	Scanner Only - No Cable
Interfaces Supported	Keyboard Wedge; RS-232; RS-485; USB: OEM USB; USB COM; USB HID Keyboard
Cordless Type	Handheld Barcode Scanner

Scan Performance
Light Source	Aiming: 630 - 680 nm VLD Illumination: White LEDs
Resolution	1D Codes: 4 mil; 2D Codes: 7.5 mil
Depth of Scan Field	Minimum distance determined by symbol length and scan angle; Printing resolution, contrast, and ambient light dependent.
Pitch	±40 degree
Roll	±360 degree
Yaw	±40 degree
Print Contrast Ratio (Minimum)	15%

Electrical
Battery	Lithium-Ion 2150 mAh Charge Time: External Power: 4 Hours; Host Power: 10 Hours
Input Voltage	External Power: 10-30 VDC; POT: 5 VDC +/- 10%
Current	Charging (Typical): External Power: 800 mA @ 10 VDC; POT: 500 mA @ 5 VDC

Mechanical
Color	Yellow/Black
Dimensions	Cradle: 9.40 x 4.30" x 3.80" PM9500: 8.30" x 4.30" x 2.90"
Weight	0.88 lb.

Features
Features	AMBIENT LIGHT: 0 - 100000 lux HUMIDITY (NON-CONDENSING): 95% TEMPERATURE: Operating: -20 to 50 °C / -4 to 122 °F Battery Charging: 0 to 45 °C / -32 to 113 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F DISPLAY:PM9500/D: Display Type: Graphic with White Backlight; Font Dimensions: User selectable (6lines x 21 columns default); Screen Dimensions: 48 x 132 pixels KEYPAD: PM9500/D: 4 Configurable Keys READING INDICATORS Beeper (Adjustable Tone and Volume); Datalogics 3GL (Three Green Lights)technology and loud beeper for good-read feedback: Datalogic 'Green Spot' on the Code, Dual Good Read LEDs
Drop	Cradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface PM9500: Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface

Additional Information
First Listed on Newegg	June 23, 2015
