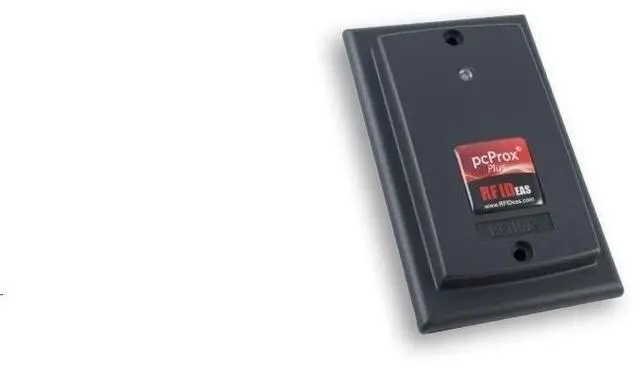

RF Ideas Wave ID Plus SDK V2 w/ Iclass ID Surface Mount USB RFID Reader RDR-800W2BKU 800W2BKU

Product Information

• Part Number: RDR-800W2BKU
• Manufacturer: RF Ideas
• Product Name: RF Ideas Wave ID Plus SDK V2 w/ Iclass ID Surface Mount USB RFID Reader RDR-800W2BKU
• Model: WAVE ID Plus (also known as pcProx Plus SDK V2)
• Product Type: Dual-Frequency RFID Card Reader
• Form Factor: Surface-mountable
• Kit Type: SDK Kit

Product Description

The RF Ideas WAVE ID Plus SDK V2 (RDR-800W2BKU) is a comprehensive development kit that includes a dual-frequency RFID reader (WAVE ID Plus/pcProx Plus) designed for integrators and developers. The reader itself is capable of simultaneously reading both 125 kHz proximity cards and 13.56 MHz contactless smart cards, including iCLASS ID, ensuring broad compatibility with existing badge systems. This particular part number emphasizes the inclusion of the Software Development Kit (SDK) V2, which provides the necessary tools and documentation for developers to integrate the reader's functionality into custom applications, enabling advanced features beyond simple keystroke emulation. It's ideal for applications such as secure authentication, single sign-on (SSO), time and attendance, and cashless payment systems. The reader connects via USB and is designed for surface mounting.

Product Specifications

• Operating Frequency: 125 kHz and 13.56 MHz (Dual-frequency)
• Supported Technologies (13.56 MHz): iCLASS ID, iCLASS Seos, iCLASS Elite, MIFARE (Classic, Ultralight, Plus, DESFire), FeliCa, NFC, ISO 14443 A/B, ISO 15693
• Supported Technologies (125 kHz): HID Prox, AWID, EM410x, GE/CASI ProxLite, Honeywell Prox, Indala, Keri, Pyramid, Securakey, and others
• Interface: USB (can function as keyboard wedge or serial COM port via SDK)
• Power Supply: USB Bus Powered
• Read Range: {'125 kHz': '1.0" 3.0" (2.5 7.6 cm) (dependent on card type)', '13.56 MHz': '2.0" 4.0" (5.0 10.0 cm) (with PVC ID cards)'}
• Indicators: Tri-state LED, Dual-tone beeper (configurable)
• Housing Color: Black
• Dimensions: {'Height': '0.4 inches (1.0 cm)', 'Width': '2.5 inches (6.4 cm)', 'Depth': '4.3 inches (10.9 cm)'}
• Weight: 2.6 ounces (73.7 g)
• Operating Temperature: -22°F to 149°F (-30°C to 65°C)
• Operating Humidity: 5% to 95% RH (non-condensing)
• Supported Operating Systems: Windows XP/7/8/10, Linux (Ubuntu, Red Hat), macOS, Android
• Certifications: FCC, IC, Plug and Play, RCM, REACH, RoHS, UL
• SDK Version: V2
