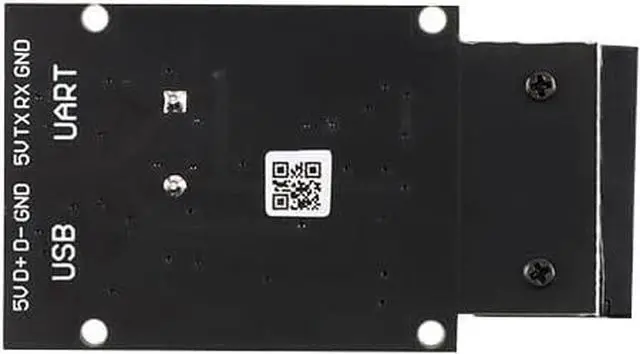

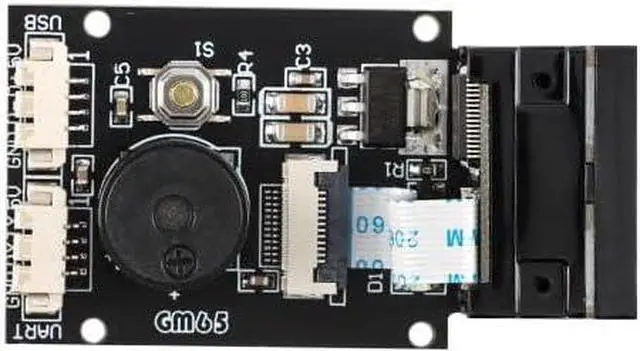

EC Buying Barcode Scanner Module Image Barcode QR Code Scanning and Recognition Module 1D 2D Codes Reader Embedded QR Code Scanning Head GM65 with 2 Wire
- The GM65 scanning module has low power consumption, a working current of less than 150mA, an integrated design, and a small volume
- Voltage: DC 5V, optical system: CMOS, resolution: 0 1mm (4mil)
- Supports all universal one-dimensional barcodes and commonly used two-dimensional codes, and can directly recognize mobile phone screen
- Supports TTL232 and USB interfaces

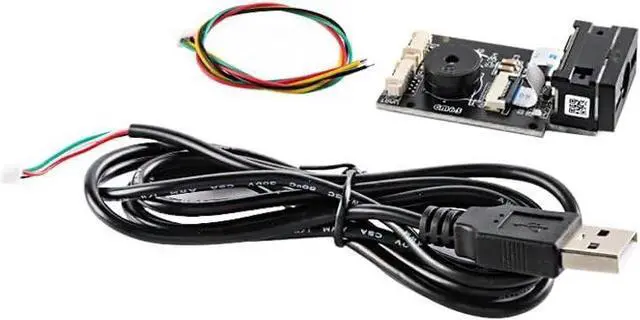

- The length of the USB cable is 50cm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical Parameters
Optical system: CMOS
Capture light source: 617nm LED
Lighting source: 6500K LED
Reading angle: Rotate 360°, Deflection ± 60°, Tilt ± 65°
Scanning angle: 34° (horizontal), 26° (vertical)
Minimum contrast: 30%
Resolution: 0.1mm (4mil)
Voltage: DC 5V
Current: 120mA during scanning, 30mA during standby
Interface: USB, URAT
Working temperature: Temperature: 0 ~ 50
Storage temperature: -40 ~ 70
Working humidity: 10%~80%
Environmental light: 0-86000 lux
Types that can be read:
Read barcode types (1D): UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT 3 of 5, GS1-128, ISSN, UCC Coupon Extended Code, 128, GS1-128, ISBT 128, Code 39, Code 39 Full Korean 3 of 5, ISBT Concat
Type of QR Code (2D): QR Code, PDF417, Data Matrix
Optical system: CMOS
Capture light source: 617nm LED
Lighting source: 6500K LED
Reading angle: Rotate 360°, Deflection ± 60°, Tilt ± 65°
Scanning angle: 34° (horizontal), 26° (vertical)
Minimum contrast: 30%
Resolution: 0.1mm (4mil)
Voltage: DC 5V
Current: 120mA during scanning, 30mA during standby
Interface: USB, URAT
Working temperature: Temperature: 0 ~ 50
Storage temperature: -40 ~ 70
Working humidity: 10%~80%
Environmental light: 0-86000 lux
Types that can be read:
Read barcode types (1D): UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT 3 of 5, GS1-128, ISSN, UCC Coupon Extended Code, 128, GS1-128, ISBT 128, Code 39, Code 39 Full Korean 3 of 5, ISBT Concat
Type of QR Code (2D): QR Code, PDF417, Data Matrix
