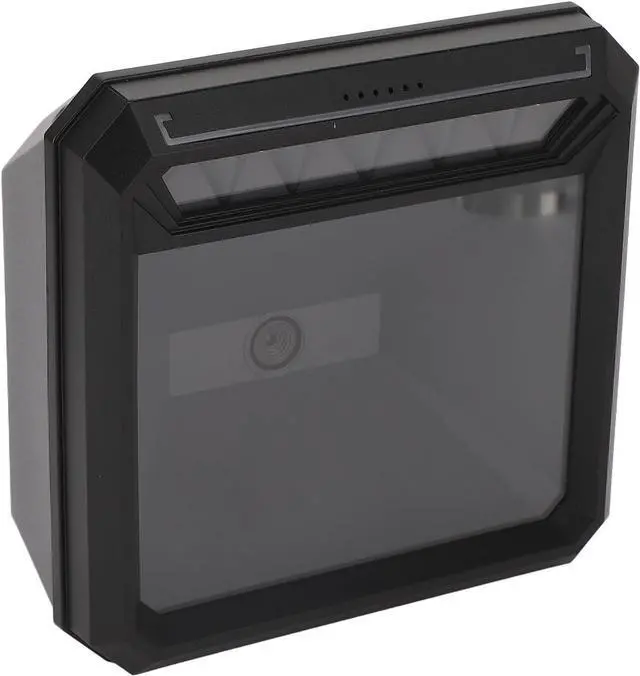

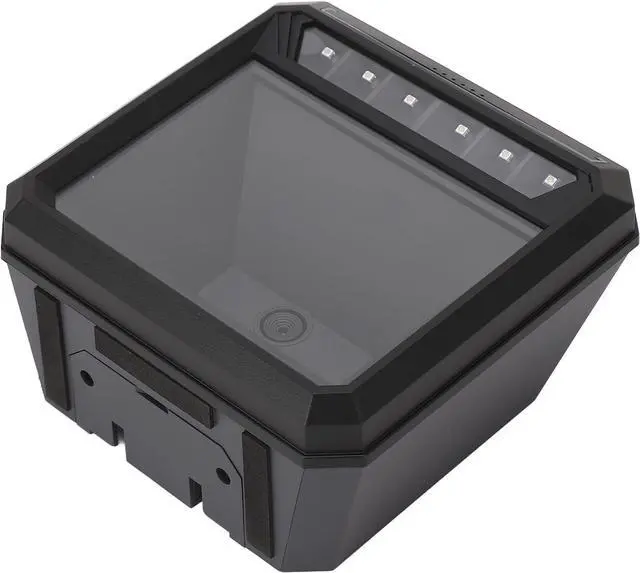

2D QR Barcode Scanner Code Reader Bar Screen Scanning Hands Free Desktop USB Automatic for Shop

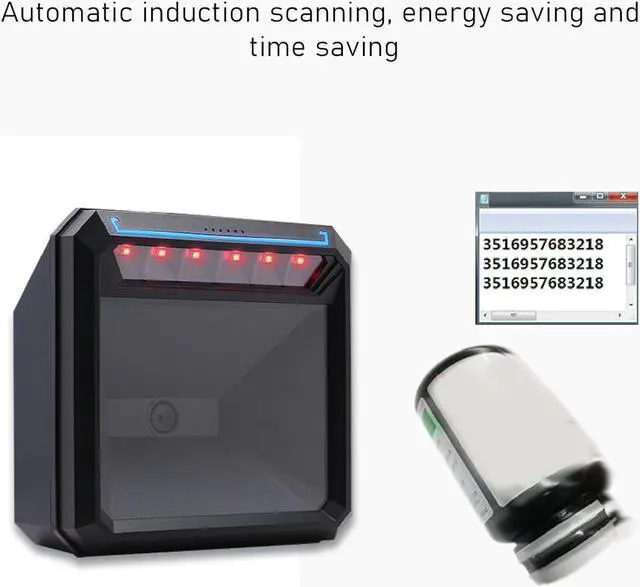

- [INFRARED SENSOR SCANNING] - Equipped with an infrared sensor trigger, this barcode scanner supports auto sensing scanning. Barcodes are automatically scanned when they are near the scanning window, even in sleep mode.
- [PLUG AND PLAY] - This desktop barcode scanner has a USB interface, making it easy to connect to your laptop or PC. No need to install any driver or software.
- [HANDS FREE DESIGN] - Place this desktop barcode scanner on your desk and enjoy improved work efficiency. It allows for hands-free operation, freeing up your hands for other tasks.
- [ACCURATE COLLECTION] - This hands-free barcode scanner accurately captures both 1D and 2D barcodes on labels, paper, cell phones, or computer displays. Compatible with various operating systems including , OS X, and .

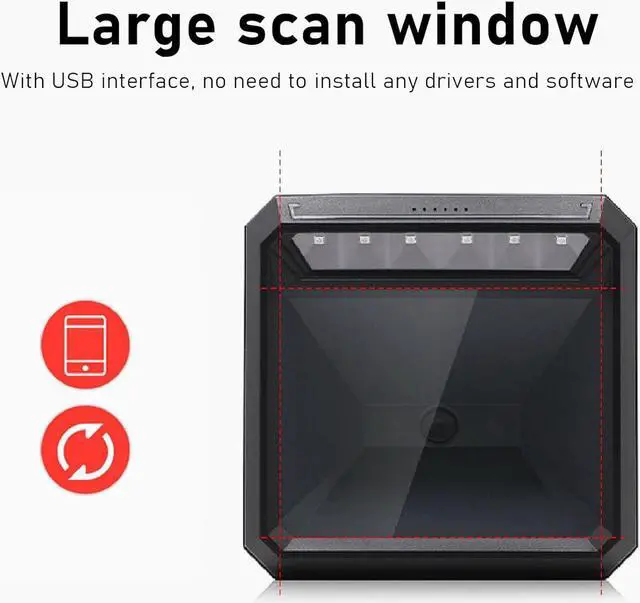

- [LARGE SCANNING WINDOW] - With its large scanning window, this desktop barcode scanner significantly reduces data entry errors.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Barcode Scanner
Material: ABS
Operating Voltage: DC5V
Field Of View Angle: 69.2° (D) 57.2° (H) 44.2° (V)
Communication Interface: USB, RS232, USB And RS232
Rated Power Consumption: 2000mW (Typical)
Image Sensor: CMOS Sensor With 640x480 Pixels
Illumination: Red LED
Read Code System:
2D: For PDF417, QR Code, Micro QR, for DataMatrix, for Aztec, for Handicode
1D: For Codabar, for Code 39, for Code 32, for Industrial2of5, for Interleaved2o5, for Standard2of5, for Code 93, for Code 1, for Code 128, for UPC A, for QUPC E, for EAN JAN 8, for EAN JAN 13, for GS1 DataBar RSS14
Typical Reading Depth Of Field:
For EAN 13 (13mil): 10mm-160mm (Barcode Size: 31mmx7mm)
For PDF417 (10mi): 10mm-100mm (Barcode Size: 26mmx15mm)
For Code39 (5.5mi): 20mm-80mm (Barcode Size: 12mmx6mm)
For DataMatrix (15mi): 10mm-120mm (Barcode Size: 7mmx7mm)
For QR Code (15mil): 10mm-140mm (Barcode Size: 8mmx8mm)

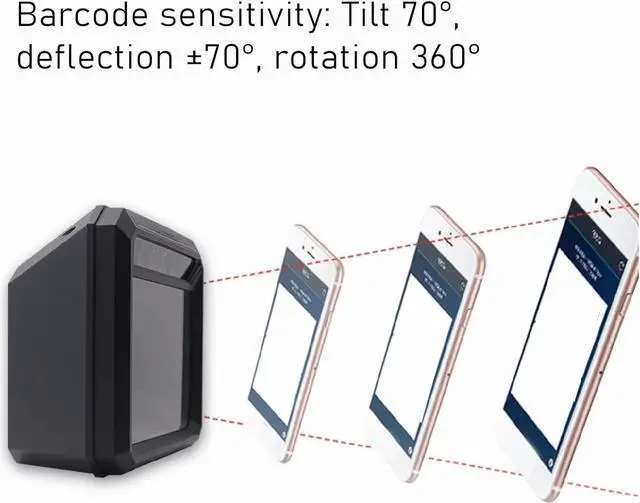

Barcode Sensitivity: Tilt 70°, Deflection ±70°, Rotate 360°
How to Use:
Read the instructions to operate.
Package List:
1 x Code Scanner
1 x Manual
1 x Data Cable
3 x Screw
Item Type: Barcode Scanner
Material: ABS
Operating Voltage: DC5V
Field Of View Angle: 69.2° (D) 57.2° (H) 44.2° (V)
Communication Interface: USB, RS232, USB And RS232
Rated Power Consumption: 2000mW (Typical)
Image Sensor: CMOS Sensor With 640x480 Pixels
Illumination: Red LED
Read Code System:
2D: For PDF417, QR Code, Micro QR, for DataMatrix, for Aztec, for Handicode
1D: For Codabar, for Code 39, for Code 32, for Industrial2of5, for Interleaved2o5, for Standard2of5, for Code 93, for Code 1, for Code 128, for UPC A, for QUPC E, for EAN JAN 8, for EAN JAN 13, for GS1 DataBar RSS14
Typical Reading Depth Of Field:
For EAN 13 (13mil): 10mm-160mm (Barcode Size: 31mmx7mm)
For PDF417 (10mi): 10mm-100mm (Barcode Size: 26mmx15mm)
For Code39 (5.5mi): 20mm-80mm (Barcode Size: 12mmx6mm)
For DataMatrix (15mi): 10mm-120mm (Barcode Size: 7mmx7mm)
For QR Code (15mil): 10mm-140mm (Barcode Size: 8mmx8mm)
Barcode Sensitivity: Tilt 70°, Deflection ±70°, Rotate 360°
How to Use:
Read the instructions to operate.
Package List:
1 x Code Scanner
1 x Manual
1 x Data Cable
3 x Screw
