Pet Tag Scanner, Handheld Tag Reader Simple Operation IP54 Waterproof Fast Reading Speed Portable for Pet

1. Supported Protocol: This low frequency tag handheld reader, support FDXB FDXA HDX protocol tag reading, in accordance with for ISO 1178411785 international standard.
2. Data Communication: The reader can be controlled through the mobile phone APP, and it can also communicate with the desktop device through the USB data cable.

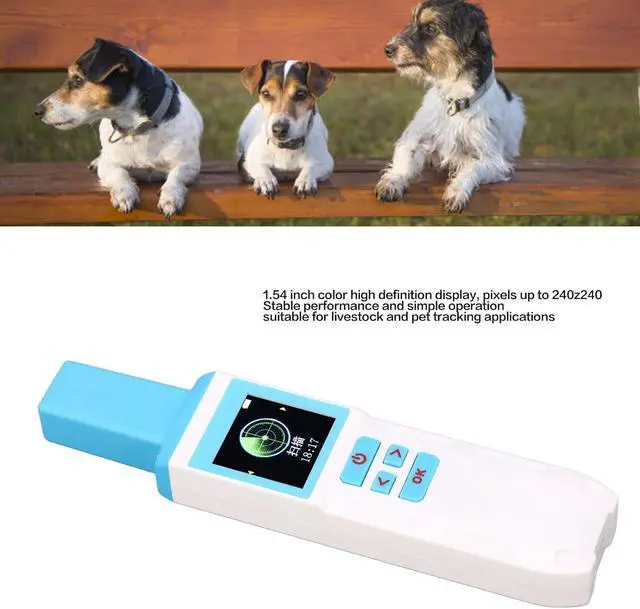

3. TFT Display Screen: Designed with 1.54 inch color high definition display, pixels up to 240 x 240, support English and Chinese, and equipped with buzzer, indicator light.
4. High Performance: Fast reading speed, can store 30,000 tag codes, IP54 waterproof performance, long battery life, four button design, simple and fast operation.
5. Application: Stable performance and simple operation for livestock and pet tracking applications. Product size only 6.57x1.46x0.79in. You could hold them just one hand, portable and convenient to use.

Spec:
Item Type: Pet Microchip Scanner
Material: ABS
Operating Frequency: 134.2Khz
Chip Type: Complies with for ISO 11784/11785 standards. FDX-B, FDX-A, HDX microchips
such as: EM41XX, EM42XX, EM4305, for Atmel 5575-5577, for NXP Hitag S, SIC7888, SIC 7999
Reading Performance: HDX 27mm eartag: up to 28cm
Eartag FDX-B 27mm: up to 25cm
Glasstag FDX-B 2.12x12mm: up to 15cm
Read Time: <1s
Screen Color: TFT 1.54 inches, pixels 240x240
Indicator: Buzzer, indicator light
Power Supply: 3.7V at 1500mA lithium batteryx1 (built in)
Operating Current Consumption: 400mA (maximum)
Memory Stores: 30,000 rows (time + tag ID code)
Data Communication: USB cable, 4.0 /BLE switchable
Battery Life: 16 hours for continuous use
Menu Language: English/Chinese
Product Size: Approx. 167x37x20mm/6.57x1.46x0.79in
Resistance: IP54, 1 meter height free fall anti suffocation function
Operating Temperature: -20~80°C

How to Use:
Four buttons:1. The big button at the top is the confirmation key;2. The big button at the bottom is the power button
