BISOFICE 1D 2D Barcode Scanner QR Bar Code Reader Module Scanner CMOS Image USB Port Connection Omnidirectional Platform Auto Scanning High Scanning Speed 4m/s
- Using CMOS image scanning technology, it can scan paper code and screen code, high-performance decoding chip, no fear of incomplete and fuzzy bar code.

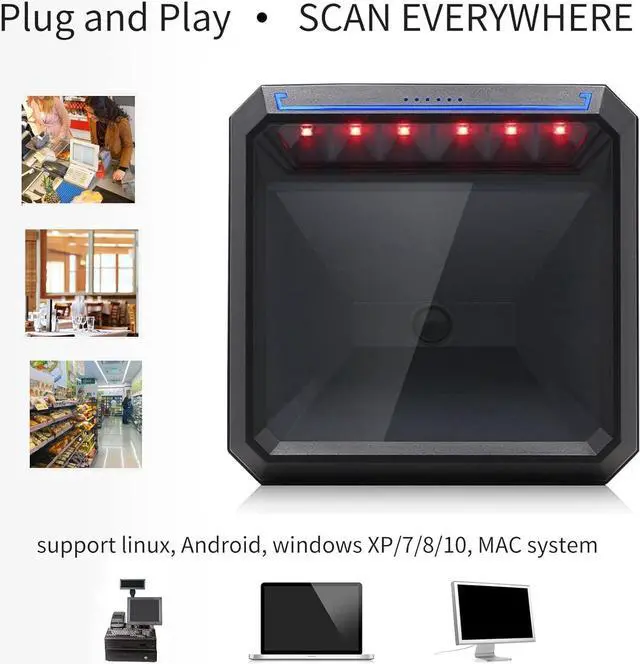

- Scanning module support linux, Android, windows and other systems, Can easily capture bar codes 1D, 2D on labels, paper, and mobile phone or computer displays, Sensitive and accurately.

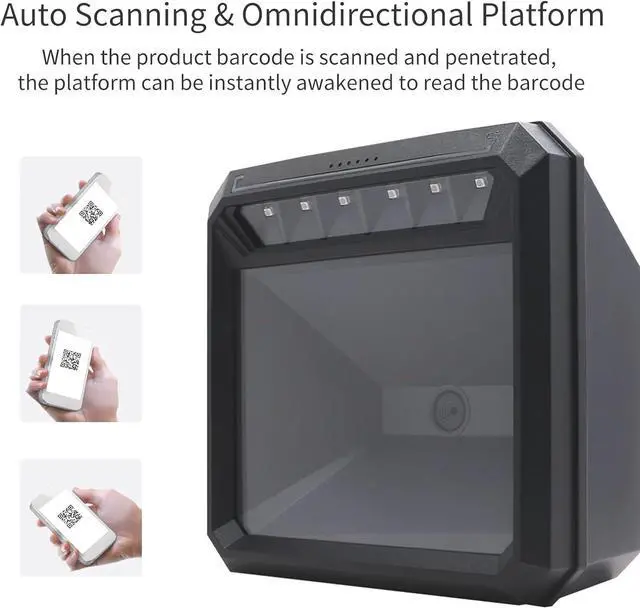

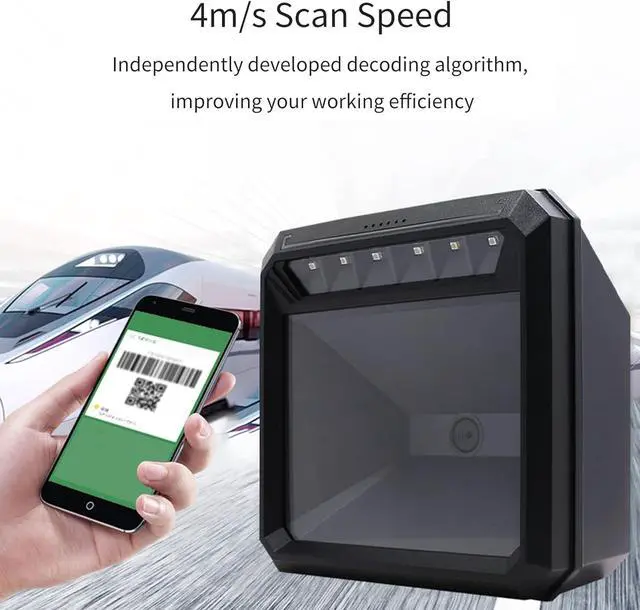

- Scanner can be directly placed on your desk or table, release your hands, automatic scanning as the code is near the scanner, and Independently developed decoding algorithm can up to 4m/s scanning speed which improving your working efficiency, especially for large numbers of goods.
- The scanner can be applied in various occasions such as supermarket, logistics, restaurant and warehouse and so on. Perfect upgrade of traditional card swiping system for various industries.
- Decode Type: 1D - Codabar, Code 39, Code 32, Industrial 2 of 5, Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 93, Code 1, Code 128, UPC-A, UPC-E, EAN/JAN-8, EAN/J
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Size: 155 x 151 x 83mm/6.1 x 5.9 x 3.2in
Weight: 380g/13.4oz
Sensor: 640x480 Cmos

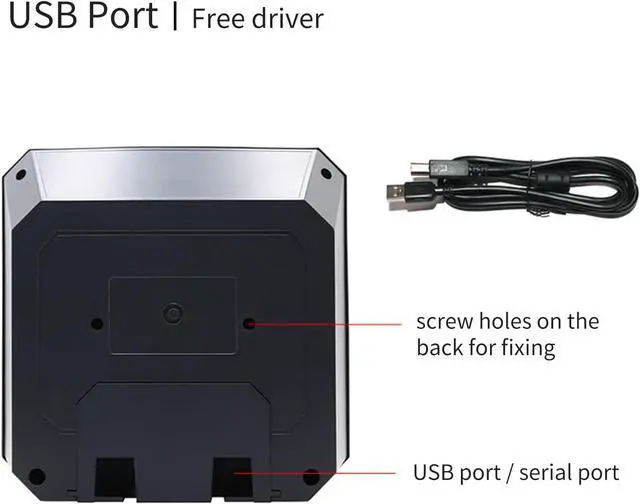

Interface: USB
Illumination: Red LED
Symbologies:
2D: PDF417, QR Code, Micro QR, Data Matrix, Aztec, Hanxi code
1D: Codabar, Code 39, Code 32, Industrial 2 of 5, Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 93, Code 1, Code 128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, GS1 DataBar RSS14
Typical Decode Range:
EAN-13 (13mil): 10mm~160mmBarcode Size: 31mmx7mm
PDF417 (10mil): 10mm~100mmBarcode Size: 26mmx15mm
Code39 (5.5mil): 20mm~80mmBarcode Size: 12mmx6mm
Data Matrix (15mil): 10mm~120mmBarcode Size: 7mmx7mm
QR Code (15mil): 10mm~140mmBarcode Size: 8mmx8mm
Minimal Print Contract: 20%
FOV: 69.2°(D) 57.2(H) 44.2°(V)
Voltage: DC 5V
Power Consumption: 2000mW (Typical)
Operating Temperature: 0~+60
Storage Temperature: -40~+70
Humidity: 5%~95%Non-Condensing
Embient Light: 0~100,000LUX
Packing Weight: 640g/22.5oz
Packing Size: 230 x 170 x 95mm/9 x 6.7 x 3.7in
Packing List:
1 x Scanner
1 x USB Cable
1 x Accessary Kit
Size: 155 x 151 x 83mm/6.1 x 5.9 x 3.2in
Weight: 380g/13.4oz
Sensor: 640x480 Cmos
Interface: USB
Illumination: Red LED
Symbologies:
2D: PDF417, QR Code, Micro QR, Data Matrix, Aztec, Hanxi code
1D: Codabar, Code 39, Code 32, Industrial 2 of 5, Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 93, Code 1, Code 128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, GS1 DataBar RSS14
Typical Decode Range:
EAN-13 (13mil): 10mm~160mmBarcode Size: 31mmx7mm
PDF417 (10mil): 10mm~100mmBarcode Size: 26mmx15mm
Code39 (5.5mil): 20mm~80mmBarcode Size: 12mmx6mm
Data Matrix (15mil): 10mm~120mmBarcode Size: 7mmx7mm
QR Code (15mil): 10mm~140mmBarcode Size: 8mmx8mm
Minimal Print Contract: 20%
FOV: 69.2°(D) 57.2(H) 44.2°(V)
Voltage: DC 5V
Power Consumption: 2000mW (Typical)
Operating Temperature: 0~+60
Storage Temperature: -40~+70
Humidity: 5%~95%Non-Condensing
Embient Light: 0~100,000LUX
Packing Weight: 640g/22.5oz
Packing Size: 230 x 170 x 95mm/9 x 6.7 x 3.7in
Packing List:
1 x Scanner
1 x USB Cable
1 x Accessary Kit
