Displays the same Image on 4 DisplayPort monitors, Extends the desktop across them, or combines all into one large monitor
Supports HD video resolutions up to 3840 x 2160 (4K x 2K)
Supports DTS-HD, Dolby TrueHD and 7.1-Channel surround Sound
Works with all operating systems
Overview
Specs
Reviews

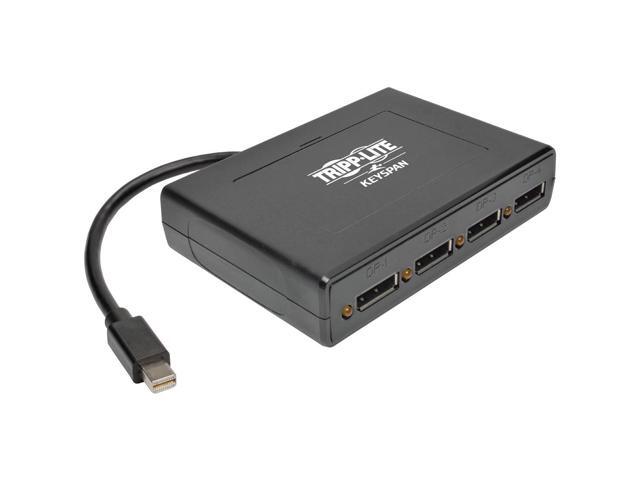

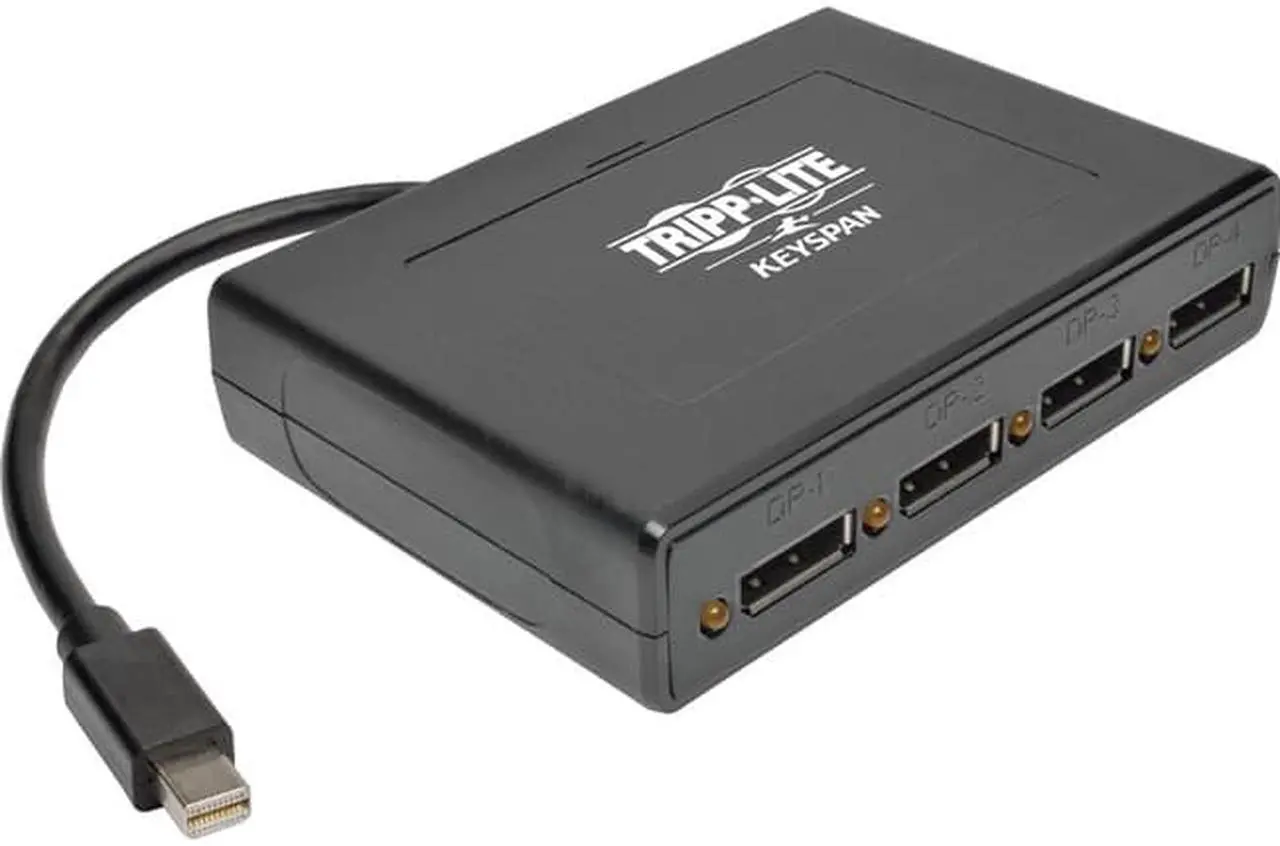

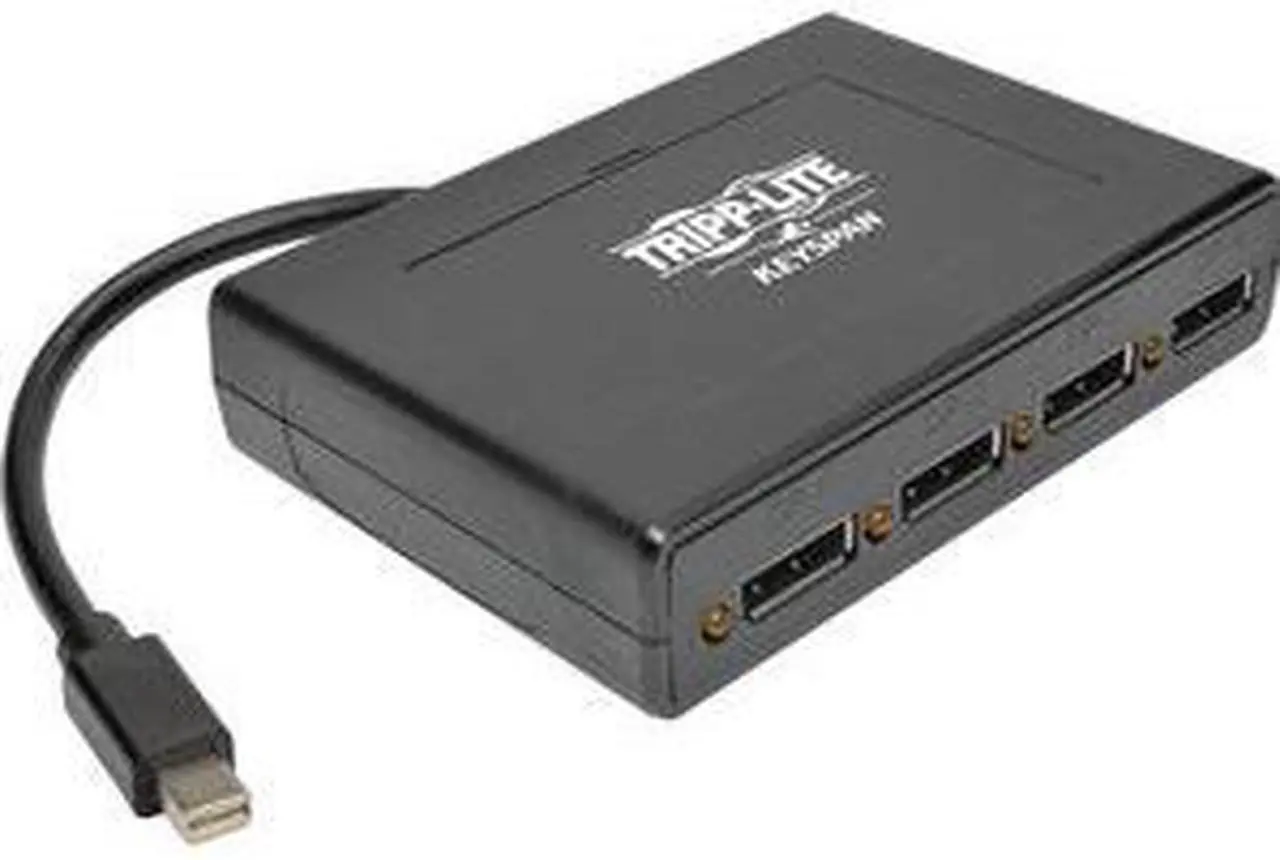

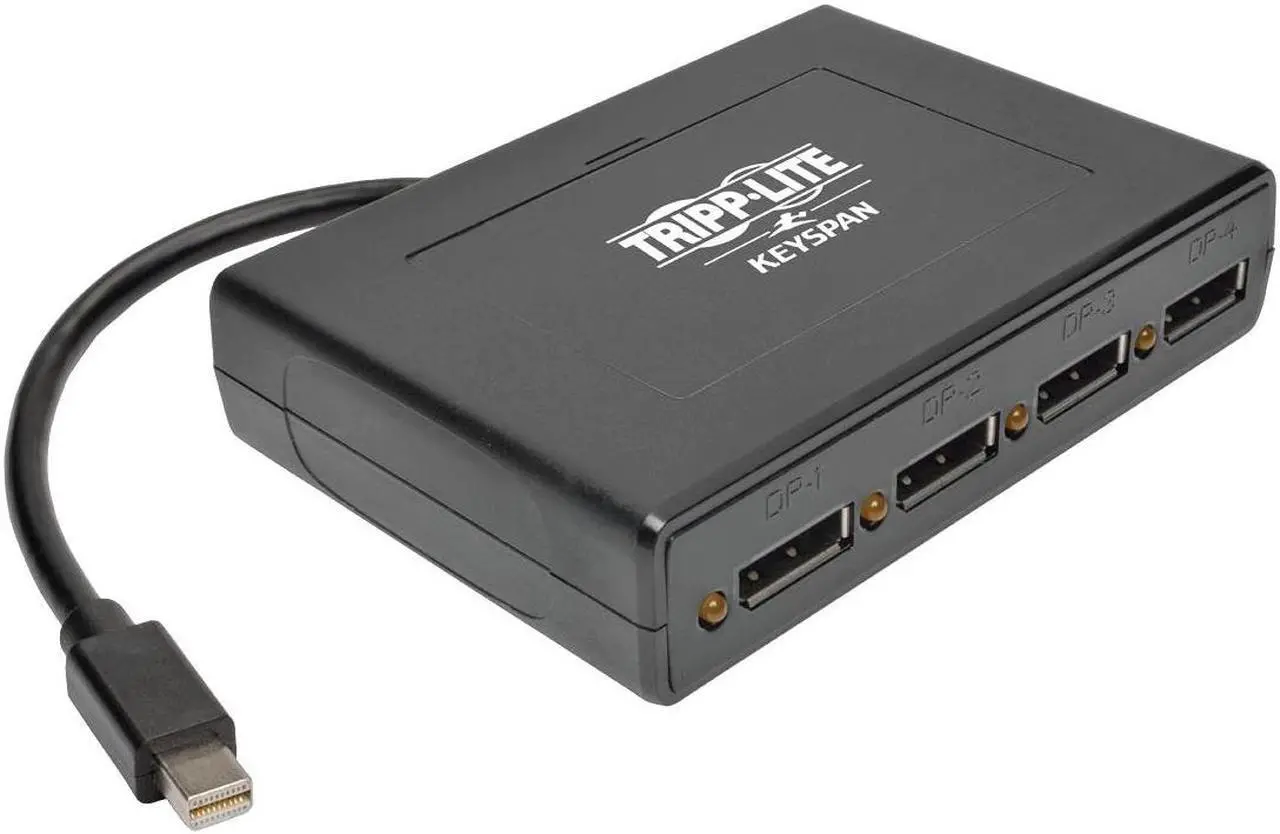

The B155-004-DP-V2 4-Port Mini DisplayPort 1.2 to DisplayPort MST Hub connects four DisplayPort monitors to the Mini DisplayPort output on your computer. Ideal for digital signage in schools churches conference rooms trade shows hotels and retail outlets this hub allows you to display the same image on all four monitors extend the desktop across them or combine all four into one large monitor in video wall mode. The B155-004-DP-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1 a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 (1080p) per monitor.
In video wall mode this hub supports expanded video resolutions such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration. This MST hub also supports HDCP EDID DDC and 48-bit Deep Color (16 bits per channel) as well as DTS-HD Dolby TrueHD and 7.1 -channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a Mini DisplayPort source. LEDs indicate when the monitors are receiving a signal.
The B155-004-DP-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Computer with DisplayPort 1.2 -compatible graphics card (e. g. AMD Radeon with AMD Eyefinity) required for video wall mode. Backward compatible with most DisplayPort 1.1 a equipment running current graphics drivers with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed. Maximum supported video resolutions and number of monitors depend on your graphics card. Check graphics card specifications to determine its capabilities. Supports HD video resolutions up to 3840 x 2160 (4K x 2K) Built-in 6 in.
cable connects directly to Mini DisplayPort sourceSupports up to 48-bit Deep Color (16 bits per channel) Works with all operating systemsSupports DTS-HD Dolby TrueHD and 7.1 -channel surround sound
Learn more about the Tripp Lite B155-004-DP-V2
Model
Brand
Tripp Lite
Model
B155-004-DP-V2
Type
Mini DisplayPort
Details
Type
Cable Splitters
Color
Black
Connector Number
5
Connector Detail
MINI DISPLAYPORT (MALE) to 4 x DISPLAYPORT (FEMALE)
Features
Specifications

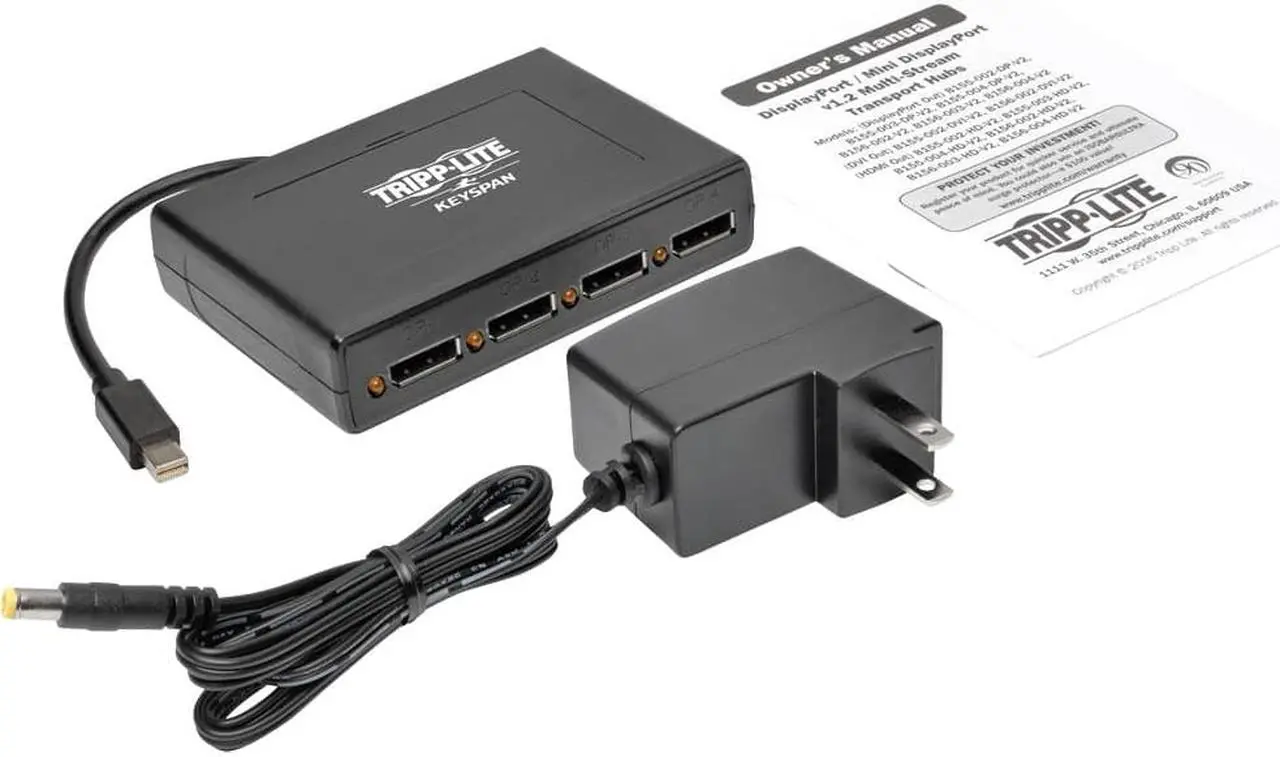

Adapter Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft. Approvals: CE, FCC, RoHS, and REACH
Features
Supports HD video resolutions up to 3840 x 2160 (4K x 2K)
Built-in 6 in. cable connects directly to Mini DisplayPort source
Supports up to 48-bit Deep Color (16 bits per channel)
Works with all operating systems
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound
