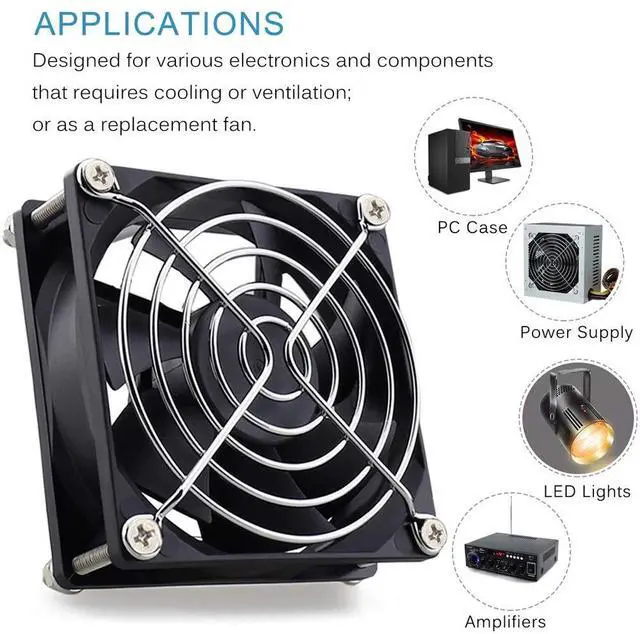

Popular in various cooling & ventilation applications, ranging from computer case to electronics components to audio-video equipment.

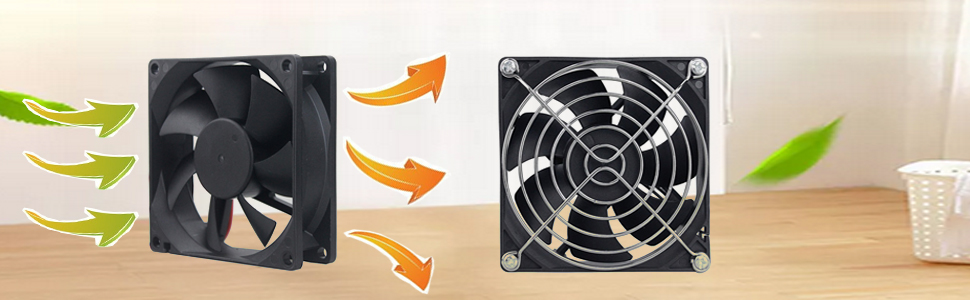

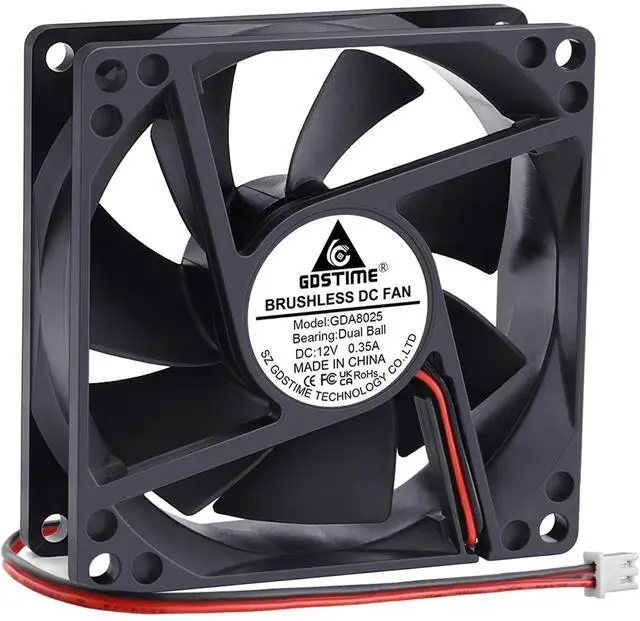

Dual Ball Bearings 4500RPM 80mm fan

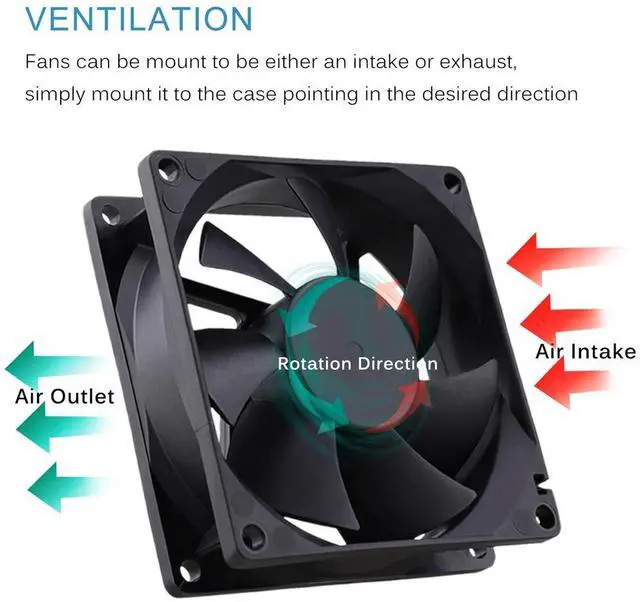

8cm format is ideal for compact PC cases (HTPC, ITX, Small Form Factor) and other chassis (intake & exhaust), replacement fan for NAS and other devices, etc.

Package include: 1pcs fan include fan grill and mounting screws
Operating Temperature: -10? - 75?; Storage Temperature: -40? - 80?

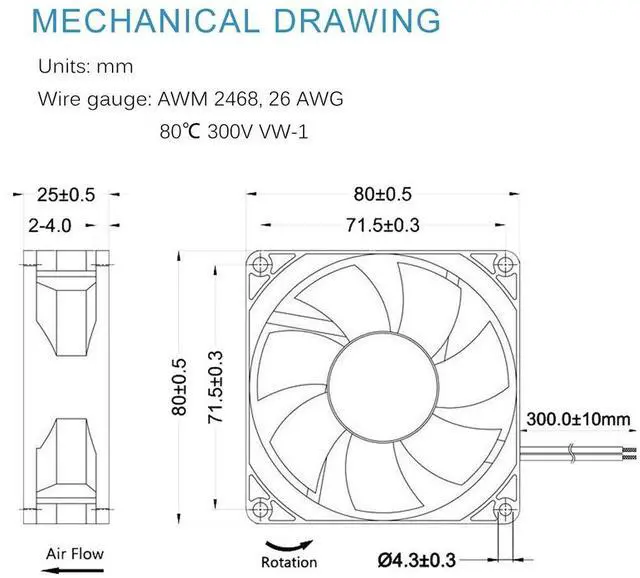

Dimension of outer the frame is 80mm(L) x 80mm(W) x 25mm(H)
The size of fan in inch is 3.15in(L) x 3.15in(W) x 1in(H)
The center to center distance beween the mountiong holes is 71.5mm/2.81in.

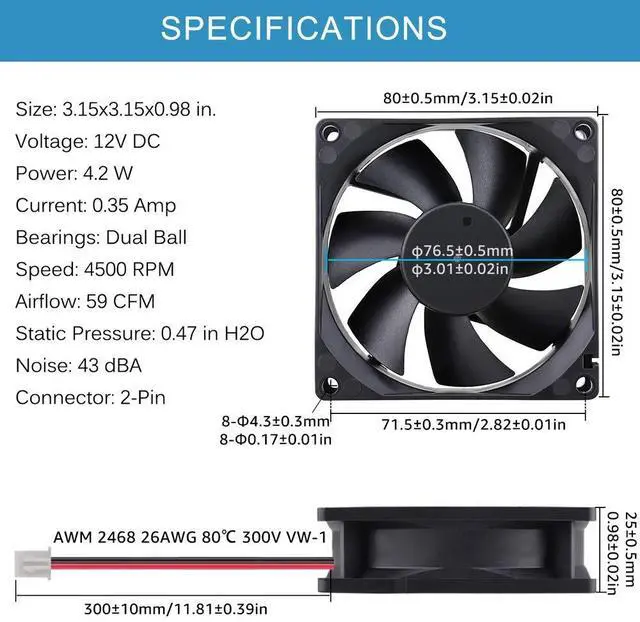

Operating Voltage Range:5.5V to 13.8V.; Start up voltage is 3.9V.
Rated Current: 0.35Amp; Speed: 4500RPM; Air flow: 59CFM; Noise:43dBA
Connector: XH2.54-2Pin; Lead wire: UL Type (+): Red wire ; (-): Black wire. This is a two wire cooling fan;
Bearing Type: Dual Ball Bearings ; Life: working up to 50000h at 25 degrees.
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

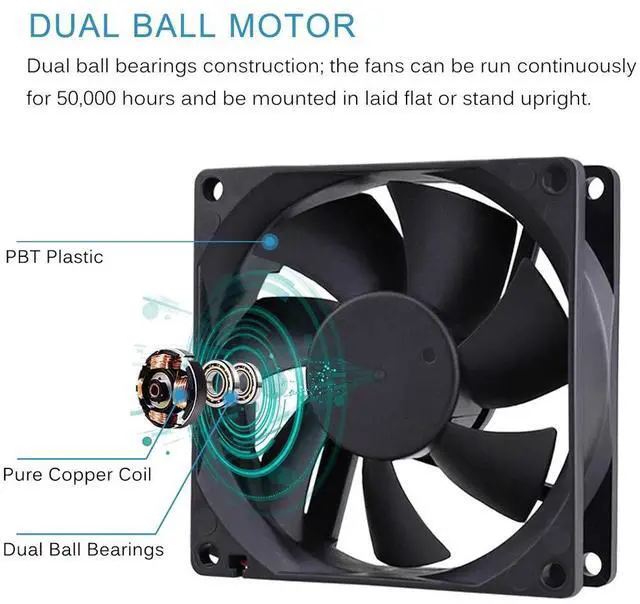

Bearing

Dual Ball Bearings

Working up to 50000h at 25 degrees.

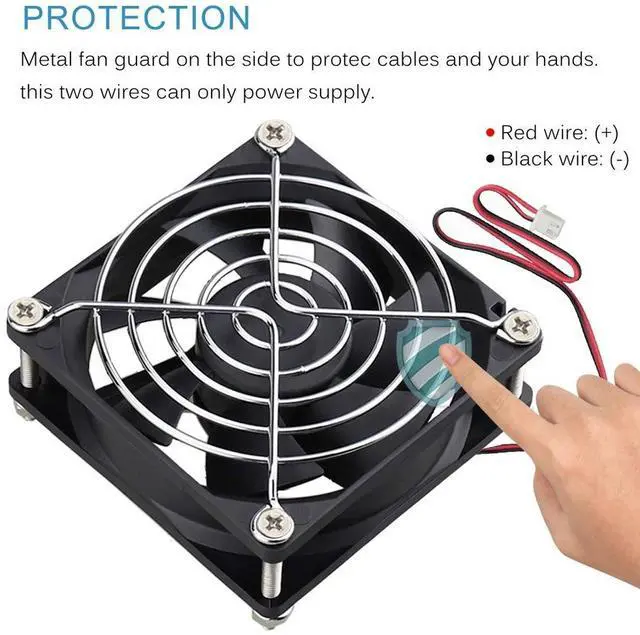

Fan grill

Metal Fan Grill

Protect your Fingers and keep cable damage from blades.

Screws

4* Fan Screws

Connector

2PIN (Red: "+"; Black: "-")
2.54mm Connector

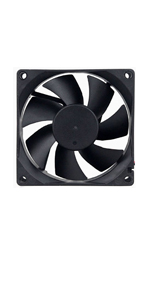

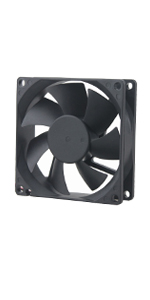

	GDA8025B12N28X25230	GDA8025B12N45X25230	GDA8025B24N28X25230	GDA8025B24N45X25230	GDP8025B12FP50M25430	GDA8025B48N35X25230

Customer Reviews	—	—	—	—	—	—
Price	— no data	—	—	— no data	—	— no data
Connector	2-PIN	2-PIN	2-PIN	2-PIN	4-PIN	2-PIN
Speed	2800RPM	4500RPM	2800RPM	4500RPM	5000RPM	3500RPM
Airflow	43.6CFM	59CFM	43.6CFM	59CFM	64CFM	50.2CFM
Noise	31dBA	43dBA	31dBA	43dBA	44.8dBA	37dBA
Voltage	12VDC	12VDC	24VDC	24VDC	12VDC	48VDC

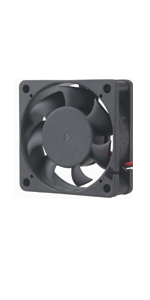

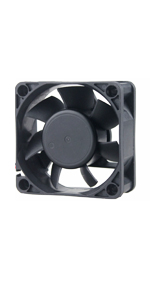

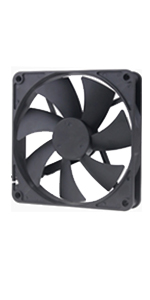

	GDA6020B12N50X25225	GDA6025B12N45X25225	GDA8025B12N28X25230	GDA9225B12N25X25230	GDA1225B12N25X25230	GDA1425B12N22X25230

Customer Reviews	—	—	—	—	—	—
Price	—	—	— no data	—	—	—
Connector	2-PIN	2-PIN	2-PIN	2-PIN	2-PIN	2-PIN
Speed	4500RPM	4500RPM	2800RPM	2500RPM	2500RPM	2200RPM
Airflow	26.2CFM	22.7CFM	43.6CFM	54.8CFM	83.2CFM	121CFM
Noise	34dBA	36dBA	31dBA	31.2dBA	35.7dBA	32dBA
Size in inch	2.36x2.36x0.79in	2.36x2.36x1in	3.15x3.15x1in	3.62x2.62x1in	4.72x4.72x1in	5.51x5.51x1in
