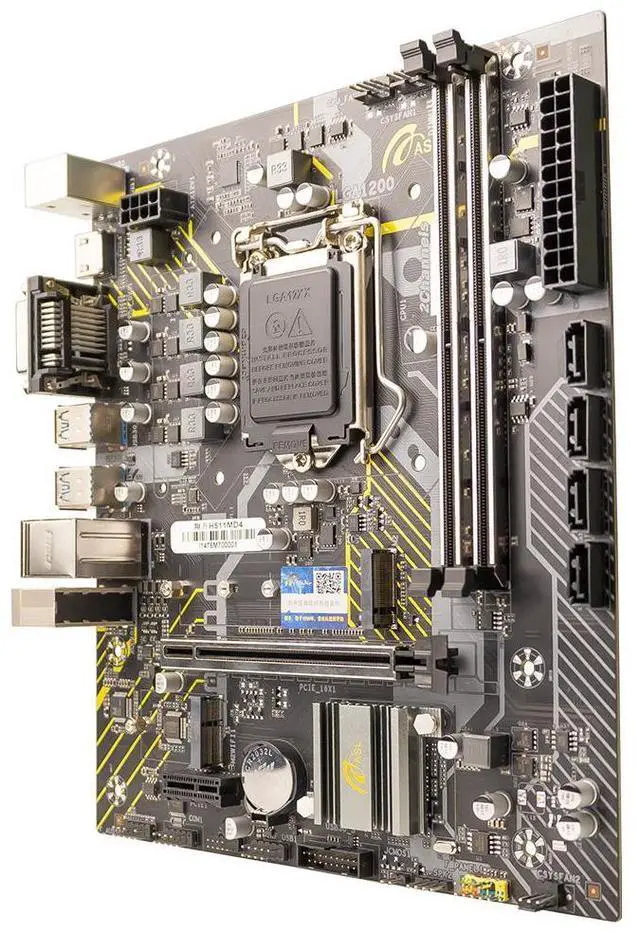

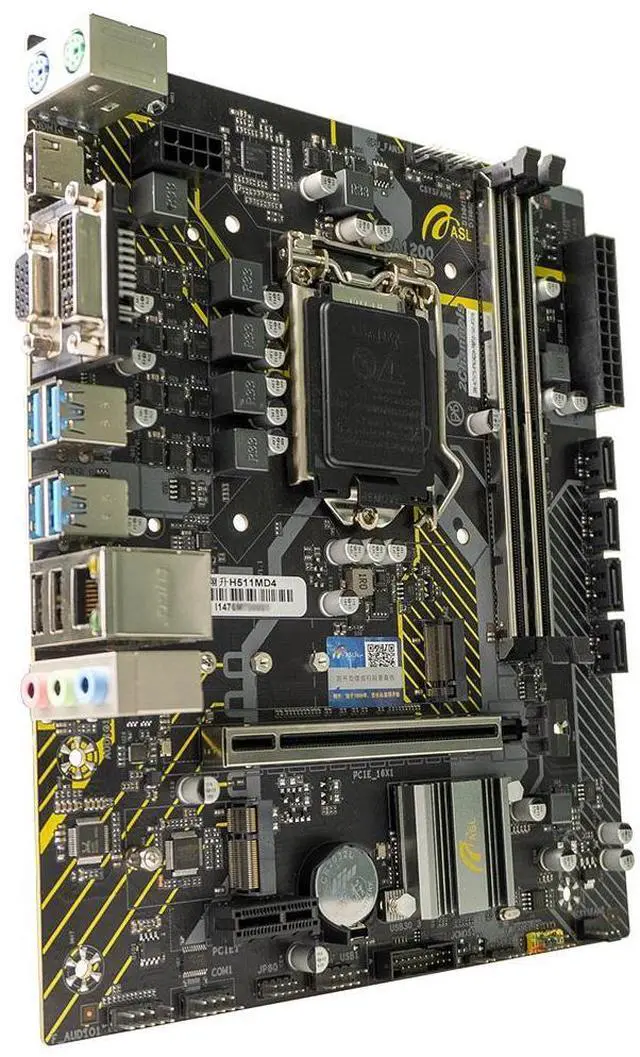

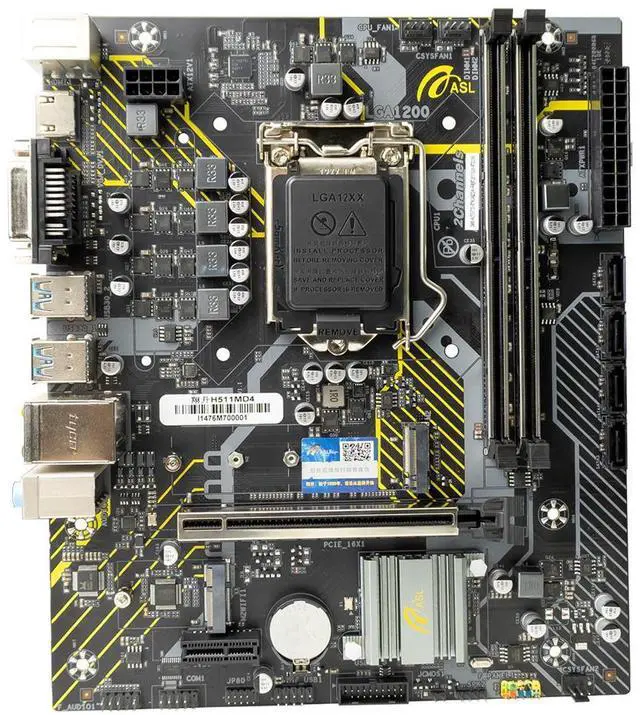

ASL H511M-D4 M-ATX Motherboard - Supports 10/11th Gen LGA1200, 2×DDR4, HDMI+VGA+DVI, 4×SATA3 + M.2, Gigabit LAN + M.2 WiFi Slot
Limited time offer, ends 01/31 By STELLAR
- 1.Supports 10th/11th generation LGA1200 processors (including Core/Pentium/Celeron)
- 2. 2×DDR4 dual-channel, expandable up to 64GB with auto-adapting frequency
- 3. HDMI + VGA + DVI triple video output (requires CPU integrated graphics), compatible with new and old devices
- 4. 4×SATA3 + 1×M.2 (NVMe/SATA dual protocol), enabling flexible hard drive expansion
- 5. Gigabit Ethernet + M.2 WiFi slot, supporting flexible wired/wireless switching
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Model: ASL H511M-D4
Chipset Platform: Intel H-series Desktop Chipset
Form Factor: M-ATX
Dimensions: 180 x 220 mm
Processor:
Supports Intel LGA1200 processors
Supports Intel 10th and 11th Gen processors
Supports Intel Core, Pentium, and Celeron series processors
Memory Slots:
2x DDR4 DIMM dual-channel memory slots
Memory frequency support depends on motherboard/processor
Video Output Ports:
Requires processor-integrated graphics functionality
Rear 1x HDMI video output port
Rear 1x VGA video output port
Rear 1x DVI video output port
Audio:
Integrated Realtek audio chip
Supports High Definition Audio technology
Rear 3-jack audio ports
Supports 5.1 surround sound
Network:
Integrated Realtek network chip
Supports 1000M
Rear 1x RJ45 Ethernet port
Storage:
4x SATA 3.0 6.0Gb/s hard drive interfaces
1x M.2 SSD interface
Expansion Slots:
1x PCI-E x16 slot
1x PCI-E x1 slot
1x M.2 WiFi slot

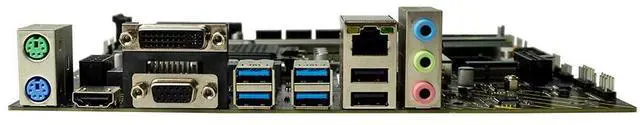

Rear Panel Ports:
1x PS/2 keyboard/mouse port
1x HDMI video output port
1x VGA video output port
1x DVI video output port
4x USB 3.0 ports
2x USB 2.0 ports
1x RJ45 Ethernet port
1x 3-Jack audio port
Internal Pins/Connectors:
1x 24-pin motherboard power connector
1x 8-pin CPU power connector
1x 4-pin CPU fan header
1x 4-pin system fan header
1x 3-pin system fan header
1x COM port header
1x Front USB 2.0 header
1x Front USB 3.0 header
1x 4-pin buzzer header
1x Debug LED header
1x 2-pin CMOS clear header
1x Front audio header
1x Front panel header
