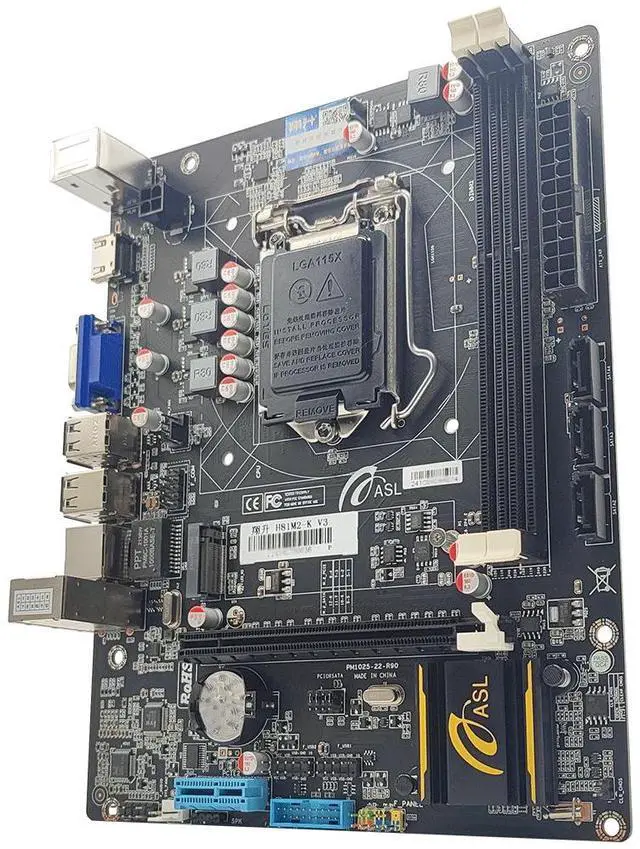

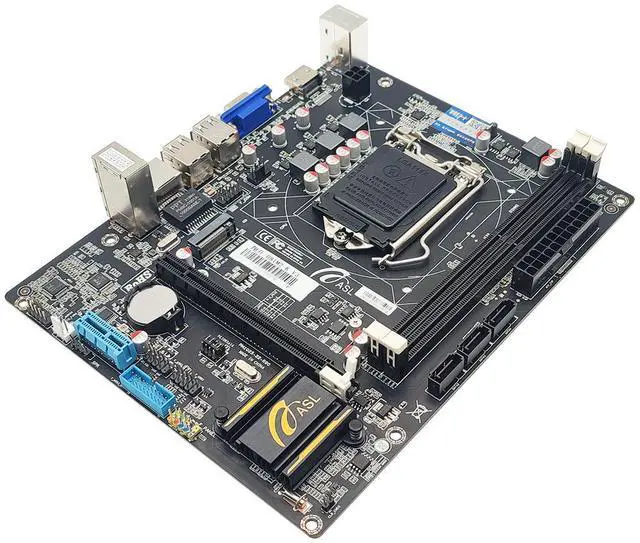

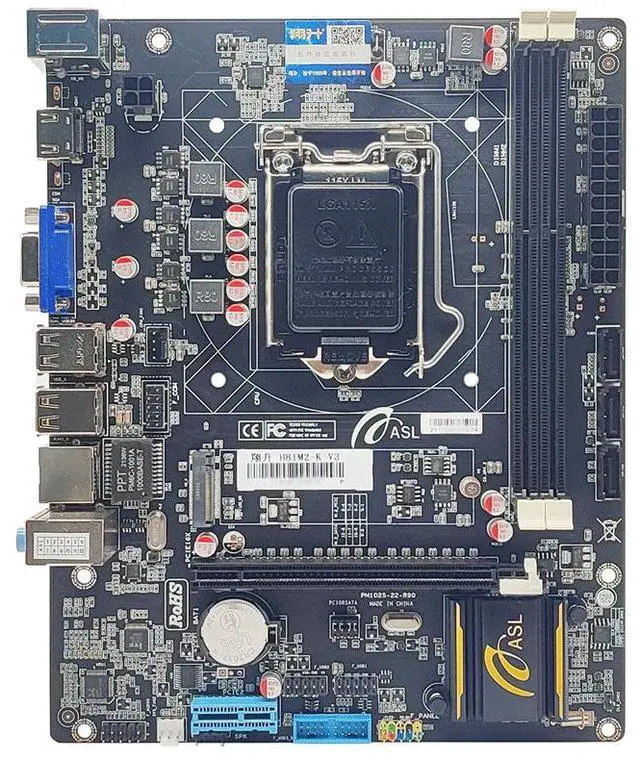

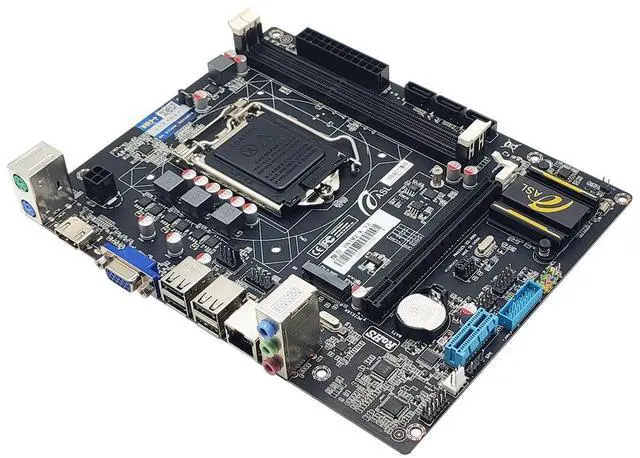

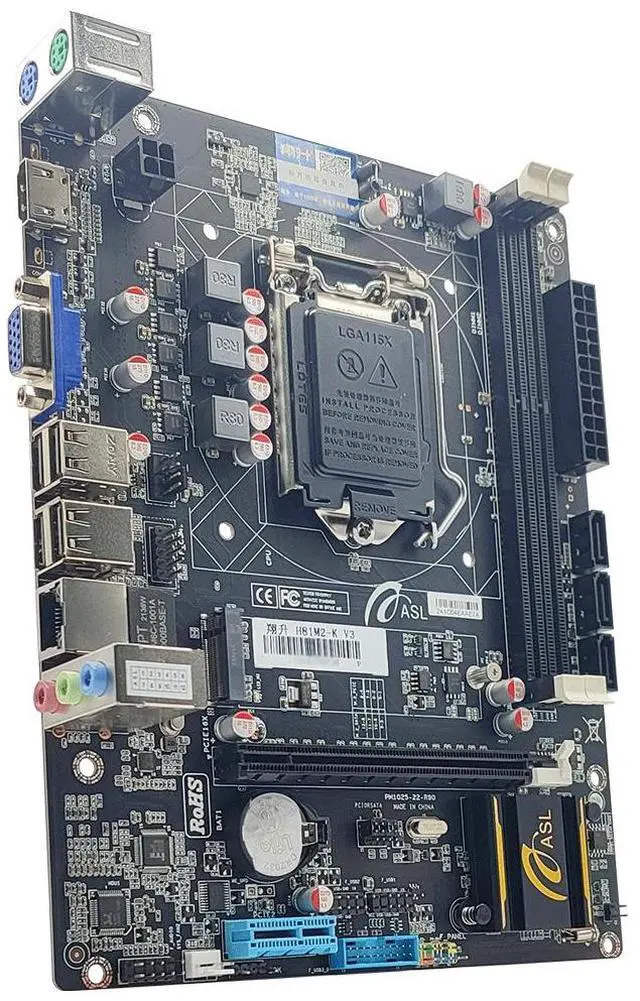

ASL H81M2-K M-ATX Motherboard, Supports 4 Gen LGA1150, 2xDDR3, HDMI+VGA, 2×SATA2.0+2xSATA3.0+M.2, 1x PCI-E x16, 1x PCI-E x1 slots
Limited time offer, ends 11/05 By STELLAR
- 1. Basic specifications: H81 chipset, M-ATX form factor, dimensions 170×214mm.
- 2. Processor and memory: Supports 4th - gen LGA1150 - interface Core/Pentium/Celeron series processors (recommended TDP 65w); 2 DDR3 DIMM dual - channel memory slots, maximum support for 16GB, supporting DDR3 1066/1333/1600MHz.
- 3. Audio, video and network: Requires processor - integrated graphics, with 1 HDMI and 1 VGA video interface at the rear; Integrates Realtek audio chip, with 3 audio interfaces at the rear, supporting 5.1 - channel; Integrates Realtek 1000M network chip, with 1 RJ45 network cable interface at the rear.
- 4. Storage and expansion: 2×SATA2.0+2xSATA3.0, 1 M.2 (2280, protocol switchable via jumper) solid - state drive interface; 1 PCI - E x16 slot, 1 PCI - E x1 slot.
- 5. Interfaces: Rear PS/2 keyboard - mouse interface, HDMI, VGA, 4 USB2.0, RJ45 network cable interface, 3 audio interfaces; Internally, there are 24Pin motherboard power supply port, 4Pin processor power supply port and other pins/ports.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Model: ASL H81M2-K v3
Chipset Platform: H81 Desktop Chipset
Form Factor: M-ATX
Dimensions: 170 x 214 mm
Processor:
Supports Intel 4th generation LGA1150 processors
Supports Intel Core/Pentium/Celeron processors
TDP 65W
Memory Slots:
2x DDR3 DIMM dual-channel memory slots
Supports up to 16GB
Supports DDR3 1066 / 1333 / 1600 MHz
Video Output Ports:
Requires integrated graphics functionality from the processor
1x rear HDMI video output
1x rear VGA video output
Audio:
Integrated Realtek audio chip
Supports High Definition Audio technology
Rear 3-jack audio ports
Supports 5.1 surround sound
Network:
Integrated Realtek 1000M network chip
Rear 1x RJ45 Ethernet port
Storage:
3x SATA hard drive interfaces
1x M.2 solid-state drive interface (2280, protocol switching via jumper cap)
Expansion Slots:
1x PCI-E x16 slot
1x PCI-E x1 slot

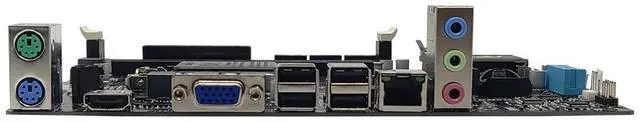

Rear Panel Ports:
1x PS/2 keyboard/mouse port
1x HDMI video output port
1x VGA video output port
4x USB 3.0 ports
4x USB 2.0 ports
1x RJ45 Ethernet port
1x 3-jack audio port
Internal Pins/Connectors:
1* 24-pin motherboard power connector
1* 4-pin CPU power connector
1* 4-pin CPU fan header
1* 3-pin system fan header
1* M.2 SSD protocol switch jumper (NVMe/SATA)
2* Front USB 2.0 Pins
1* Front USB 3.0 Pin
1* 2-Pin External Speaker Pin
1* COM Port Pin
1* CMOS Clear Pin
1* Front Audio Pin
1* Front Panel Pin
