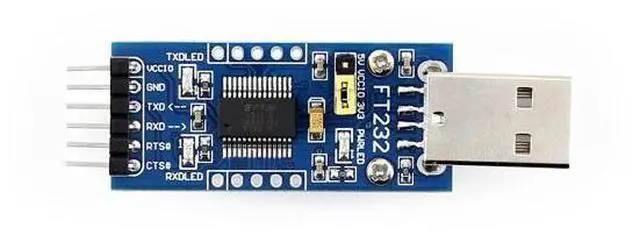

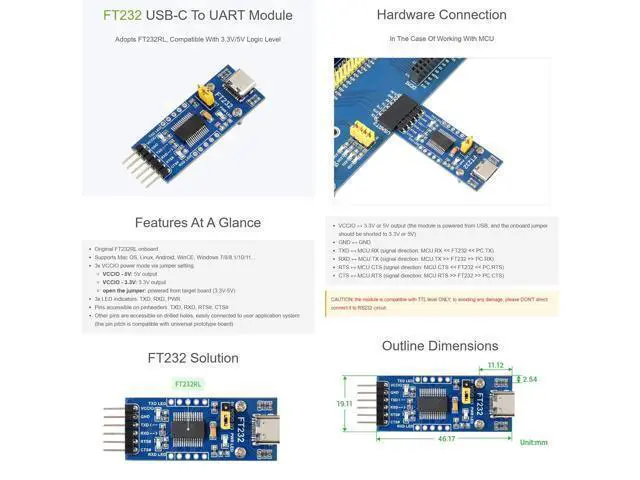

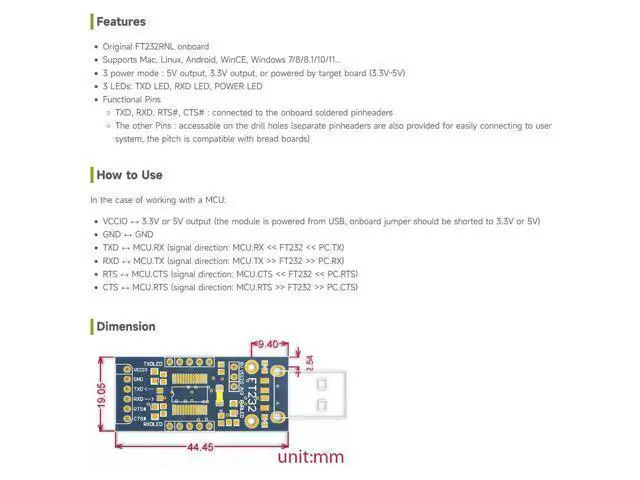

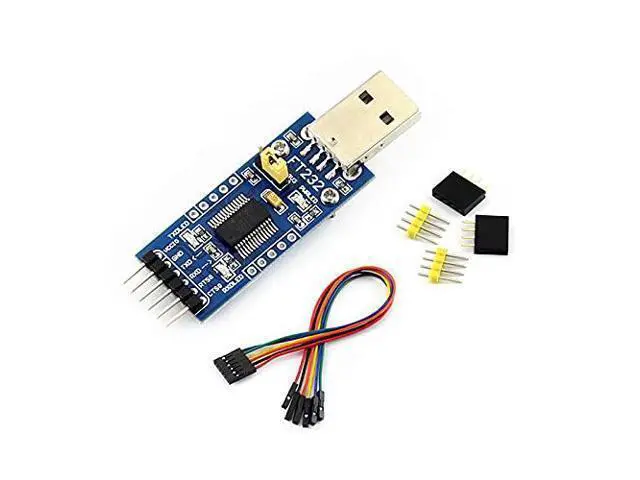

FT232 USB to TTLUART Communication Module, USB Type C Connector, Compatible with Mac OS, Linux, Android, Wince, Windows 7/8/8.1/10/11...
- Original FT232RL onboard. Supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11...; 3x VCCIO power mode via jumper setting: VCCIO - 5V: 5V output, VCCIO - 3.3V: 3.3V output. open the jumper: powered from target board (3.3V-5V); 3x LED indicators: TXD, RXD, PWR; Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#; Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Original FT232RL onboard. Supports Mac OS, Linux, Android, WinCE, Windows 7/8/ 8.1 /10/11...; 3x VCCIO power mode via jumper setting: VCCIO
- 5V: 5V output, VCCIO
- 3.3V: 3.3V output.
open the jumper: powered from target board ( 3.3V -5V); 3x
LED indicators: TXD, RXD, PWR;
Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#; Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)
- 5V: 5V output, VCCIO
- 3.3V: 3.3V output.
open the jumper: powered from target board ( 3.3V -5V); 3x
LED indicators: TXD, RXD, PWR;
Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#; Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)
