10A 120W 12v Golf Cart 48V 36V to 12V Converter Voltage Regulator Golf Cart Voltage Converter Reducer Transformer Waterproof
Limited time offer, ends 05/07 By DongFangBiYueShangMao
- **********Input Voltage Range: 30-60V DC(36V/48V)*****Output Voltage: 12V(Fixed Output), Output Current:10A, Out Power:120w, High Conversion Efficiency: up to 96%*****Protection: Built in over-load, over-current, over-temperature and short-circuit protection.*****Design: Its more durable to use with Aluminum shell and silicone sealed: Waterproof, Anti-shock, Anti-humidity and Dust-proof.*****Application: 120w for car truck vehicle, golf cart, led strip light, screen, monitoring system, motor, solar pad and DIY etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

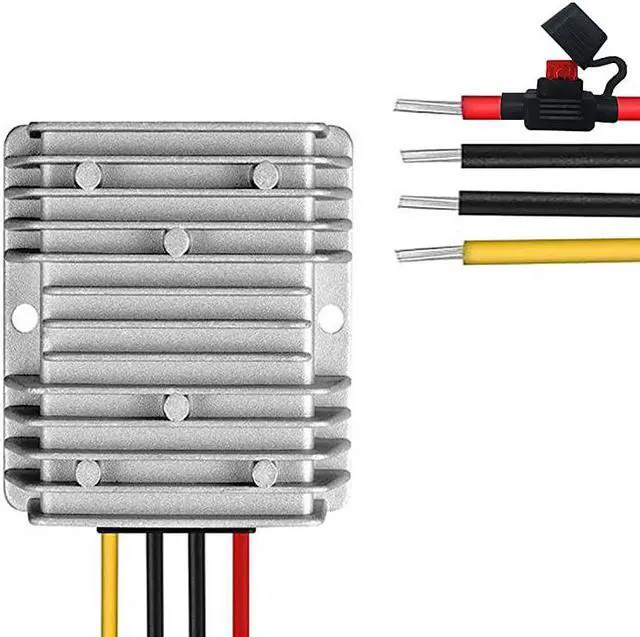

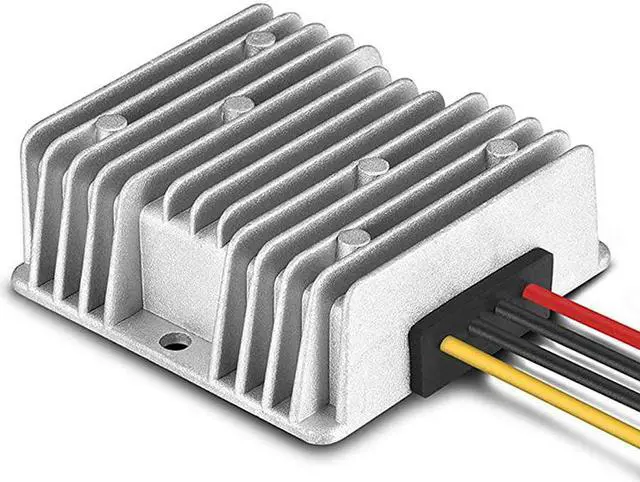

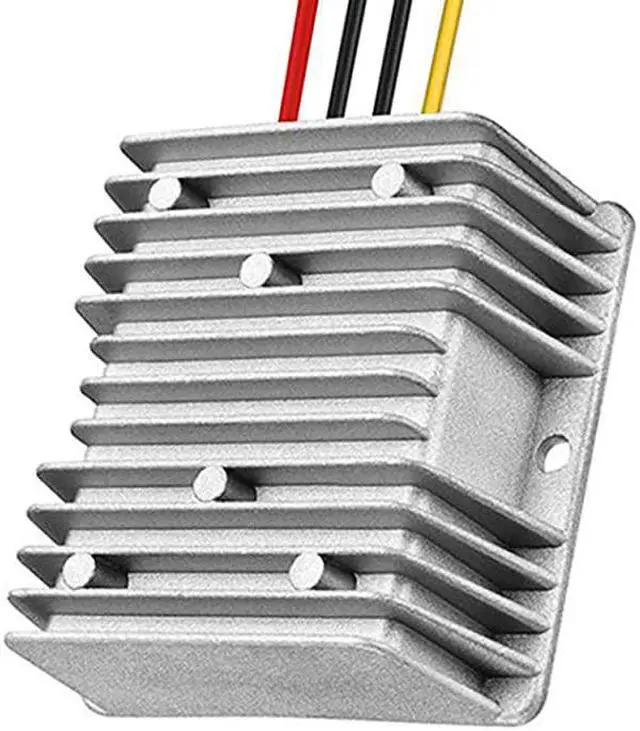

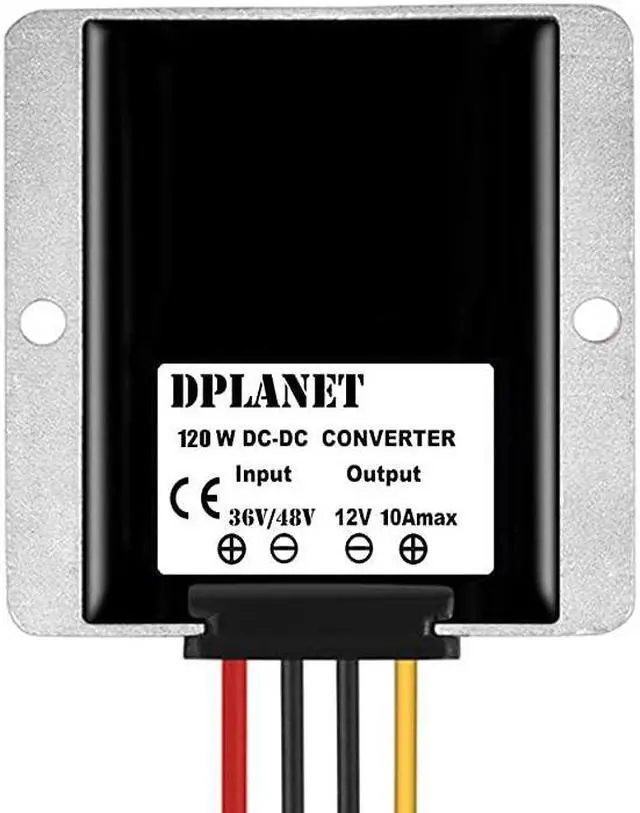

Product Features This is a Dc 12V (FIXED OUTPUT) 120W voltage regulator, capable of driving a 10a load with Aluminum shell
Parameters: Input
Voltage: DC 30-60V
Output Voltage: DC 12V (FIXED OUTPUT)
Output Current: 10A (MAX)
Output Rated Power: 120W
Efficiency: 97% (half load); 95% (full load)
No-load current: < 0.1V
Ripple: 200mVp
Line Regulation: 0.2 %
Load Regulation: 0.2 %
Voltage Accuracy: 1.5 %
Enclosures: IP68 Case
Operating Temperature: -40~85C
Weight: 288g
Fuction: 1. Built in over-load, over-current protection 2. Built in over-temperature protection 3. Built in output short-circuit protection
Application: Golf Cart, car truck vehicle, led strip light, screen, monitoring system, motor and DIY etc.
Parameters: Input
Voltage: DC 30-60V
Output Voltage: DC 12V (FIXED OUTPUT)
Output Current: 10A (MAX)
Output Rated Power: 120W
Efficiency: 97% (half load); 95% (full load)
No-load current: < 0.1V
Ripple: 200mVp
Line Regulation: 0.2 %
Load Regulation: 0.2 %
Voltage Accuracy: 1.5 %
Enclosures: IP68 Case
Operating Temperature: -40~85C
Weight: 288g
Fuction: 1. Built in over-load, over-current protection 2. Built in over-temperature protection 3. Built in output short-circuit protection
Application: Golf Cart, car truck vehicle, led strip light, screen, monitoring system, motor and DIY etc.
