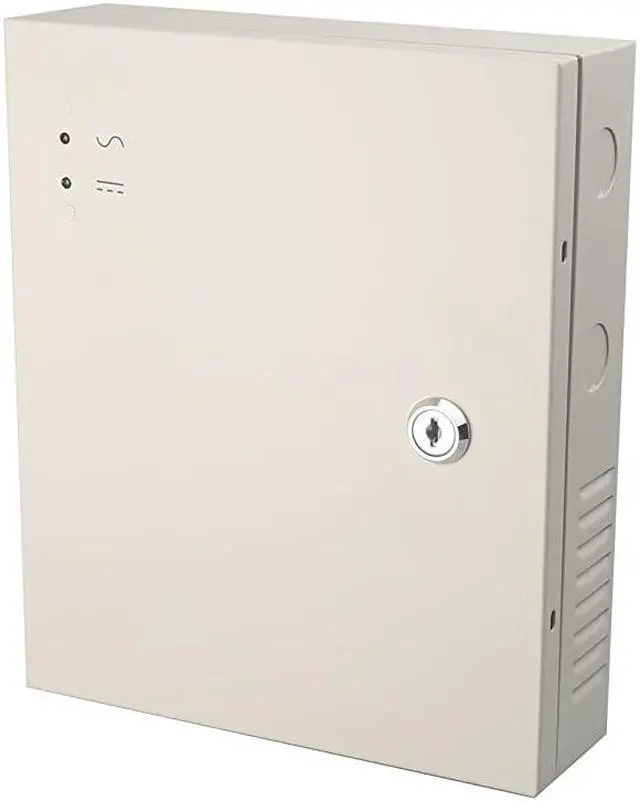

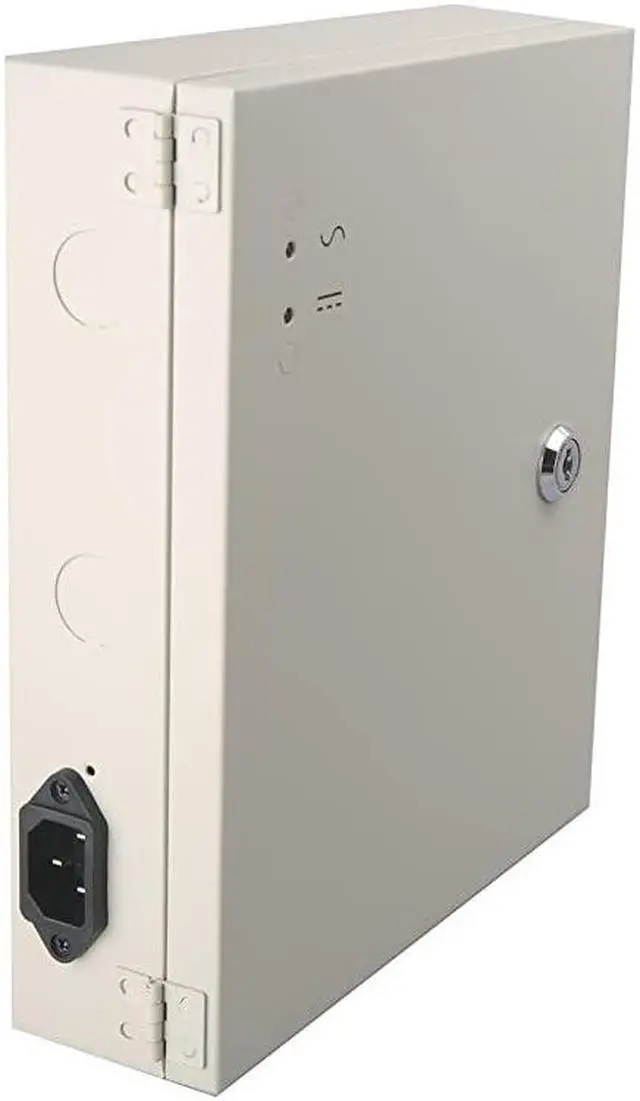

18 Channel DC12V 20 Amp Reset Fuse CCTV DC Distributed Power Box with AC Plug and Lock for Security Cameras DVRs CCTV Power Supply
- **********Input: 100-240VAC; Output: 12VDC ; Supply Current: 20Amp; Max. Amp: 1.1Amp/Channel; DC12V Regulator CCTV Power Supply Box, 18 Outputs with PTC Fuse*****General protection: each output has independent PTC fuse and LED indicator, Lightning Protection, Life Time＞ 100000 hours, when problem occurs, only affect the independent output, other outputs still working.*****Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close. High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.*****Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.*****New Metal housing, Compressive, Wear-resisting Reinforcement Enclosure Structure,Use more Safety and Convenience, Lock with keys and AC Plug are
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features ：
General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Application ： CCTV Camera, PTZ, IR Illuminator, Video Processor， Access Control, etc. Packing Dimension ： 250 x 215 x 94 （ mm ） Net Weight ： 2.3K g
Specification: Input Voltage ： AC 100-240V Input Voltage Frequency ： 50/60Hz Output Voltage ： DC 12V +/-5% Total Output Current ： 20A Total Outputs ： 18 Fuse Type ： PTC (Resetable) Fuse Rating ： 1.1A
General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Application ： CCTV Camera, PTZ, IR Illuminator, Video Processor， Access Control, etc. Packing Dimension ： 250 x 215 x 94 （ mm ） Net Weight ： 2.3K g
Specification: Input Voltage ： AC 100-240V Input Voltage Frequency ： 50/60Hz Output Voltage ： DC 12V +/-5% Total Output Current ： 20A Total Outputs ： 18 Fuse Type ： PTC (Resetable) Fuse Rating ： 1.1A
