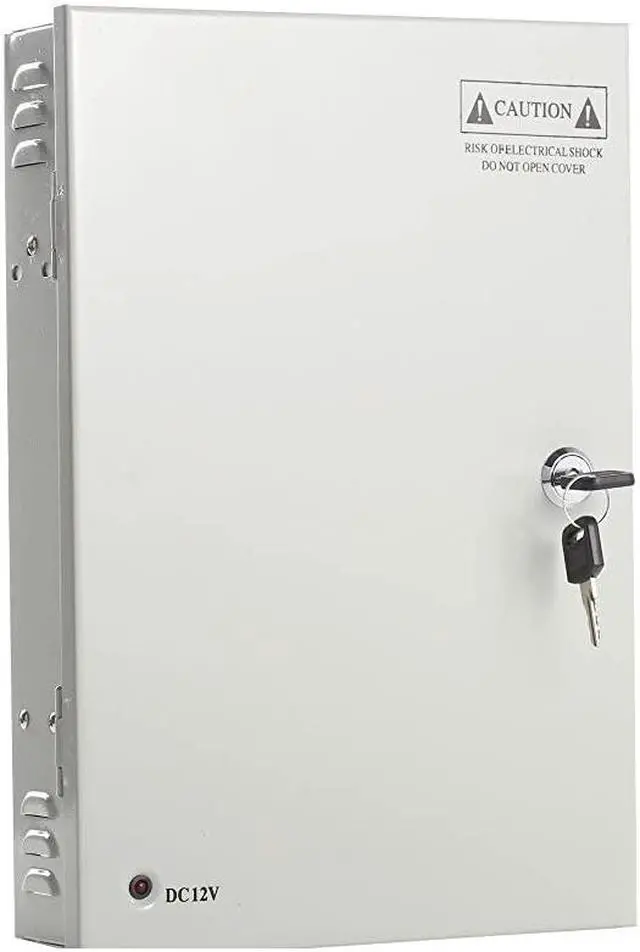

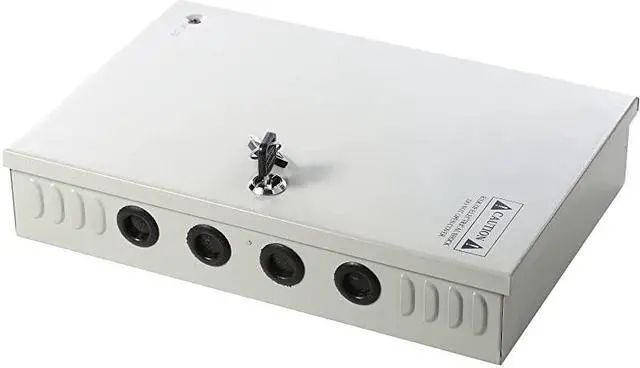

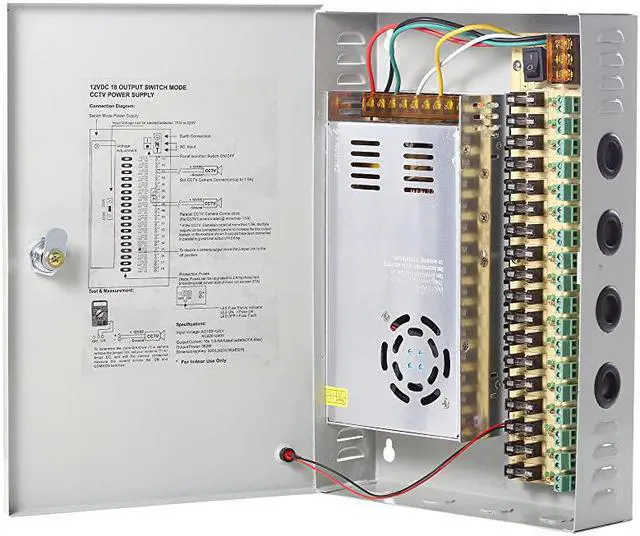

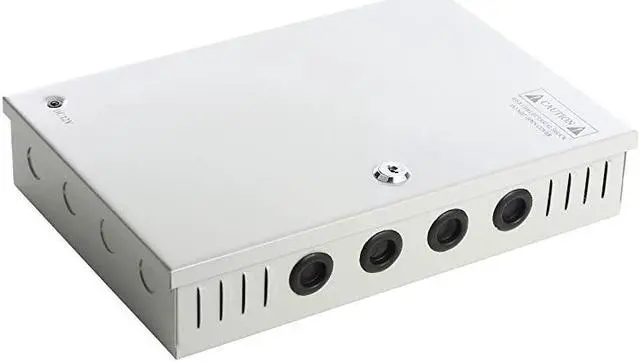

18 Channel Power Supply Switch Box CCTV Camera Distribution DC12V 30A Output
- *****
- **********Best Quality Guranteed.*****DC12V regulator CCTV power supply box, 18 channels outputs with 3 spare fuses.*****Max. output 30Amp total, Maxim for each port is 1.5Amp, DC voltage adjusted range -10%~+10%. Good load capacity, over-voltage protection.*****New metal materials, compressive, wear-resisting, reinforcement enclosure structure, convenience, for more safety use.*****Every channel is protected by PTC fuse, lightning protection.*****Switching power supply box as a power splitter, Applicable to a variety of dc electronic products.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Size Name:
18CHIntroduction: Camera Power Box for Security Cameras. New Technology! PTC fuse protection for Circuit Short, High Voltage, and Over Current. Consolidate all cameras power (12V, 18 port, 20A) to one central location. Heavy duty metal case.

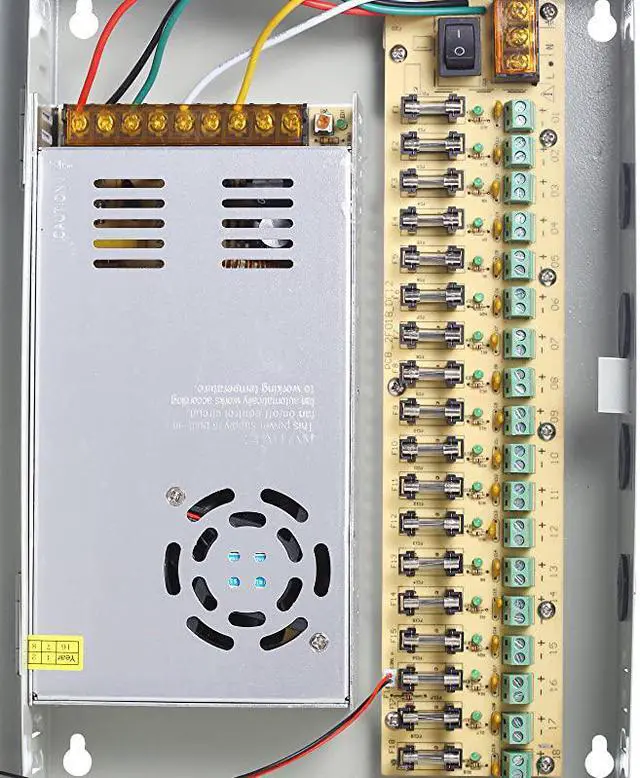

Features: 12VDC - 30 amp supply current Multiple outputs (18 channel) Default 2A fuse Both type(1A+2A), numerous of fuse provided to fulfill any installation purpose Auto-reset PTC fuse protected output Power on/off switch Key protection DC regulated, over current and voltage protected Individual LED indicator for each output For indoor use only

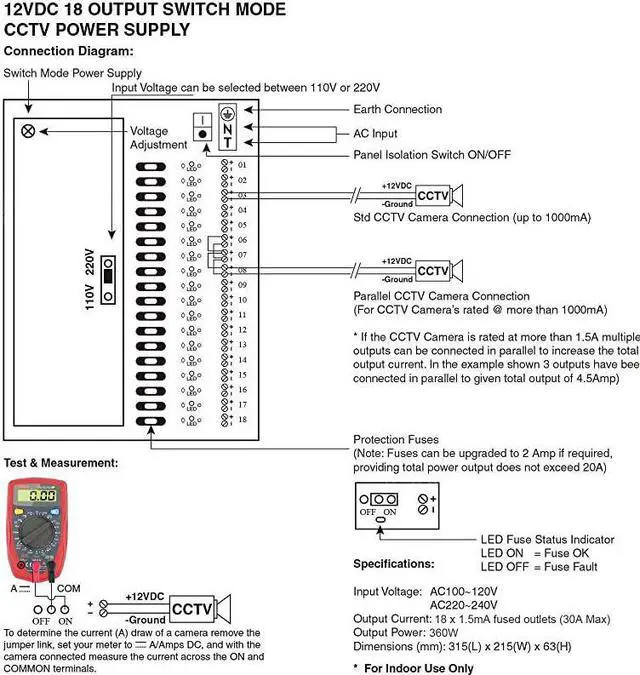

Specifications: Input
Voltage: AC100-120V or AC220-240V (Selectable)
Output voltage: 12VDC
Output current: 18 x 1.5 mA fused outlets (30A Max)
Output power: 360W
Support: Up to 18
Cameras Dimensions: Approx. 315 (W) x215 (H) x63 (D) mm / 12.4" (W) x 8.5" (H) x 2.5" (D) in
Weight: 2.3 kg / 5.07 pounds
Note: AC110V/220V is selected by switch before power on. Please check input voltage avoiding damage.

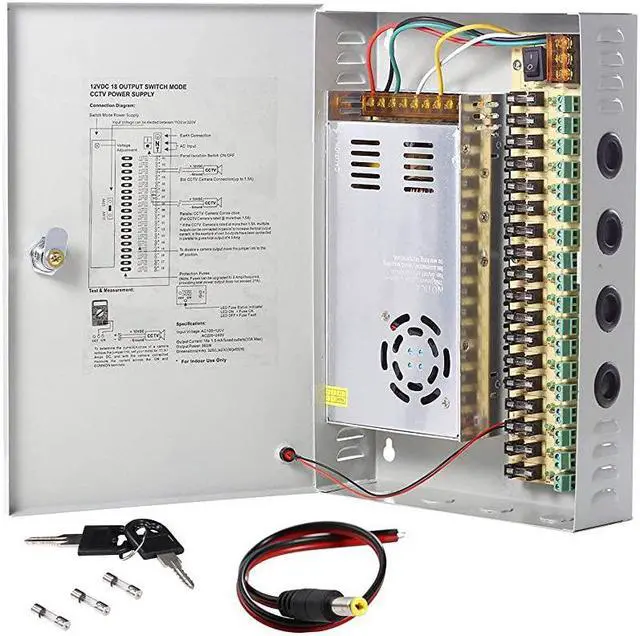

Package: 1 x 18CH 12V/30A Power Box 18 x Power Pigtail Cables 1 x Installation Kit
18CHIntroduction: Camera Power Box for Security Cameras. New Technology! PTC fuse protection for Circuit Short, High Voltage, and Over Current. Consolidate all cameras power (12V, 18 port, 20A) to one central location. Heavy duty metal case.
Features: 12VDC - 30 amp supply current Multiple outputs (18 channel) Default 2A fuse Both type(1A+2A), numerous of fuse provided to fulfill any installation purpose Auto-reset PTC fuse protected output Power on/off switch Key protection DC regulated, over current and voltage protected Individual LED indicator for each output For indoor use only
Specifications: Input
Voltage: AC100-120V or AC220-240V (Selectable)
Output voltage: 12VDC
Output current: 18 x 1.5 mA fused outlets (30A Max)
Output power: 360W
Support: Up to 18
Cameras Dimensions: Approx. 315 (W) x215 (H) x63 (D) mm / 12.4" (W) x 8.5" (H) x 2.5" (D) in
Weight: 2.3 kg / 5.07 pounds
Note: AC110V/220V is selected by switch before power on. Please check input voltage avoiding damage.
Package: 1 x 18CH 12V/30A Power Box 18 x Power Pigtail Cables 1 x Installation Kit
