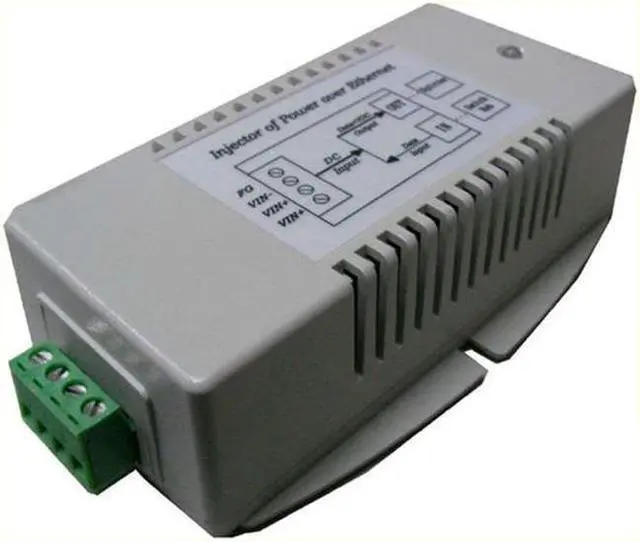

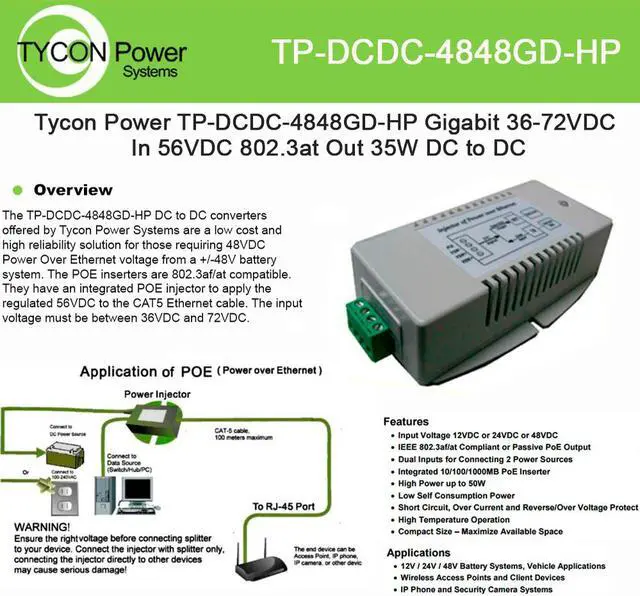

Tycon Systems TP-DCDC-4848GD-HP 56V DC Out 35W Hi Power DC To DC Converter And POE Inserter - Gigabit

The Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE 802.3 af and IEEE 802.3 at or Passive Power over Ethernet from a voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack.

They work by supplying power on the unused Ethernet pins 4, 5(V+) and 7, 8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 35W.

• IEEE 802.3 af/at compliant or passive poe output
• Dual inputs for connecting 2 power sources
• Integrated 10/100/1000mb poe inserter
• High power up to 35w
• Low self consumption power
• Short circuit, over current and reverse/over voltage protect
• High temperature operation

• DC Input Voltage - +/- 36 to 72VDC
• DC Input Connector - Removable Screw Type Compression Wire Terminal (12 AWG Max)
• DC Output Voltage - 56V ( 802.3 af/at)
• Data in & Data/POE Output Connector - RJ45 (Shielded)
• Output Current (max) - 0.625A
• Output Power (max) - 35W
• Self Consumption Power - 1W
• Efficiency (min) - 75%
• Line Regulation - 1%
• Load Regulation - 5%
• Ripple - 1%
• Noise - 1%
• Operating Temp - 30 to +60°C
• Operating Humidity - 5% - 90%
• Storage Temp - 40 to +80°C
• 35W Hi Power DC to DC Converter and POE inserter
