LigoWave - DLB-NFT-3AC-LT - Dual-band 802.11n/ac 3x3:3 Indoor AP

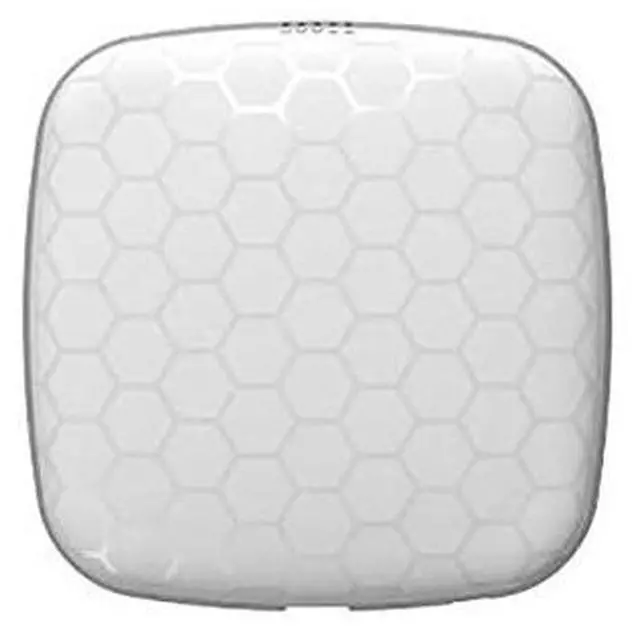

The Infinity NFT 3ac Lite is a high-performance dual-radio access point from LigoWave, equipped with two 3×3 MIMO 802.11 ac radios operating in the 2.4 and 5GHz bands concurrently. A dedicated Qualcomm Atheros AR9558 CPU (720MHz) makes this AP ideal for enterprise capacity demanding applications reaching 450Mbps data rate on a 2.4GH z radio and 1300Mbps data rate on a 5GHz radio. There are two Gigabit Ethernet ports and one of them supports 802.3 af/at standard for easy and quick deployment using PoE switches. WLAN Standard IEEE 802.11 a/b/g/n/ac Radio Mode MIMO dual 3×3 Operating Mode Access point, repeater Radio Frequency Band 2.402 - 2.484GH z (country dependent) FCC 2.412 - 2.462GH z (CH1-CH11) 5.170 - 5.875GH z (country dependent) FCC 5.745 - 5.825GH z (CH149-CH161)
Transmit Power 2.4GH z: 22dBm per chain @
MCS23 5GHz: 22dBm per chain @ MCS23 Channel Size 20, 40, 80MHz
Modulation Schemes 802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
802.11 a/g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 b: DSS (CCK, DQPSK, DBPSK) Data Rates 802.11 ac @ 80MHz: 1300, 1170, 975, 780, 585, 390, 292.5, 195, 97.5M bps 802.11 n @ 40MHz: 450, 405, 360, 270, 180, 135, 90, 45Mbps
802.11 a/g @ 20MHz: 54, 48, 36, 24, 18, 12, 9, 6Mbps
802.11 b @ 20MHz: 11, 5.5, 2, 1Mbps Duplexing Scheme Time Division Duplex Wireless Security WPA/WPA2 Personal, WPA/WPA2 Enterprise, WACL, Hotspot (UAM) Roaming Yes
