What types of installation does the Minuteman OES1020HV PDU support?

The Minuteman OES1020HV PDU supports horizontal installation as a 1U unit and vertical installation as a 0U unit.

What is the maximum output current of the Minuteman OES1020HV PDU?

The maximum output current of the Minuteman OES1020HV PDU is 16A.

$106^.05

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by NothingButSavings

Top Rated

4.5 (8,976 seller ratings)

Shipped by NothingButSavings

Best Sellers

Compute4Less Corp

Hot Seller

3.6 (353 total ratings)

$125^.68
+ FREE SHIPPING

Newegg

$89^.99
+ FREE SHIPPING

Meet Your Seller

NothingButSavings

See Seller Store

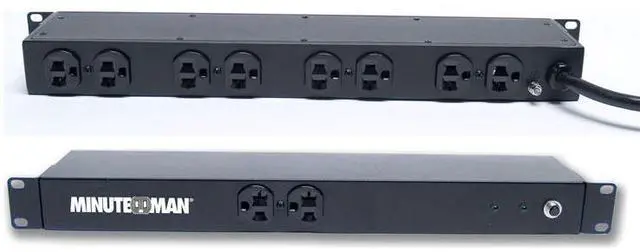

Main image of Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

Alt view image 2 of 11 - Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

Alt view image 3 of 11 - Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

Alt view image 4 of 11 - Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

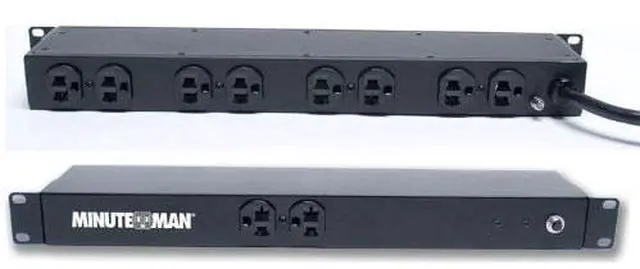

Alt view image 5 of 11 - Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

Alt view image 6 of 11 - Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

Alt view image 7 of 11 - Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

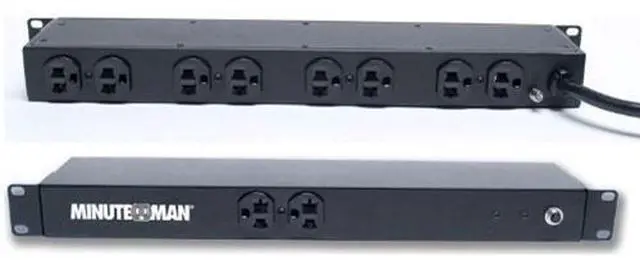

Alt view image 8 of 11 - Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

Alt view image 9 of 11 - Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

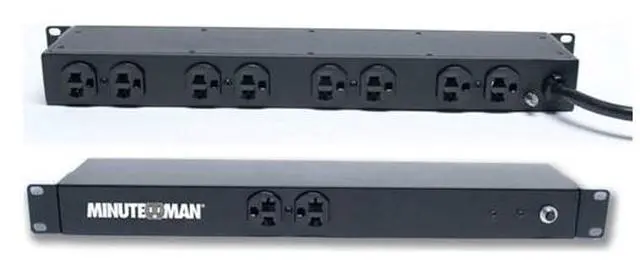

Alt view image 10 of 11 - Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

Alt view image 11 of 11 - Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

Shop All MINUTEMAN Products | Visit NothingButSavings Store

Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

Be the first to review this product...

Model: OES1020HV

OEPD1020HV
OEPD1020HV-HW
OEPD1415HV
OEPD1415HV-HW
OEPD1815V48
OEPD2024IECHVI
OEPD2024IECHW
OEPD202L620HVHW
OEPD2415V62
OEPD2415V62-HW
OEPD2420V62
OEPD2420V62-HW
OEPD2420V62L
OEPD302L630HVHW
OEPD304L630HVHW
OEPD304L630HVN
OEPD615HV
OEPD815HV
OES1015HV
OES1020HV

Minuteman OES1020HV PDU 120VAC 16A 1U/0U 2FRONT/8BACK NEMA 5-15R OUTLETS

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

PDU SURGE 20A 10-OUTLET HRZ

Model
Brand	MINUTEMAN
Series	OE Series
Model	OES1020HV

Details
Type	PDUs & Line Conditioners
Rack Size	1U
Style	Horizontal Installation, 0U Vertical Installation
Certifications	62368-1 Certification

Input
Maximum Input Current	20A
Input Connector(s)	NEMA 5-20P
Cord Length	15 ft

Output
Output Connector(s)	Front Panel Receptacles: (2) 5-15/20R Rear Panel Receptacles: (8) 5-15/20R
Maximum Output Current	16A
Overload Protection	Input Circuit Breaker Protection

Feature
Features	Longer power cords Most Minuteman PDU units have up to 15-ft power cords, to allow for seamless installations More standard outlets Minuteman PDU units have 6, 8, 10, 14, 18, or 24 outlets. Most of the Minuteman PDUs have additional front outlets for improved access Configuration versatility Minuteman PDU units have a multi-form factor with 1U and 0U configurations allowing for either horizontal or vertical placement. 1U products ship with a stand-off mounting bracket, at no additional cost, that allows for vertical installation on most racks and enclosures Locking (L) and Hardwire (HW) input plugs Select models feature locking plugs or hardwire inputs for added security Surge protection (OES) OES models provide surge protection for connected devices High standards PDUs are listed with higher UL 62368-1 standard. All PDUs are compatible with any data center or network installation Cost-effective More outlets, longer cords, and more features are what make the OEPD Series the best value today. The features are all standard with the series Higher reliability Designed to provide maximum uptime, Minuteman PDUs’ switchless design and on/off LEDs provide greater MTBF (Mean Time Between Failure)

Additional Information
First Listed on Newegg	September 22, 2025
