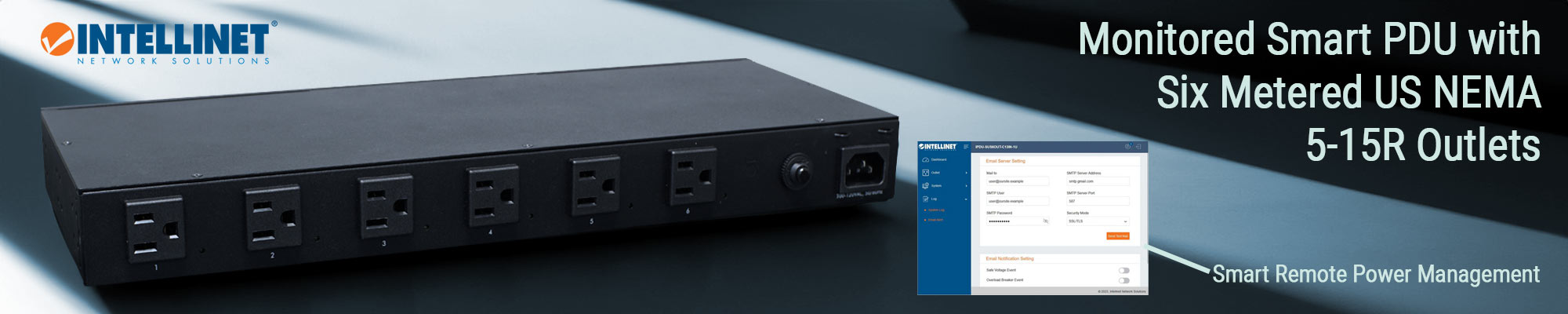

Intelligent Metered Power Distribution Unit (PDU) with advanced safety features for efficient power distribution to critical network equipment

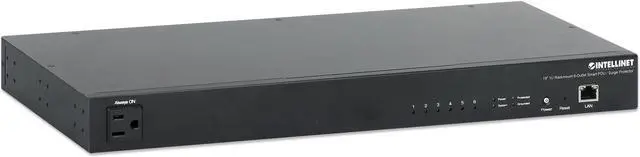

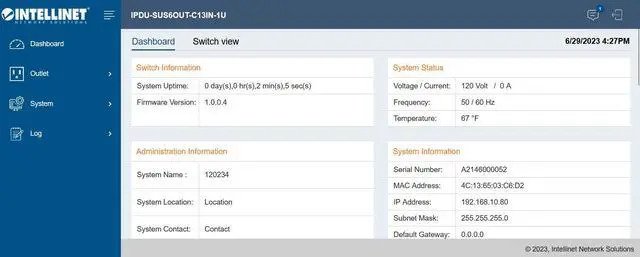

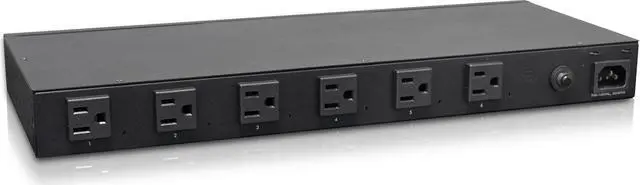

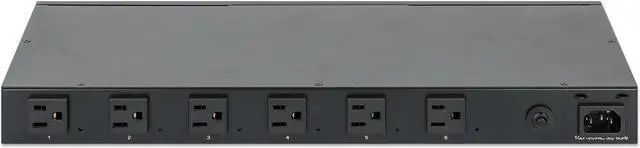

The 19" 1U Rackmount 6-Outlet Smart PDU / Surge Protector from Intellinet Network Solutions safely distributes and monitors power to the equipment in your network rack, server room or data center. It features six metered US NEMA 5-15R outlets with remote access and control, complimented by one non-metered bypass outlet. Access and manage the PDU via a web browser using the RJ45 Ethernet port on the front panel, while monitoring the delivered power in voltage and current. It can be installed horizontally in a standard 19" rack with the included rackmount brackets, or placed on its rubber feet for non-slip desktop use.
Smart Remote Power Management

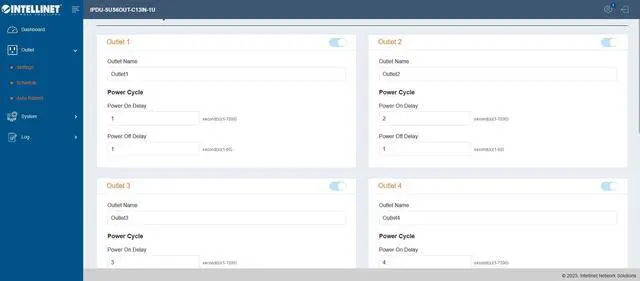

Effortlessly power on/off each port remotely, and manually or automatically reboot unresponsive devices through ping requests, which greatly reduces unnecessary tech support calls. Additionally, schedule switch-off times outside of office hours to optimize energy usage and lower costs.
Safety first

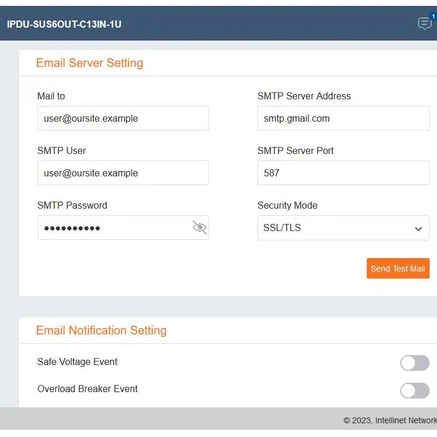

The PDU is housed in a durable and fire-resistant metal enclosure, equipped with a resettable circuit breaker to prevent overloads and costly down-times. With 2,160 joules of protection, it guards against dangerous power surges, line noise, and spikes. Set up alerts and notifications for critical events such as voltage threshold breaches, overloads, or host timeouts. Multiple LED status indicators on the front panel for power, system, surge protection, and grounding provide clear information about your connection.
Imagine a power distribution unit that not only powers your data center but also makes managing it a breeze. It lets you monitor and control power usage in real-time, right from your desk, and sends you alerts if something's amiss. Whether you're running a small setup or a huge enterprise, the Smart PDU helps you keep everything running smoothly and efficiently.
- 19" 1U Rackmount
- Fanless design for quit operation
- LED Indicators provide realtime status information
- 2160 Joule Surge Protection
| Certifications | FCC,UL, CSA |
|---|---|
| General | Power input: one IEC320 C14 cable with US NEMA 5-15P plug | Power outputs: Six US NEMA 5-15R |
| Electrical - Power Input | 100 - 120 V, 50 - 60 Hz, 7 W No-load power consumption |
| Electrical - Power Output | 100 - 120 V, 50 - 60 Hz, maximum 15A per outlet |
| Surge protection | AC suppression with 1,260 joules |
| Overload protection | 12.0 A maximum load current |
| Operating temperature | 32 to 104°F |
| Operating humidity | 5 - 95% RH, non-condensing |
| Power cable length | 6 ft |
| Housing | Metal |
| Dimensions (D x W x H) | 6.69 x 17.32 x 1.73 in |
| Net weight | 5.27 lbs |

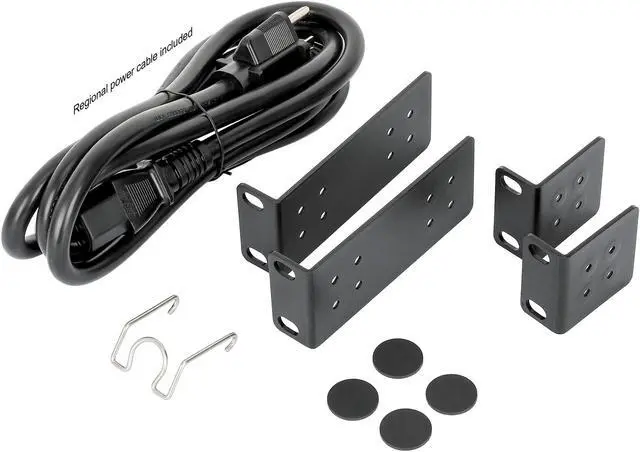

| Package Contents | 19" 1U Rackmount 6-Outlet Smart PDU | 19" rackmount brackets | Power cable | Rubber feet |
