Smart PDU for your network

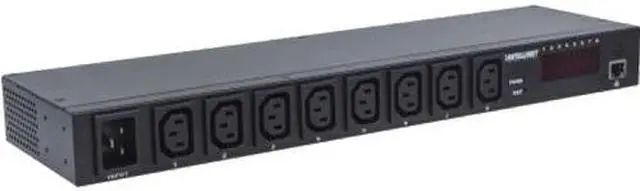

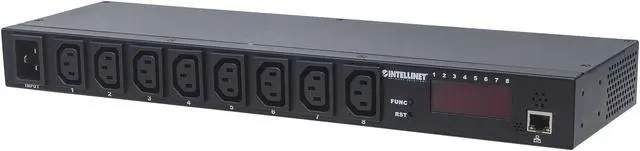

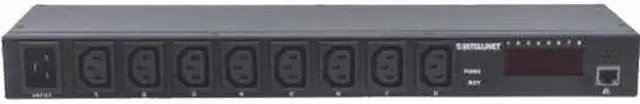

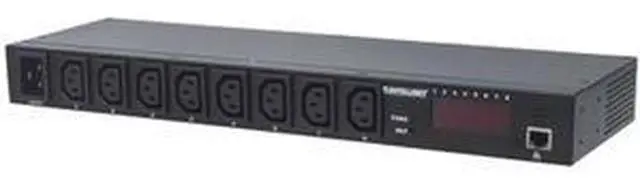

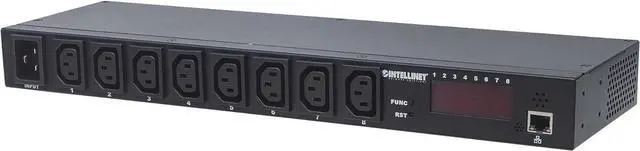

The Intellinet Network Solutions 19" Intelligent 8 Port PDU provides your system-critical devices with steady power, monitors current-voltage levels and keeps track of environmental temperature and humidity levels. A simple web interface enables the systems administrator to set thresholds for the safety of your valuable I.T. equipment.

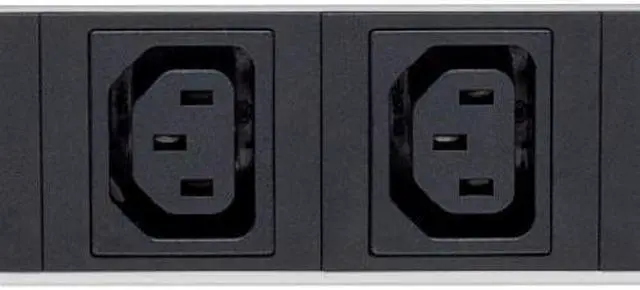

- Eight-port, IEC320 C13 power output with total current of 16 A
- Displays total delivered power in voltage and watts
- Built-in temperature and humidity sensors

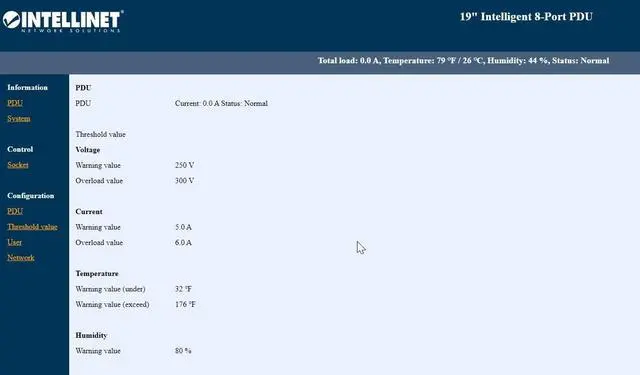

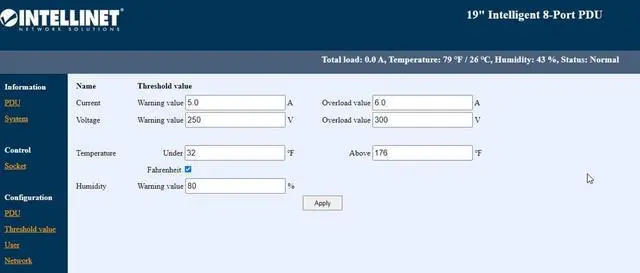

- Customizable Warning and Overload alarms
- Power-outlet delay-time configurable to prevent the possibility of a power surge to the integral power supply

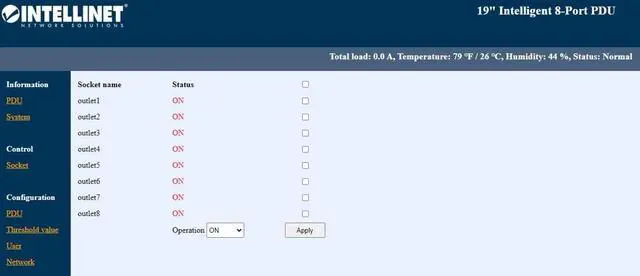

- Power cycle of each port via web interface
- LED indicates power-supply condition of each power outlet
- Digital display shows real-time value of voltage and current, IP address, or temperature and humidity
- Built-in lightning-protection circuit and voltage-surge circuit
- Fanless design for silent operation
- Three-Year Warranty
| Certifications | FCC, CE |
|---|---|

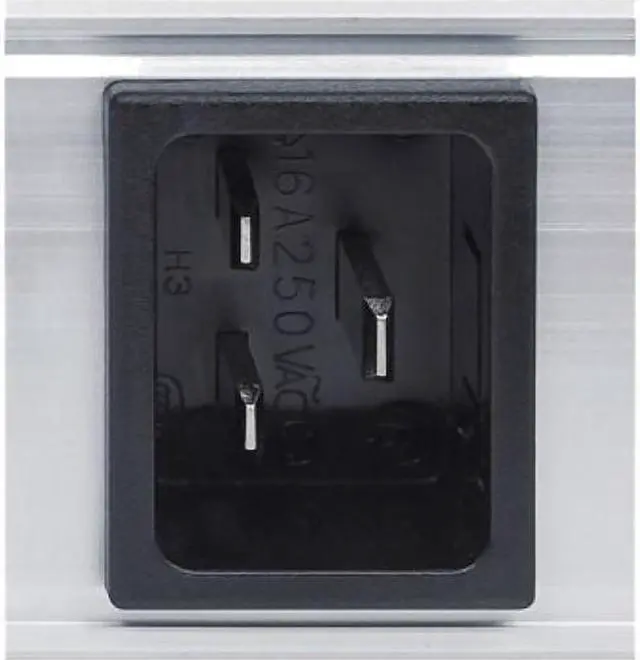

| General | Power input: one IEC320 C20 | Power outputs: eight IEC320 C13 | LAN connection: one RJ45 port |
| Electrical | Voltage input: 90-240 V 50/60 Hz | Voltage output: 90-240 V 50/60 Hz |
| Voltage measurement range | 90-264 VAC increment of 1 V |
| Current measurement range | 0-20 A increment of 0.1 A |
| No-load power consumption | 5 W |
| Temperature measurement range | 32° to 122°F - increment of 1°F |
| Humidity measurement range | 20% to 90% increment of 1% |
| Flammability | ested and rated in accordance with UL 94 V-0 |
| Housing | Metal |
| Dimensions (D x W x H) | 4.69 x 17.4 x 1.75 in |
| Net weight | 4.54 lbs |
| Package Contents | Intelligent 8-Port PDU | 19" rackmount brackets | Power cable IEC320 C19 to NEMA 5-15P |
