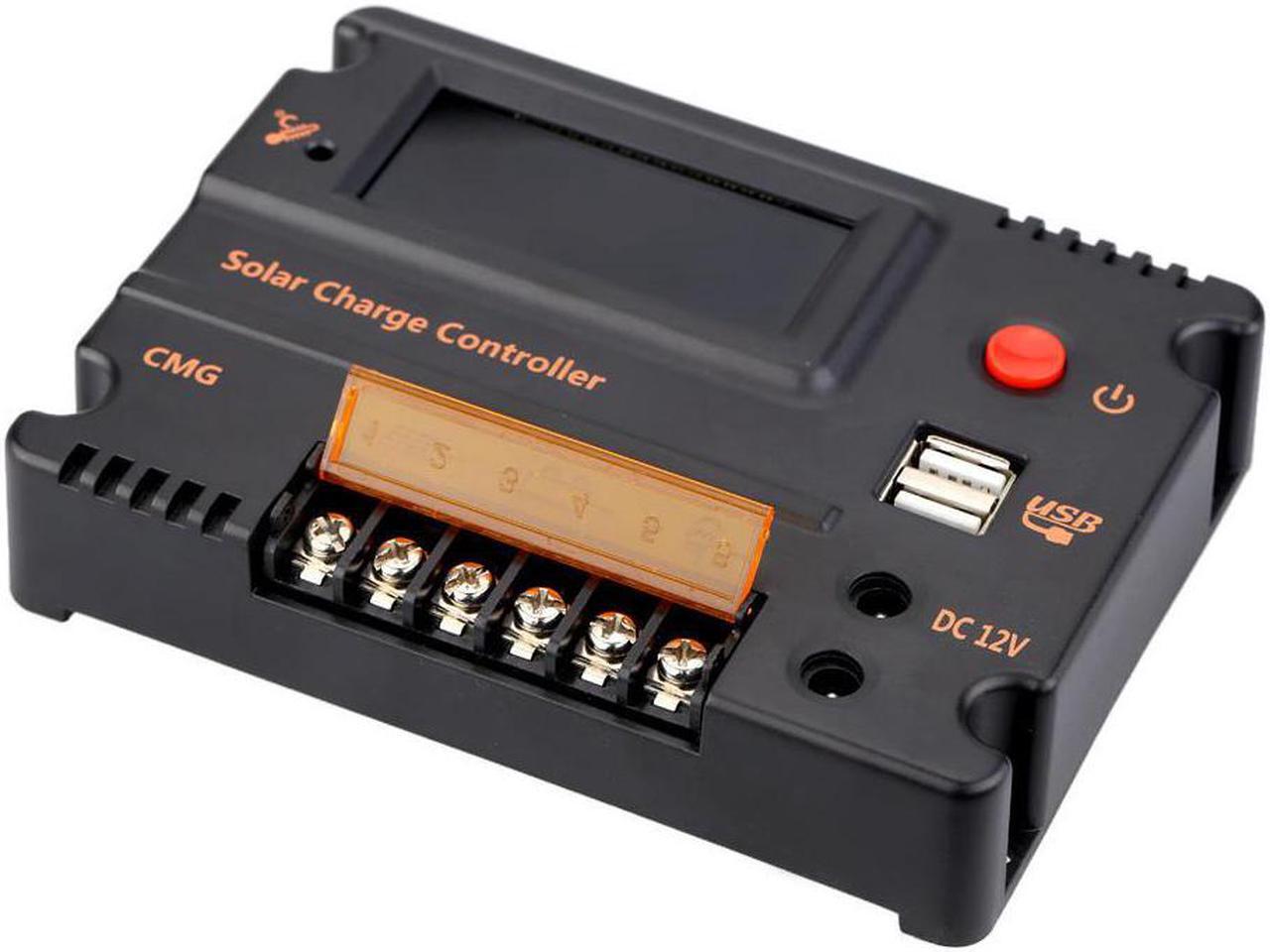

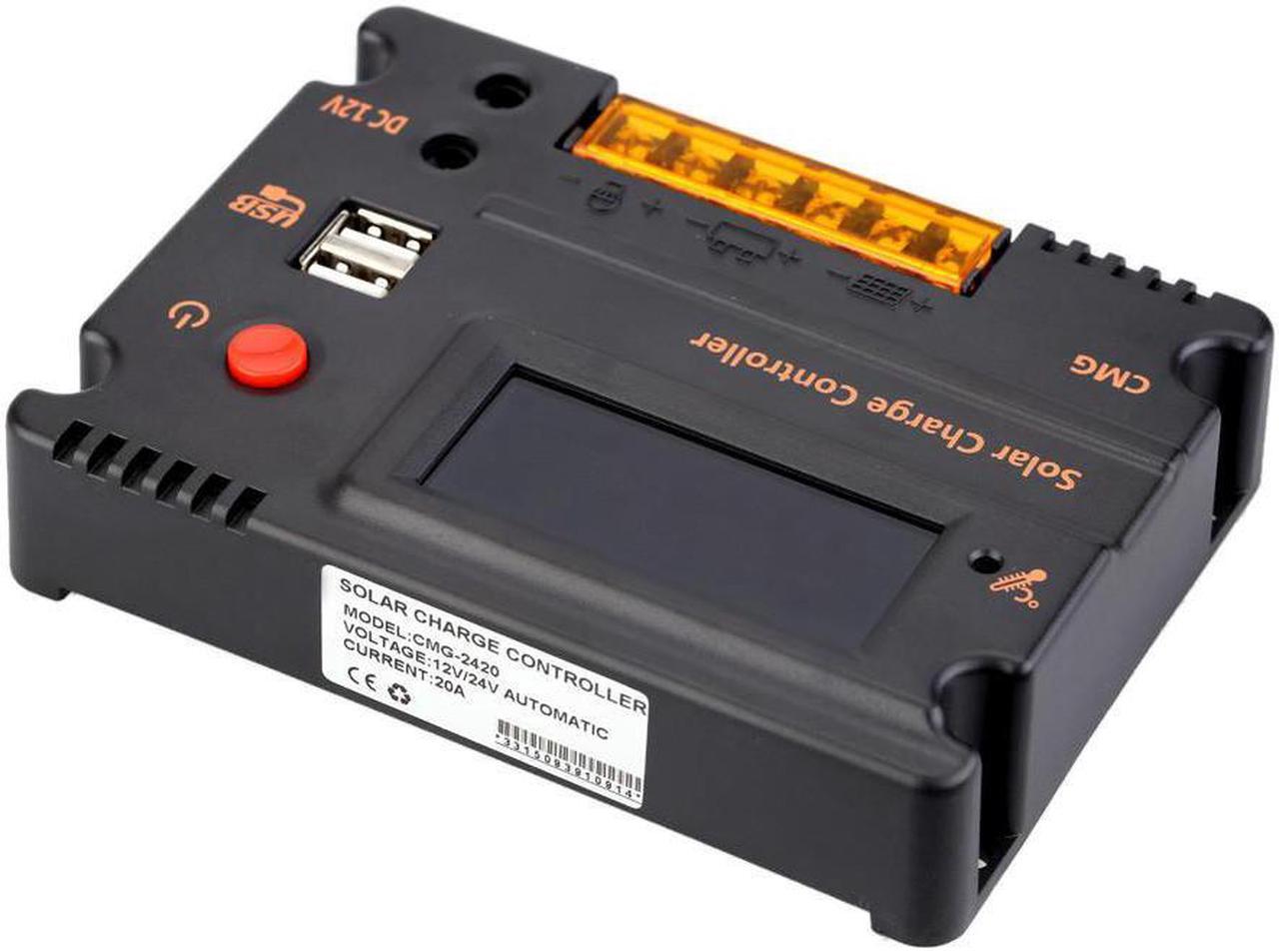

CMG-2420 12V/24V 20A Solar Charge Controller Panel Battery Regulator Auto Switch Overload Protection

Description:

This solar charge controller adopts the advanced digital techniques and operates fully automatically. The PWM battery charging mode can greatly increase the lifetime of your battery and has various unique functions and quite easy to use features.

Specifications:

Model

CMG-2420

Material

Plastic

Color

Black

Voltage of Battery

12V / 24V Automatic

Rated Charge/Discharge Current

20A

USB Output Voltage

5V

Total USB Output Current

3A

DC Output Voltage

12V

Total DC Output Current

2A

Overload/Short Circuit Protection

1.5 Times by Rated Current

Short Circuit Recovery Time

10s

Open Circuit Voltage of Solar Panel

40V

No Load Loss

0.05W

Over Voltage Protection

15V; x2/24V

Float Charge Voltage

14V; x2/24V

Discharge Recovery Voltage

12V; x2/24V

Over Discharge Voltage

10.5V; x2/24V

Control Mode

Software Intelligent Control

Working Temperature

-35~55°C

Item Size

135 * 100 * 25mm / 5.31 * 3.94 * 0.98in (L * W * H)

Item Weight

222g / 7.83oz

Package Size

14.5 * 12 * 3.8cm / 5.7 * 4.72 * 1.5in (L * W * H)

Package Weight

270g / 9.54oz

Features:

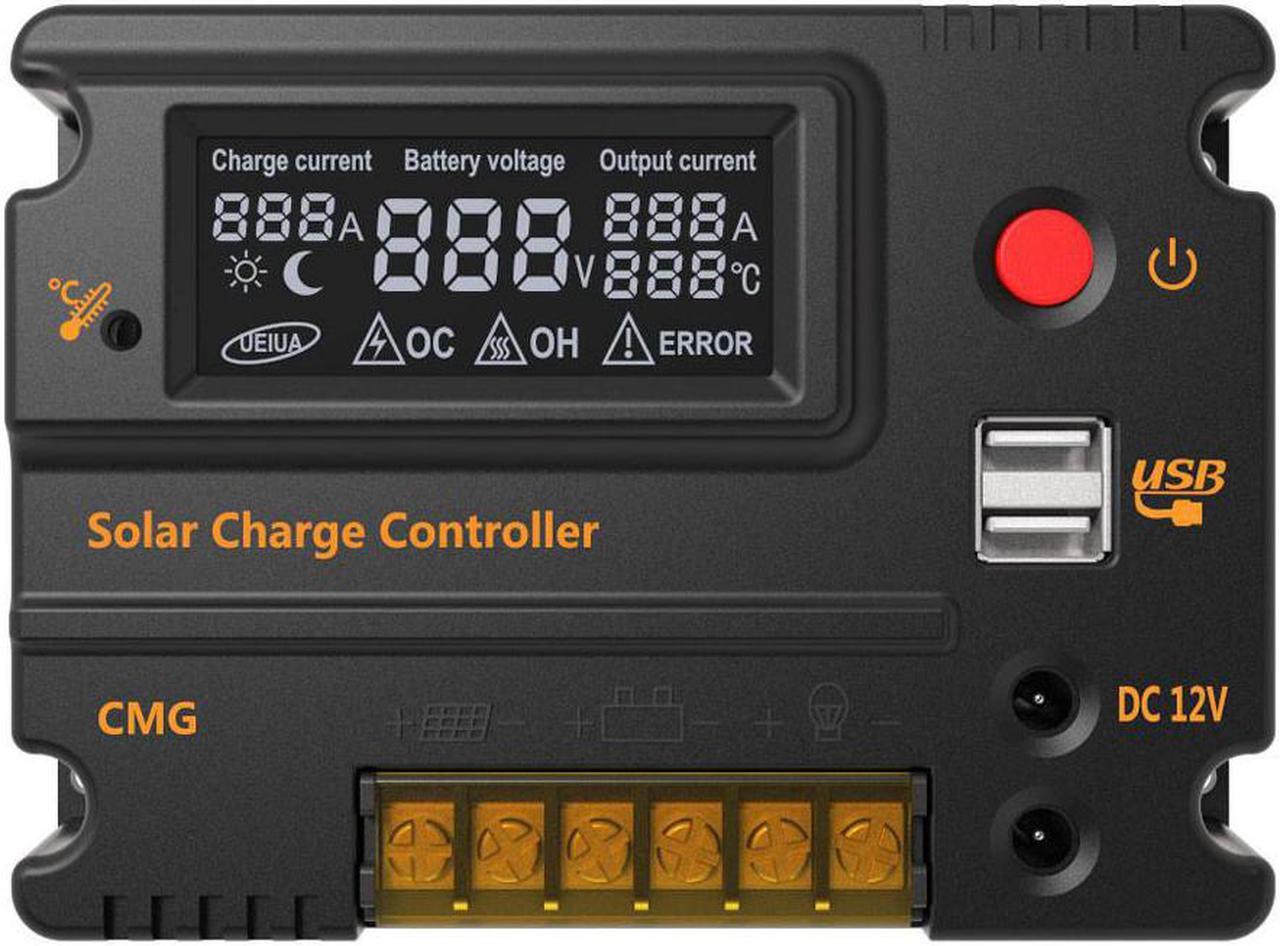

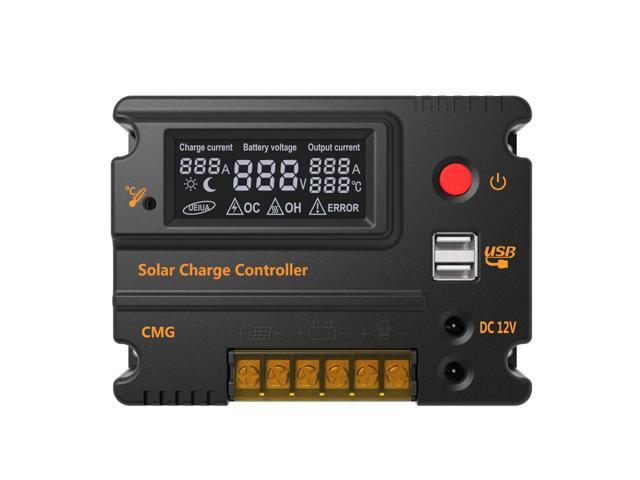

- LCD screen display all parameters.

- With output switch, intelligent control, easy to operate.

- Fully automatic operation.

- Microcontroller digital accuracy.

- A key to open and close the load.

- PWM charging mode(SOC).

- With separated temperature detected circuit, high precision temperature compensation function.

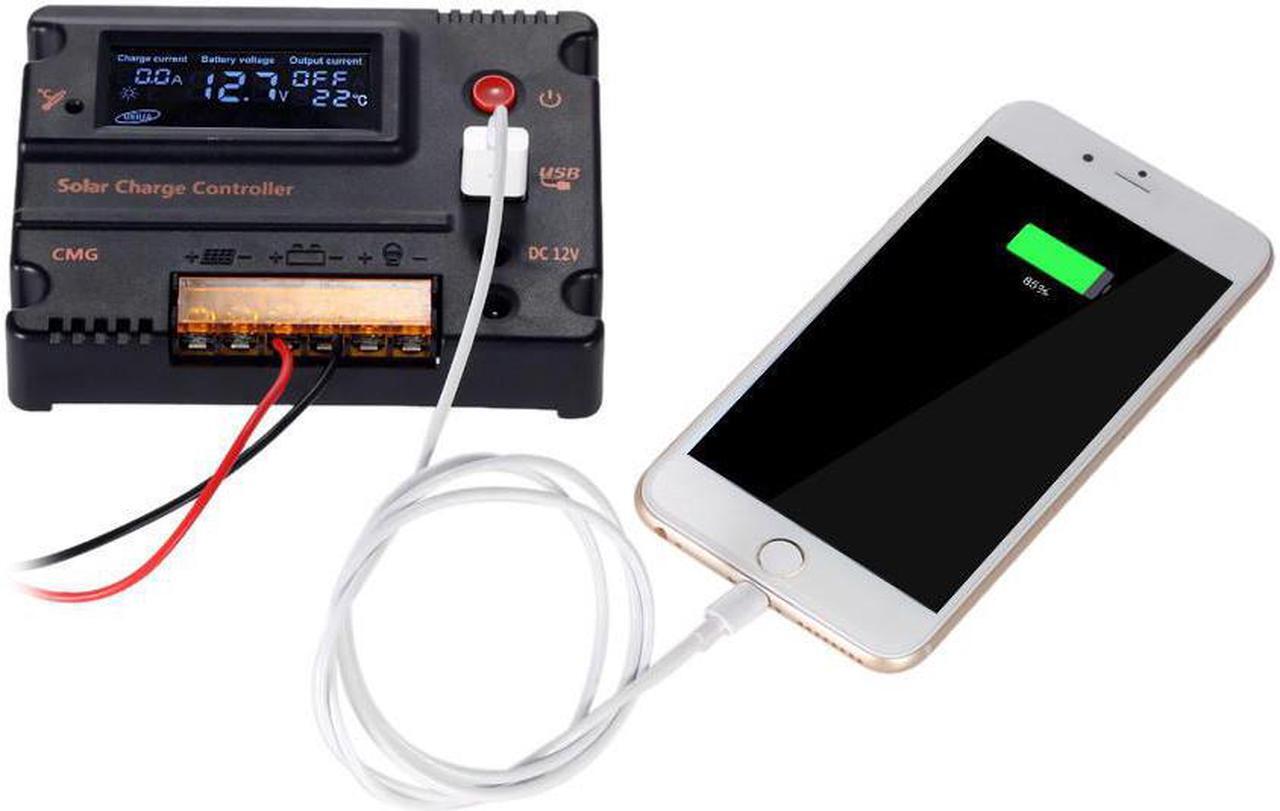

- DC 12V and USB 5V charging for DC lamp and phone.

Protection:

- Overload protection;

- Short-circuit protection;

- Lighting protection;

- Under-voltage protection;
