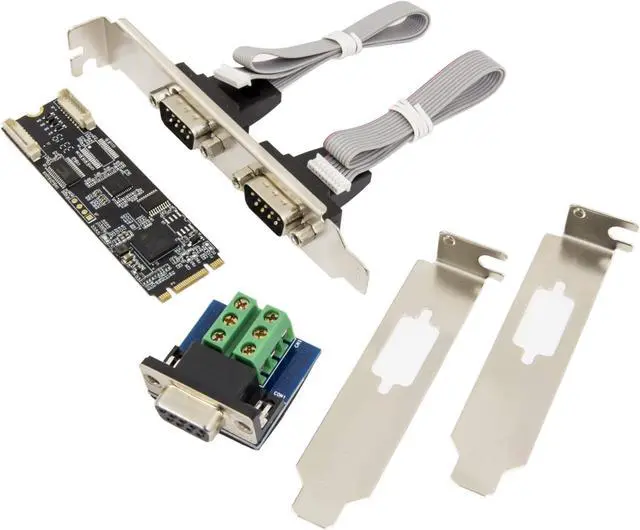

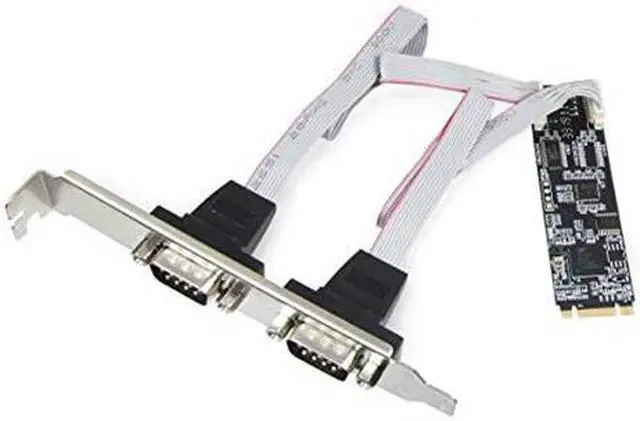

IO CREST RS-232 + RS-422/485 DB9 Serial M.2 B+M Key Controller Card
- Data read/write 32-bit operation. Global interrupt status register for both UARTs. 16 multi-purpose inputs/outputs (MPIOs)
- Two independent UART channels controlled with Bits per second Data transfer rates from 300 baud to 921600baud. 16550 compatible register Set. 256-byte TX and RX FIFOs

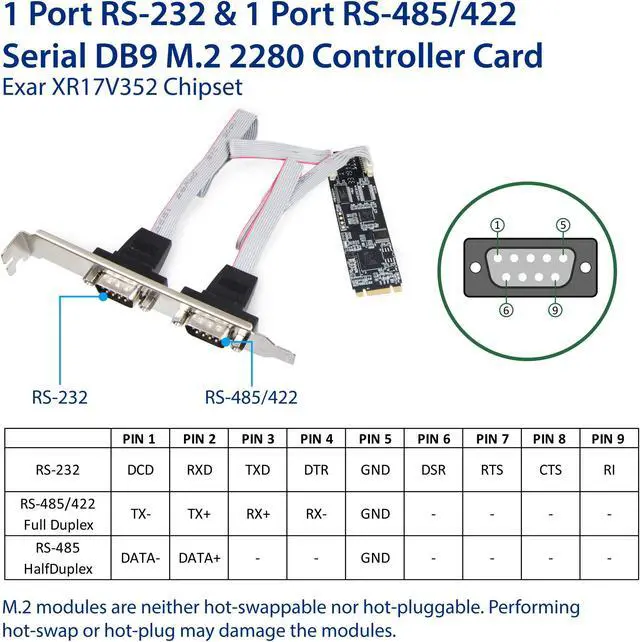

- RS232: DCD,RXD,TXD,DTR,GND,DSR,RTS,CTS,RI. RS422: TX - ,TX+, RX +,RX - GND RS485: Data-, Data +
- Data bits:4,5,6,7,8. Stop bits:1,1.5,2. Parity bit:Odd, even, mark, space, None. Flow control: None,Xon / Xoff, Hardware.
- Operating Temperature:-40°C to +85°C. Storage Temperature:-65°C to +150°C
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

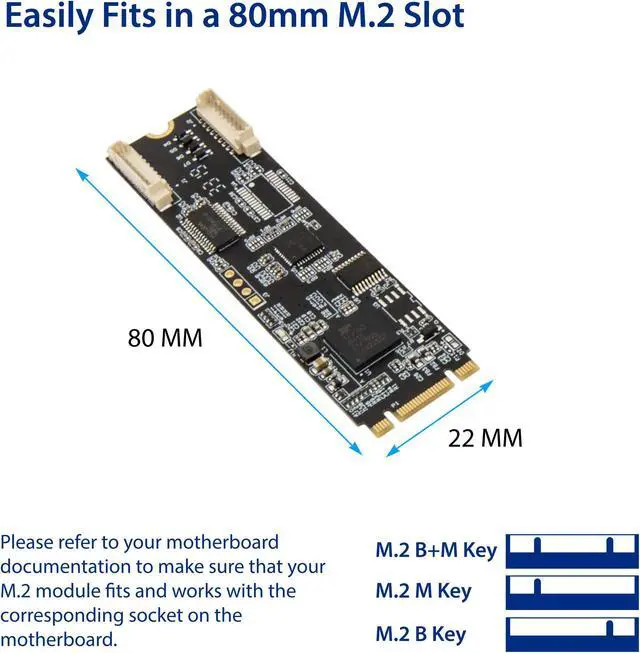

The IOCrest SI-ADA15070 lets you add One RS-232 and RS-422/485 serial ports to your embedded computer thought a free M. 2 Slot. To be used in applications such as serial attached devices, serial networking/monitoring equipment, data acquisition system, POS terminal and industrial PC, add-on I/O cards-serial/usb, and Embedded systems -For I/O expansion
