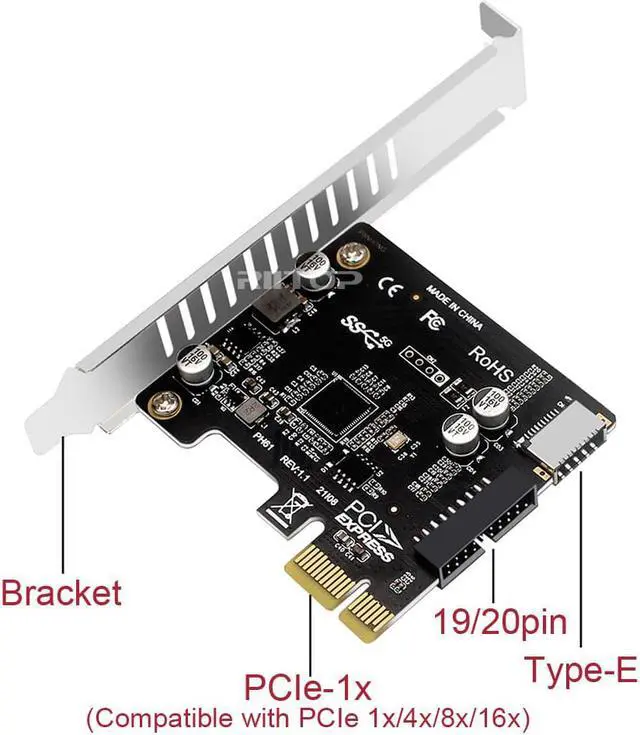

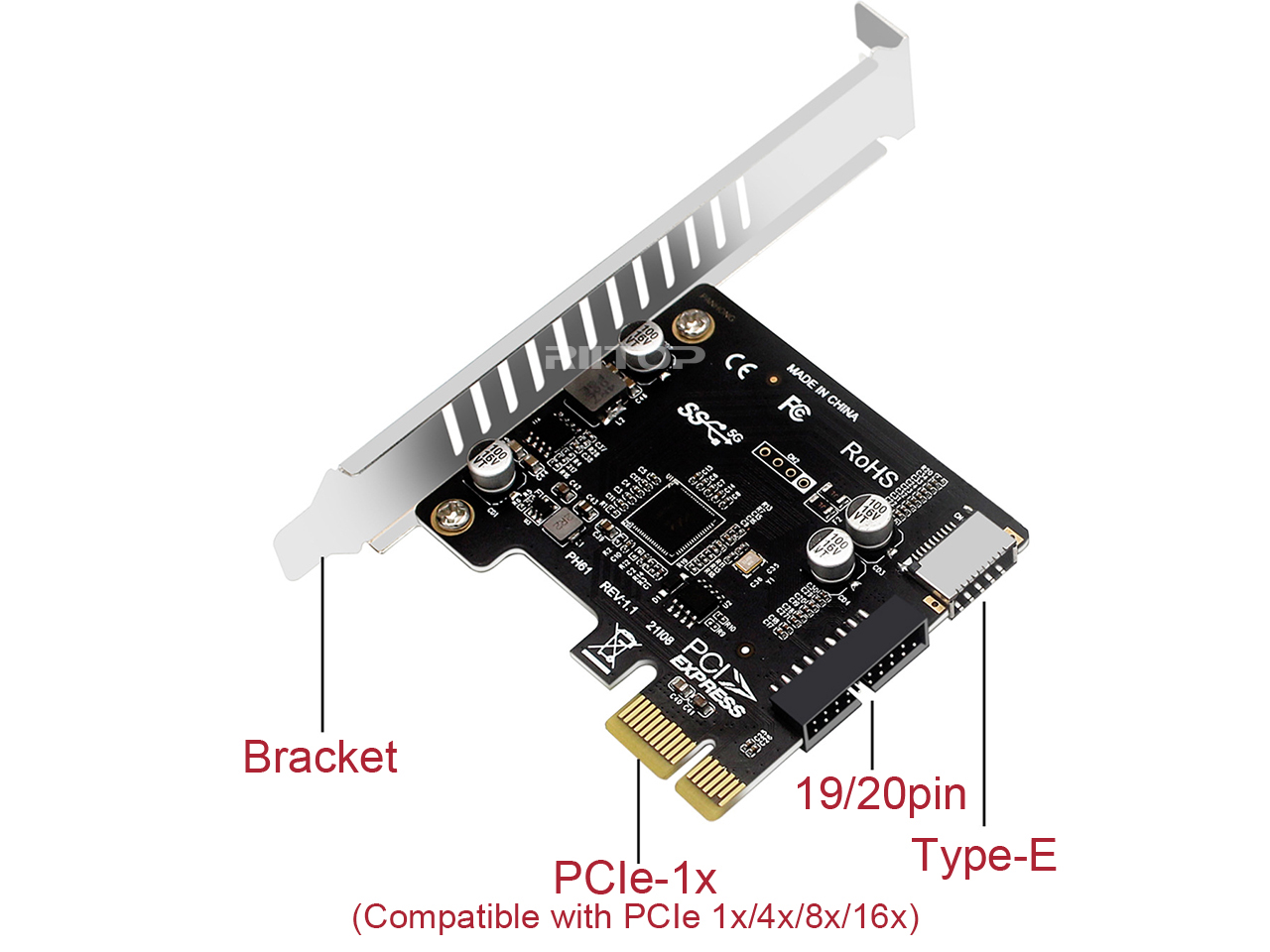

Extend Port: 1x 20pin usb3.0 header, 1x Type-E.
PCIe 1x slot (Compatible with PCIe 1x/4x/8x/16x).
Features:

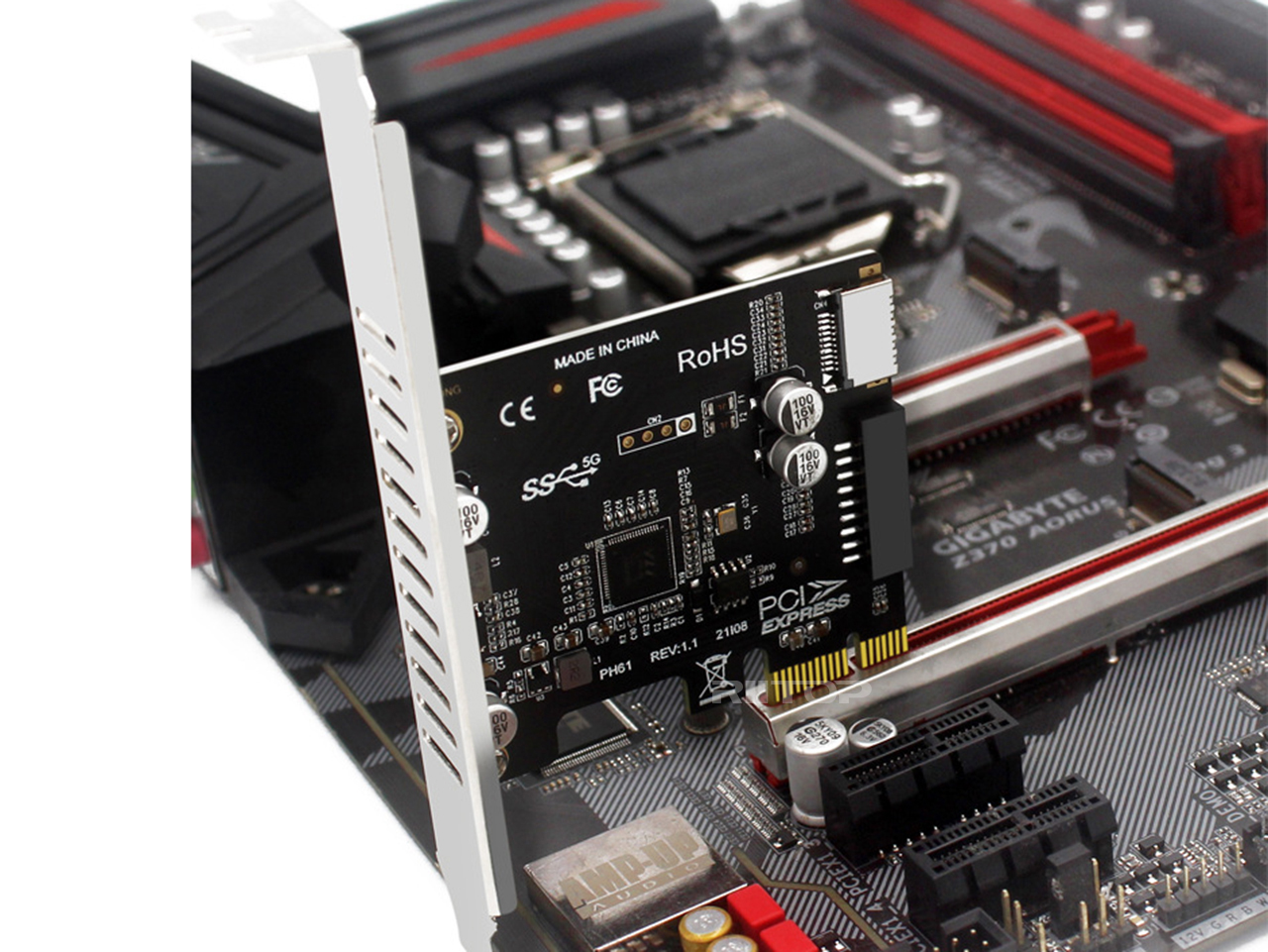

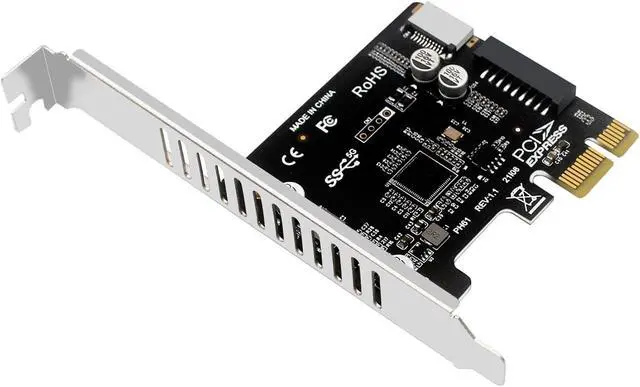

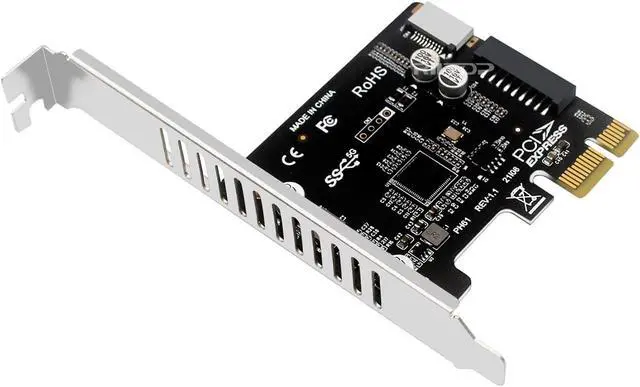

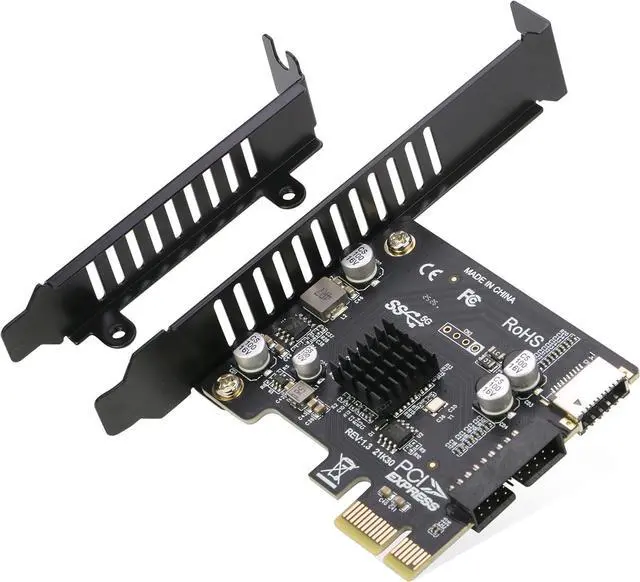

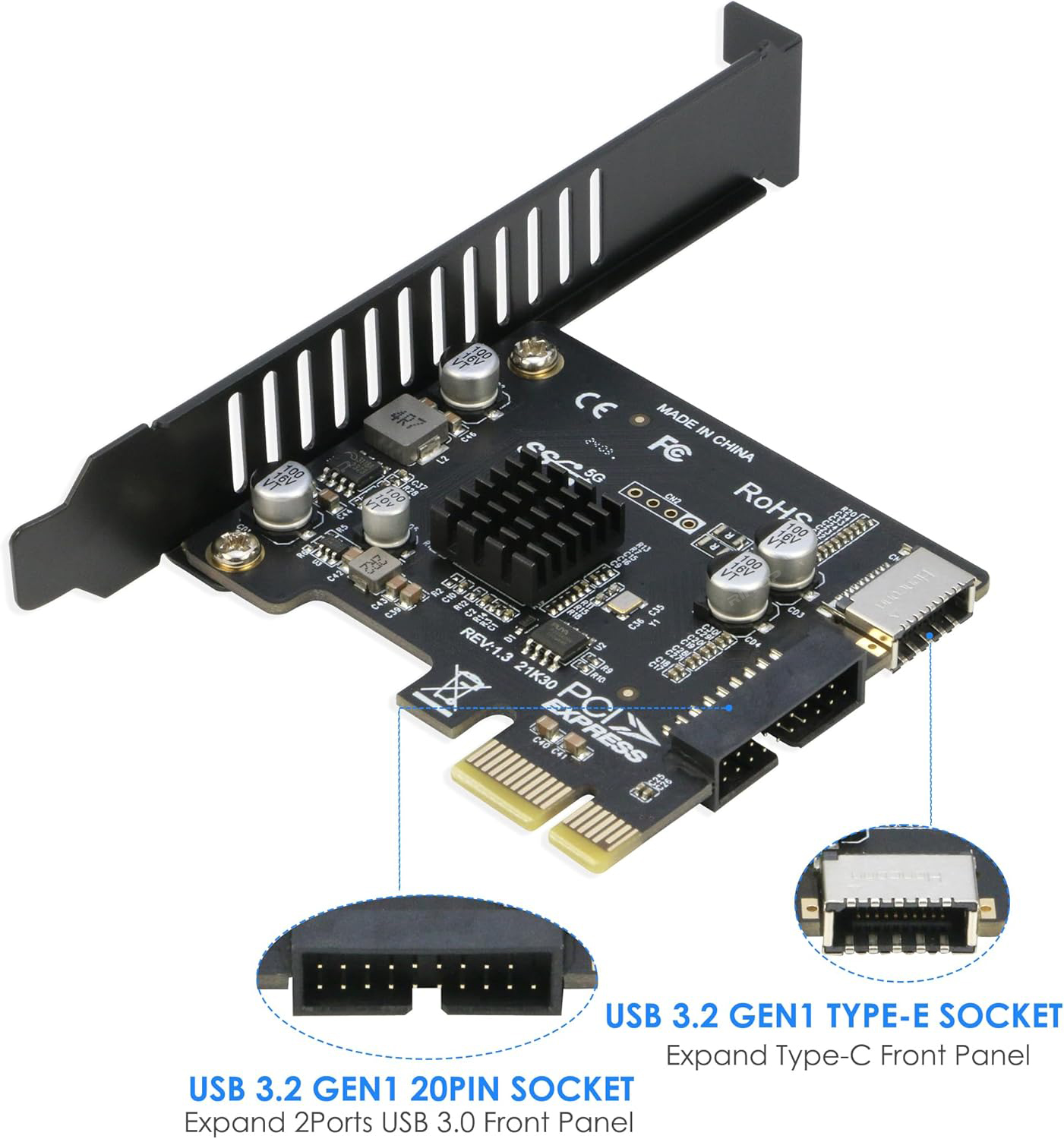

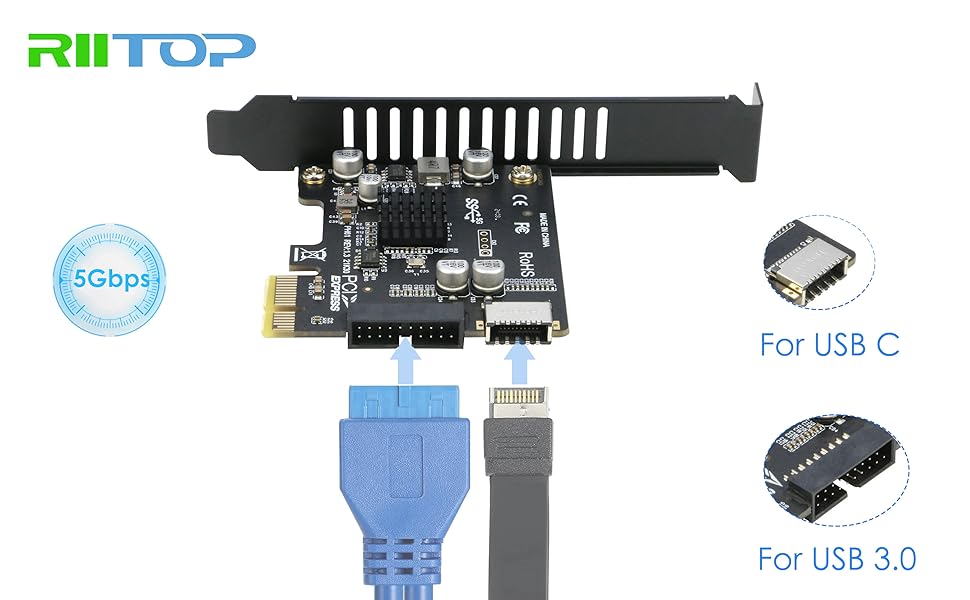

RIITOP USB PCIe to 20Pin+ Type-E Card is a PCIe x1 interface to 1x 20Pin (19+1xempty) USB 3.0 header + 1x Type-E (A Key) USB C Header expansion card. 1x 20Pin (19+1xempty) USB 3.0 header will extend to 2x USB-A ports on front panel of Desktop PCs . 1x Type-E (A Key) USB C Header will expand 1x USB-C Port. You may add 2x 5Gbps max USB-A ports and 1x USB-C Port only via 1x PCI-e Slot on your old motherboard

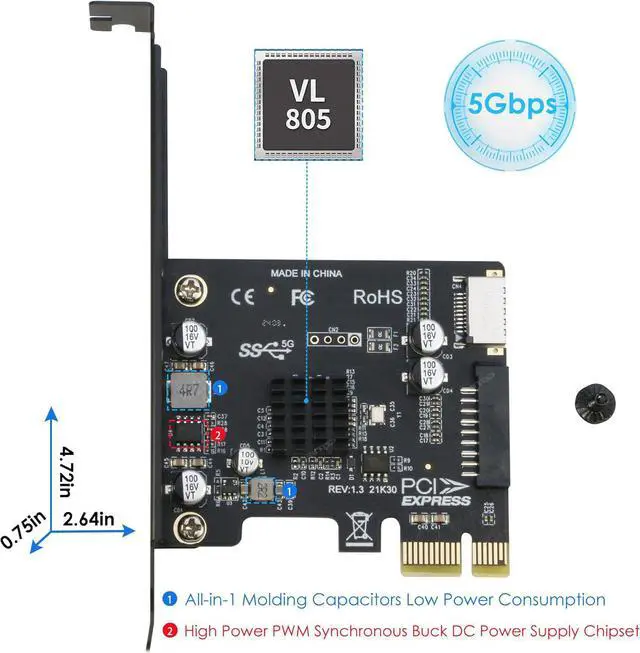

[Built-in 5Gbps Chipset With Heatsink] RIITOP USB 3.0 PCIe Adapter adopts VIA VL805, total 5Gbps bandwidth. The advanced Heatsink will help the chipset working in lower temperature, avoid having any issues with reliability due to overheating.

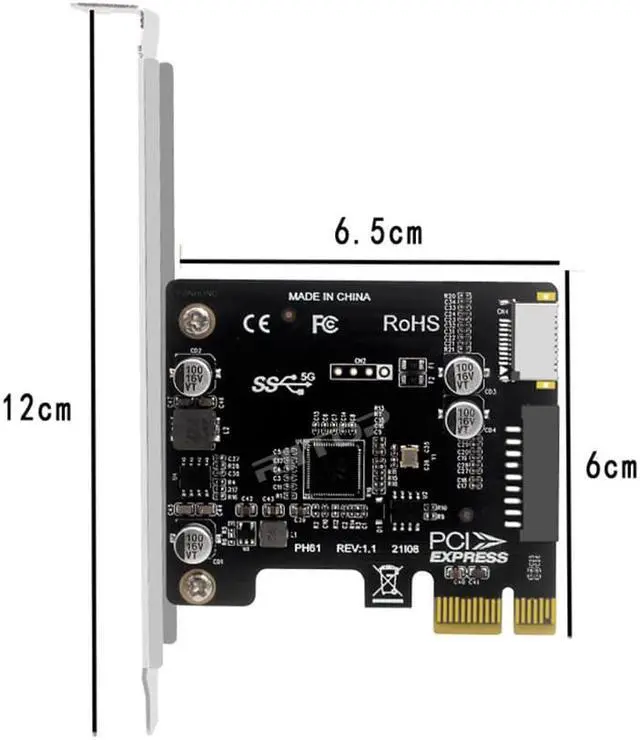

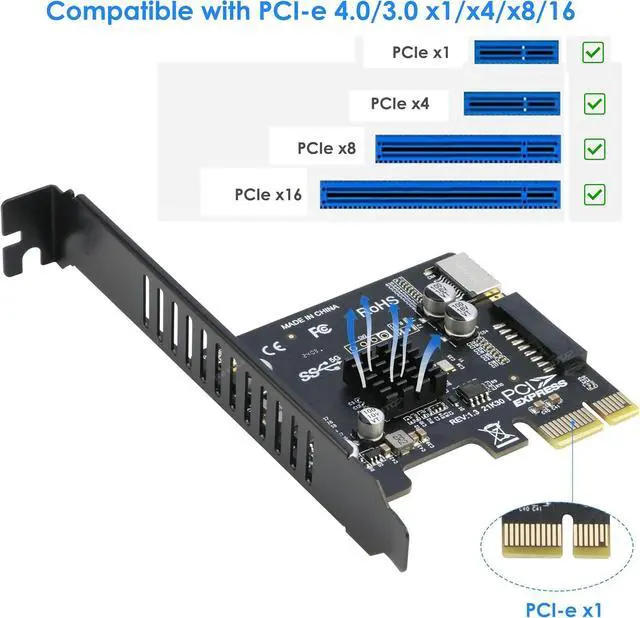

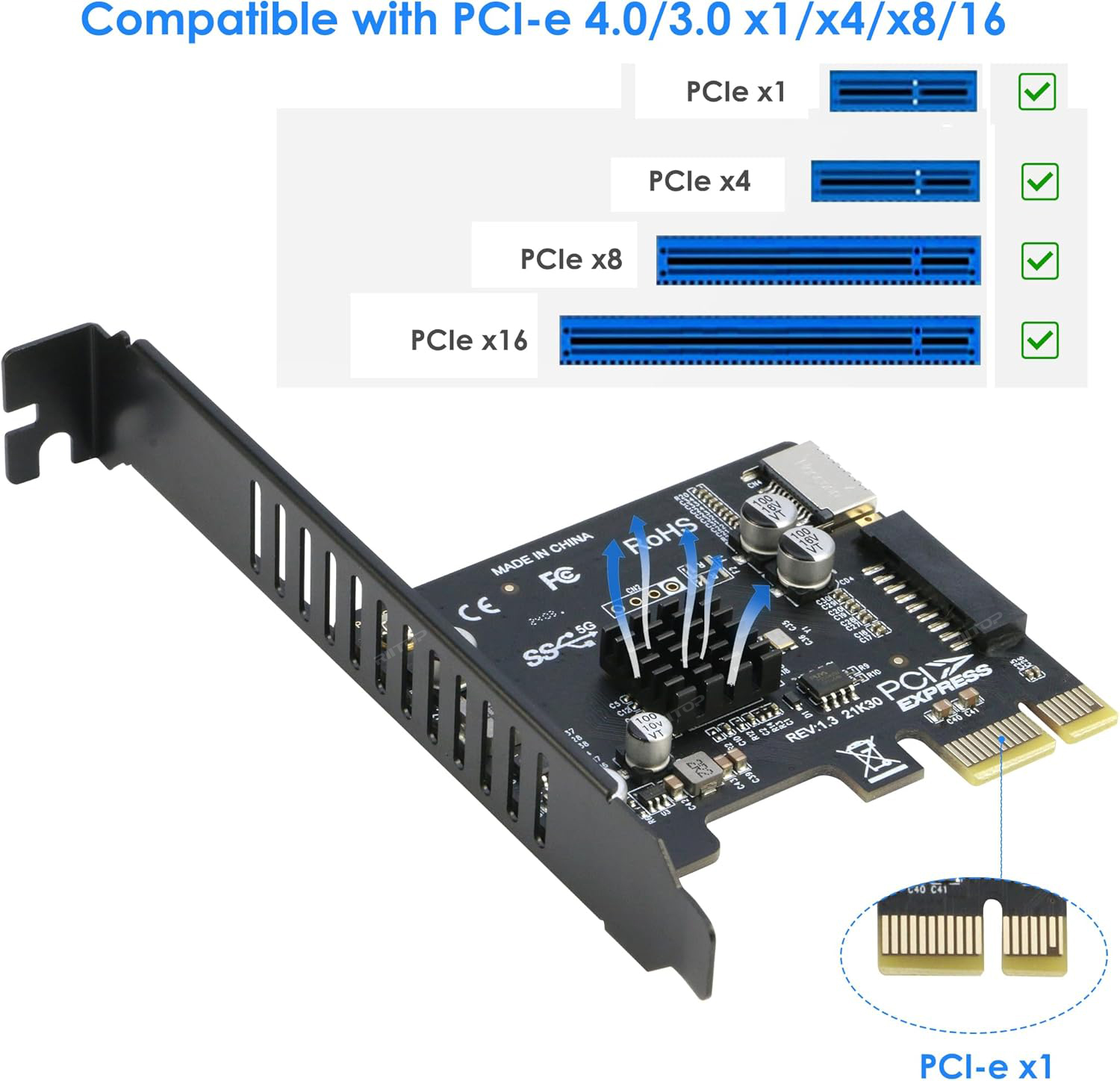

Hardware Requirement: RIITOP USB Expansion Card adopts PCIe x1 design, it can work on PCIe 3.0/4.0 x1, X4, X8, X16 slot, but do not work on any PCI slot. And coming with Both full-size and Half-size brackets will work on Standard Size and Mini PCs.

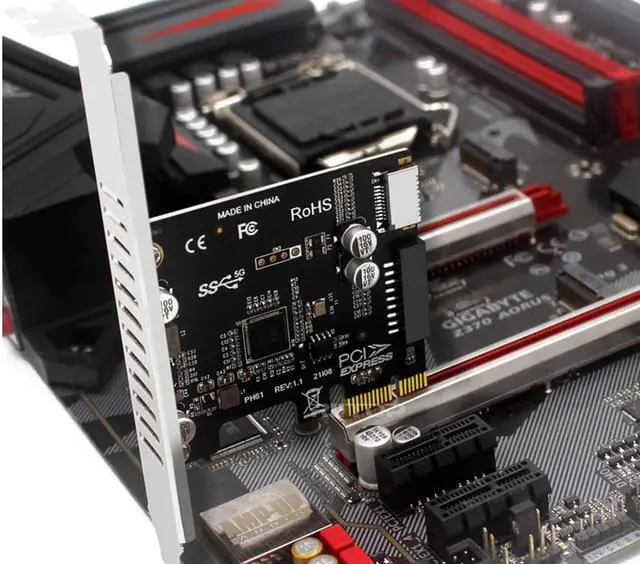

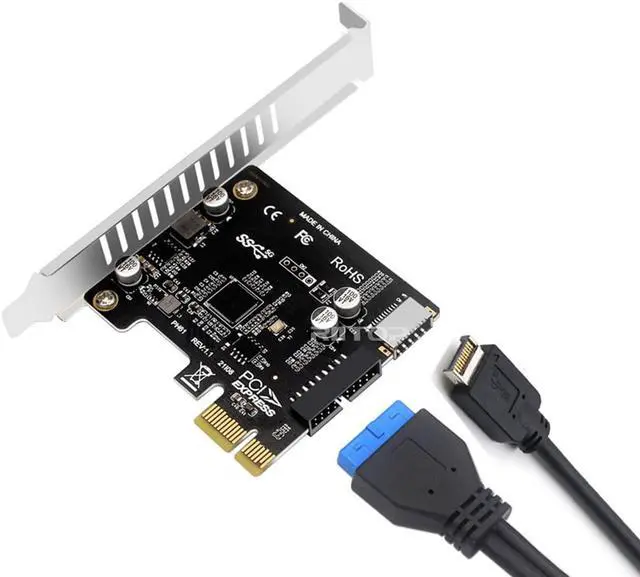

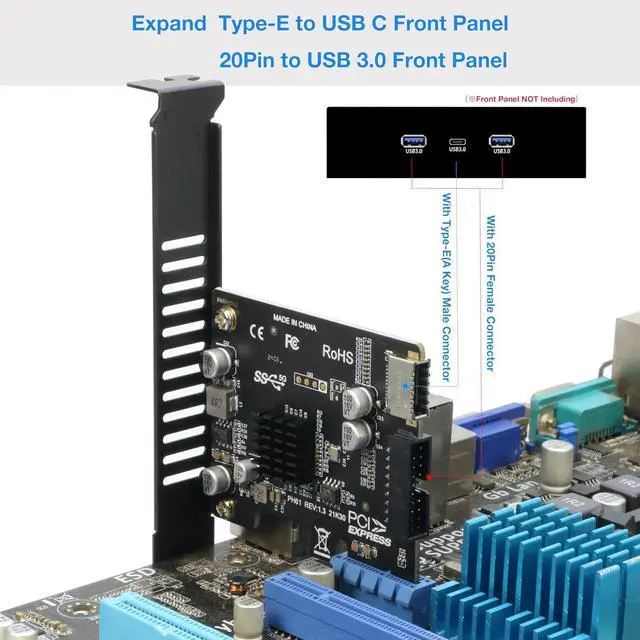

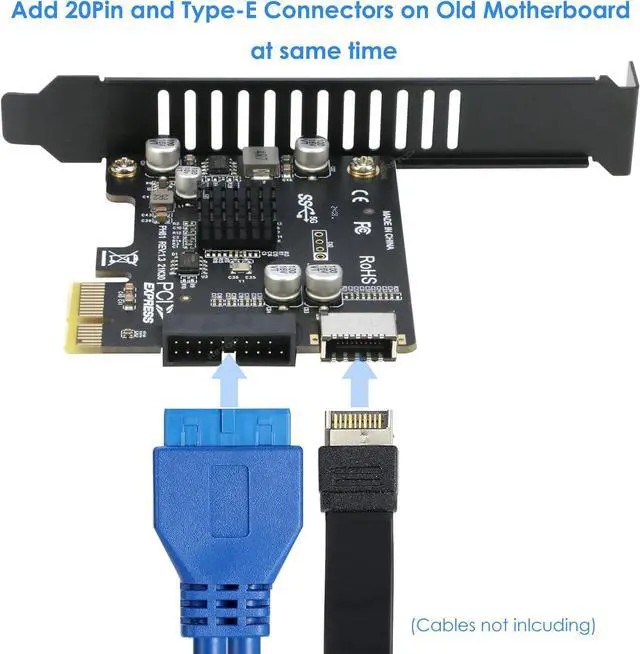

Easy to install: RIITOP PCIe to 20Pin + Type-E Host Internal card can be inserted to PCIe slot on MB, no additional power supply to connect. Please Note: The card can not be connected with any External USB Device directly, You may have 20pin or Type-E Front Panels to work with it together.

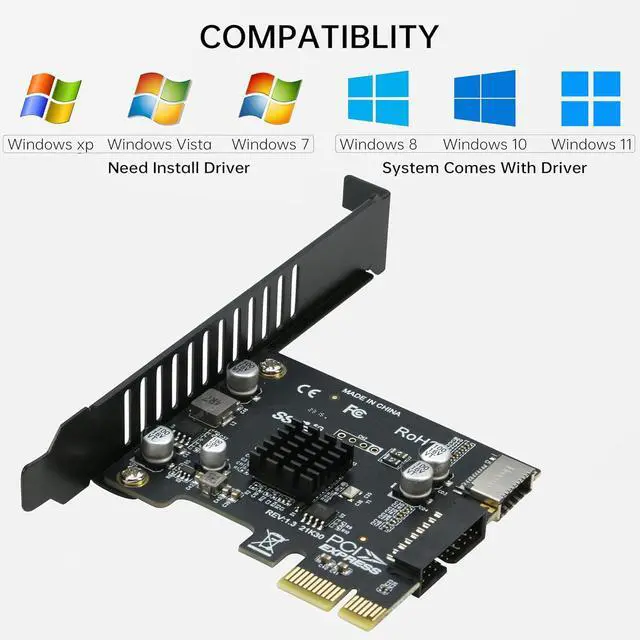

Compatible OS: Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. But Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.
Package Includes:
1x PCIe to 20Pin + Type-E Internal Card.
1x Low Profile bracket.
