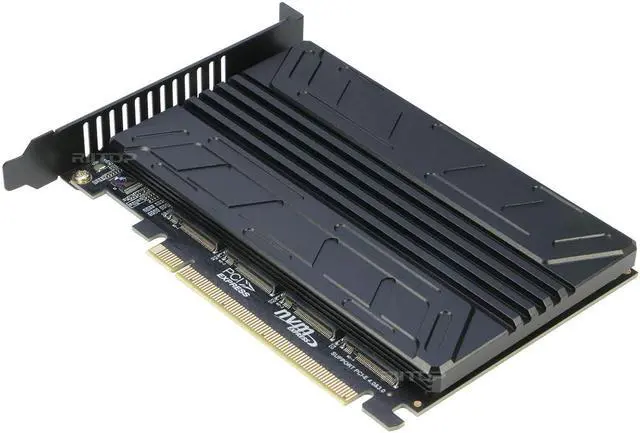

RIITOP 4 Port NVMe SSD Slot Converter to PCI-e 4.0 x16 Host Controller Expansion Card
- 4 Port M.2 NVME SSD (M-key) to PCIE 3.0/4.0 X16 Adapter Card, high-speed transmission 4x32Gbps full-speed transmission, multi-system compatible can be used for Windows/for Mac OS/for Linux

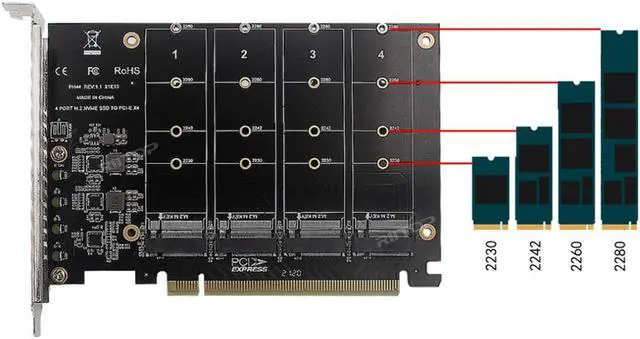

- Compatible with M.2 PCI-e NVMe SSDs: 80x22mm, 60x22mm and 42x22mm, 30x22mm; Not support any M.2 (SATA-Based B+M Key) SSD; Motherboard
- Compatibility: Most Server and X299, X399 can support PCIe x16 Bifurcation.
- 1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo
- 2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" in BIOS
- 3. All of the SSDs are M.2 (M Key) NVMe SSD
- 4. CPU has enough channels to support.
1 x RIITOP Quad NVMe to PCIe 16x Adapter Card
1 x Screwdriver
Screws.
How to Use:
1.Motherboard support:
The motherboard supports PCIE split function, which can be set to PCIE X4X4X4 or 4X4 mode. The motherboard supports PCIE RAID function. For ASUS motherboard supports the function of HyperM.2X16 expansion card.
For ASUS motherboards that support PCIE split, please refer to the following link
https://www.asus.com/tw/support/FAQ/1037507
For ASRock motherboards that support PCIE split, please refer to the following link
https://www.asrock.com/mb/spec/product.cn.asp?Model=ULTRA%20QUAD%20M.2%20CARD#SupportList
Server motherboards, X299 and X399 motherboards have split function
2.CPU support is required, and the CPU must have enough channels. Generally, lowend CPUs do not have enough PCIE channels, so they may not be able to support it either. When purchasing a CPU, you can refer to the motherboard introduction to make the correct choice.
Specification:
Type: RIITOP Quad NVMe to PCIe 16x Adapter Card.
Support Hard Disk: M.2 NVME Protocol SSD (M Key only).
Transmission Speed: 4 x 32Gbps.
Package Contents:
1 x RIITOP Quad NVMe to PCIe 16x Adapter Card
1 x Screwdriver
Screws.
