How do you attach the M.2 drive to the board? The holes are not threaded, nor do they have a binding post attached to hole. The included screws are too short to fasten M.2 through the board to the included threaded device (see pics included in listing)

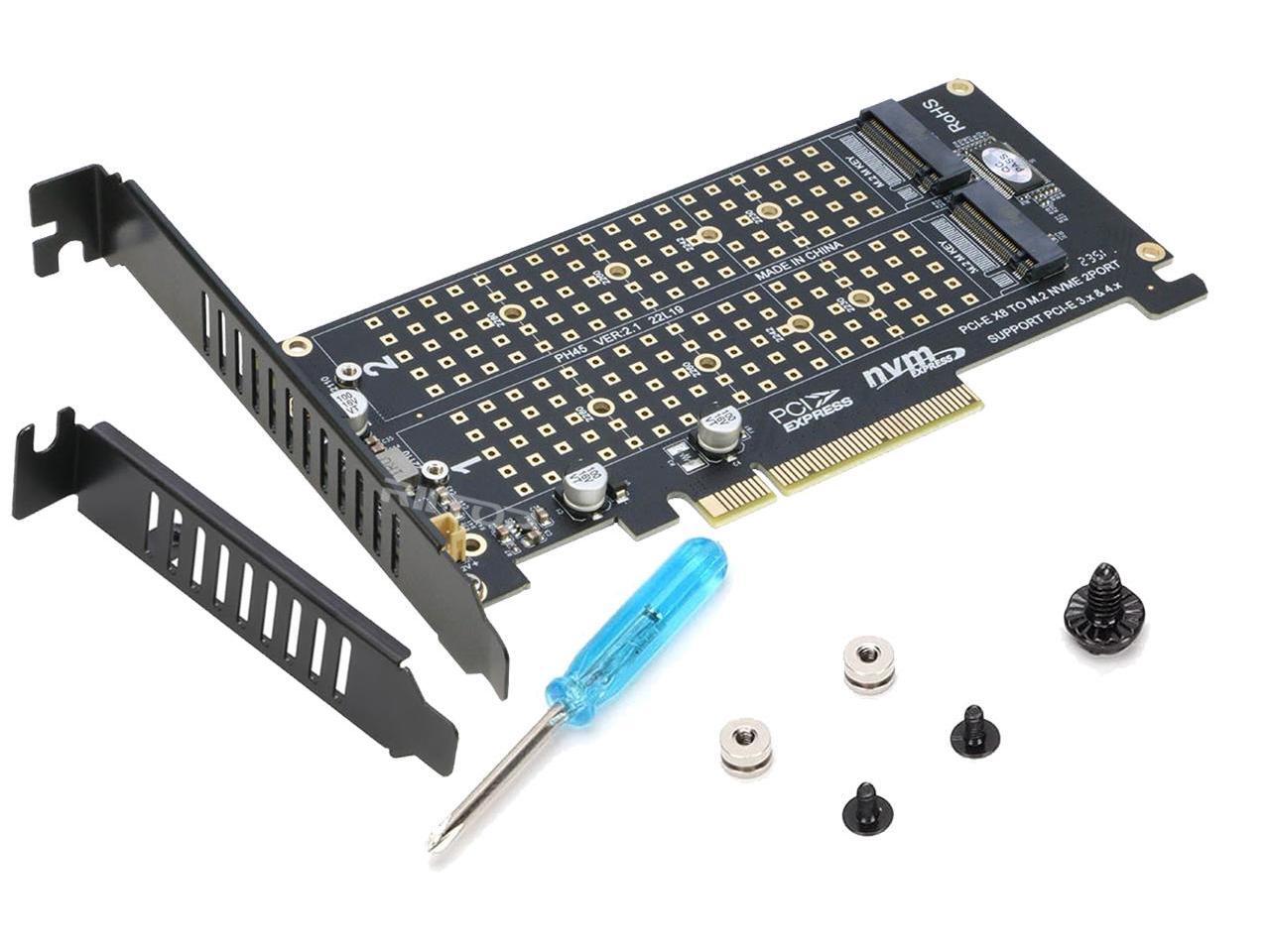

M.2 SSDs Installation steps (Please check the pictures in attachment): 1. M.2 SSD head tilted at 30 degree angle, inserted into Key M interface, 2. The brass standoff snaps into the semi-circular position at the end of the M.2 SSD, 3. Secure the brass standoff from the back with screw.

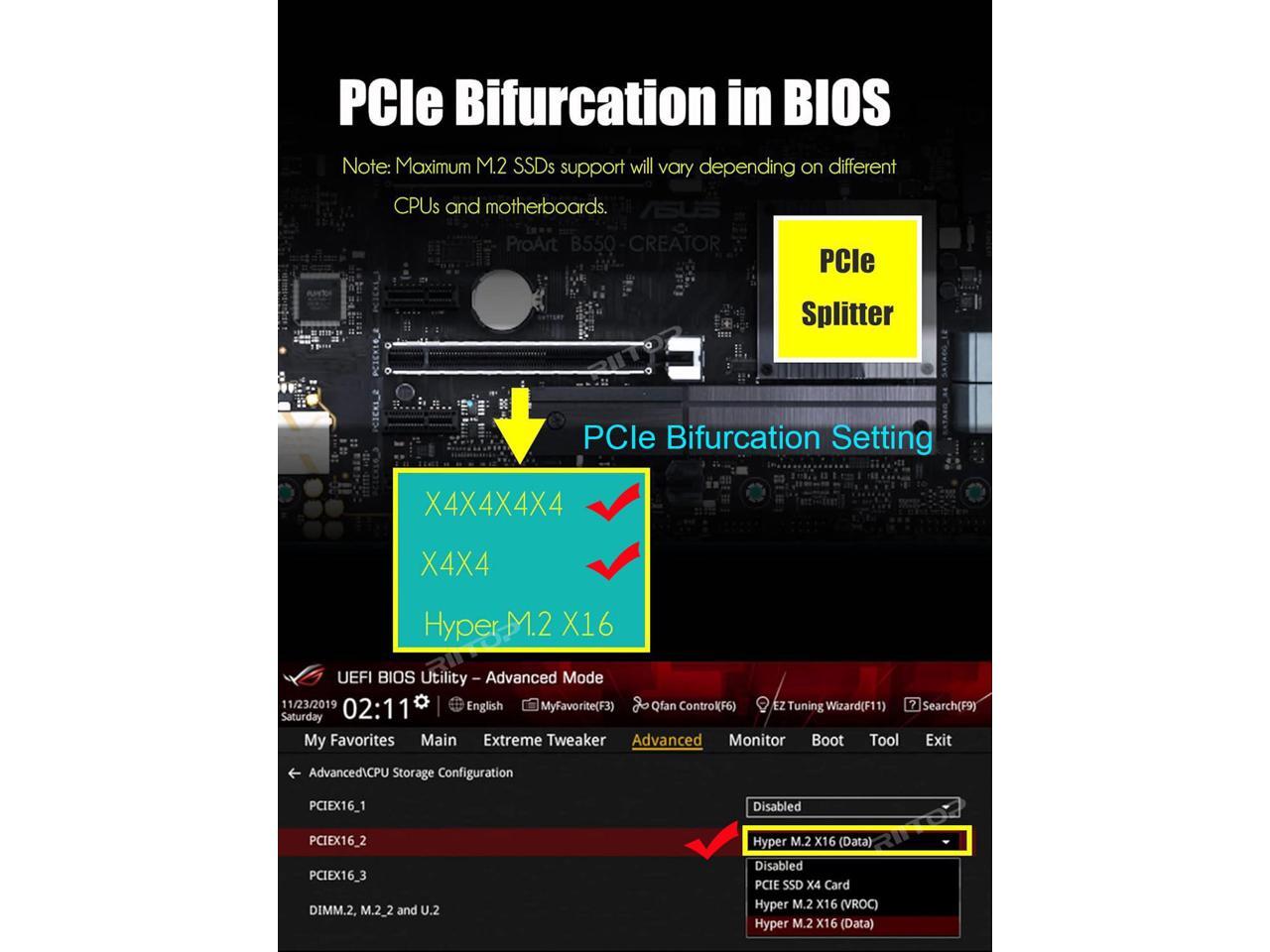

PCIE bifurcation required?

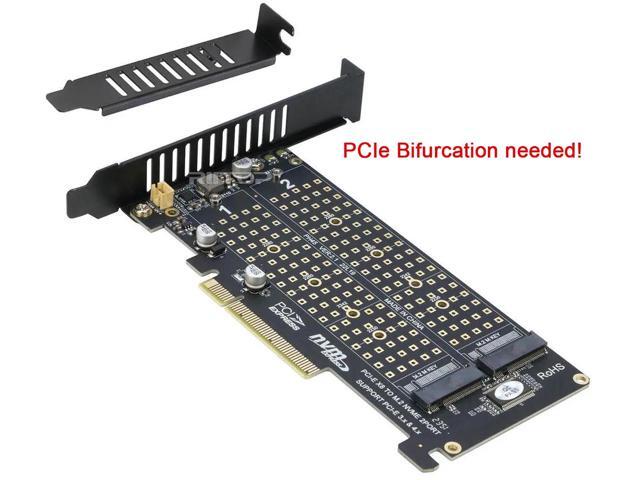

Yes, your motherboard must support PCIE Bifurcation function for the adapter card to recognize more than one M.2 PCIe SSD.

Questions & Answers: Dual M.2 NVME PCIE Adapter Card, 2 x 32Gbps Full Speed PCIE 3.0 PCIE 4.0 X16 Expansion Card, M.2 SSD PCIE X8 M Key Hard Drive Converter Reader Express Adapter

(1)

double click image to zoom in

Top Rated Shop All RIITOP Products | Visit UitTek Store

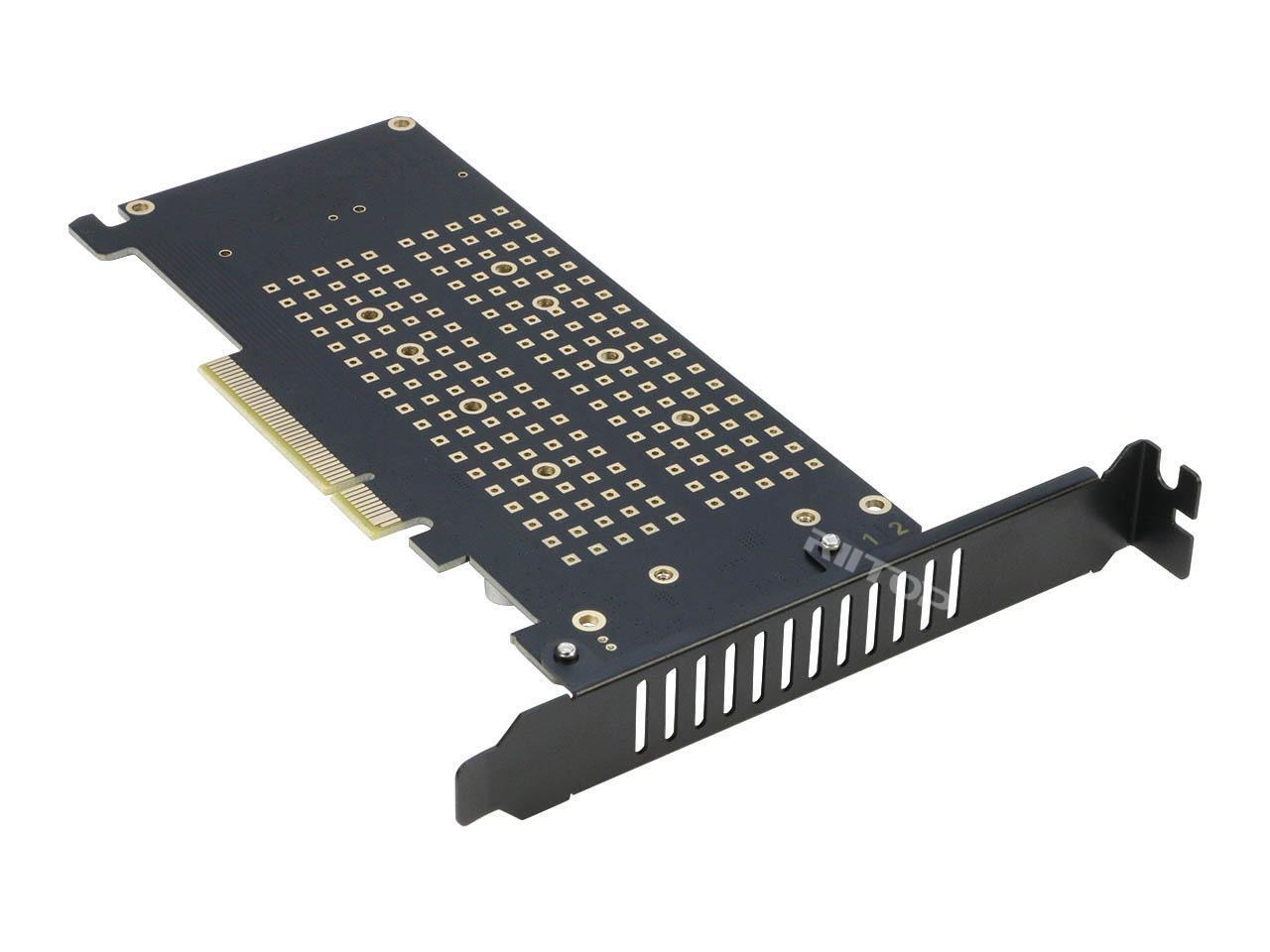

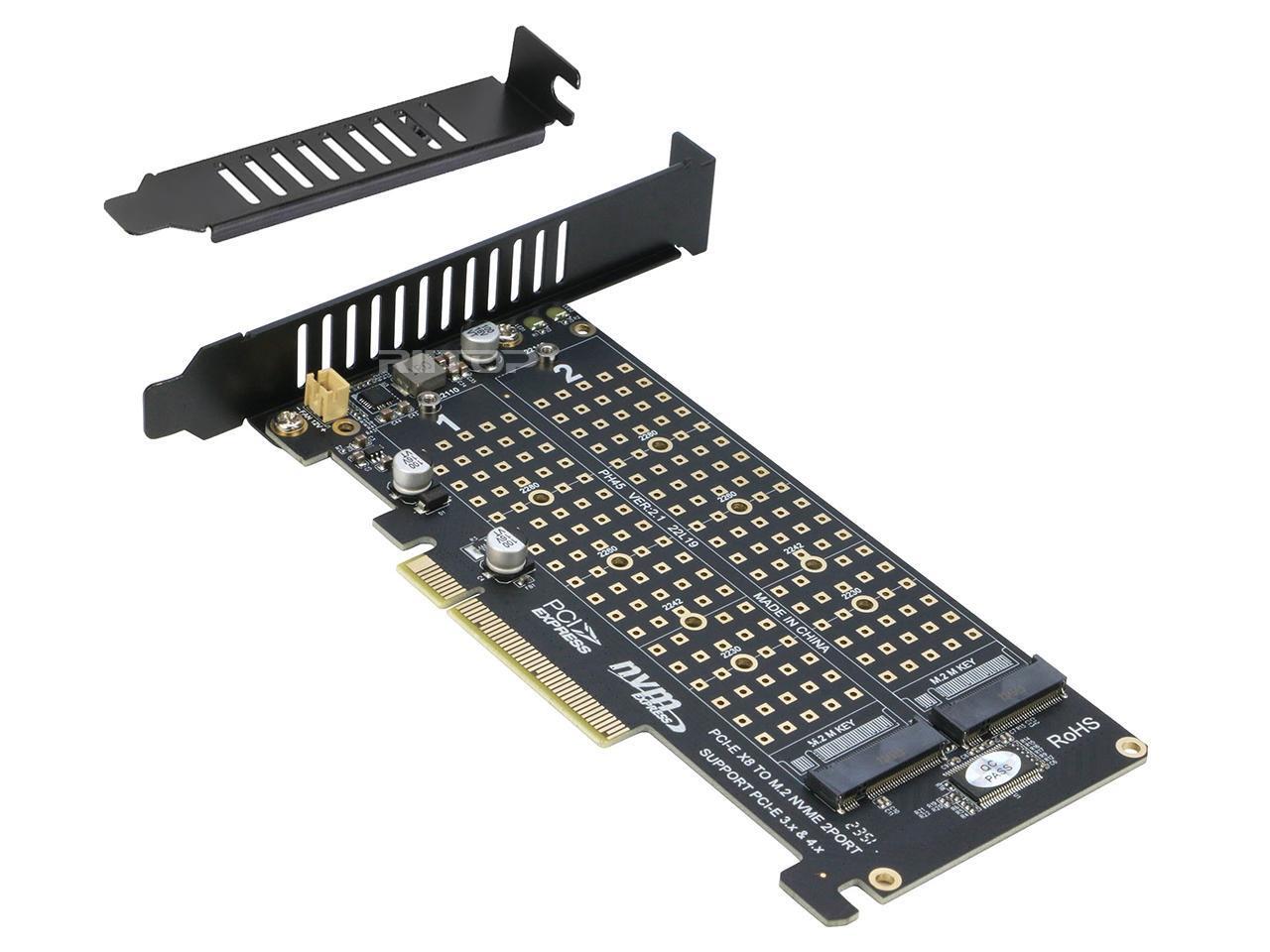

Dual M.2 NVME PCIE Adapter Card, 2 x 32Gbps Full Speed PCIE 3.0 PCIE 4.0 X16 Expansion Card, M.2 SSD PCIE X8 M Key Hard Drive Converter Reader Express Adapter

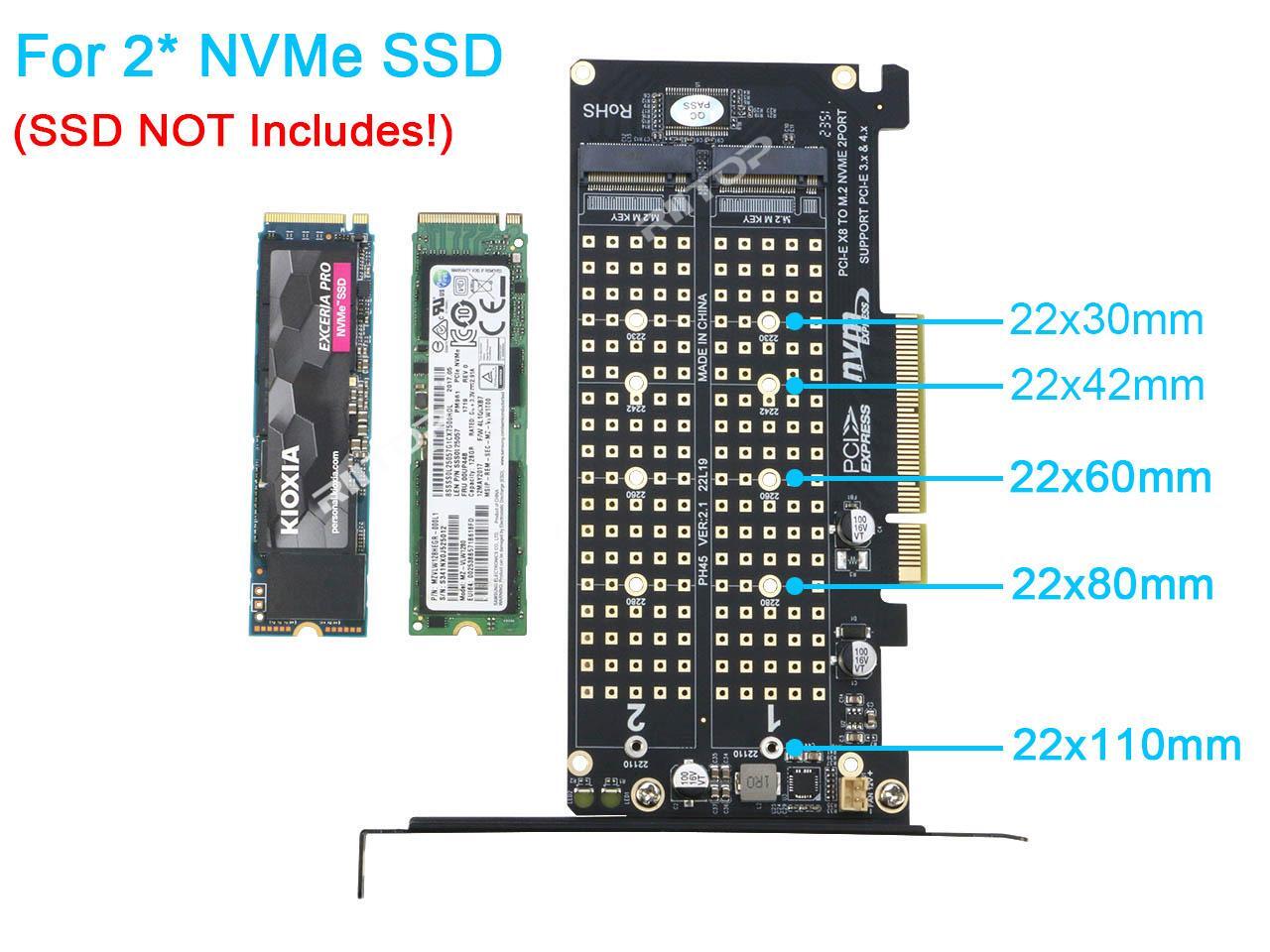

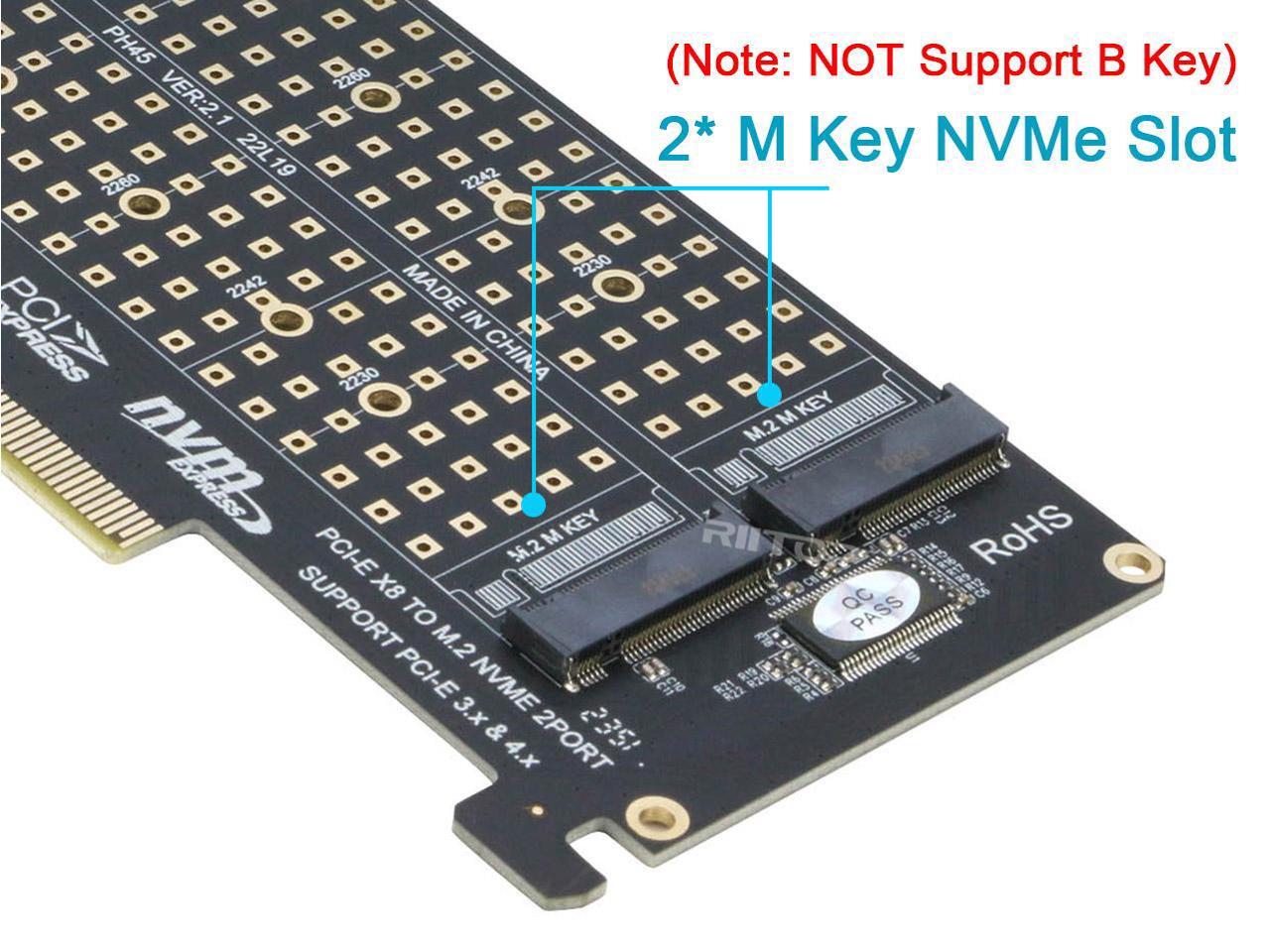

PCIE to NVME expansion card, supports PCIE 3.0, PCIE 4.0 standard transmission speed, and supports 2 X4 full channel full speed NVME SSD and M.2 PCIE interface device, Support M Key hard disk.
High Speed Dual disk Adapter Card: Desktop PC SSD expansion card, high-speed dual disk adapter card. This adapter card has 2 expansion cards, which can simultaneously expand 2 x 32Gbps full-speed signals, is a professional computer accessory.
This NVMe PCIe adapter can further improve the performance of the hard disk, so that the computer performance can be fully utilized in the fields of design, video, etc, plug and play, easy to install.

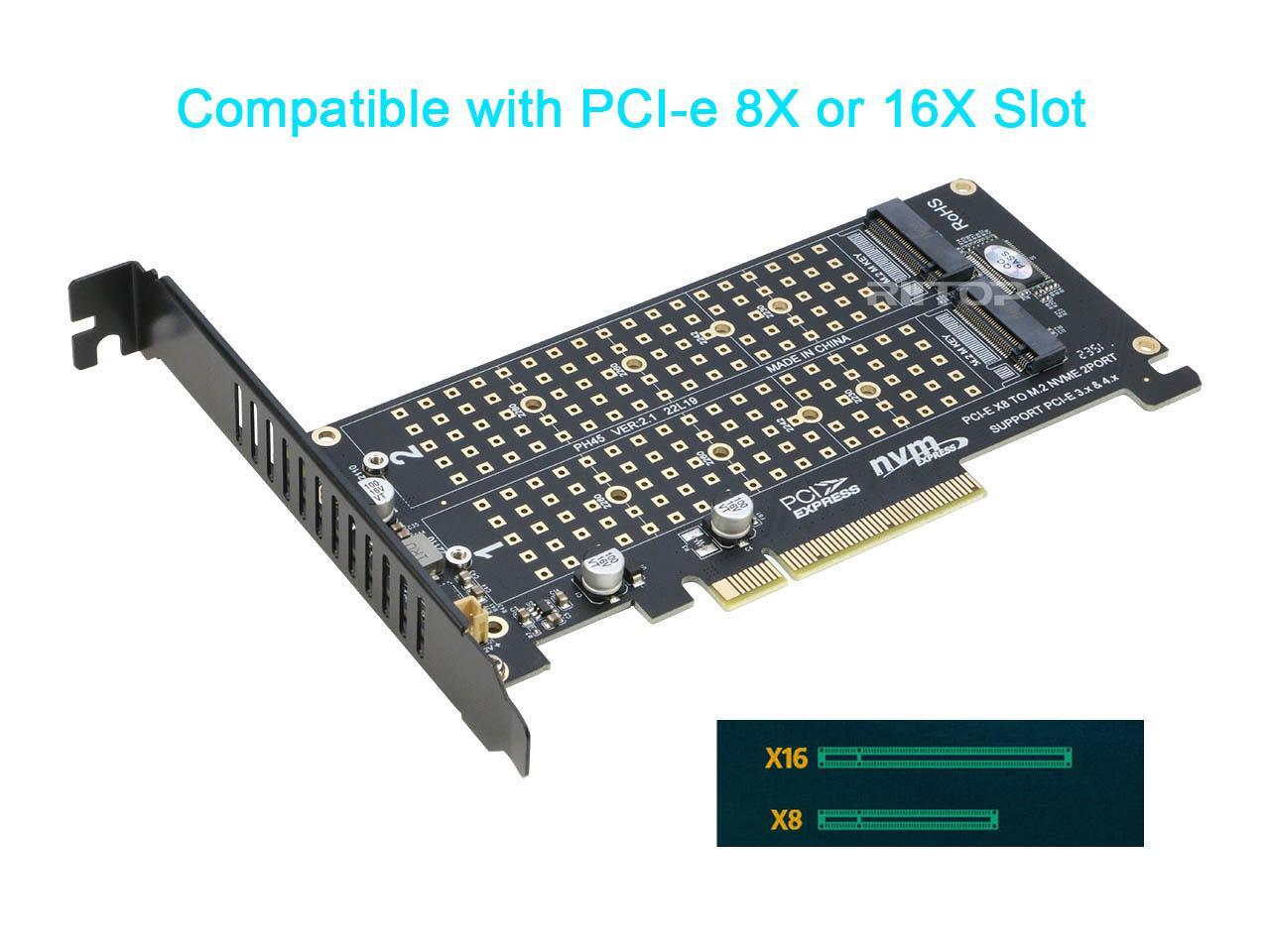

The PCIE X8 interface adopts thickening technology, which makes the contact better and the transmission speed more stable. Has an upgraded M.2 hard disk interface, which can speed up the game startup speed and improve work efficiency.

$24^.99 –
