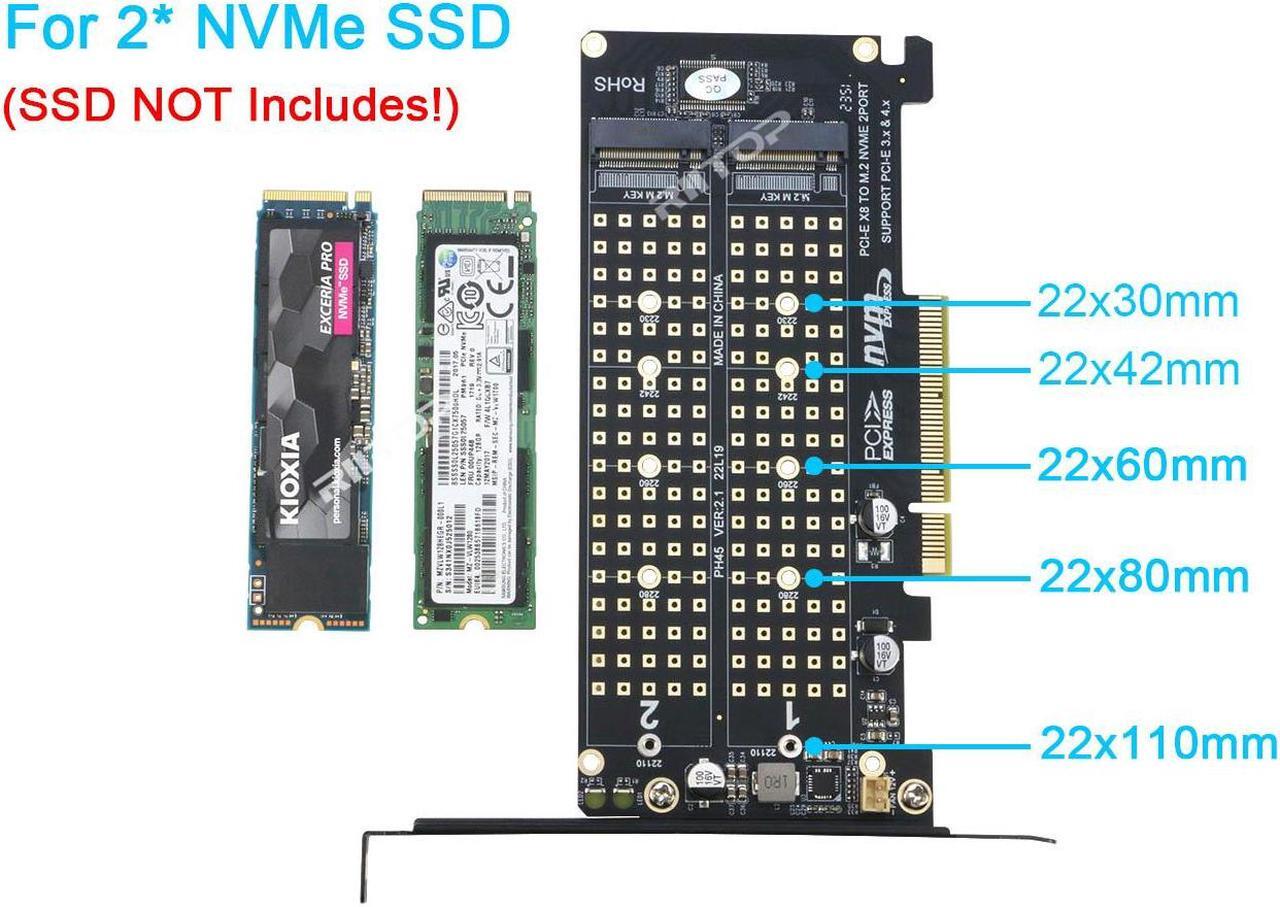

- Add 2 x M.2 PCIe (NVMe/AHCI) SSD (M-Key) onto a single PCIe X16 host adapter, so you can access 2 x M.2 PCIe SSD at the same time.
- This NVMe PCIe adapter can further improve the performance of the hard disk, so that the computer performance can be fully utilized in the fields of design, video, etc, plug and play, easy to install.
- Support soft RAID in windows/Linux/3rd party software.
- Not compatible with Mac Pro 5.1.
Important Notice:
1. Please make sure your motherboard supports PCIE split function (PCIe Bifurcation), which can be set to PCIE X4X4X4X4 or 4X4 mode.
2. Hyper M.2X16 set to 'Hyper M.2X16 Data' mode.

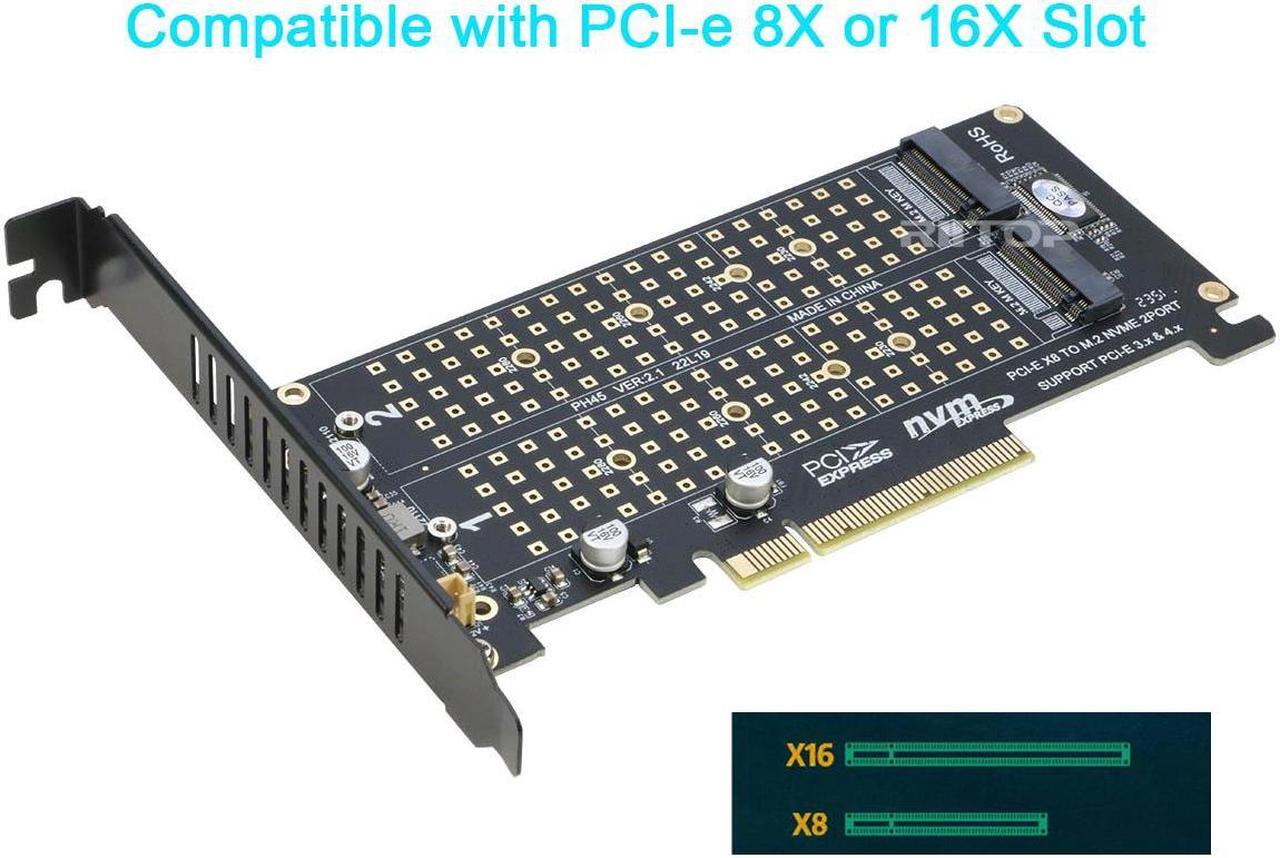

3. One free PCI-e x8 or x16 slot.
Important Noted:
This RIITOP M.2 PCIe SSD Host Adapter can NOT splitter PCIE X16 to PCIe X4X4X4X4 or X4X4, so your motherboard must support PCIE Bifurcation function. Otherwise, only one M.2 PCIe SSD will be recognized. If you are not sure PCIe Bifurcation of your motherboard, please provide the model information, and we will reply within 24 hours.

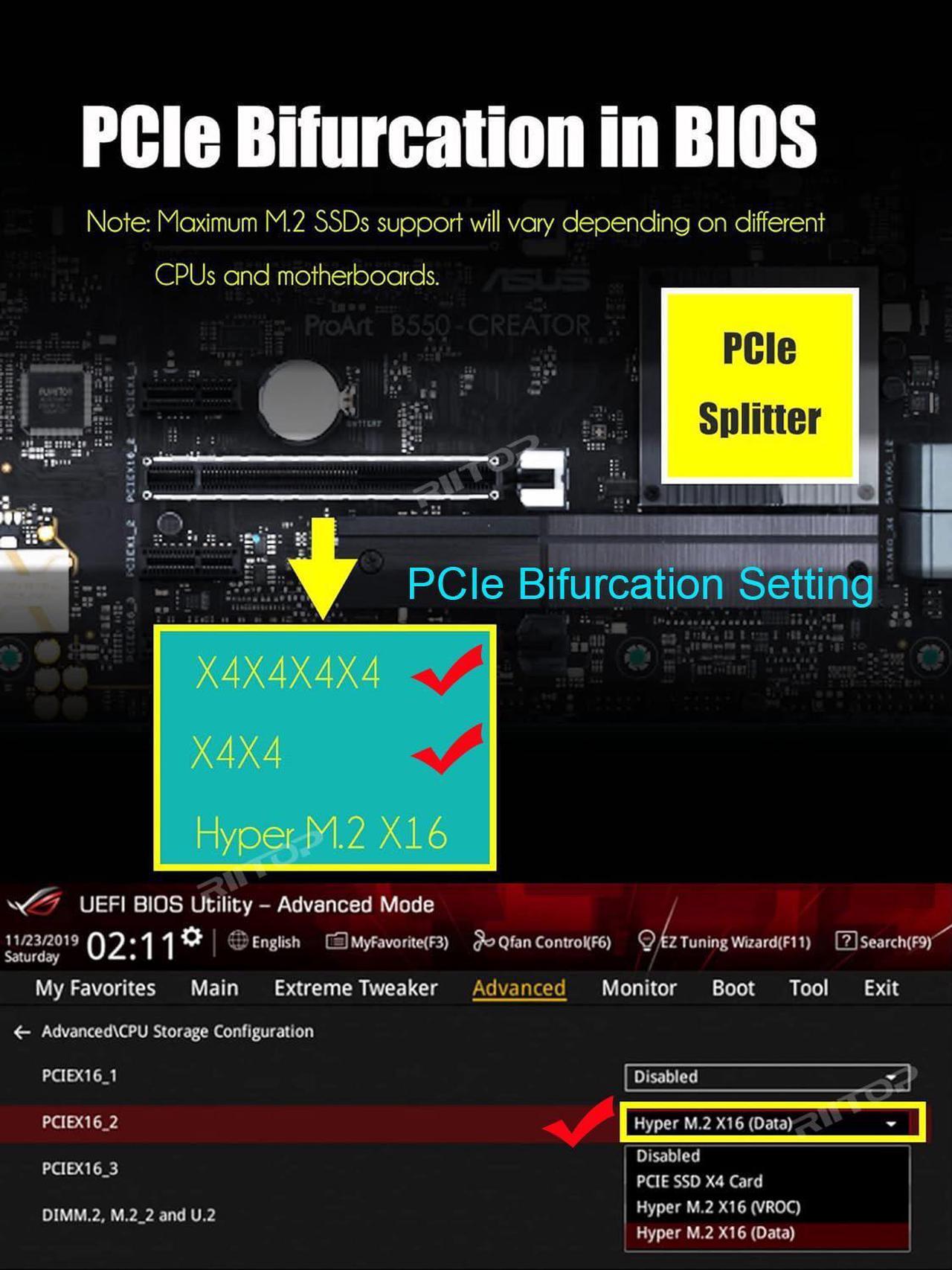

- Setup PCIE splitter in BIOS/UEFI into X4X4X4X4 OR X4X4 mode(Compatible with Hyper M.2 X16 mode in ASUS).
- If PCIE lane splitter to X8X4X4 mode, it will be recognise only 1 x M.2 PCIE SSD.
- Number of M.2 PCIE SSD may vary depending on different CPUs and motherboards.
Note:
This adapter card does NOT support hardware raid, the card only supports the formation of soft raid under win10 system, or the use of other third-party software to build raid.
- When you find 1 separate M.2 PCIE SSD in Disk Management of Windows 10,
- Right click the disk volume, which you want to setup soft RAID,
- A pop-up window appears, click the option (Striped/Mirrored).

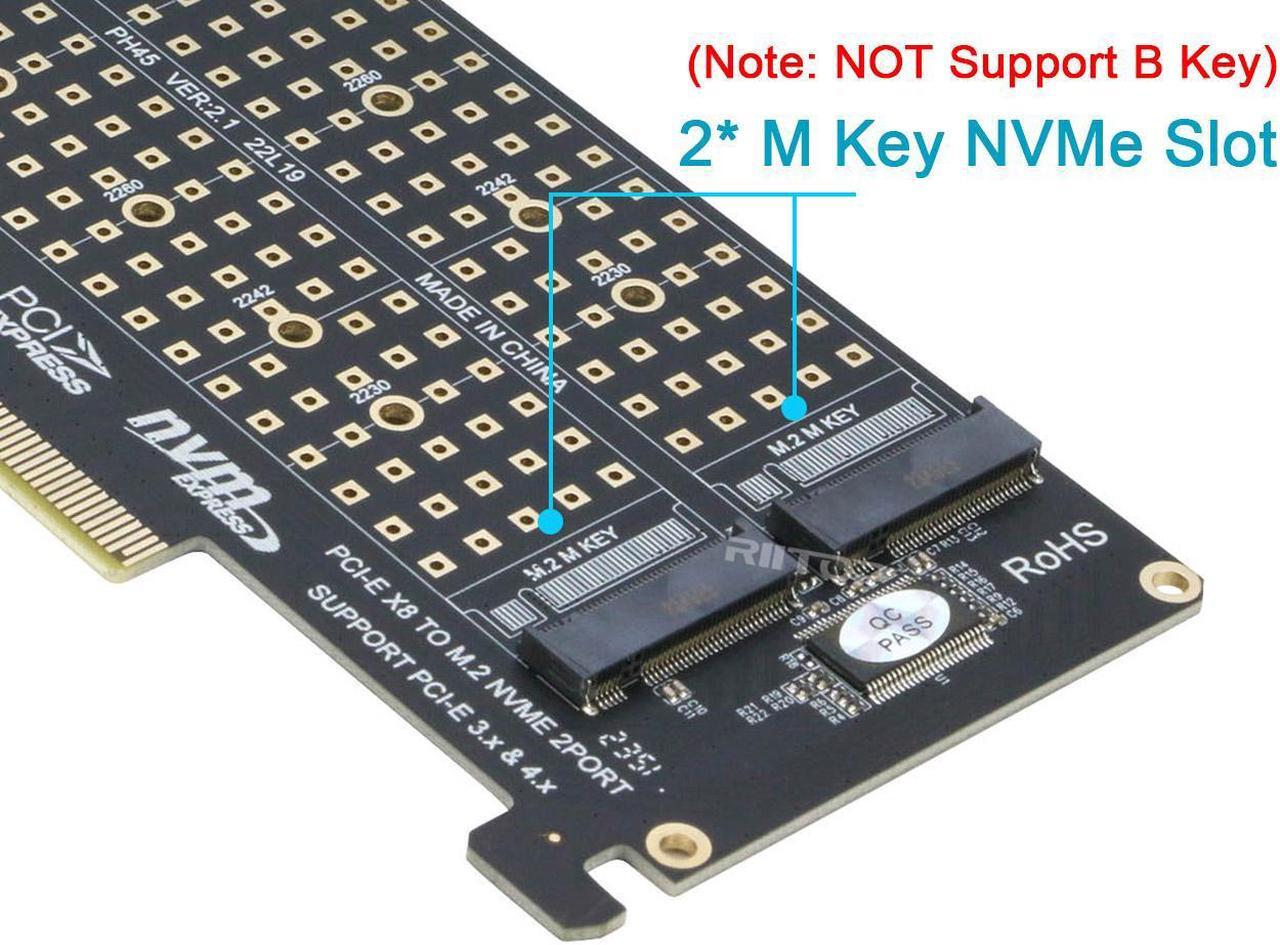

- M.2 SSD head tilted at 30 degree angle, inserted into Key M interface,
- The brass standoff snaps into the semi-circular position at the end of the M.2 SSD,
- Secure the brass standoff from the back with screw.

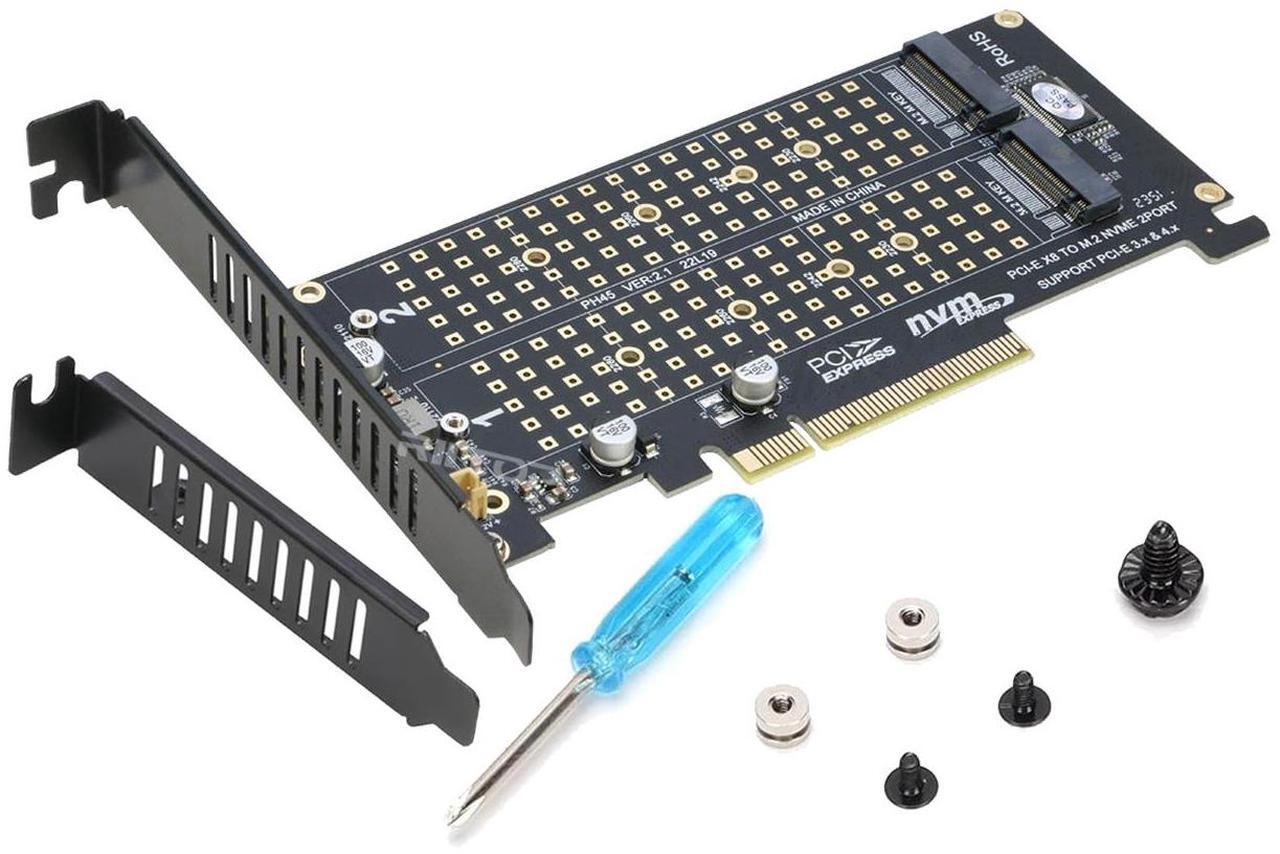

1 x Dual NVMe to PCIe 8x/16x Adapter Card.
2 x Nuts.
3 x Screws.
1 x Screwdriver.
